2016 MINI Clubman Owner's Manual

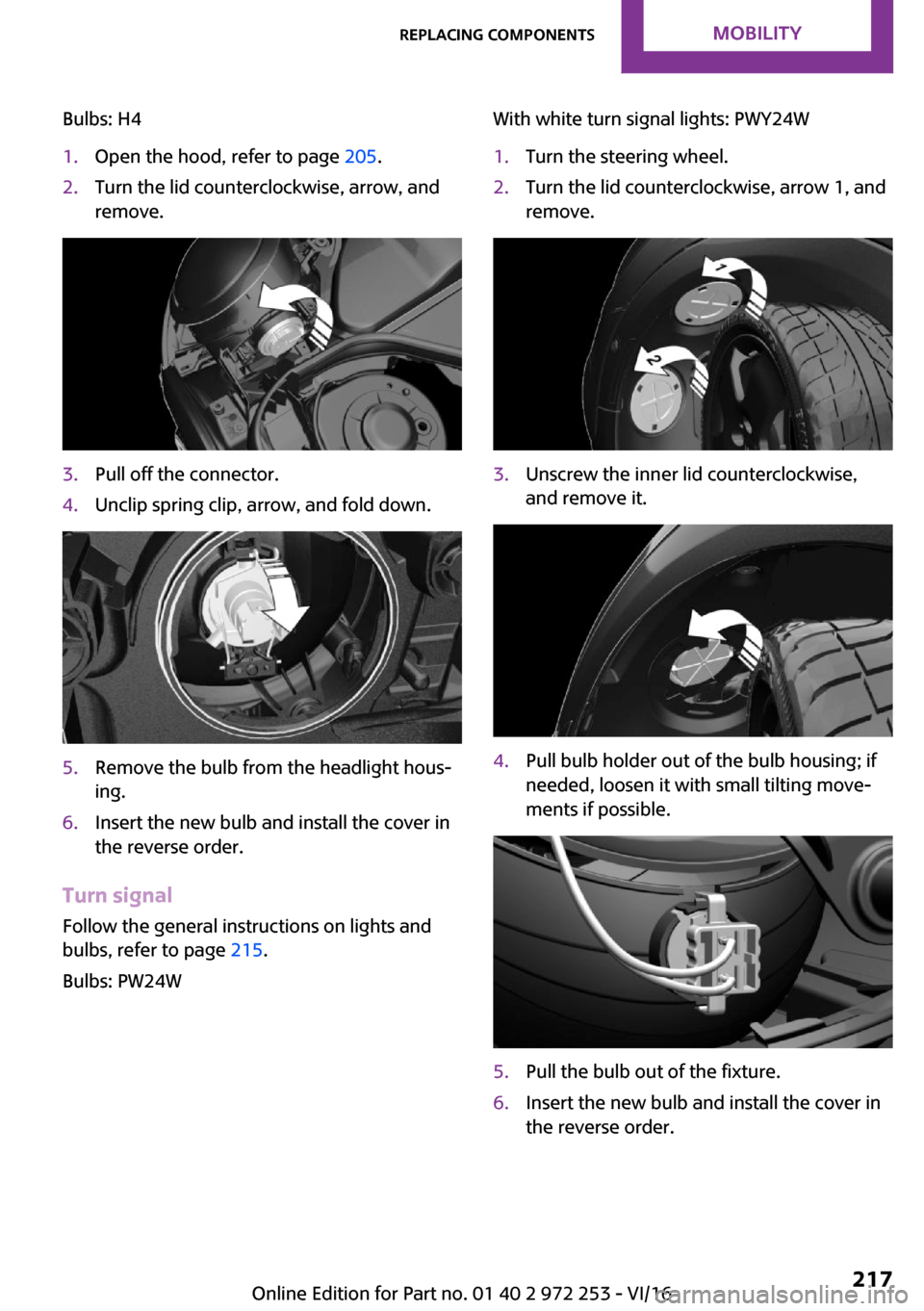

Bulbs: H41.Open the hood, refer to page 205.2.Turn the lid counterclockwise, arrow, and
remove.3.Pull off the connector.4.Unclip spring clip, arrow, and fold down.5.Remove the bulb from the headlight hous~ ing.6.Insert the new bulb and install the cover in
the reverse order.
Turn
signal
Follow the general instructions on lights and
bulbs, refer to page 215.
Bulbs: PW24W
With white turn signal lights: PWY24W1.Turn the steering wheel.2.Turn the lid counterclockwise, arrow 1, and remove.3.Unscrew the inner lid counterclockwise,and remove it.4.Pull bulb holder out of the bulb housing; ifneeded, loosen it with small tilting move~ments if possible.5.Pull the bulb out of the fixture.6.Insert the new bulb and install the cover in
the reverse order.Seite 217Replacing
componentsMOBILITY217
Online Edition for Part no. 01 40 2 972 253 - VI/16

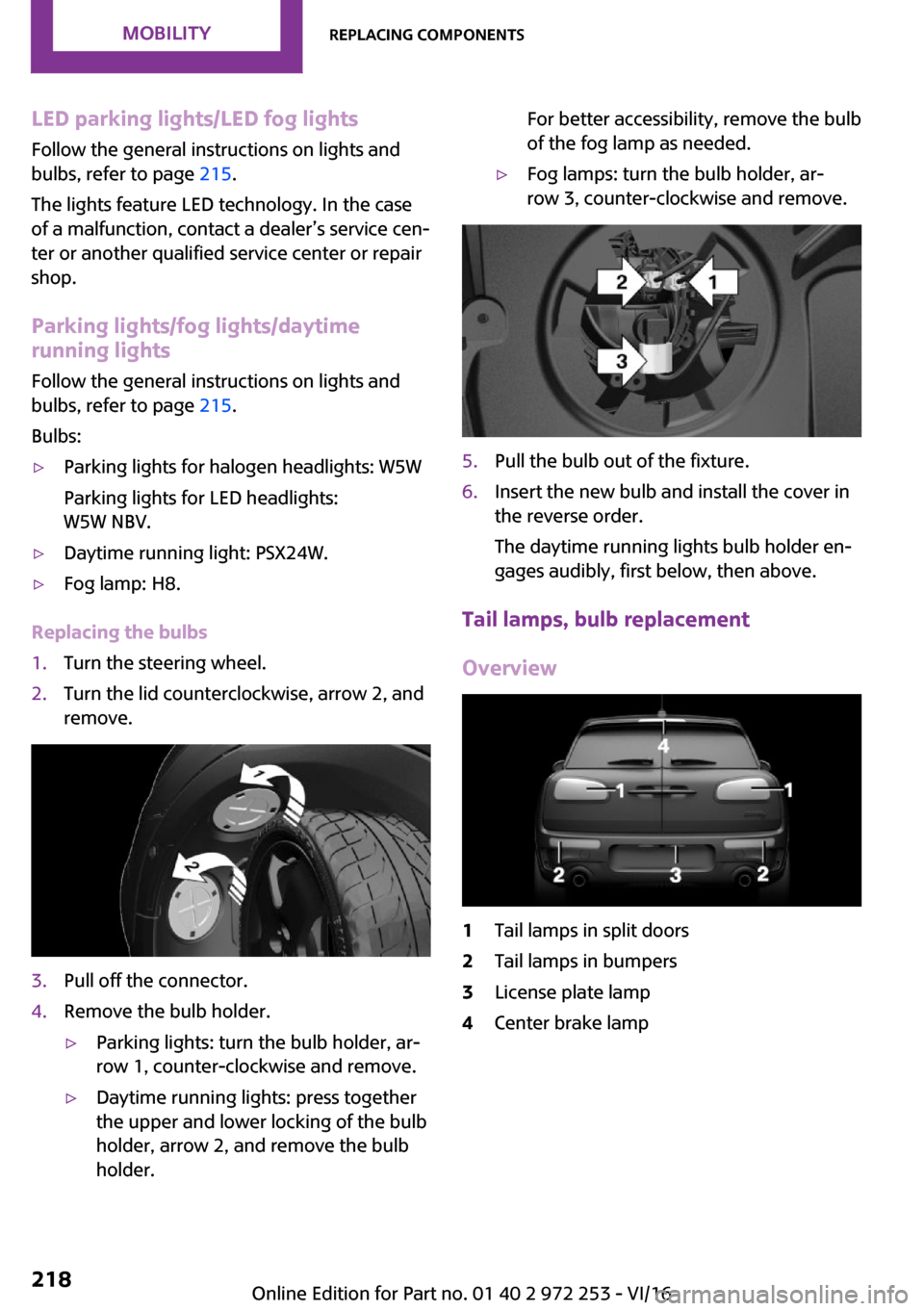

LED
parking
lights/LED
fog
lightsFollow the general instructions on lights and
bulbs, refer to page 215.
The lights feature LED technology. In the case of a malfunction, contact a dealer

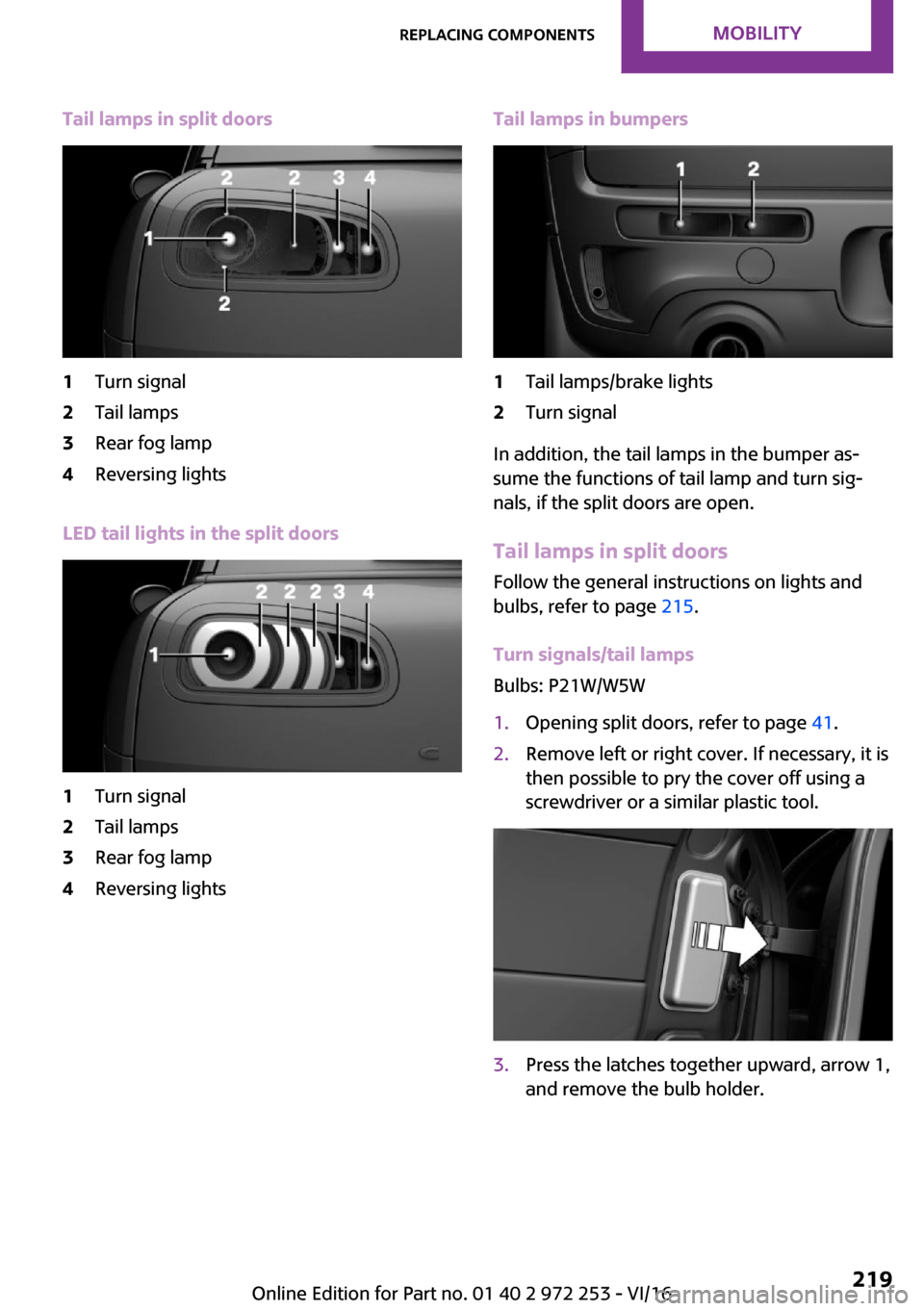

Tail
lamps
in
split
doors1Turn signal2Tail lamps3Rear fog lamp4Reversing lights
LED
tail
lights
in
the
split
doors
1Turn signal2Tail lamps3Rear fog lamp4Reversing lightsTail
lamps
in
bumpers1Tail lamps/brake lights2Turn signal
In addition, the tail lamps in the bumper as~sume the functions of tail lamp and turn sig~
nals, if the split doors are open.
Tail
lamps
in
split
doors
Follow the general instructions on lights and
bulbs, refer to page 215.
Turn
signals/tail
lamps
Bulbs: P21W/W5W
1.Opening split doors, refer to page 41.2.Remove left or right cover. If necessary, it is
then possible to pry the cover off using ascrewdriver or a similar plastic tool.3.Press the latches together upward, arrow 1,and remove the bulb holder.Seite 219Replacing
componentsMOBILITY219
Online Edition for Part no. 01 40 2 972 253 - VI/16

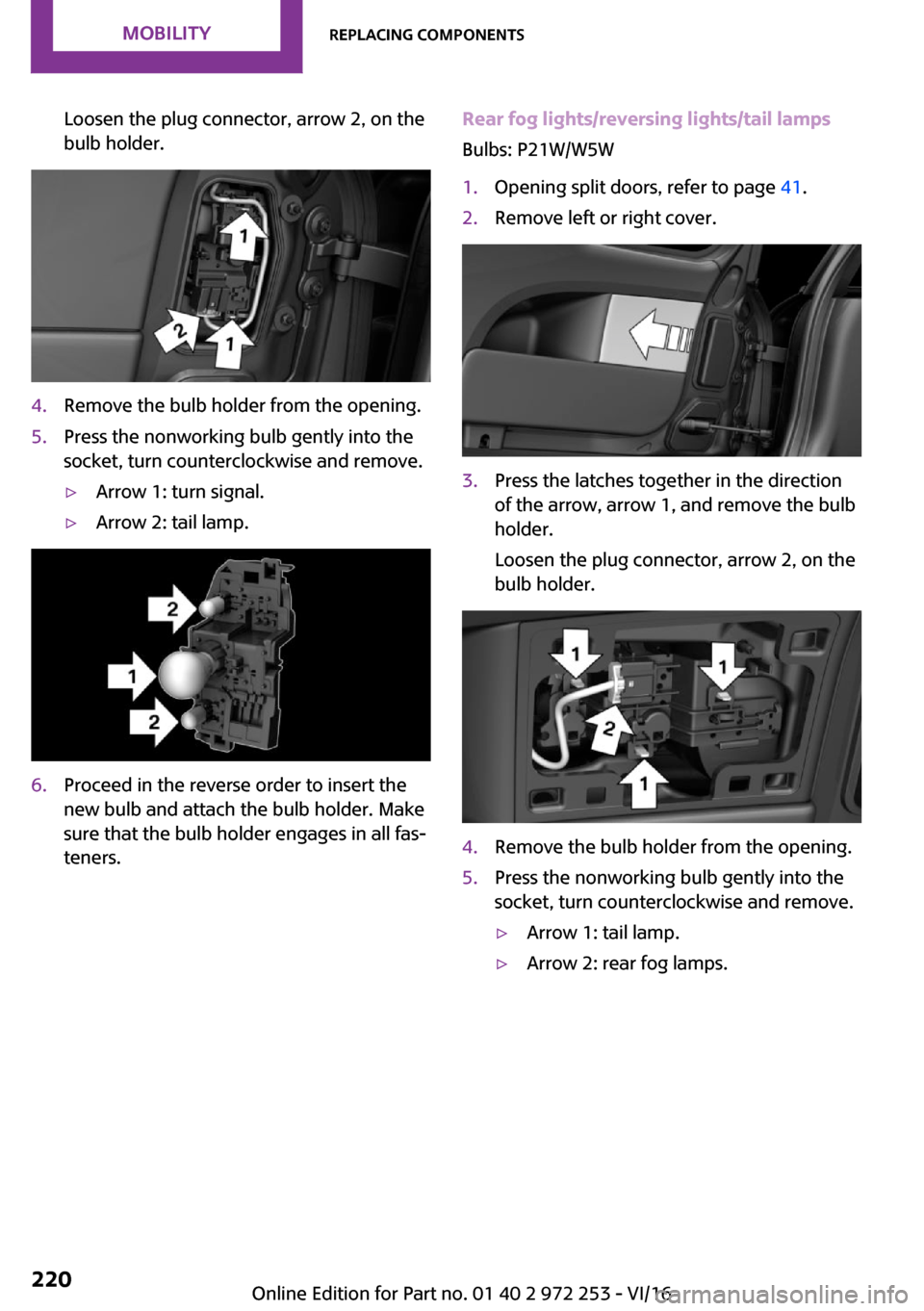

Loosen the plug connector, arrow 2, on the
bulb holder.4.Remove the bulb holder from the opening.5.Press the nonworking bulb gently into the socket, turn counterclockwise and remove.'

'

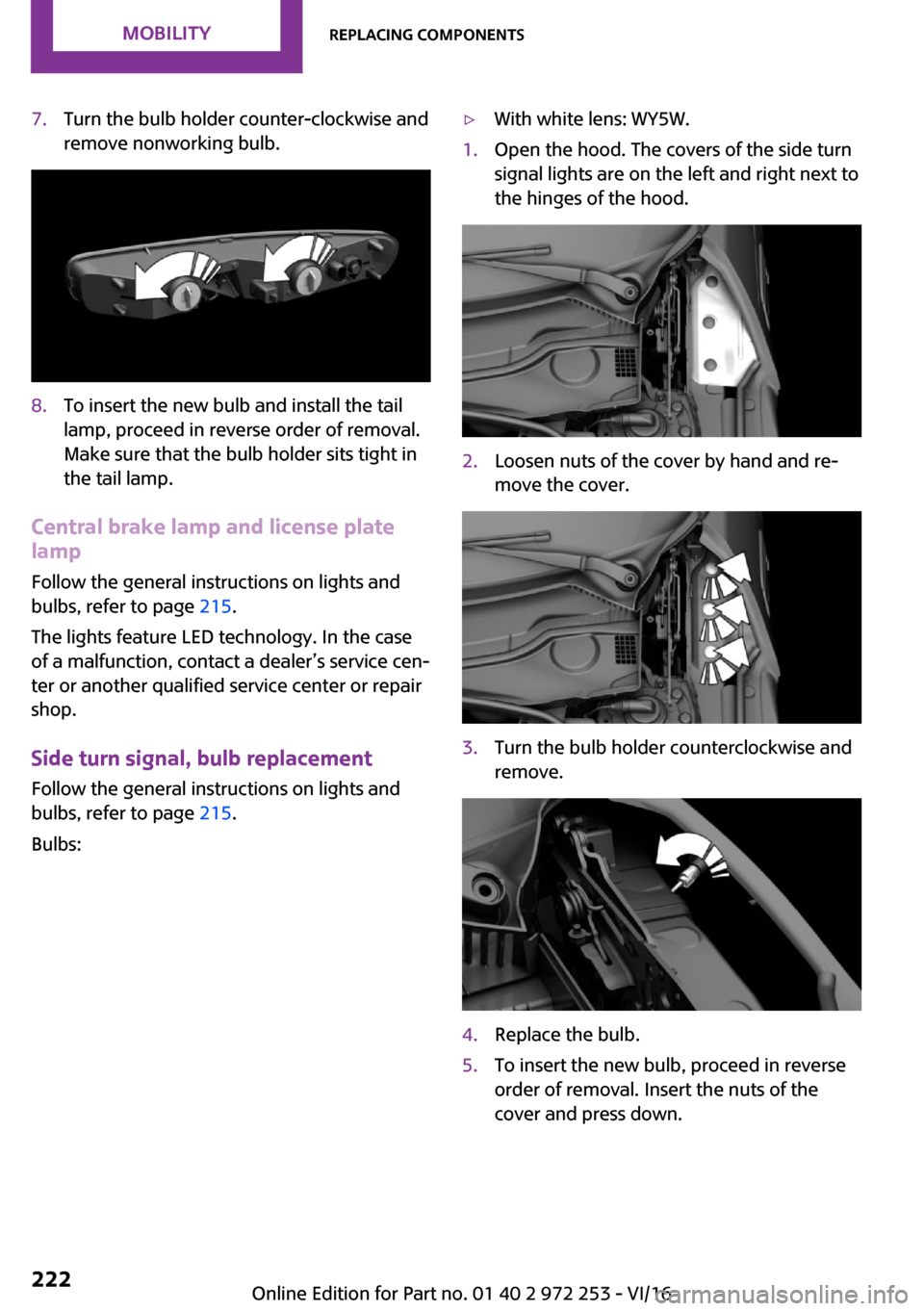

7.Turn the bulb holder counter-clockwise and
remove nonworking bulb.8.To insert the new bulb and install the tail
lamp, proceed in reverse order of removal.
Make sure that the bulb holder sits tight in
the tail lamp.
Central
brake
lamp
and
license
plate
lamp
Follow the general instructions on lights andbulbs, refer to page 215.
The lights feature LED technology. In the case
of a malfunction, contact a dealer

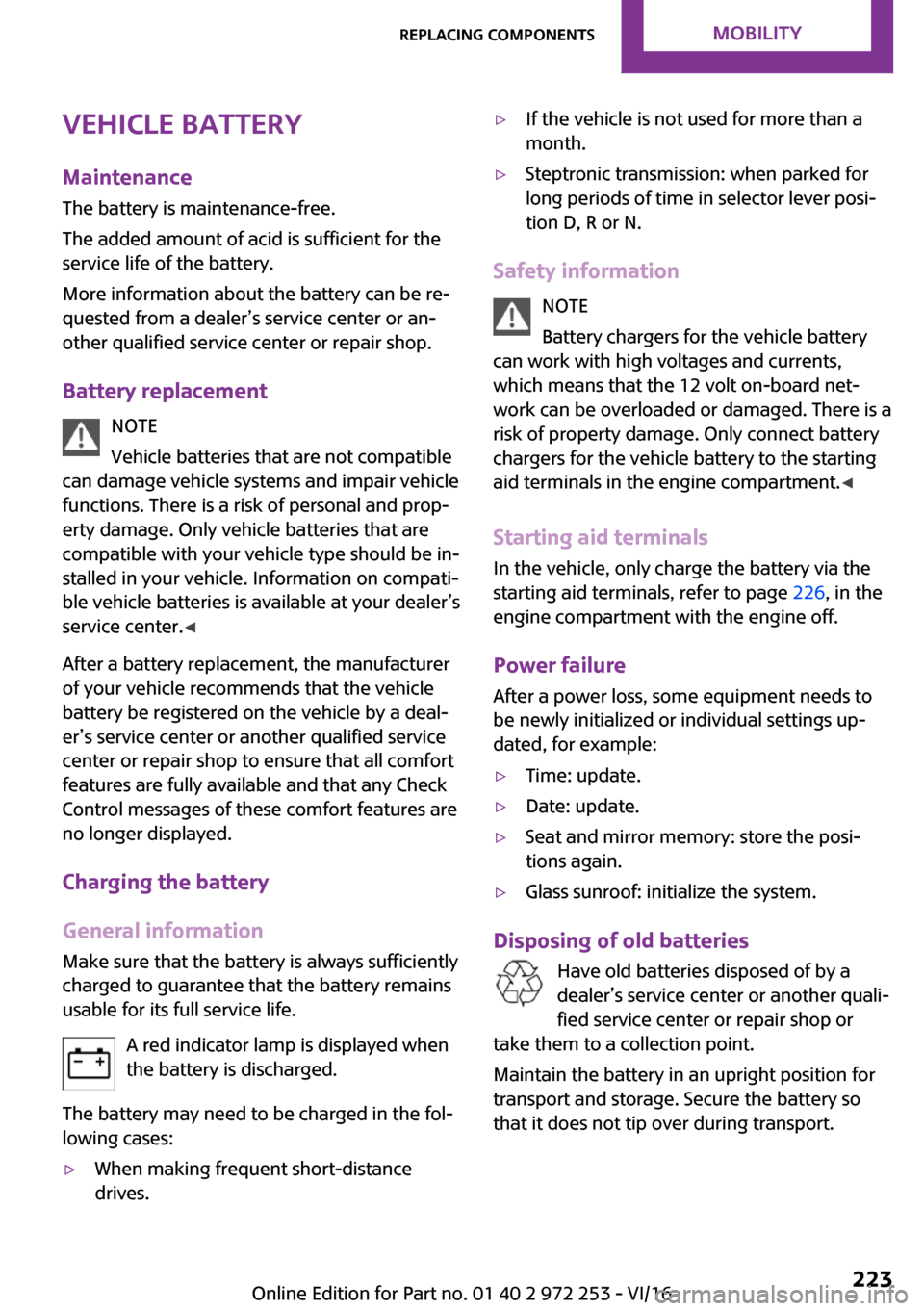

Vehicle
batteryMaintenance
The battery is maintenance-free.
The added amount of acid is sufficient for the
service life of the battery.
More information about the battery can be re~
quested from a dealer

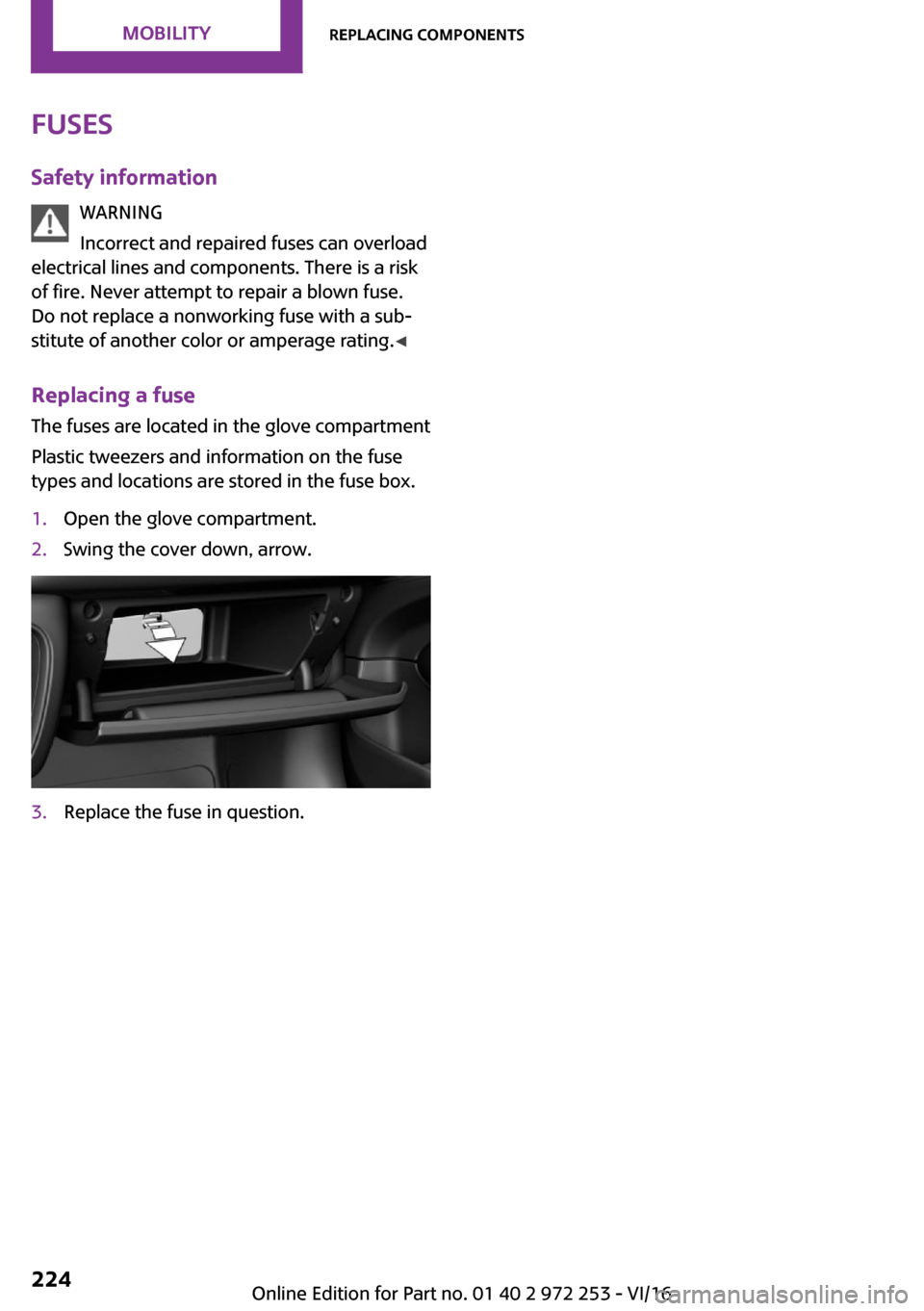

Fuses
Safety
information WARNING
Incorrect and repaired fuses can overload
electrical lines and components. There is a risk of fire. Never attempt to repair a blown fuse.Do not replace a nonworking fuse with a sub~stitute of another color or amperage rating. '
