2016 MERCEDES-BENZ GLE Owners Manual

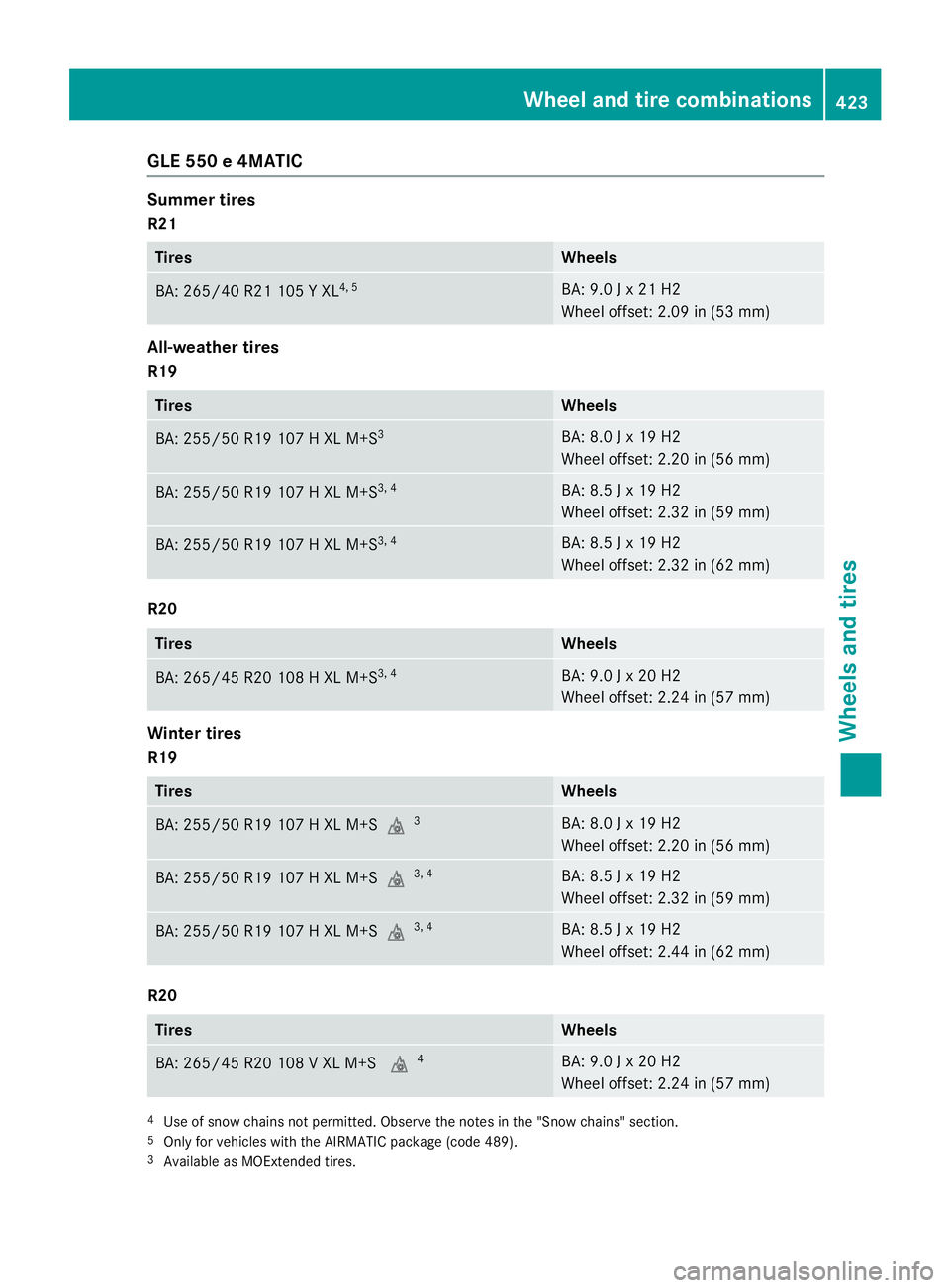

GLE 550 e 4MATIC Summer tires R21
Tires Wheels
BA: 265/40 R21 105 Y XL 4, 5
BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
All-weather tires R19
Tires Wheels
BA: 255/50 R19 107 H XL M+S 3
BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S 3, 4
BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+S 3, 4
BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (62 mm)
R20
Tires Wheels
BA: 265/45 R20 108 H XL M+S 3, 4
BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires R19
Tires Wheels
BA: 255/50 R19 107 H XL M+S M 3
BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S M 3, 4
BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+S M 3, 4
BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
R20
Tires Wheels
BA: 265/45 R20 108 V XL M+S M 4
BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)4
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. 5
Only for vehicles with the AIRMATIC package (code 489). 3
Available as MOExtended tires. Wheel and tire combinations 423
Wheels and tires Z

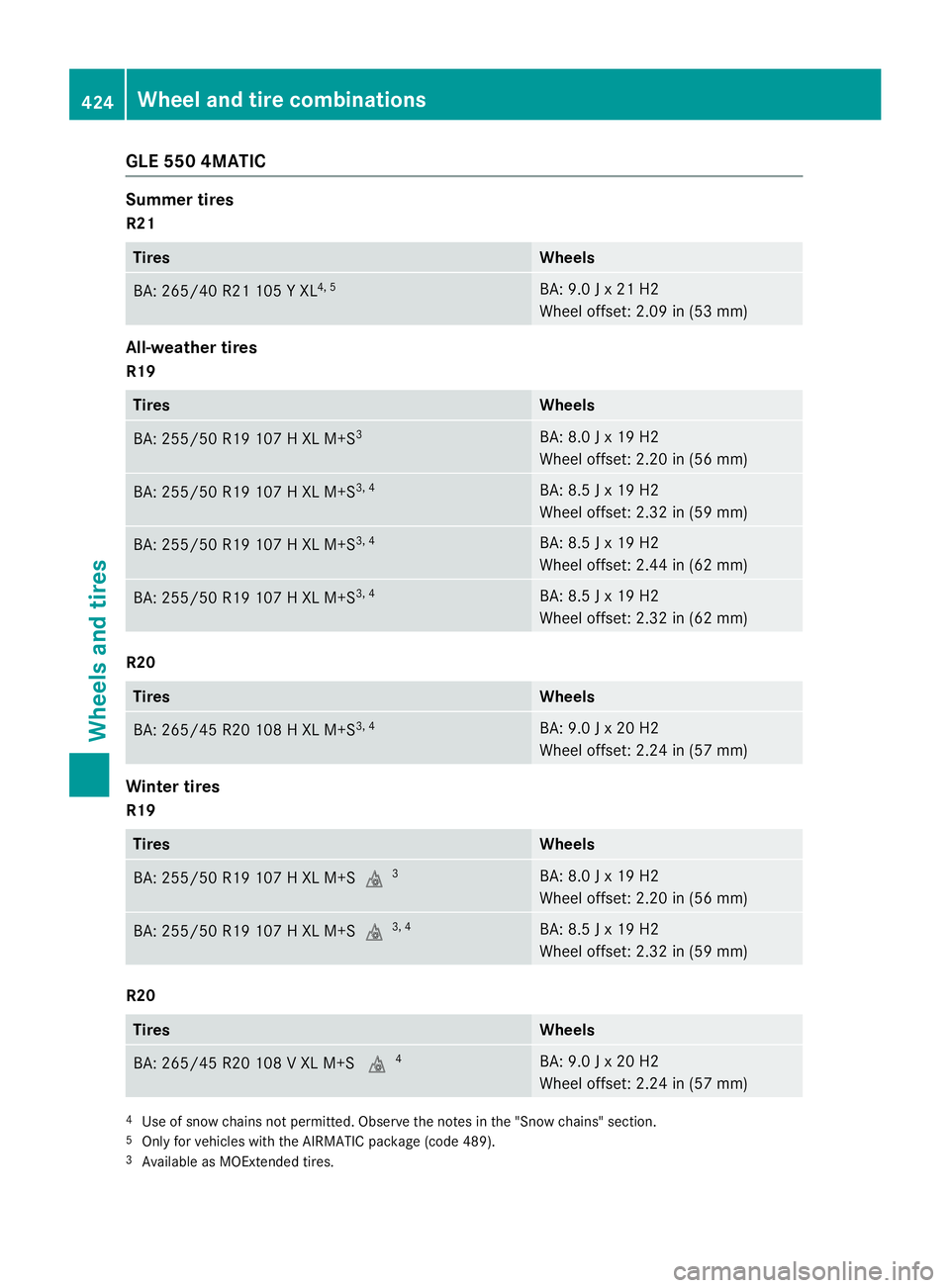

GLE 550 4MATIC Summer tires R21
Tires Wheels
BA: 265/40 R21 105 Y XL 4, 5
BA: 9.0 J x 21 H2
Wheel offset: 2.09 in (53 mm)
All-weather tires R19
Tires Wheels
BA: 255/50 R19 107 H XL M+S 3
BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S 3, 4
BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
BA: 255/50 R19 107 H XL M+S 3, 4
BA: 8.5 J x 19 H2
Wheel offset: 2.44 in (62 mm)
BA: 255/50 R19 107 H XL M+S 3, 4
BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (62 mm)
R20
Tires Wheels
BA: 265/45 R20 108 H XL M+S 3, 4
BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)
Winter tires R19
Tires Wheels
BA: 255/50 R19 107 H XL M+S M 3
BA: 8.0 J x 19 H2
Wheel offset: 2.20 in (56 mm)
BA: 255/50 R19 107 H XL M+S M 3, 4
BA: 8.5 J x 19 H2
Wheel offset: 2.32 in (59 mm)
R20
Tires Wheels
BA: 265/45 R20 108 V XL M+S M 4
BA: 9.0 J x 20 H2
Wheel offset: 2.24 in (57 mm)4
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. 5
Only for vehicles with the AIRMATIC package (code 489). 3
Available as MOExtended tires.424
Wheel and tire combinations
Wheels and tires

Mercedes-AMG GLE 63 4MATIC Summer tires R20
Tires Wheels
BA: 265/45 ZR20 108 Y XL 4
BA: 9.0 J x 20 H2
Wheel offset: 1.22 in (31 mm)
R21
Tires Wheels
BA: 295/35 ZR21 107 Y XL 4
BA: 10.0 J x 21 H2
Wheel offset: 1.81 in (46 mm)
Winter tires R20
Tires Wheels
BA: 255/45 R20 105 V XL M+S M BA: 9.0 J x 20 H2
Wheel offset: 1.61 in (41 mm)
R21
Tires Wheels
BA: 295/35 R21 107 V XL M+S M 4
BA: 10.0 J x 21 H2
Wheel offset: 1.81 in (46 mm)
Mercedes-AMG GLE 63 S 4MATIC
Summer tires R20
Tires Wheels
BA: 265/45 ZR20 108 Y XL 4
BA: 9.0 J x 20 H2
Wheel offset: 1.22 in (31 mm)
R21
Tires Wheels
BA: 295/35 ZR21 107 Y XL 4
BA: 10.0 J x 21 H2
Wheel offset: 1.81 in (46 mm)
4
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations 425
Wheels and tires Z

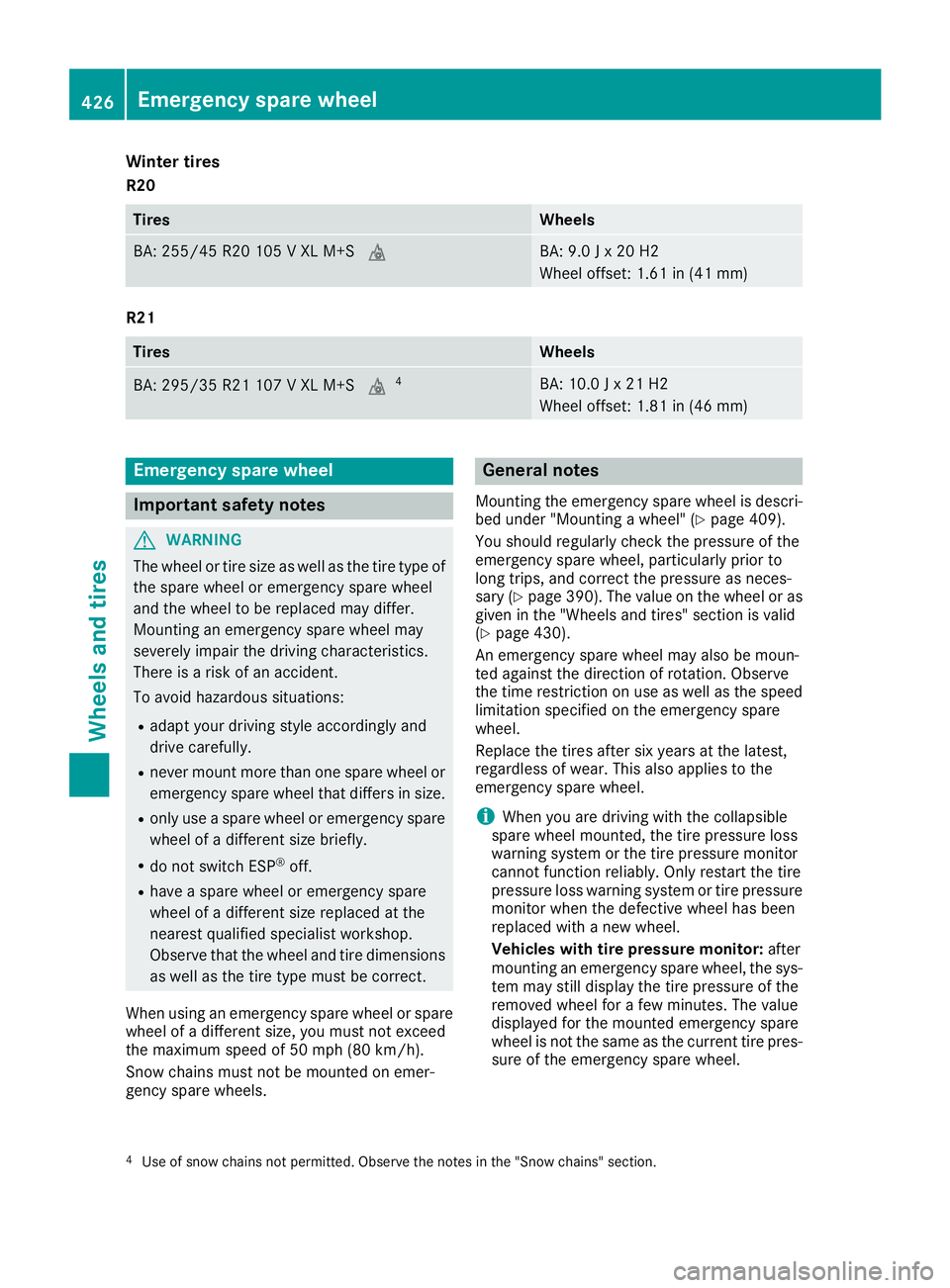

Winter tires R20
Tires Wheels
BA: 255/45 R20 105 V XL M+S M BA: 9.0 J x 20 H2
Wheel offset: 1.61 in (41 mm)
R21
Tires Wheels
BA: 295/35 R21 107 V XL M+S M 4
BA: 10.0 J x 21 H2
Wheel offset: 1.81 in (46 mm)
Emergency spare wheel
Important safety notes
G WARNING
The wheel or tire size as well as the tire type of
the spare wheel or emergency spare wheel
and the wheel to be replaced may differ.
Mounting an emergency spare wheel may
severely impair the driving characteristics.
There is a risk of an accident.
To avoid hazardous situations: R
adapt your driving style accordingly and
drive carefully. R
never mount more than one spare wheel or
emergency spare wheel that differs in size. R
only use a spare wheel or emergency spare
wheel of a different size briefly. R
do not switch ESP ®
off.R
have a spare wheel or emergency spare
wheel of a different size replaced at the
nearest qualified specialist workshop.
Observe that the wheel and tire dimensions
as well as the tire type must be correct.
When using an emergency spare wheel or spare
wheel of a different size, you must not exceed
the maximum speed of 50 mph (80 km/h).
Snow chains must not be mounted on emer-
gency spare wheels. General notes Mounting the emergency spare wheel is descri-
bed under "Mounting a wheel" ( Y
page 409).
You should regularly check the pressure of the
emergency spare wheel, particularly prior to
long trips, and correct the pressure as neces-
sary ( Y
page 390). The value on the wheel or as
given in the "Wheels and tires" section is valid
( Y
page 430).
An emergency spare wheel may also be moun-
ted against the direction of rotation. Observe
the time restriction on use as well as the speed
limitation specified on the emergency spare
wheel.
Replace the tires after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel.
i When you are driving with the collapsible
spare wheel mounted, the tire pressure loss
warning system or the tire pressure monitor
cannot function reliably. Only restart the tire
pressure loss warning system or tire pressure
monitor when the defective wheel has been
replaced with a new wheel.
Vehicles with tire pressure monitor: after
mounting an emergency spare wheel, the sys-
tem may still display the tire pressure of the
removed wheel for a few minutes. The value
displayed for the mounted emergency spare
wheel is not the same as the current tire pres-
sure of the emergency spare wheel.
4
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.426
Emergency spare wheel
Wheels and tires

Removing/stowing the emergency
spare wheel
Vehicles with a "Minispare" emergency
spare wheel under the cargo compart-
ment floor Always observe the instructions and safety
notes in the "Mounting a wheel" section
( Y
page 409).
The "Minispare" emergency spare wheel can be
found in the stowage well under the cargo com-
partment floor.
Removing the emergency spare wheel X
Lift the cargo compartment floor upwards
( Y
page 337). X
Vehicle without a lockable cargo compart-
ment floor: turn emergency spare wheel
retainer D counter-clockwise and remove it.X
Remove "Minispare" emergency spare
wheel C .
X
Vehicle with a lockable cargo compart-
ment floor: remove the contents of stowage
tray

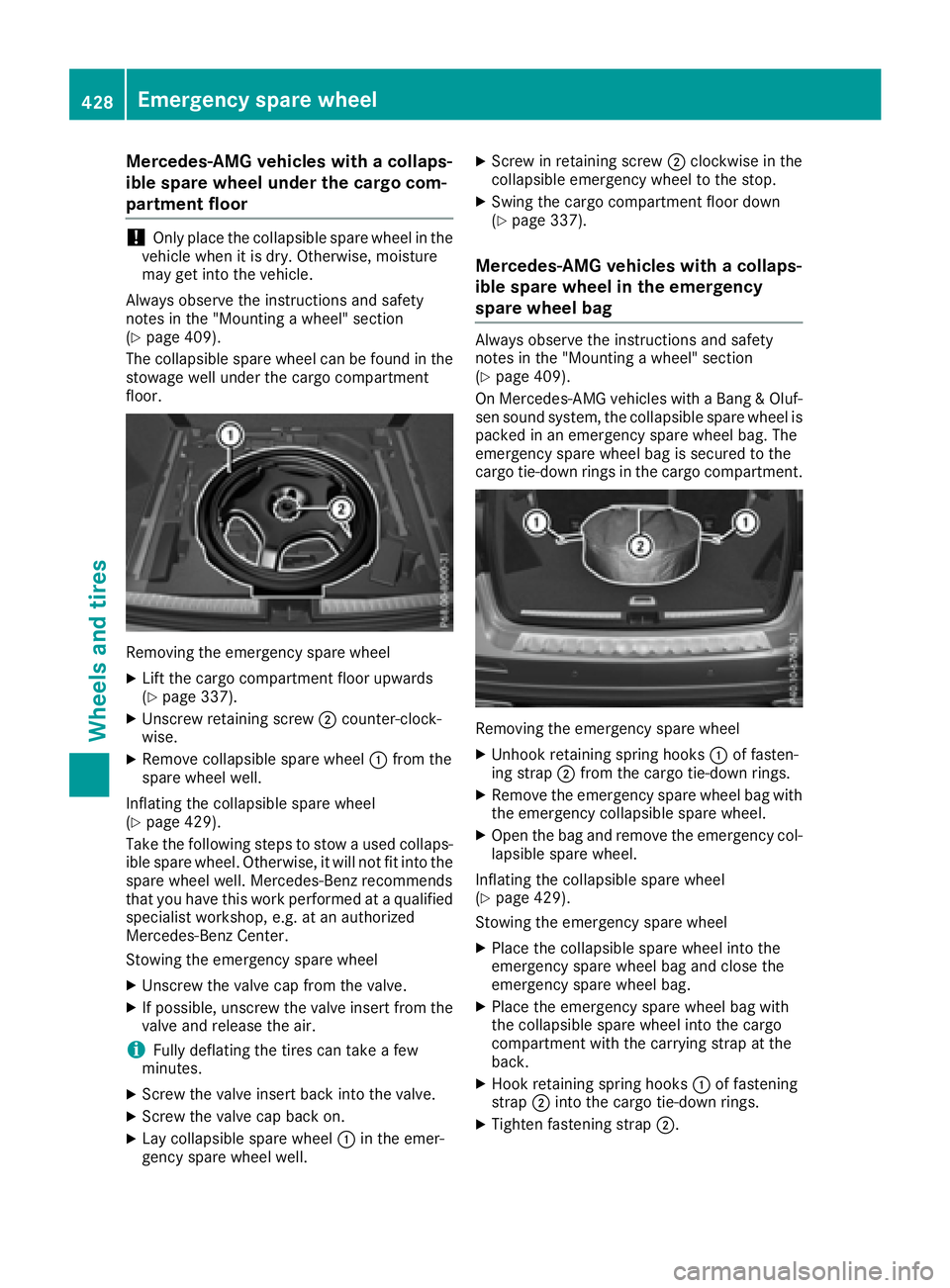

Mercedes-AMG vehicles with a collaps-
ible spare wheel under the cargo com-
partment floor
! Only place the collapsible spare wheel in the
vehicle when it is dry. Otherwise, moisture
may get into the vehicle.
Always observe the instructions and safety
notes in the "Mounting a wheel" section
( Y
page 409).
The collapsible spare wheel can be found in the
stowage well under the cargo compartment
floor.
Removing the emergency spare wheel X
Lift the cargo compartment floor upwards
( Y
page 337).X
Unscrew retaining screw D counter-clock-
wise. X
Remove collapsible spare wheel C from the
spare wheel well.
Inflating the collapsible spare wheel
( Y
page 429).
Take the following steps to stow a used collaps-
ible spare wheel. Otherwise, it will not fit into the
spare wheel well. Mercedes-Benz recommends
that you have this work performed at a qualified
specialist workshop, e.g. at an authorized
Mercedes-Benz Center.
Stowing the emergency spare wheel X
Unscrew the valve cap from the valve. X
If possible, unscrew the valve insert from the
valve and release the air.
i Fully deflating the tires can take a few
minutes. X
Screw the valve insert back into the valve. X
Screw the valve cap back on. X
Lay collapsible spare wheel C in the emer-
gency spare wheel well. X
Screw in retaining screw D clockwise in the
collapsible emergency wheel to the stop. X
Swing the cargo compartment floor down
( Y
page 337).
Mercedes-AMG vehicles with a collaps-
ible spare wheel in the emergency
spare wheel bag Always observe the instructions and safety
notes in the "Mounting a wheel" section
( Y
page 409).
On Mercedes-AMG vehicles with a Bang & Oluf-
sen sound system, the collapsible spare wheel is
packed in an emergency spare wheel bag. The
emergency spare wheel bag is secured to the
cargo tie-down rings in the cargo compartment.
Removing the emergency spare wheel X
Unhook retaining spring hooks C of fasten-
ing strap D from the cargo tie-down rings. X
Remove the emergency spare wheel bag with
the emergency collapsible spare wheel. X
Open the bag and remove the emergency col-
lapsible spare wheel.
Inflating the collapsible spare wheel
( Y
page 429).
Stowing the emergency spare wheel X
Place the collapsible spare wheel into the
emergency spare wheel bag and close the
emergency spare wheel bag. X
Place the emergency spare wheel bag with
the collapsible spare wheel into the cargo
compartment with the carrying strap at the
back. X
Hook retaining spring hooks C of fastening
strap D into the cargo tie-down rings. X
Tighten fastening strap D .428
Emergency spare wheel
Wheels and tires

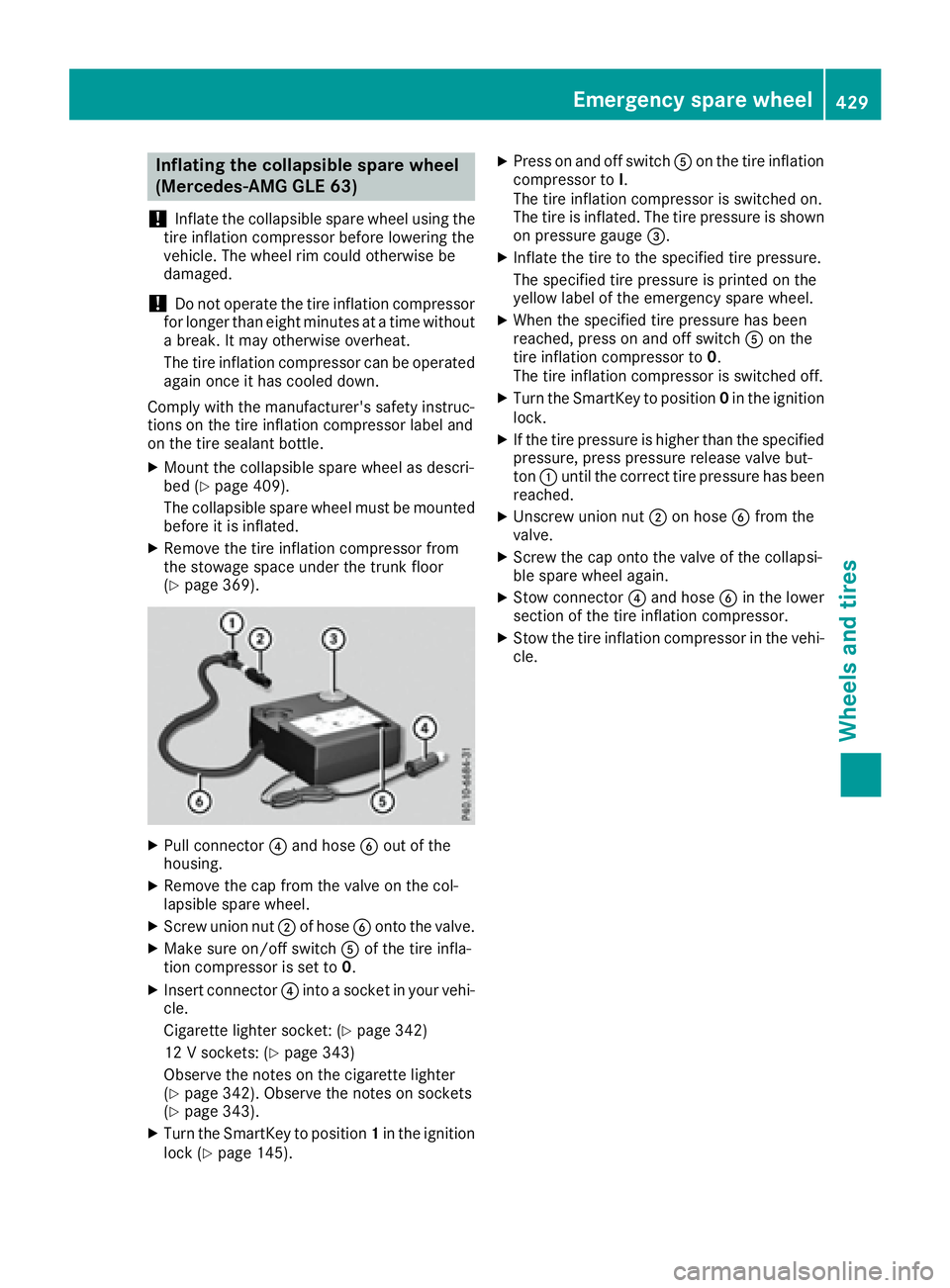

Inflating the collapsible spare wheel
(Mercedes-AMG GLE 63)
! Inflat e th e collapsible spar e whee l usin g th e
tire inflation compressor before lowering th e
vehicle. The whee l rim could otherwise be
damaged.
! Do no t operate th e tire inflation compressor
for longer than eigh t minute s at a time without
a break. It may otherwise overheat.
The tire inflation compressor can be operate d
again once it has cooled down .
Comply wit h th e manufacturer' s safet y instruc-
tion s on th e tire inflation compressor label and
on th e tire sealan t bottle.X
Moun t th e collapsible spar e whee l as descri-
bed ( Y
page 409).
The collapsible spar e whee l must be mounte d
before it is inflated. X
Remove th e tire inflation compressor from
th e stowage spac e under th e trunk floor
( Y
page 369).
X
Pull connecto r

Technical data
All models (except GLE 450 Sport AMG 4MATIC, GLE 550 4MATIC and Mercedes-
AMG GLE 63) "Minispare" emergency spare wheel Tires Wheels
T 155/90 R1 8 11 3 M
Tire pressure : 420 kPa (4.2 bar/61 psi) 4.0 B x 18 H2
Wheel offset: 1.57 in (40 mm)
T 155/80 R19 114 M 6
Tire pressure: 420 kPa (4.2 bar/61 psi) 4.5 B x 19 H2
Wheel offset: 1.57 in (40 mm)
i Hybrid vehicles are not equipped with an emergency spare wheel at the factory. In the event of
a flat tire, a TIREFIT kit is available.
GLE 450 Sport AMG 4MATIC and GLE 550 4MATIC "Minispare" emergency spare wheel Tires Wheels
T 155/80 R19 114 M
Tire pressure: 420 kPa (4.2 bar/61 psi) 4.5 B x 19 H2
Wheel offset: 1.57 in (40 mm)
Mercedes-AMG GLE 63
Collapsible spare wheel
Tires Wheels
195/65 R20 108 P
Tire pressure: 350 kPa (3.5 bar/51 psi) 6.0 B x 20 H2
Wheel offset: 1.42 in (36 mm)
6
Only for vehicles with the AIRMATIC package (code 489).430
Emergency spare wheel
Wheels and tires
