2016 MERCEDES-BENZ GLE Owners Manual

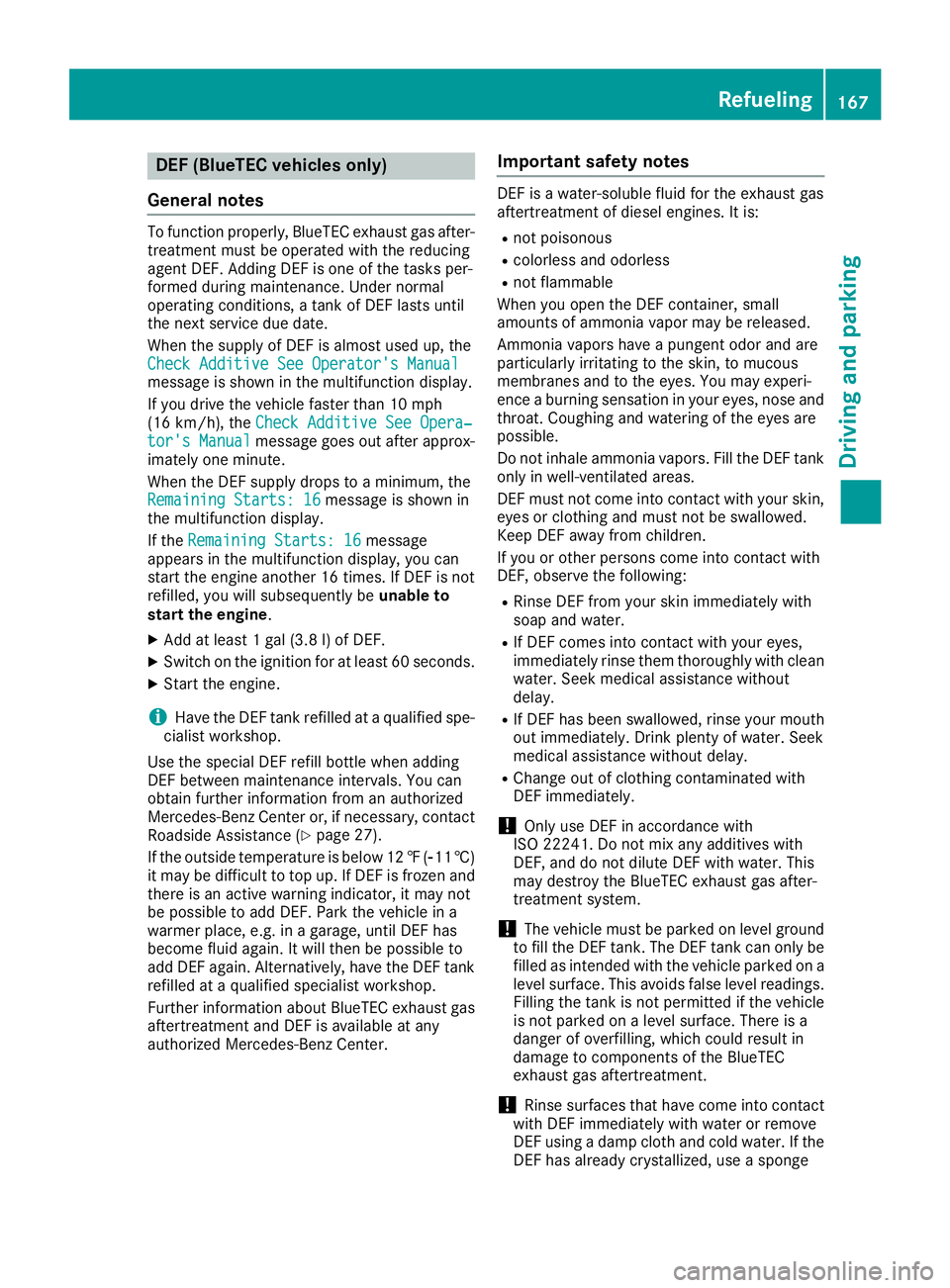

DEF (BlueTE C vehicles only )
General notes To function properly, BlueTE C exhaus t gas after-
treatmen t mus t be operated wit h th e reducing
agen t DEF. Addin g DE F is on e of th e task s per -
formed durin g maintenance . Under normal
operatin g conditions, a tank of DE F last s until
th e next servic e due date.
Whe n th e supply of DE F is almost used up, th e
Check Additive See Operator' s Manual
messag e is shown in th e multifunction display.
If you drive th e vehicle faste r than 10 mph
(16 km/h), th e Check Additive See Opera‐
tor's Manual messag e goe s out after approx -
imately on e minute.
Whe n th e DE F supply drops to a minimum , th e
Remaining Starts : 16 messag e is shown in
th e multifunction display.
If th e Remaining Starts : 16 messag e
appears in th e multifunction display, you can
start th e engin e another 16 times . If DE F is no t
refilled, you will subsequently be unable to
star t th e engine .X
Ad d at leas t 1 gal (3. 8 l) of DEF.X
Switc h on th e ignition fo r at leas t 60 seconds.X
Start th e engine.
i Hav e th e DE F tank refille d at a qualified spe -
cialis t workshop .
Use th e special DE F refill bottl e when addin g
DE F between maintenance intervals. You can
obtain further information from an authorized
Mercedes-Ben z Cente r or , if necessary, contact
Roadside Assistanc e ( Y
page 27).
If th e outsid e temperature is belo w 12 ‡(

and cold water to clean it. DEF residues crys-
tallize after time and contaminate the affec-
ted surfaces.
! DEF is not a fuel additive and must not be
added to the fuel tank. If DEF is added to the
fuel tank, this can lead to engine damage.
For further information on DEF, see
( Y
page 436).

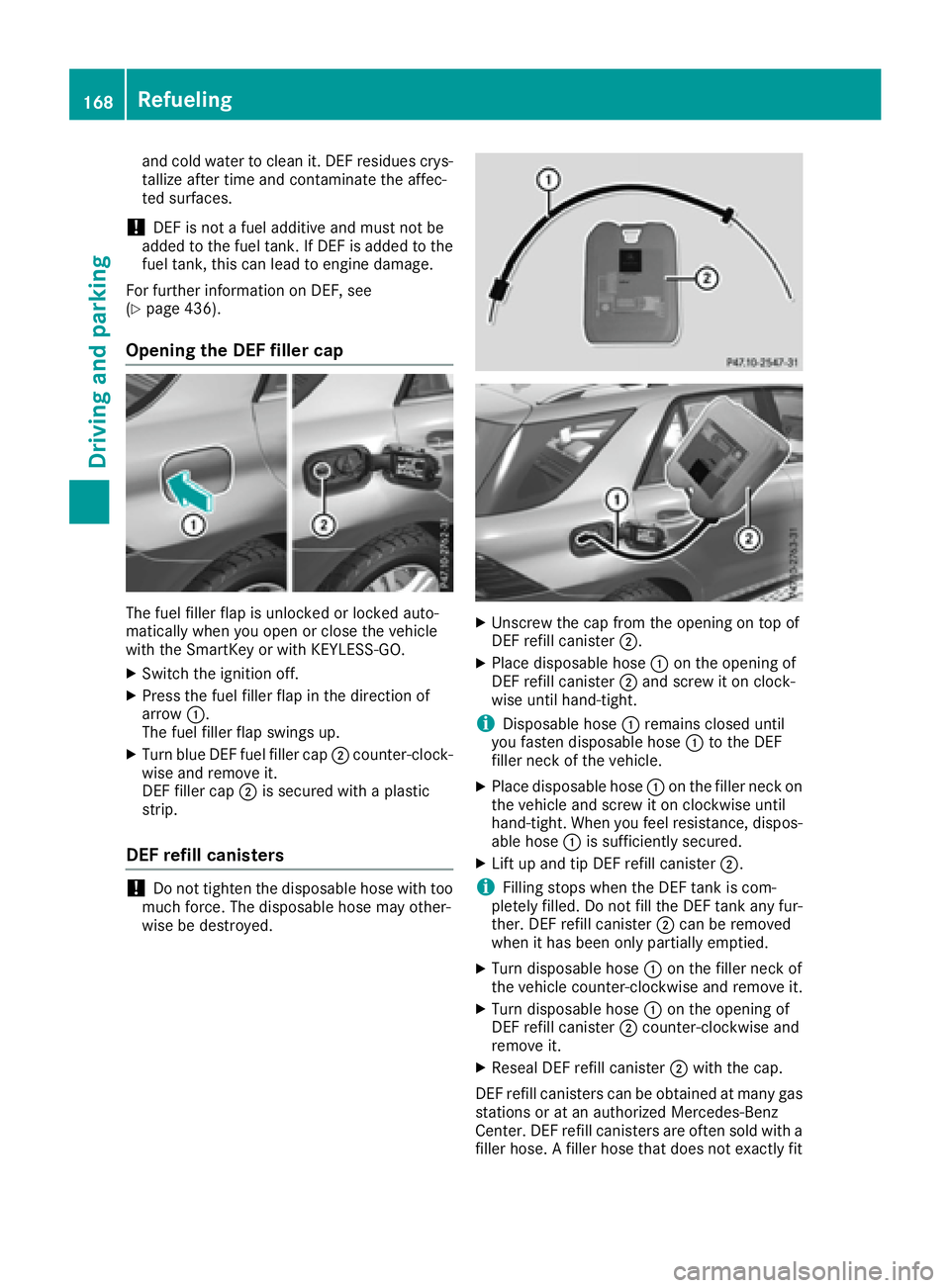

Opening the DEF filler cap
The fuel filler flap is unlocked or locked auto-
matically when you open or close the vehicle
with the SmartKey or with KEYLESS-GO. X
Switch the ignition off. X
Press the fuel filler flap in the direction of
arrow C .
The fuel filler flap swings up. X
Turn blue DEF fuel filler cap D counter-clock-
wise and remove it.
DEF filler cap D is secured with a plastic
strip.
DEF refill canisters
! Do not tighten the disposable hose with too
much force. The disposable hose may other-
wise be destroyed. X
Unscrew the cap from the opening on top of
DEF refill canister D .X
Place disposable hose C on the opening of
DEF refill canister D and screw it on clock-
wise until hand-tight.
i Disposable hose C remains closed until
you fasten disposable hose C to the DEF
filler neck of the vehicle. X
Place disposable hose C on the filler neck on
the vehicle and screw it on clockwise until
hand-tight. When you feel resistance, dispos-
able hose C is sufficiently secured. X
Lift up and tip DEF refill canister D .
i Filling stops when the DEF tank is com-
pletely filled. Do not fill the DEF tank any fur-
ther. DEF refill canister D can be removed
when it has been only partially emptied. X
Turn disposable hose C on the filler neck of
the vehicle counter-clockwise and remove it. X
Turn disposable hose C on the opening of
DEF refill canister D counter-clockwise and
remove it. X
Reseal DEF refill canister D with the cap.
DEF refill canisters can be obtained at many gas
stations or at an authorized Mercedes-Benz
Center. DEF refill canisters are often sold with a
filler hose. A filler hose that does not exactly fit168
Refueling
Driving and parking

the vehicle's DEF tank offers no protection
against overfilling. DEF may leak if overfilled.
Mercedes-Benz offers a special disposable hose
with overfill protection. You can obtain this from
any authorized Mercedes-Benz Center. DEF is
available in a variety of containers and recepta-
cles. Only use the disposable hose with the
Mercedes-Benz DEF refill canisters.

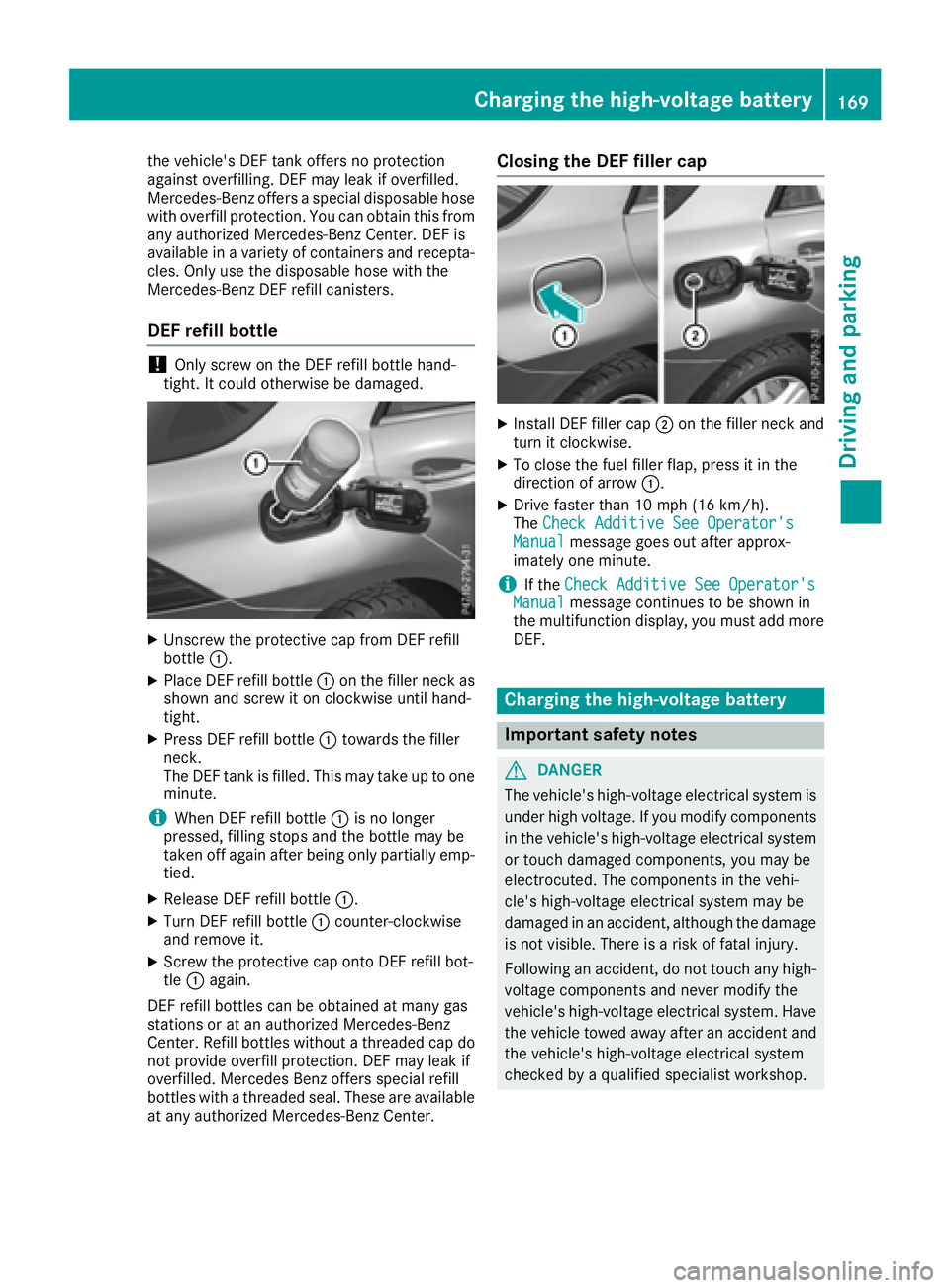

DEF refill bottle
! Only screw on the DEF refill bottle hand-
tight. It could otherwise be damaged.
X
Unscrew the protective cap from DEF refill
bottle C .X
Place DEF refill bottle C on the filler neck as
shown and screw it on clockwise until hand-
tight. X
Press DEF refill bottle C towards the filler
neck.
The DEF tank is filled. This may take up to one
minute.
i When DEF refill bottle C is no longer
pressed, filling stops and the bottle may be
taken off again after being only partially emp-
tied. X
Release DEF refill bottle C .X
Turn DEF refill bottle C counter-clockwise
and remove it. X
Screw the protective cap onto DEF refill bot-
tle C again.
DEF refill bottles can be obtained at many gas
stations or at an authorized Mercedes-Benz
Center. Refill bottles without a threaded cap do
not provide overfill protection. DEF may leak if
overfilled. Mercedes Benz offers special refill
bottles with a threaded seal. These are available
at any authorized Mercedes-Benz Center. Closing the DEF filler cap X
Install DEF filler cap D on the filler neck and
turn it clockwise. X
To close the fuel filler flap, press it in the
direction of arrow C .X
Drive faster than 10 mph (16 km/h).
The Check Additive See Operator's
Manual message goes out after approx-
imately one minute.
i If the Check Additive See Operator's
Manual message continues to be shown in
the multifunction display, you must add more
DEF.
Charging the high-voltage battery
Important safety notes
G DANGER
The vehicle's high-voltage electrical system is
under high voltage. If you modify components
in the vehicle's high-voltage electrical system
or touch damaged components, you may be
electrocuted. The components in the vehi-
cle's high-voltage electrical system may be
damaged in an accident, although the damage
is not visible. There is a risk of fatal injury.
Following an accident, do not touch any high-
voltage components and never modify the
vehicle's high-voltage electrical system. Have
the vehicle towed away after an accident and
the vehicle's high-voltage electrical system
checked by a qualified specialist workshop.Charging the high-voltage battery 169
Driving an d parking Z

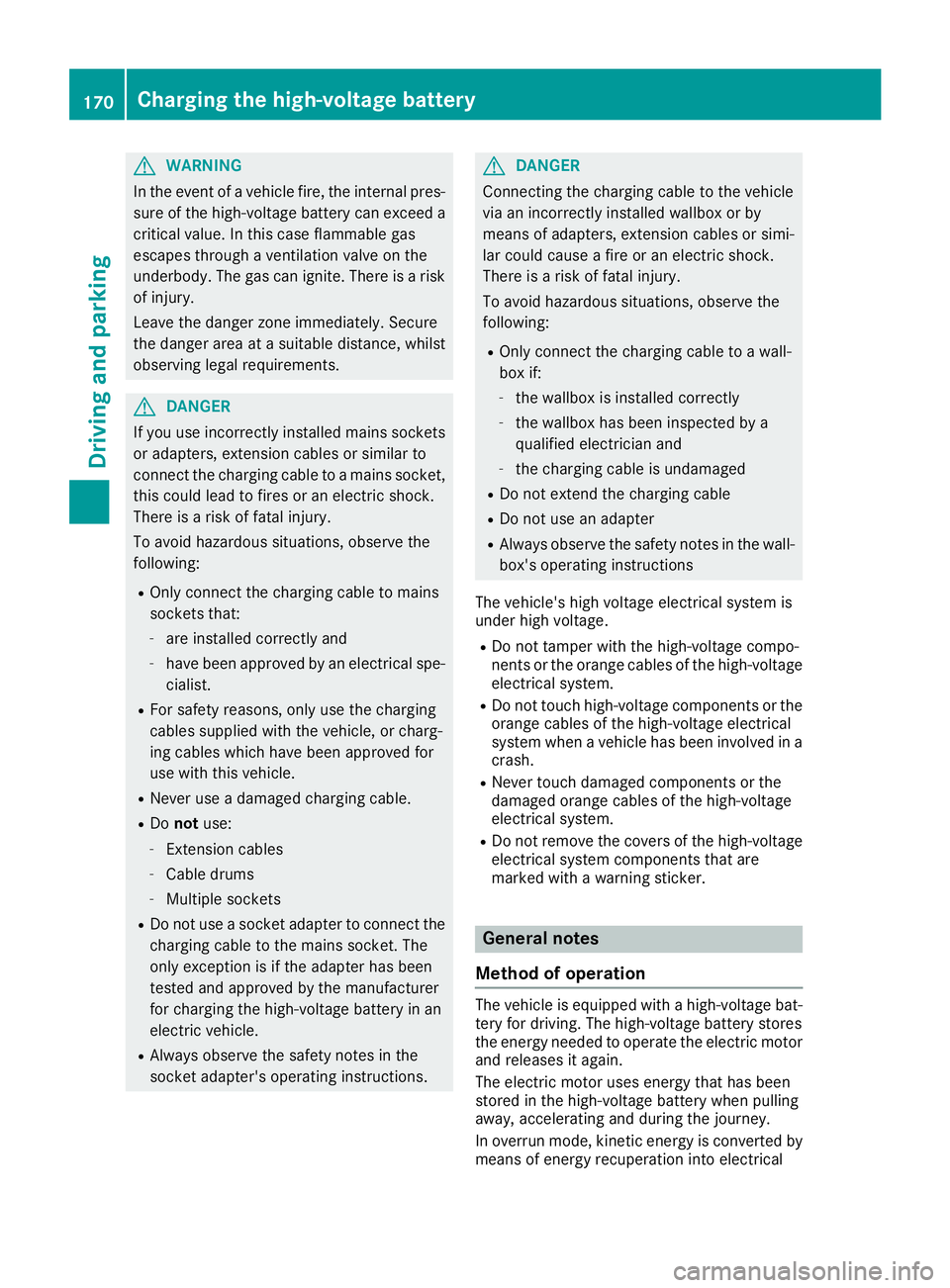

G WARNING
In the event of a vehicle fire, the internal pres-
sure of the high-voltage battery can exceed a
critical value. In this case flammable gas
escapes through a ventilation valve on the
underbody. The gas can ignite. There is a risk
of injury.
Leave the danger zone immediately. Secure
the danger area at a suitable distance, whilst
observing legal requirements.
G DANGER
If you use incorrectly installed mains sockets
or adapters, extension cables or similar to
connect the charging cable to a mains socket,
this could lead to fires or an electric shock.
There is a risk of fatal injury.
To avoid hazardous situations, observe the
following: R
Only connect the charging cable to mains
sockets that: -
are installed correctly and -
have been approved by an electrical spe-
cialist. R
For safety reasons, only use the charging
cables supplied with the vehicle, or charg-
ing cables which have been approved for
use with this vehicle. R
Never use a damaged charging cable. R
Do not use:-
Extension cables -
Cable drums -
Multiple sockets R
Do not use a socket adapter to connect the
charging cable to the mains socket. The
only exception is if the adapter has been
tested and approved by the manufacturer
for charging the high-voltage battery in an
electric vehicle. R
Always observe the safety notes in the
socket adapter's operating instructions. G DANGER
Connecting the charging cable to the vehicle
via an incorrectly installed wallbox or by
means of adapters, extension cables or simi-
lar could cause a fire or an electric shock.
There is a risk of fatal injury.
To avoid hazardous situations, observe the
following: R
Only connect the charging cable to a wall-
box if: -
the wallbox is installed correctly -
the wallbox has been inspected by a
qualified electrician and -
the charging cable is undamaged R
Do not extend the charging cable R
Do not use an adapter R
Always observe the safety notes in the wall-
box's operating instructions
The vehicle's high voltage electrical system is
under high voltage. R
Do not tamper with the high-voltage compo-
nents or the orange cables of the high-voltage
electrical system. R
Do not touch high-voltage components or the
orange cables of the high-voltage electrical
system when a vehicle has been involved in a
crash. R
Never touch damaged components or the
damaged orange cables of the high-voltage
electrical system. R
Do not remove the covers of the high-voltage
electrical system components that are
marked with a warning sticker.
General notes
Method of operation
The vehicle is equipped with a high-voltage bat-
tery for driving. The high-voltage battery stores
the energy needed to operate the electric motor
and releases it again.
The electric motor uses energy that has been
stored in the high-voltage battery when pulling
away, accelerating and during the journey.
In overrun mode, kinetic energy is converted by
means of energy recuperation into electrical170
Charging the high-voltage battery
Driving and parking

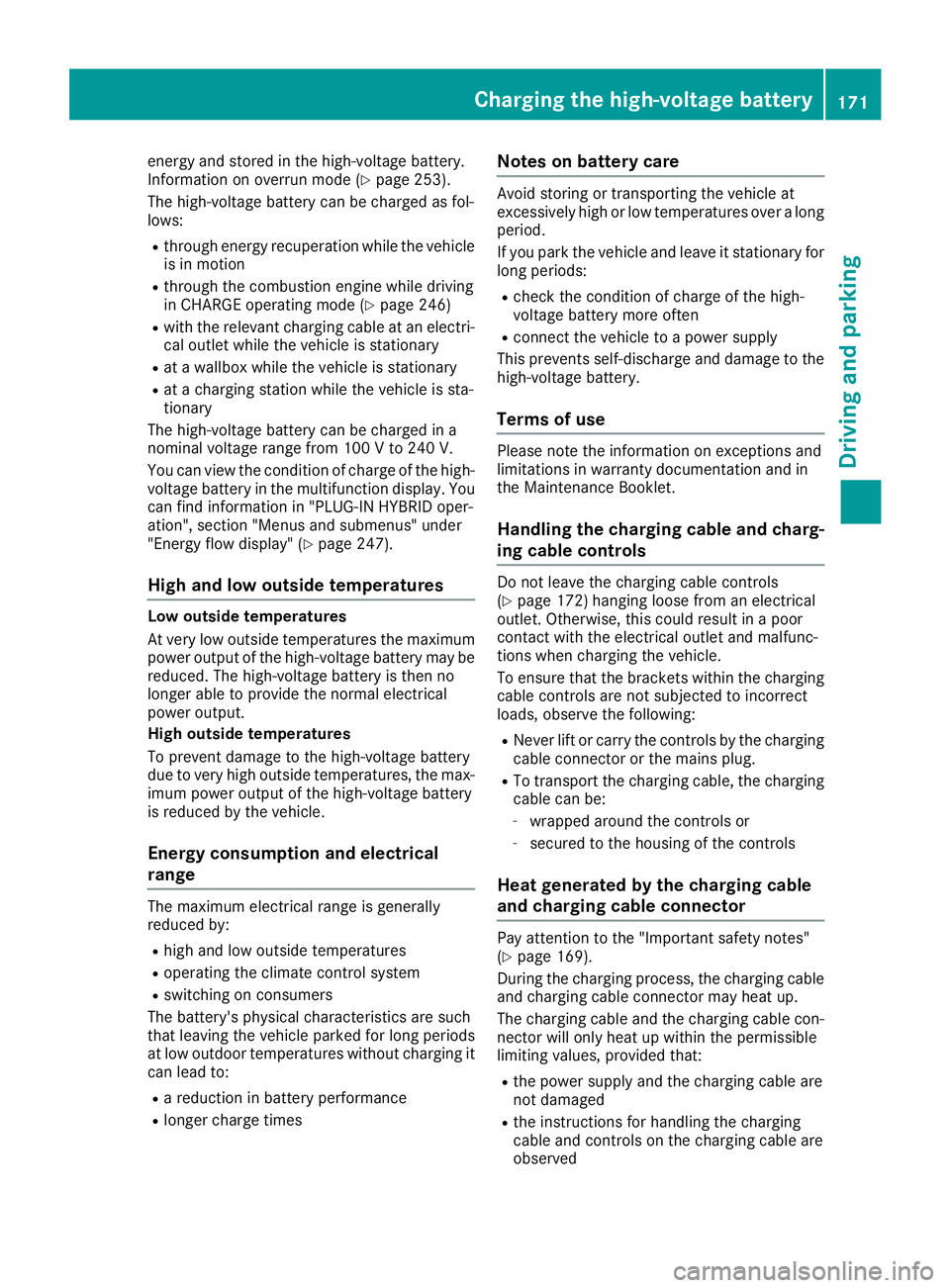

energy and stored in the high-voltage battery.
Information on overrun mode ( Y
page 253).
The high-voltage battery can be charged as fol-
lows: R
through energy recuperation while the vehicle
is in motion R
through the combustion engine while driving
in CHARGE operating mode ( Y
page 246)R
with the relevant charging cable at an electri-
cal outlet while the vehicle is stationary R
at a wallbox while the vehicle is stationary R
at a charging station while the vehicle is sta-
tionary
The high-voltage battery can be charged in a
nominal voltage range from 100 V to 240 V.
You can view the condition of charge of the high-
voltage battery in the multifunction display. You
can find information in "PLUG-IN HYBRID oper-
ation", section "Menus and submenus" under
"Energy flow display" ( Y
page 247).
High and low outside temperatures Low outside temperatures
At very low outside temperatures the maximum
power output of the high-voltage battery may be
reduced. The high-voltage battery is then no
longer able to provide the normal electrical
power output.
High outside temperatures
To prevent damage to the high-voltage battery
due to very high outside temperatures, the max-
imum power output of the high-voltage battery
is reduced by the vehicle.
Energy consumption and electrical
range The maximum electrical range is generally
reduced by: R
high and low outside temperatures R
operating the climate control system R
switching on consumers
The battery's physical characteristics are such
that leaving the vehicle parked for long periods
at low outdoor temperatures without charging it
can lead to: R
a reduction in battery performance R
longer charge times Notes on battery care Avoid storing or transporting the vehicle at
excessively high or low temperatures over a long
period.
If you park the vehicle and leave it stationary for
long periods: R
check the condition of charge of the high-
voltage battery more often R
connect the vehicle to a power supply
This prevents self-discharge and damage to the
high-voltage battery.
Terms of use Please note the information on exceptions and
limitations in warranty documentation and in
the Maintenance Booklet.
Handling the charging cable and charg-
ing cable controls Do not leave the charging cable controls
( Y
page 172) hanging loose from an electrical
outlet. Otherwise, this could result in a poor
contact with the electrical outlet and malfunc-
tions when charging the vehicle.
To ensure that the brackets within the charging
cable controls are not subjected to incorrect
loads, observe the following: R
Never lift or carry the controls by the charging
cable connector or the mains plug. R
To transport the charging cable, the charging
cable can be: -
wrapped around the controls or -
secured to the housing of the controls
Heat generated by the charging cable
and charging cable connector Pay attention to the "Important safety notes"
( Y
page 169).
During the charging process, the charging cable
and charging cable connector may heat up.
The charging cable and the charging cable con-
nector will only heat up within the permissible
limiting values, provided that: R
the power supply and the charging cable are
not damaged R
the instructions for handling the charging
cable and controls on the charging cable are
observedCharging the high-voltage battery 171
Driving and parking Z

If the charging cable or charging cable connec-
tor become too hot, have the mains power sup-
ply checked.
Protection device against overvoltage
! Overvoltage in the mains supply may dam-
age the vehicle. For this reason, the vehicle is
equipped with a protection device against
overvoltage in the mains supply. This device
may be triggered during severe thunder-
storms, for example, and may lead to the buil-
ding's fuse being tripped and an interruption
in the power supply. These functions protect
the vehicle. After the building fuse is switched
on again, the charging process resumes auto-
matically. Following an interruption in the
power supply or tripping of the building's fuse,
it may take up to 10 minutes for charging to
resume automatically.
Switch on the building protection system again
after it has been triggered. Otherwise, the
charging process cannot be continued.
General information about the charging
procedure Pay attention to the "Important safety notes"
( Y
page 169).
The vehicle socket is located in the rear bumper
on the right below the tail lamp.
The charge socket flap and the vehicle are cen-
trally locked or unlocked simultaneously.
Charging the high-voltage battery via
the electrical outlet
Charging cable for electrical outlets
Important safety notes
! Only use the charging cable to charge the
high-voltage battery. Do not use the charging
cable for other purposes. It may otherwise be
damaged.
The vehicle is supplied with a country-specific
charging cable for connection to a mains socket.
Only use the charging cable supplied with the
vehicle or a charging cable approved for the
vehicle. i If you use the supplied 12 A charging cable
to charge a high-voltage battery: R
the charge time increases considerably R
electrical consumption increases consider-
ably
Where possible, charge the high-voltage bat-
tery at a charging station ( Y
page 175). Only
then can certified electrical energy consump-
tion levels be reached.
i The charging process can vary depending on
the power supply. Therefore, always observe
the local information.
Information about charging from a wallbox
( Y
page 175).
Information on charging at a charging station
( Y
page 175).
Stowing the charging cable The charging cable can be stowed and secured
in the bag provided in the cargo compartment of
the vehicle.
Controls on the charging cable
C
On-board voltage indicator D
Protective and indicator system display

Display D
Light s up
green There are no malfunctions.
The high-voltage battery can
be charged.
Flashes red The protective and indicator
system has detecte d a mal-
function due to an internal
malfunction . The high-voltage
battery canno t be charged.
If th e control detects residual curren t or a mal-
function , th e charging process is halted. Once
th e malfunction has been rectifie d th e charging
process is resumed automatically.
Fo r information on problem s relating to th e
charging process, see ( Y
page 176).
Setting th e maximum charg e curren t
G WARNIN G
If th e charg e curren t draw via a main s socke t
is to o high during th e charging process, th e
external electrical system may overheat.
There is a ris k of fire.
Befor e beginning th e charging process, chec k
th e maximum permissibl e charg e curren t
locally. Consult a qualified exper t to do so
wher e necessary.
If necessary, adjust your vehicle's settings.
! An excessive charg e curren t can blow a fus e
or lead to overheating of th e external powe r
supply. Chec k whether th e external powe r
supply is compatible wit h th e set charg e cur -
rent. If necessary, lower th e set charg e cur -
ren t or use another powe r socket.
Befor e starting th e charging process at a powe r
socket, chec k th e maximum permissibl e charg e
curren t for th e relevan t powe r socke t or th e
building .
You can set th e maximum permissibl e charg e
current: R
on th e charging cable control sR
in th e Settings men u of th e on-boar d com-
puter ( Y
page 273)
The lower value of th e two charg e curren t set -
ting s – on th e charg e cable control s and in th e
on-boar d computer – determine s th e maximum
charg e current. If you canno t set th e precis e maximum permitte d charg e current, select th e
next lowes t available value .
Only set th e maximum permitte d charg e curren t
in th e on-boar d computer men u if:R
it is no t possibl e to set th e charg e curren t on
th e charging cable R
th e precis e maximum permitte d charg e cur -
ren t can only be set via th e on-boar d com-
puter
Setting th e maximum permitte d charg e curren t
on th e charging cable is described below. X
To adjust th e setting: press butto n

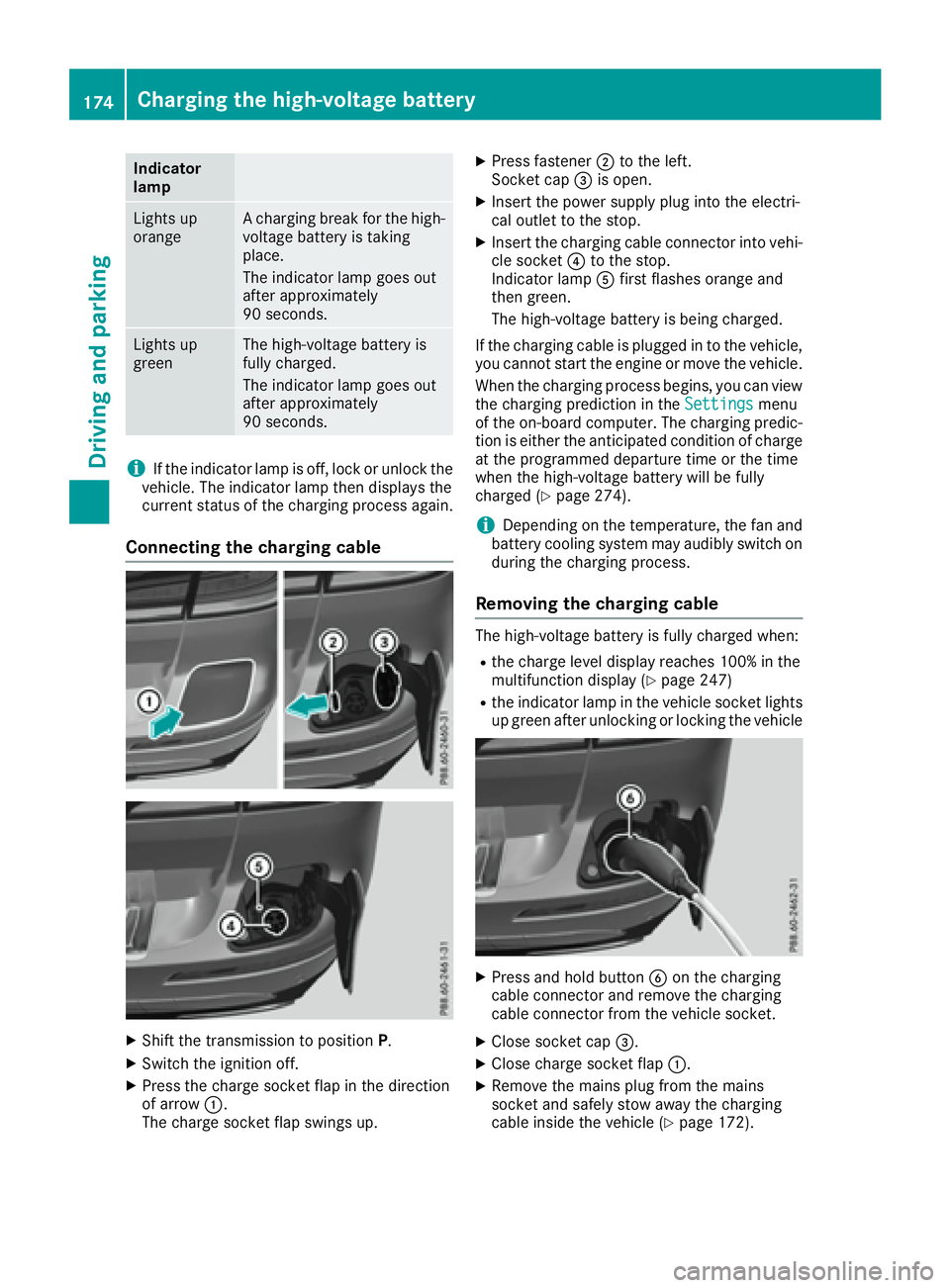

Indicator
lamp
Lights up
orange A charging break for the high-
voltage battery is taking
place.
The indicator lamp goes out
after approximately
90 seconds.
Lights up
green The high-voltage battery is
fully charged.
The indicator lamp goes out
after approximately
90 seconds.
i If the indicator lamp is off, lock or unlock the
vehicle. The indicator lamp then displays the
current status of the charging process again.
Connecting the charging cable
X
Shift the transmission to position P .X
Switch the ignition off. X
Press the charge socket flap in the direction
of arrow C .
The charge socket flap swings up. X
Press fastener D to the left.
Socket cap
