2016 MAZDA MODEL MX-5 Owners Manual (in English)

4–65
When Driving
i-ACTIVSENSE
*Some models.

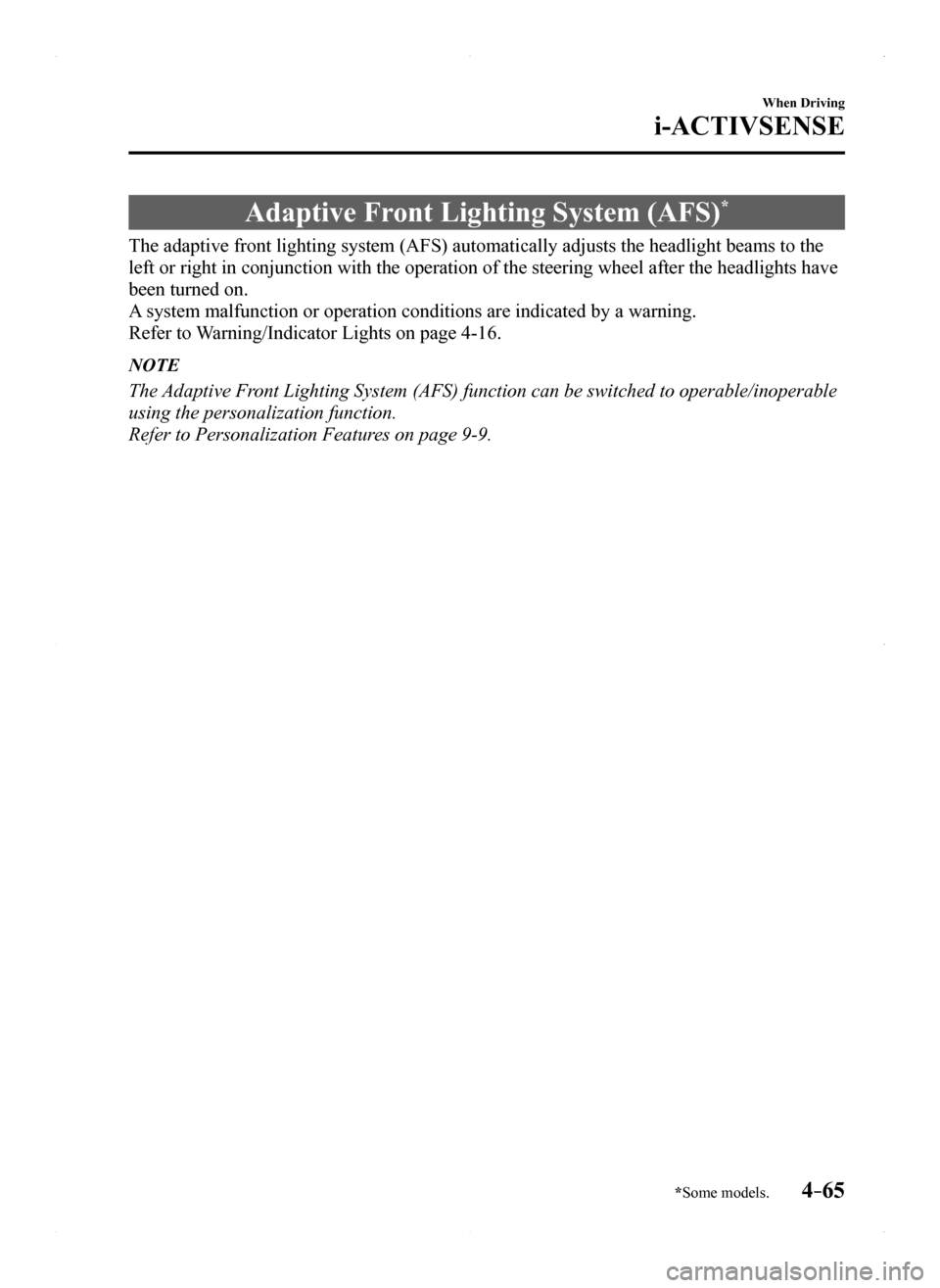

Adaptive Front Lighting System (AFS)*
The adaptive front lighting system (AFS) automatically adjusts the hea\
dlight beams to the
left or right in conjunction with the operation of the steering wheel af\
ter the headlights have
been turned on.
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-16.
NOTE
The Adaptive Front Lighting System (AFS) function can be switched to operable/inopera\
ble
using the personalization function.
Refer to Personalization Features on page 9-9.
MX-5_8EU4-EA-15D_Edition1.indb 652015/03/10 9:55:14

4–66
When Driving
i-ACTIVSENSE
*Some models.
High Beam Control System (HBC)*
The High Beam Control System (HBC) determines the conditions in front of the vehicle
using the Forward Sensing Camera (FSC) while driving in darkness to au\
tomatically switch
the headlights between high and low beams.
Refer to Warning/Indicator Lights on page 4-16.
While driving the vehicle at a speed of about 30 km/h (18 mph), the he\
adlights are switched
to high beams when there are no vehicles ahead or approaching in the opp\
osite direction.
The system switches the headlights to low beams when one of the followin\
g occurs:
 The system detects a vehicle or the headlights/lights of a vehicle appro\
aching in the
opposite direction. The vehicle is driven on roads lined with streetlamps or on roads in wel\
l-lit cities and
towns. The vehicle is driven at less than about 20 km/h (12 mph).
F orward Sensing
Camera (FSC)
The recognition distance of the
F
orward Sensing Camera (FSC)
v aries according to the
surrounding conditions.
The warning light flashes when the system has a malfunction.
Refer to Warning Lights on page 4-16.
CAUTION
 Do not adjust the vehicle height, modify the headlight units, or remove the camera,
otherwise the system will not operate normally. Do not rely excessively on the High Beam Control System (HBC) and drive the vehicle while
paying sufficient attention to safety. Switch the headlights between the high beams and
low beams manually if necessary.
MX-5_8EU4-EA-15D_Edition1.indb 662015/03/10 9:55:15

4–67
When Driving
i-ACTIVSENSE
NOTE
The timing in which the system switches the headlights changes under the\
following
conditions. If the system does not switch the headlights appropriately, manually switch
between high and low beams according to the visibility as well as road and traffic
conditions.
 When there are sources of light in the area such as street lamps, illuminated signboards,
and traffic signals. When there are reflective objects in the surrounding area such as reflective plates and
signs. When visibility is reduced under rain, snow and foggy conditions. When driving on roads with sharp turn or hilly terrain. When the headlights/rear lamps of vehicles in front of you or in the opposite lane are dim
or not illuminated. When there is sufficient darkness such as at dawn or dusk. When the luggage compartment is loaded with heavy objects. When visibility is reduced due to a vehicle in front of you spraying water from its tires
onto your windshield.
MX-5_8EU4-EA-15D_Edition1.indb 672015/03/10 9:55:15

4–68
When Driving
i-ACTIVSENSE
To Operate the System
The High Beam Control System (HBC)
operates to switch the headlights
automatically between high and low
beams after the ignition is switched ON
and the headlight switch is in the AUTO
and high beam position.
The High Beam Control System (HBC)
determines that it is dark based on the
brightness of the surrounding area. At the
same time, the High Beam Control System
(HBC) indicator light (green) in the
instrument cluster illuminates.
NOTE
 When the vehicle speed is 30 km/h
(18 mph) or higher, the headlights
automatically switch to high beams
when there are no vehicles ahead or
approaching in the opposite direction.
When the vehicle speed is less than
about 20 km/h (12 mph), the High Beam
Control System (HBC) switches the
headlights to low beams. The low beams may not switch to high
beams when cornering. Operation of the High Beam Control
System (HBC) function can be disabled.
Refer to Personalization Features on
page 9-9.
Manual Switching
Switching to low beams
Shift the lever to the low beam position.
The High Beam Control System (HBC)
indicator light (green) turns off.
Switching to high beams
Turn the headlight switch to the
position.
The High Beam Control System (HBC)
indicator light (green) turns off and the
is illuminated.
MX-5_8EU4-EA-15D_Edition1.indb 682015/03/10 9:55:15

4–69
When Driving
i-ACTIVSENSE
*Some models.
Lane Departure Warning System (LDWS)*
The LDWS system notifies the driver that the vehicle may be deviating from its lane.
The system detects the white or yellow lines on the traffic lane using the Forward Sensing
Camera (FSC) and if it determines that the vehicle may be deviating from its lane, it notifies
the driver by flashing the LDWS warning light and activating the LDWS warning beep.
Use the LDWS when you drive the vehicle on roads with white or yellow li\
nes.
Refer to Forward Sensing Camera on page 4-84.
Forward Sensing Camera
(FSC)
LD WS warning light
The warning light illuminates when the system has a malfunction.
Refer to Warning Lights on page 4-16.
WARNING
Do not use the LDWS under the following conditions:
The system may not operate adequately according to the actual driving conditions,
resulting in an accident.
 Driving on roads with tight curves. Driving under bad weather conditions (rain, fog, and snow).
The functions of the LDWS have limitations:
Always stay on course using the steering wheel and drive with care. The system is not
designed to compensate for a driver’s lack of caution and if you rely too much on the
LDWS it could lead to an accident. The driver is responsible for assuring lane changes and
other maneuvers. Always pay attention to the direction in which the vehicle is traveling
and the vehicle’s surroundings.
MX-5_8EU4-EA-15D_Edition1.indb 692015/03/10 9:55:15

4–70
When Driving
i-ACTIVSENSE
CAUTION
Do not modify the suspension. If the vehicle height or the damping force of the
suspensions is changed, the LDWS may not operate correctly.
NOTE
 If your vehicle deviates from its traffic lane, the LDWS operates (warning sound and
indicator light). Steer the vehicle adequately to drive the vehicle to \
the center of the lane. When the turn signal lever is operated for a lane change, the LDWS warni\
ng is
automatically canceled. The LDWS warning becomes operable when the turn \
signal lever
is returned and the system detects the white or yellow lines. If the steering wheel, accelerator pedal, or brake pedal is operated abr\
uptly and the
vehicle moves close to a white or yellow line, the system determines tha\
t the driver is
making a lane change and the LDWS warning is automatically canceled. The LDWS may not operate during the period immediately after the vehicle\
has deviated
from its lane and the LDWS has operated, or the vehicle deviates from its lane repeatedly
within a short period of time. The LDWS does not operate if it does not detect the white or yellow lines of the traffic
lane.
MX-5_8EU4-EA-15D_Edition1.indb 702015/03/10 9:55:15

4–71
When Driving
i-ACTIVSENSE
 Under the following conditions, the LDWS may not be able to detect white\
or yellow lines
correctly and the LDWS may not operate correctly.
 If an object placed on the dashboard is reflected in the windshield and picked up by the
camera. Heavy luggage is loaded in the luggage compartment the vehicle is inclin\
ed. The tire pressures are not adjusted to the specified pressure. When the vehicle is driven on the entry and exit to or from the rest area or tollgate of a
highway. The white or yellow lines are less visible because of dirt or paint flaking. The vehicle ahead is running near a white or yellow line and the line is\
less visible. A white or yellow line is less visible because of bad weather (rain, fog\
, or snow). The vehicle is driven on a temporary lane or section with a closed lane \
due to
construction. A misleading line is picked up on the road such as a temporary line for construction,
or because of shade, lingering snow, or grooves filled with water. The surrounding brightness suddenly changes such as when entering or exiting a
tunnel. The illumination of the headlights is weakened because of dirt or the op\
tical axis is
deviated. The windshield is dirty or foggy. Back-light is reflecting from the road surface. The road surface is wet and shiny after rain, or there are puddles on the road. The shade of a guardrail parallel to a white or yellow line is on the road. The width of a lane is excessively narrow or wide. The road is excessively uneven. The vehicle is shaken after hitting a road bump. There are two or more adjacent white or yellow lines. There are various road markings or lane markings of various shapes near an
intersection.
MX-5_8EU4-EA-15D_Edition1.indb 712015/03/10 9:55:15

4–72
When Driving
i-ACTIVSENSE
When the System Operates
1. The system goes on operation standby
when the LDWS switch is pressed and
the LDWS OFF indicator light in the
instrument cluster turns off.
2. Drive the vehicle in the center of the
driving lane while the LDWS OFF
indicator light is turned off. The system
becomes operational when all of the
following conditions are met.
 The vehicle is driven in the center
of the driving lane with the white or
yellow lines on the left and right sides,
or on either side. The vehicle speed is 65 km/h (41 mph)
or faster. The vehicle is driven on a straight road
or road with gentle curves.
The LDWS does not operate in the
following cases:
 The system cannot detect white or
yellow lines. The vehicle speed is less than 60 km/h
(37 mph). The vehicle is making a sharp turn. The vehicle is making a curve at an
inadequate speed.
NOTE
 The LDWS does not operate until the
system detects a white or yellow line on
either the left or right. When the system detects a white or
yellow line on one side only, the system
will activate the warning only when the
vehicle deviates on the side where the
white or yellow line is being detected. The distance and warning sensitivity
(likelihood of a warning) which the
system uses to determine the possibility
of a lane departure can be changed.
Refer to Personalization Features on
page 9-9.
Auto cancel
In the following cases, the LDWS cancels
automatically and the LDWS warning
light in the instrument cluster turns on.
 The temperature inside the camera is
high or low. The windshield around the camera is
foggy. The windshield around the camera is
blocked by an obstruction, causing poor
forward visibility.
The LDWS is enabled automatically when
the operation conditions are met, and the
LDWS warning light turns off.
MX-5_8EU4-EA-15D_Edition1.indb 722015/03/10 9:55:15
