2016 MAZDA MODEL MX-5 Owners Manual (in English)

7–43
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Message Indicated on Display
If a message is displayed in the center display (type B audio), take appropriate action (in a
calm manner) according to the displayed message.
(Display example)
Stop Vehicle in Safe Place Immediately
If the following messages are displayed in the center display (Type B audio), a vehicle
system may be malfunctioning. Stop the vehicle in a safe place and conta\
ct an Authorized
Mazda Dealer.
DisplayIndicated Condition
Displays if the engine coolant temperature has increased excessively.
Displays if the charging system has a malfunction.
MX-5_8EU4-EA-15D_Edition1.indb 432015/03/10 9:56:33

7–44
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

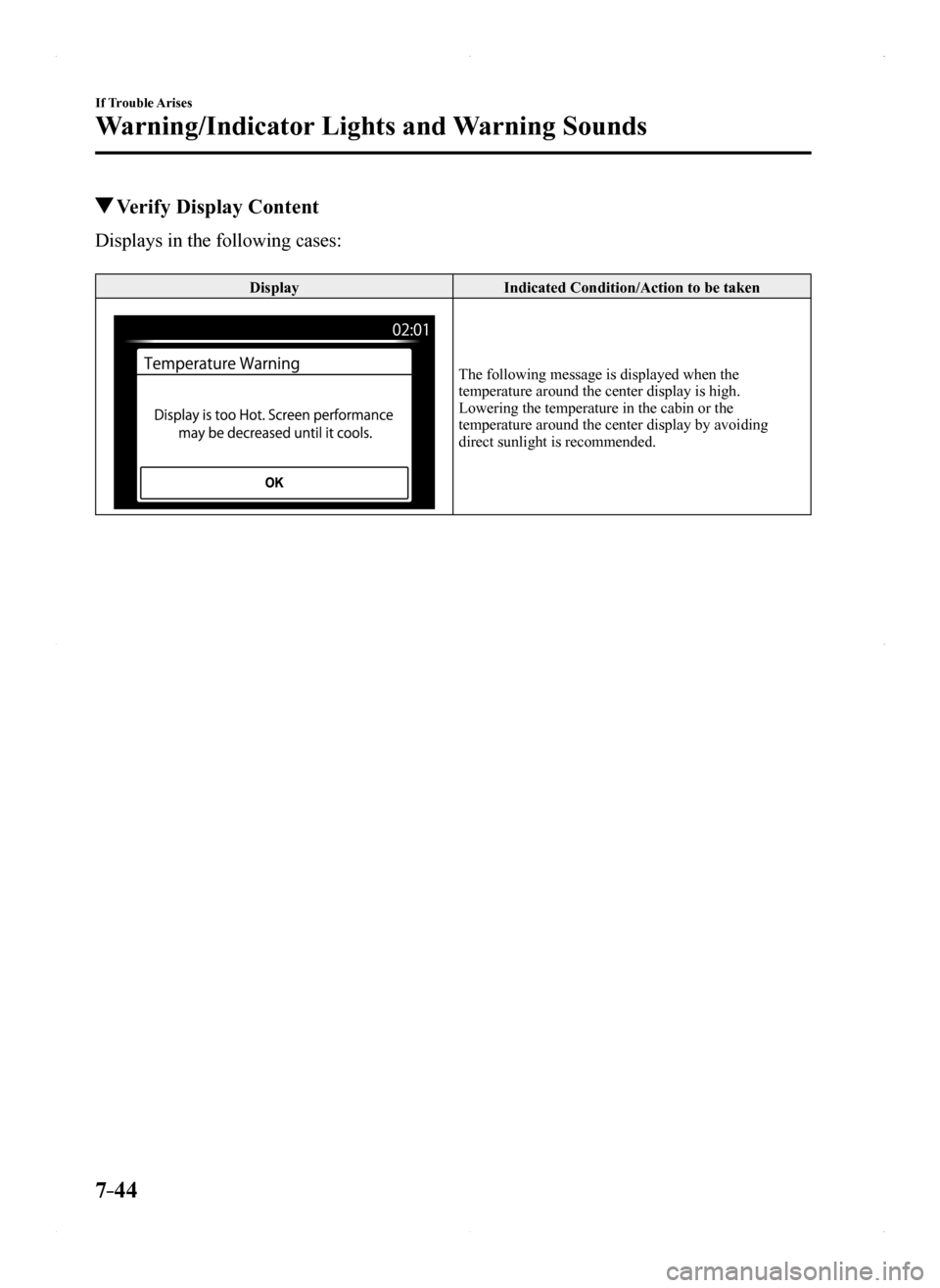

Verify Display Content
Displays in the following cases:
DisplayIndicated Condition/Action to be taken
The following message is displayed when the temperature around the center display is high.Lowering the temperature in the cabin or the temperature around the center display by avoiding direct sunlight is recommended.
MX-5_8EU4-EA-15D_Edition1.indb 442015/03/10 9:56:33

7–45
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Warning Sound is
Activated
Lights-On Reminder
The lights-on reminder is operable when
the time setting*1 of the auto headlight off
function is off.
If lights are on and the ignition is switched
to ACC or the ignition is switched off, a
continuous beep sound will be heard when
the driver's door is opened.
*1 If the light switch is left on, the auto
headlight off function automatically
turns off the lights about 30 seconds
after switching the ignition off. The
time setting can be changed.
Refer to Personalization Features on
page 9-9.
NOTE
 When the ignition is switched to ACC,
the “Ignition Not Switched Off (STOP)
Warning Beep” (page 7-46) overrides
the lights-on reminder.  A personalized function is available to
change the sound volume for the lights-
on reminder.
Refer to Personalization Features on
page 9-9.
Air Bag/Seat Belt Pretensioner
System Warning Beep
If there is a problem with the air bag/seat
belt pretensioner systems and the warning
light illumination, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35
minutes. Have your vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
seat belt pretensioner system warning
beep sounding is dangerous. In a
collision, the air bags and the seat belt
pretensioner system will not deploy
and this could result in death or serious
injury. Contact an Authorized Mazda
Dealer to have the vehicle inspected as
soon as possible.
MX-5_8EU4-EA-15D_Edition1.indb 452015/03/10 9:56:33

7–46
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
Except Mexico
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the passenger's seat belt is
not fastened and the vehicle is driven at a
speed faster than about 20 km/h (12 mph),
a beep sound will be heard again for a
specified period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
 To allow the passenger occupant
classification sensor to function
properly, do not place and sit on
an additional seat cushion on the
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference. If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20 km/h
(12 mph) with the driver or passenger's
seat belt unfastened, a warning beep
sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
 Placing heavy items on the passenger's
seat may cause the passenger's seat belt
warning function to operate depending
on the weight of the item. To allow the passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion
on the passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference. If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened while
the ignition is switched to ACC, a
continuous beep sound will be heard to
notify the driver that the ignition has not
been switched off (STOP). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
Key Removed from Vehicle
Warning Beep
A beep sound will be heard 6 times and
the KEY warning light (red) will flash
continuously if the ignition has not been
switched off, all the doors are closed, and
the key is removed from the vehicle. This
is to notify the driver that the key has been
removed from the vehicle and the ignition
has not been switched off.
MX-5_8EU4-EA-15D_Edition1.indb 462015/03/10 9:56:34

7–47
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
Request Switch Inoperable
Warning Beep (With the advanced
keyless function)
If the request switch is pressed with a door
open or ajar or the ignition has not been
switched off while the key is being carried,
a beep will be heard for about 2 seconds
to indicate that the doors and the trunk lid
cannot be locked.
Key Left-in-trunk Warning Beep
(With the advanced keyless
function)
If the key is left in the trunk with all doors
locked and the trunk lid closed, a beep
sound is heard for about 10 seconds to
remind the driver the key has been left in
the trunk. If this happens, open the trunk
lid by pressing the electric trunk lid opener
and remove the key. A key removed from
the trunk may not function because its
functions may have been temporarily
suspended. To restore the key function,
perform the applicable procedure (page
3-7).
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If a key is left in the vehicle cabin and all
the doors and the trunk are locked using
a separate key, a beep sound is heard for
about 10 seconds to remind the driver
that the key has been left in the vehicle
cabin. If this happens, open the door and
remove the key. A key removed from the
vehicle this way may not function because
its functions may have been temporarily
suspended. Perform the applicable
procedure to restore the functions of the
key (page 3-7).
Tire Inflation Pressure Warning
Beep*
The warning beep sound will be heard
for about 3 seconds when there is any
abnormality in tire inflation pressures
(page 4-93).
Lane Departure Warning System
(LDWS) Warning Sound*
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
 The volume of the LDWS warning sound
can be changed.
Refer to Personalization Features on
page 9-9. The type of the LDWS warning sound
can be changed.
Refer to Personalization Features on
page 9-9.
MX-5_8EU4-EA-15D_Edition1.indb 472015/03/10 9:56:34

7–48
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Blind Spot Monitoring (BSM)
System Warning Beep*
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
NOTE
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-9.
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated.
MX-5_8EU4-EA-15D_Edition1.indb 482015/03/10 9:56:34

7–49
If Trouble Arises
When Trunk Lid Cannot be Opened
When Trunk Lid Cannot
be Opened
If the battery is dead, the trunk cannot be
unlocked and opened.
In this case, the trunk can be unlocked by
taking care of the dead battery situation.
Refer to Jump-Starting on page 7-23.
If the trunk cannot be unlocked even
if the dead battery situation has been
resolved, the electrical system may have a
malfunction.
1. Close the convertible top.
Refer to Raising the Convertible Top
on page 3-37.
2. Remove the windblocker.

Windblocker
3. Remove the fasteners on the right side
of the vehicle.

4. Partially peel back the cover on the
right side of the vehicle.

5. Turn and loosen the cap screws until
the screws start to spin free.

MX-5_8EU4-EA-15D_Edition1.indb 492015/03/10 9:56:34

7–50
If Trouble Arises
When Trunk Lid Cannot be Opened
6. Pull out the cap and open the trunk lid.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.

CAUTION
Do not pull the screw when pulling the
cap. Otherwise, the screw may fall off
and become lost.
MX-5_8EU4-EA-15D_Edition1.indb 502015/03/10 9:56:34
