3504-5. Using the driving support systems
LS460/LS460L_GE (OM50G06E)
■After the vehicle has been parked in the sun
The LKA system functions may not be available and a warning message ( P. 614)
will be displayed for a while after driving has started. In such cases, turn the LKA sys-
tem off and turn it on again after normal temperature returns. When the temperature
in the cabin decreases and the temperature around the camera sensor ( P. 344)
becomes suitable for its operation, the functions will begin to operate.
■If there are lane markers on only one side of the vehicle
The lane keeping assist function will not operate. Also, the lane departure warning
will not operate for the side on which lane markers could not be recognized.
■Conditions in which the function may not operate correctly
In the following conditions, the LKA system functions may not operate, or it may not
be possible to ensure adequate performance. Also, the camera sensor may be
unable to recognize lane lines causing the lane departure warning function to oper-
ate incorrectly, or the lane keeping assist function may not operate properly. How-
ever, this does not indicate a malfunction.
●When driving through an area with no lane markers, such as a tollbooth, a crossing
or before a ticket checkpoint
●When driving on a sharp curve
●When lanes are extremely narrow or extremely wide
●When the vehicle leans to one side an unusual amount due to a heavy load or
improper tire inflation pressure
●When the following distance between your vehicle and the vehicle ahead is
extremely short
●When the lane markers are yellow (These may be more difficult for the system to
recognize compared to white markers.)
●When the lane markers are broken, “Raised pavement marker” or stones
●When lane markers are obscured or partially obscured by sand, dirt, etc.
●When there are shadows on the road running parallel with lane markers, or if a
shadow covers the lane markers
●When driving on a particularly bright road surface, such as concrete
●When driving on a road surface that is bright due to reflected light
●When driving in a location where the li ght level changes rapidly, such as the
entrance to or exit from a tunnel
●When sunlight or the headlights of oncoming vehicles are shining directly into the
camera lens
●When driving on roads that are branching or merging

4034-6. Driving tips
4
Driving
LS460/LS460L_GE (OM50G06E)
◆Using Eco drive mode
When using Eco drive mode, the torque corresponding to the accelerator
pedal depression amount can be generate d more smoothly than it is in normal
conditions. In addition, the operation of the air conditioning system (heating/
cooling) will be minimized, improving the fuel economy. ( P. 354)
◆Use of Eco Driving Indicator
The Eco-friendly driving is possible by keeping the bar display of the Eco Driv-
ing Indicator shown in the multi-information display within the Zone of Eco
driving. (  P. 132)
◆Accelerator pedal/brake pedal operation
Drive your vehicle smoothly. Avoid abrupt acceleration and deceleration.
Gradual acceleration and deceleration will help reduce excessive fuel con-
sumption.
◆When braking
Observe conditions in front of and ar ound the vehicle, and estimate your
stopping position. Release the accelerator pedal early and continue coasting.
Use the brake pedal to adjust your stopping position. Make sure to operate
the brake pedal gently.
◆Delays
Repeated acceleration and deceleration, as well as long waits at traffic lights,
will lead to bad fuel economy. Check traffic reports before leaving and avoid
delays as much as possible.
◆Highway driving
Control and maintain the vehicle at a constant speed. Before stopping at a toll
booth or similar, allow plenty of time to release the accelerator pedal and gen-
tly apply the brakes.
Eco-friendly driving tips
For improved fuel economy and reduced CO2 emissions, pay attention to the
following points:

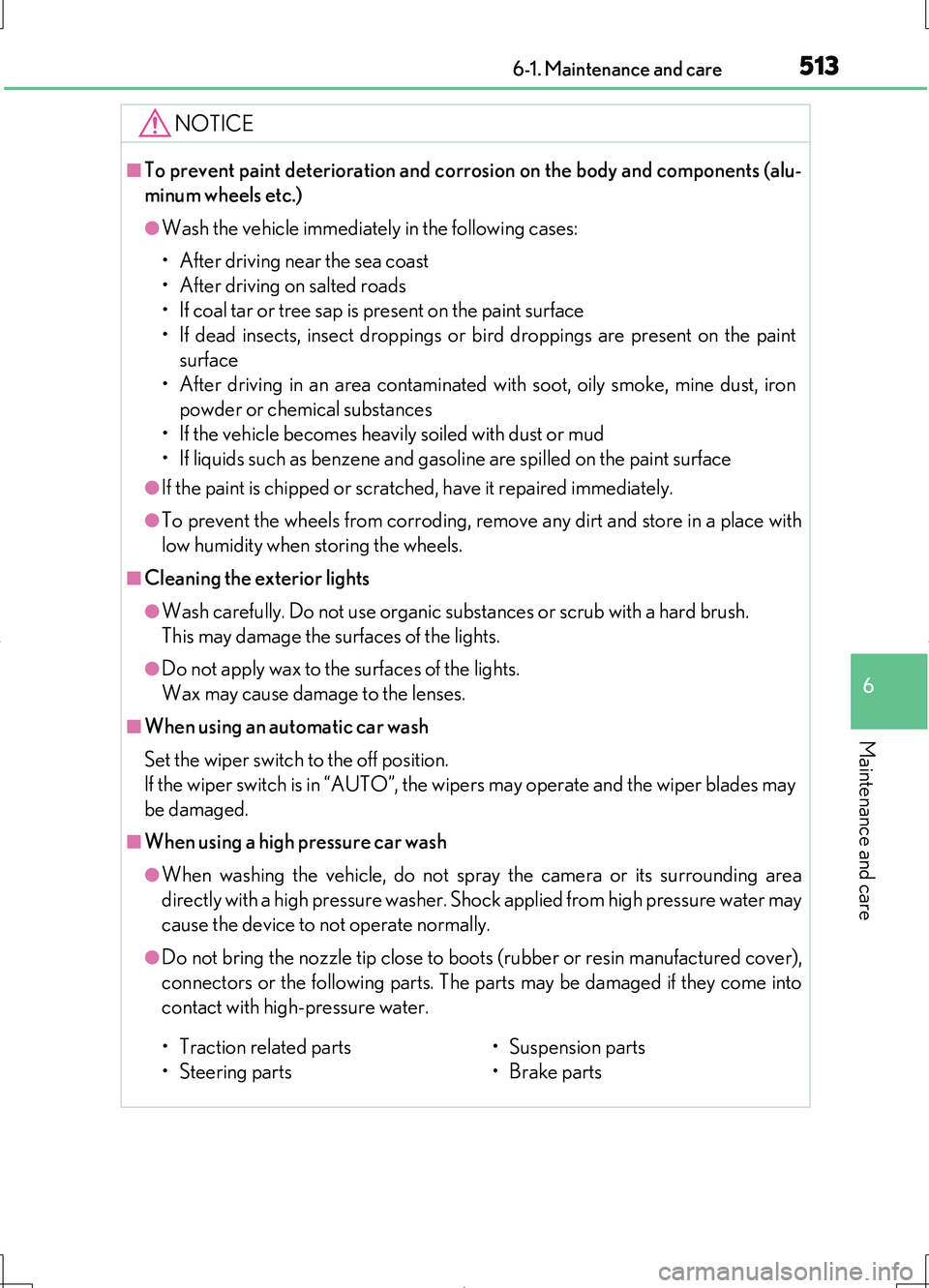

5136-1. Maintenance and care
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
NOTICE
■To prevent paint deterioration and corrosion on the body and components (alu-
minum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint
surface
• After driving in an area contaminated with soot, oily smoke, mine dust, iron
powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with
low humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■When using an automatic car wash
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wipers may operate and the wiper blades may
be damaged.
■When using a high pressure car wash
●When washing the vehicle, do not spray the camera or its surrounding area
directly with a high pressure washer. Shock applied from high pressure water may
cause the device to not operate normally.
●Do not bring the nozzle tip close to boot s (rubber or resin manufactured cover),
connectors or the following parts. The parts may be damaged if they come into
contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

5226-2. Maintenance
LS460/LS460L_GE (OM50G06E)
CHASSIS AND BODY
13Brake pedal <>IIIIIIII6
14Brake linings and drumsIIII12
15Brake pads and discsIIIIIIII6
16Brake fluidIIIRIIIRI: 6
R: 24
17Brake pipes and hosesIIII12
18Steering wheel, linkage and
steering gear boxIIII12
19Drive shaft bootsIIII24
20Suspension ball joint and
dust coverIIII12
21Automatic transmission fluidII24
22Transfer oil (AWD models)IRIRI: 12
R: 48
23Front differential oil (AWD
models)IRIRI: 12
R: 48
24Rear differential oilIRIRI: 12
R: 48
25Front and rear suspension
<>IIII12
26Tires and inflation pressureIIIIIIII6
27Lights, horns, wipers and
washersIIIIIIII6
28Air conditioning filter
When a message on the multi-information
display indicates that maintenance is
required, replace the filter.
Refrigerant amount for air condi-
tionerIIII12
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE
INTERVAL:ODOMETER READING
MONTHS(Odometer
reading or
months,
whichever
comes first.)
x1000 km1020304050607080
x1000 miles612182430364248

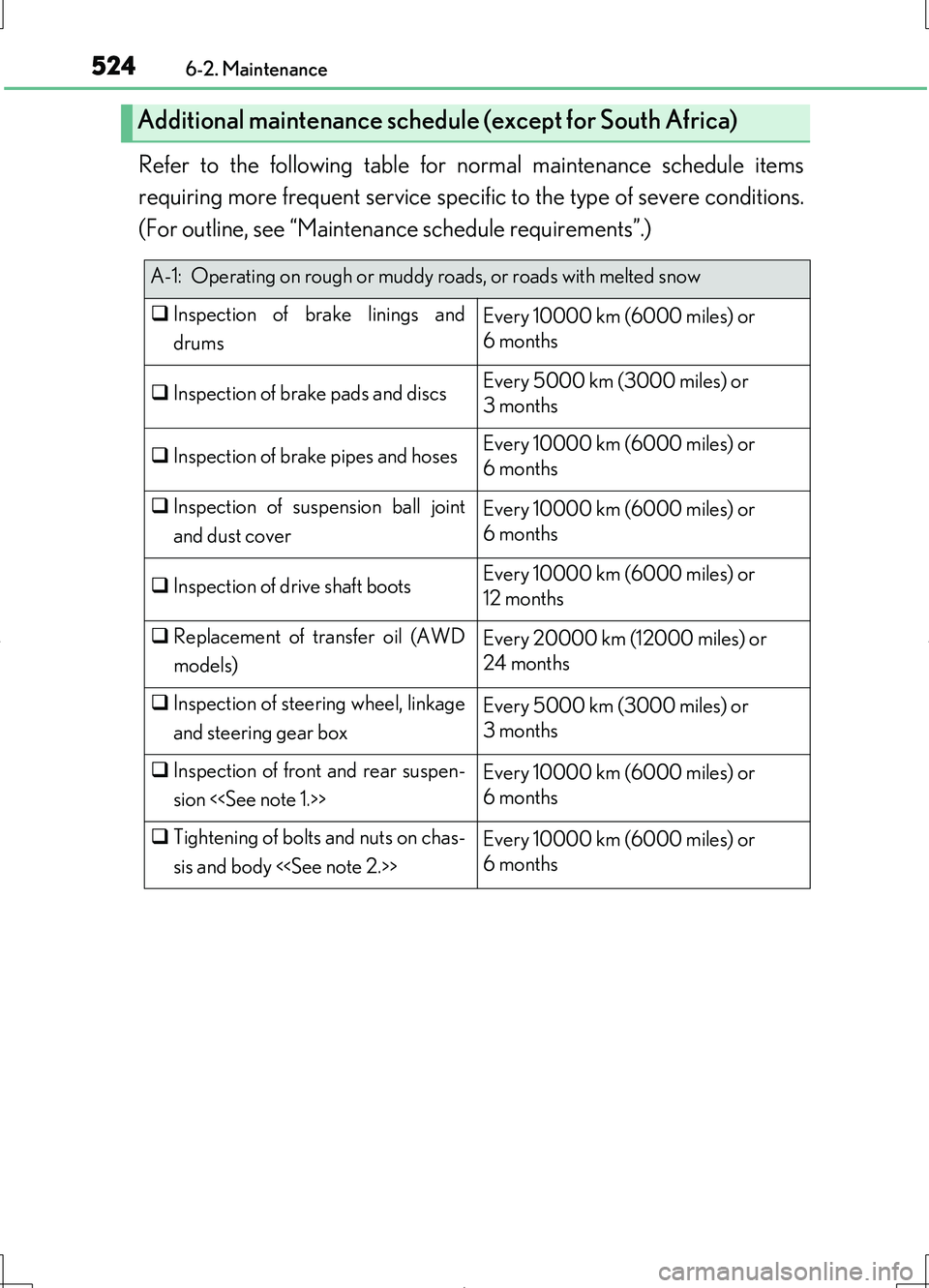

5246-2. Maintenance
LS460/LS460L_GE (OM50G06E)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenance schedule requirements”.)
Additional maintenance schedule (except for South Africa)
A-1: Operating on rough or muddy ro ads, or roads with melted snow
Inspection of brake linings and
drums
Every 10000 km (6000 miles) or
6 months
 Inspection of brake pads and discsEvery 5000 km (3000 miles) or
3 months
 Inspection of brake pipes and hosesEvery 10000 km (6000 miles) or
6 months
 Inspection of suspension ball joint
and dust cover
Every 10000 km (6000 miles) or
6 months
 Inspection of drive shaft bootsEvery 10000 km (6000 miles) or
12 months
 Replacement of transfer oil (AWD
models)
Every 20000 km (12000 miles) or
24 months
 Inspection of steering wheel, linkage
and steering gear box
Every 5000 km (3000 miles) or
3 months
 Inspection of front and rear suspen-
sion <>
Every 10000 km (6000 miles) or
6 months
 Tightening of bolts and nuts on chas-
sis and body <>
Every 10000 km (6000 miles) or
6 months

5296-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
NOTE:
1. First replace at 160000 km (100000 miles), then replace every 80000 km
(48000 miles).
2. It is possible to replace every 100000 km (60000 miles).
3. Including the filter in fuel tank.
4. Parking brake inspection is not necessary.
CHASSIS AND BODY
17Brake pipes and hosesIIIIII12
18Steering wheel, linkage and steering
gear boxIIIIII12
19Drive shaft bootsIIIIII24
20Suspension ball joint and dust coverIIIIII12
21Automatic transmission fluidII36
22Rear differential oilIRIRIRI: 12
R: 48
23Front and rear suspensionIIIIII12
24Tires and inflation pressureIIIIII12
25Lights, horns, wipers and washersIIIIII12
26Air conditioning filter
When a message on the multi-
information display indicates that
maintenance is required, replace
the filter.
Refrigerant amount for air conditionerIIIIII12
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE INTERVAL:ODOMETER READING
(Odometer reading or
months, whichever
comes first.)
x1000 km153045607590
MONTHSx1000
miles91827364554

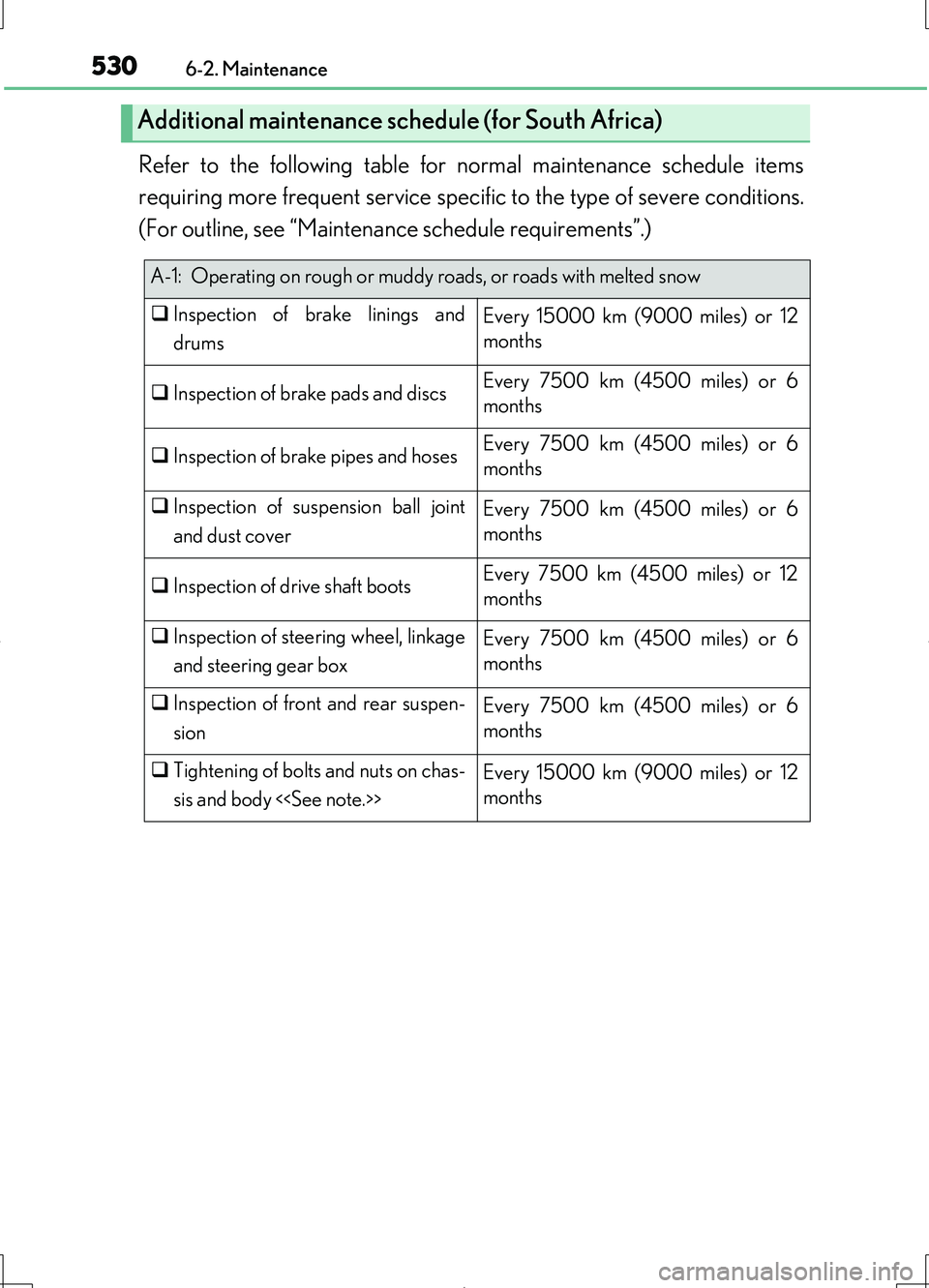

5306-2. Maintenance
LS460/LS460L_GE (OM50G06E)
Refer to the following table for normal maintenance schedule items
requiring more frequent service specific to the type of severe conditions.
(For outline, see “Maintenance schedule requirements”.)
Additional maintenance schedule (for South Africa)
A-1: Operating on rough or muddy ro ads, or roads with melted snow
Inspection of brake linings and
drums
Every 15000 km (9000 miles) or 12
months
 Inspection of brake pads and discsEvery 7500 km (4500 miles) or 6
months
 Inspection of brake pipes and hosesEvery 7500 km (4500 miles) or 6
months
 Inspection of suspension ball joint
and dust cover
Every 7500 km (4500 miles) or 6
months
 Inspection of drive shaft bootsEvery 7500 km (4500 miles) or 12
months
 Inspection of steering wheel, linkage
and steering gear box
Every 7500 km (4500 miles) or 6
months
 Inspection of front and rear suspen-
sion
Every 7500 km (4500 miles) or 6
months
 Tightening of bolts and nuts on chas-
sis and body <>
Every 15000 km (9000 miles) or 12
months
