2016 LEXUS LS460L engine

4885-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■The rear sunshade can be used when
The engine switch is in IGNITION ON mode.
■Operating the rear sunshade after turning the engine switch off
The rear sunshade can be operated for approximately 60 seconds even after the
engine switch is switched to ACCESSORY mode or turned off.
■Reverse operation feature
To ensure adequate rear visibility, the rear sunshade automatically lowers when the
shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
●The button is pressed again.
●The shift lever is shifted to P.
●The shift lever is shifted out of P and R, and the vehicle reaches a speed of 15 km/h
(9 mph).
If the engine is turned off when the rear sunshade has been lowered due to the
reverse operation feature, it will not be raised even when the engine is turned on
again and the vehicle reaches a speed of 15 km/h (9 mph). To raise the sunshade
again, press the button.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 444)

4895-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

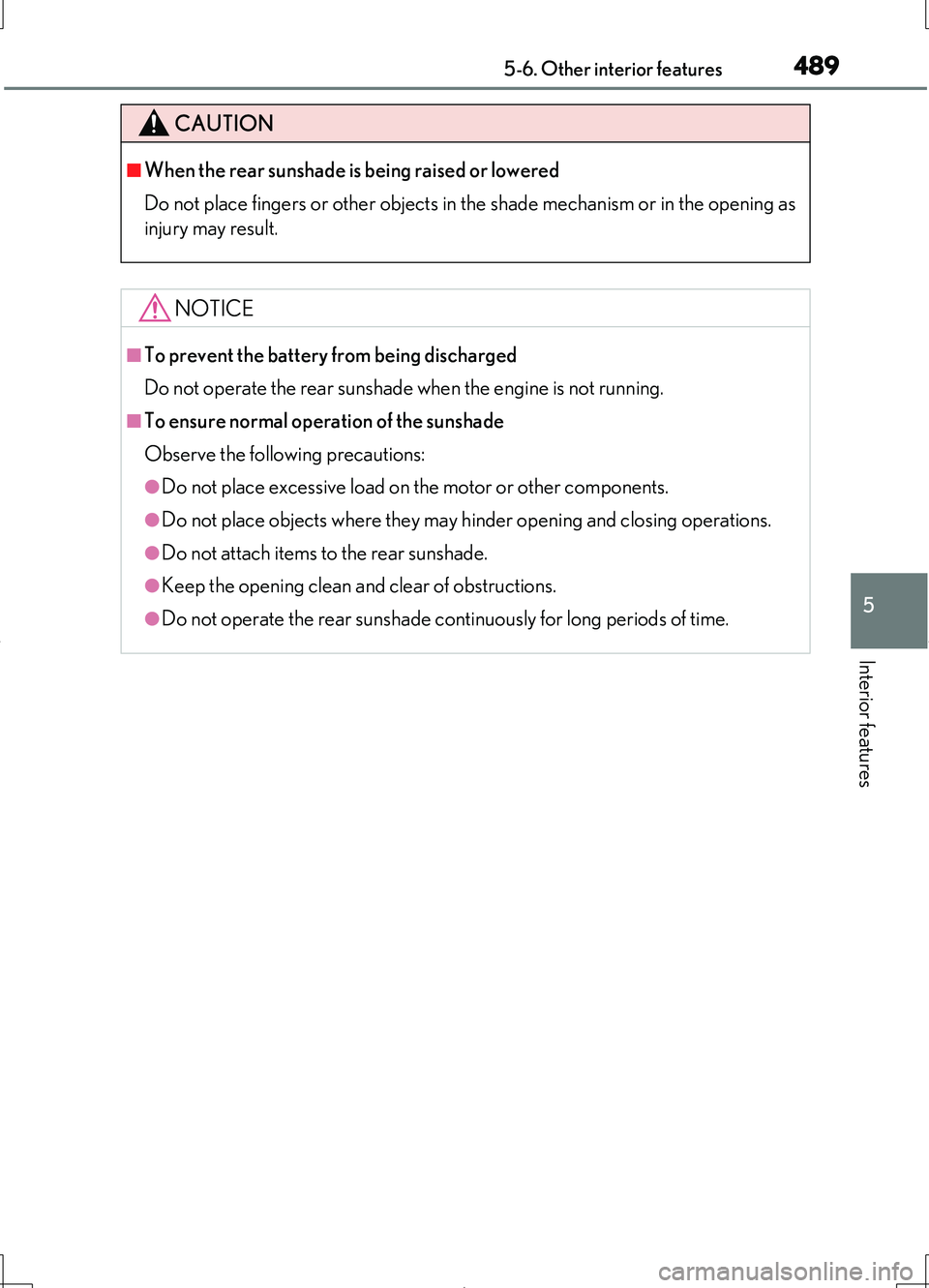

CAUTION
■When the rear sunshade is being raised or lowered
Do not place fingers or other objects in the shade mechanism or in the opening as
injury may result.
NOTICE
■To prevent the battery from being discharged
Do not operate the rear sunshade when the engine is not running.
■To ensure normal operation of the sunshade
Observe the following precautions:
●Do not place excessive load on the motor or other components.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear sunshade.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade continuously for long periods of time.

4925-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■Operating conditions
●The engine switch is in IGNITION ON mode.
●The rear windows are fully closed.
The rear door sunshades automatically retract when the rear windows are opened.
■Operating the rear door sunshades after turning the engine switch off
The rear door sunshades can be operated for approximately 60 seconds even after
the engine switch is switched to ACCESSORY mode or turned off.
■Jam protection function
If an object becomes caught between a rear door sunshade and the window frame,
the jam protection function will cause the sunshade to detach from its drive mecha-
nism and retract.
If the jam protection function operates when extending the rear door sunshades
Pressing the button will reconnect the sunshade.
Pressing the button again will allow the sunshades to be operated.
If the sunshade does not operate after the button is pressed, press the button again.
If the jam protection function operates when retracting the rear door sunshades
Press and hold the button to re-extend the rear door sunshades, and continue press-
ing for more than 5 seconds after the sunshades have fully extended and stopped.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 444)
■When reconnecting the battery
The rear door sunshades will always be retracted the first time the button is pressed.

4935-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)

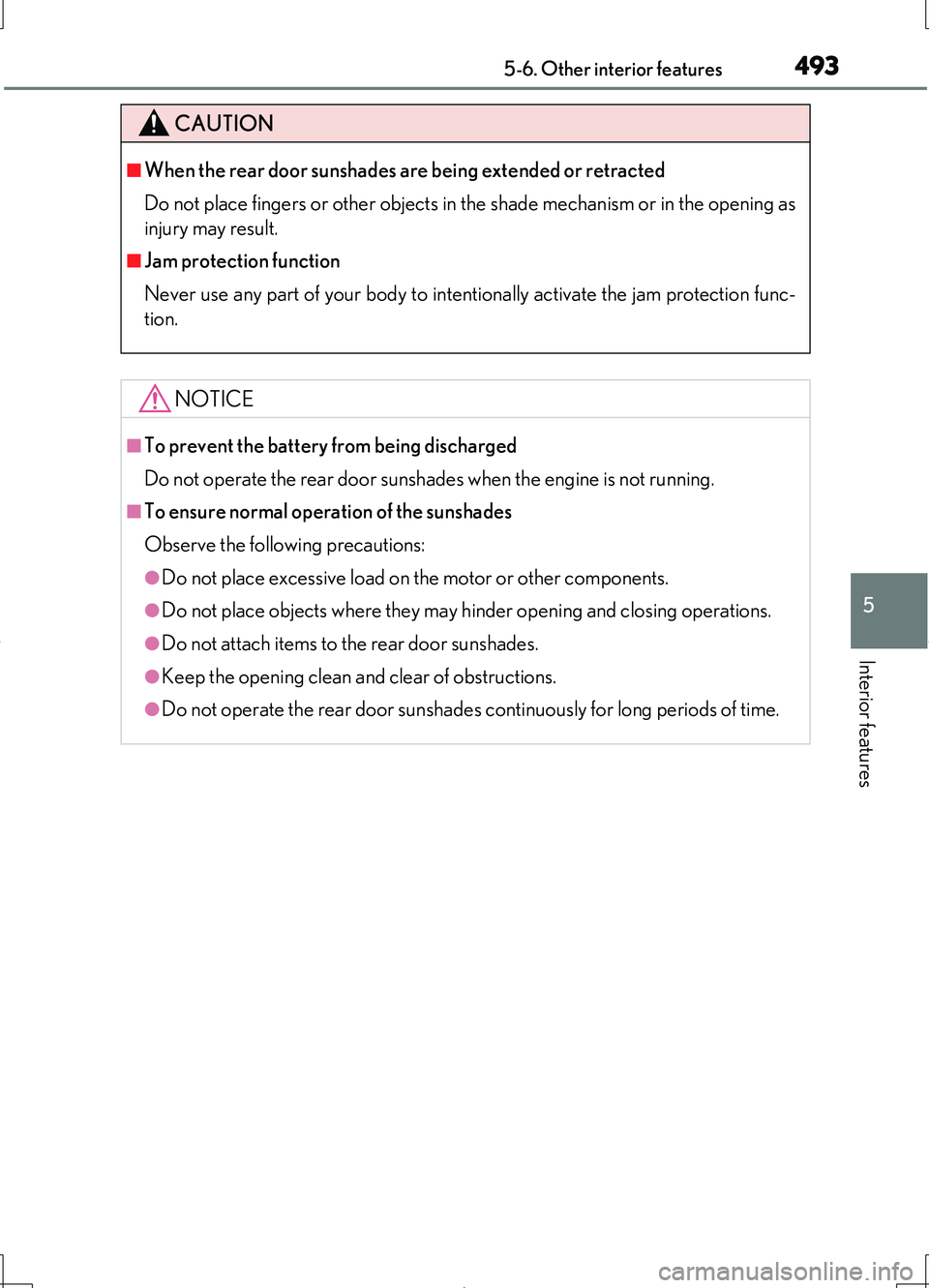

CAUTION
■When the rear door sunshades are being extended or retracted
Do not place fingers or other objects in the shade mechanism or in the opening as
injury may result.
■Jam protection function
Never use any part of your body to intentionally activate the jam protection func-
tion.
NOTICE
■To prevent the battery from being discharged
Do not operate the rear door sunshades when the engine is not running.
■To ensure normal operation of the sunshades
Observe the following precautions:
●Do not place excessive load on the motor or other components.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear door sunshades.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear door sunshades continuously for long periods of time.

5055-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Emergency Assistance Button (“SOS”)
In the event of an emergency, push the “SOS” button to reach the Pub-
lic Safety Answering Point (PSAP). The answering agent will determine
your vehicle's location, assess the emergency, and dispatch the neces-
sary assistance required.
If you accidentally press the “SOS” button, tell the agent that you are not expe-
riencing an emergency.
When the engine switch is turned to IGNITION ON mode, the red indi-
cator light will illuminate for 10 seconds and then the green indicator light
will illuminate for 2 seconds, indicatin g that the system is enabled. The
indicator lights indicate the following:
●If the green indicator light illuminates and stays on, the system is
enabled.
●If the green indicator light flashes, an emergency call is being made
(either automatically or manually).
●If no indicator lights illuminate, the system is not enabled.
●If the red indicator light illuminates any time other than immediately
after the engine switch is turned to IGNITION ON mode, the system
may be malfunctioning or the backup battery may be depleted. Con-
tact your Lexus dealer.
The service life of the backup battery is 3 years or more.
Indicator lights

509
6Maintenance and care
LS460/LS460L_GE (OM50G06E)
6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ................. 510
Cleaning and protecting
the vehicle interior................... 514
6-2. Maintenance
Maintenance
requirements ..............................517
Scheduled maintenance .........520
6-3. Do-it-yourself maintenance
Do-it-yourself service
precautions................................533
Hood ............................................... 536
Positioning a floor jack ............ 537
Engine compartment ............... 539
Tires .................................................556
Tire inflation pressure ..............568
Wheels ........................................... 570
Air conditioning filter ............... 572
Electronic key battery.............. 575
Checking and replacing
fuses.............................................. 579
Light bulbs.....................................584

5126-1. Maintenance and care
LS460/LS460L_GE (OM50G06E)
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause
the electrical components etc. to catch fire.
■When cleaning the windshield
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Precautions regarding the exhaust pipes and rear bumper diffusers
Exhaust gases cause the exhaust pipes and rear bumper diffusers to become quite
hot.
When washing the vehicle, be careful not to touch the pipes and diffusers until they
have cooled sufficiently, as touching hot exhaust pipes and rear bumper diffusers
can cause burns.
■ Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunc-
tion. If this occurs, consult your Lexus dealer.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wipers
may operate unexpectedly in the following
situations, and may result in hands being
caught or other serious injuries and cause
damage to the wiper blades.
Off

5186-2. Maintenance
LS460/LS460L_GE (OM50G06E)
What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself if you have a little mechan-
ical ability and a few basic automotive tools. Simple instructions for how to per-
form them are presented in this section.
Note, however, that some maintenance tasks require special tools and skills.
These are best performed by qualified technicians. Even if you are an experi-
enced do-it-yourself mechanic, we recommend that repairs and maintenance be
conducted by your Lexus dealer who will keep a record of maintenance on your
vehicle. This record could be helpful should you ever require Warranty Service.
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indi-
cate service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air conditioning
system after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak.
Drive with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the
floor, vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal ( P. 125)
If you notice any of these clues, take your vehicle to your Lexus dealer as soon as
possible. Your vehicle may need adjustment or repair.
Do-it-yourself maintenance
