2016 LEXUS LS460L engine

5206-2. Maintenance
LS460/LS460L_GE (OM50G06E)
Scheduled maintenance
Perform maintenance by the schedule as follows:
Maintenance schedule requirements
Your vehicle needs to be serviced according to the normal
maintenance schedule. (See “Maintenance schedule”.)
If you mainly operate your vehicle under one or more of the special
operating conditions below, some of the maintenance schedule items
need to be serviced more frequently in order to keep your vehicle in
good condition. (See “Additional maintenance schedule”.)
A. Road Conditions
1. Operating on rough or muddy
roads, or roads with melted
snow
2. Operating on dusty roads
(Roads in areas where their
pavement rate is low, or a
cloud of dust often arises and
the air is dry)
B. Driving Conditions
1. Heavily loaded vehicle (For
example, using a car top car-
rier and so forth.)
2. Repeated short trips less than
8 km (5 miles) and outside
temperatures remain below
freezing (Engine temperature
will not reach to normal tem-
perature)
3. Extensive idling and/or low
speed driving for a long dis-
tance such as police, taxi or
door-to-door delivery use
4. Continuous high speed driving
(80% or more of maximum
vehicle speed) for over 2 hours

5216-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
Maintenance schedule (except for South Africa)
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE
INTERVAL:ODOMETER READING
MONTHS(Odometer
reading or
months,
whichever
comes first.)
x1000 km1020304050607080
x1000 miles612182430364248
BASIC ENGINE COMPONENTS
1Drive beltsIIII24
2Engine oil RRRRRRRR12
3Engine oil filterRRRRRRRR12
4Cooling and heater system
<>II24
5Engine coolant
<>II-
6Exhaust pipes and mount-
ingsIIII12
IGNITION SYSTEM
7Spark plugsReplace every 100000 km
(60000 miles)-
8BatteryIIIIIIII12
FUEL AND EMISSION CONTROL SYSTEMS
9Fuel filter
<>R96
10Air cleaner filterIRIRI: 24
R: 48
11
Fuel tank cap, fuel lines, con-
nections and fuel vapor con-
trol valve <>
II24
12Charcoal canister
(except Korea)II24

5256-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
A-2: Operating on dusty roads (Roads in areas where their pavement rate is low,
or a cloud of dust often arises and the air is dry)
Replacement of engine oilEvery 5000 km (3000 miles) or
6 months
 Replacement of engine oil filterEvery 5000 km (3000 miles) or
6 months
 Inspection or replacement of air
cleaner filter
I: Every 2500 km (1500 miles) or 3
months
R: Every 40000 km (24000 miles) or
48 months
 Inspection of brake linings and
drums
Every 10000 km (6000 miles) or
6 months
 Inspection of brake pads and discsEvery 5000 km (3000 miles) or
3 months
 Replacement of transfer oil (AWD
models)
Every 20000 km (12000 miles) or
24 months

5266-2. Maintenance
LS460/LS460L_GE (OM50G06E)
B-1: Heavily loaded vehicle (For example, using a car top carrier and so forth.)
Replacement of engine oilEvery 5000 km (3000 miles) or
6 months
 Replacement of engine oil filterEvery 5000 km (3000 miles) or
6 months
 Inspection of brake linings and
drums
Every 10000 km (6000 miles) or
6 months
 Inspection of brake pads and discsEvery 5000 km (3000 miles) or
3 months
 Inspection or replacement of auto-
matic transmission fluid
I: Every 40000 km (24000 miles) or
24 months
R: Every 80000 km (48000 miles) or
48 months
 Replacement of transfer oil (AWD
models)
Every 20000 km (12000 miles) or
24 months
 Inspection of front and rear suspen-
sion <>
Every 10000 km (6000 miles) or
6 months
 Tightening of bolts and nuts on chas-
sis and body <>
Every 10000 km (6000 miles) or
6 months

5276-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
NOTE:
1. Replacement of air suspension pneumatic cylinder assemblies.
For Singapore: Replace every 7 years.
For Thailand, Malaysia, Indonesia, Brunei, Philippines, Dominican Republic,
Republic of Panama, Aruba, Colombia, G.C.C. countries*, Jordan, Lebanon,
and Curacao: Replace every 6 years.
2. For seat mounting bolts, front and rear suspension member retaining bolts.
*: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar,
Kuwait
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures
remain below freezing (Engine temperature will not reach to normal tem-
perature)
 Replacement of engine oilEvery 5000 km (3000 miles) or
6 months
 Replacement of engine oil filterEvery 5000 km (3000 miles) or
6 months
B-3: Extensive idling and/or low speed dr iving for a long distance such as police,
taxi or door-to-door delivery use
 Replacement of engine oilEvery 5000 km (3000 miles) or
6 months
 Replacement of engine oil filterEvery 5000 km (3000 miles) or
6 months
 Inspection of brake linings and
drums
Every 10000 km (6000 miles) or
6 months
 Inspection of brake pads and discsEvery 5000 km (3000 miles) or
3 months
B-4: Continuous high speed driving (80% or more of maximum vehicle speed)
for over 2 hours
 Inspection or replacement of auto-
matic transmission fluid
I: Every 40000 km (24000 miles) or
24 months
R: Every 80000 km (48000 miles) or
48 months
 Replacement of transfer oil (AWD
models)
Every 20000 km (12000 miles) or
24 months

5286-2. Maintenance
LS460/LS460L_GE (OM50G06E)
Maintenance schedule (for South Africa)
Maintenance operations:I =Inspect
R =Replace, change or lubricate
SERVICE INTERVAL:ODOMETER READING
(Odometer reading or
months, whichever
comes first.)
x1000 km153045607590
MONTHSx1000
miles91827364554
BASIC ENGINE COMPONENTS
1Drive beltsIIIIII12
2Engine oilRRRRRR12
3Engine oil filterRRRRRR12
4Cooling and heater system III24
5Engine coolant <>III-
6Exhaust pipes and mountingsIIIIII12
IGNITION SYSTEM
7Spark plugs <>R-
8BatteryIIIIII12
FUEL AND EMISSION CONTROL SYSTEMS
9Fuel filter <>R96
10Air cleaner filterIIIRIII: 24
R: 48
11Fuel tank cap, fuel lines, connections
and fuel vapor control valveIII24
12Charcoal canisterII24
CHASSIS AND BODY
13Brake pedal <>III24
14Brake linings and drumsIII24
15Brake pads and discsIIIIII12
16Brake fluidIRIRIRI: 12
R: 24

5316-2. Maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
A-2: Operating on dusty roads (Roads in areas where their pavement rate is low,
or a cloud of dust often arises and the air is dry)
Replacement of engine oilEvery 7500 km (4500 miles) or 6
months
 Replacement of engine oil filterEvery 7500 km (4500 miles) or 6
months
 Inspection or replacement of air
cleaner filter
I: Every 7500 km (4500 miles) or 12
months
R: Every 60000 km (36000 miles) or
48 months
 Inspection of brake linings and
drums
Every 15000 km (9000 miles) or 12
months
 Inspection of brake pads and discsEvery 7500 km (4500 miles) or 6
months
B-1: Heavily loaded vehicle (For example, using a car top carrier and so forth.)
 Replacement of engine oilEvery 7500 km (4500 miles) or 6
months
 Replacement of engine oil filterEvery 7500 km (4500 miles) or 6
months
 Inspection of brake linings and
drums
Every 15000 km (9000 miles) or 12
months
 Inspection of brake pads and discsEvery 7500 km (4500 miles) or 6
months
 Inspection or replacement of auto-
matic transmission fluid
I: Every 45000 km (27000 miles) or
36 months
R: Every 90000 km (54000 miles) or
72 months
 Inspection of front and rear suspen-
sion
Every 7500 km (4500 miles) or 6
months
 Tightening of bolts and nuts on chas-
sis and body <>
Every 15000 km (9000 miles) or 12
months

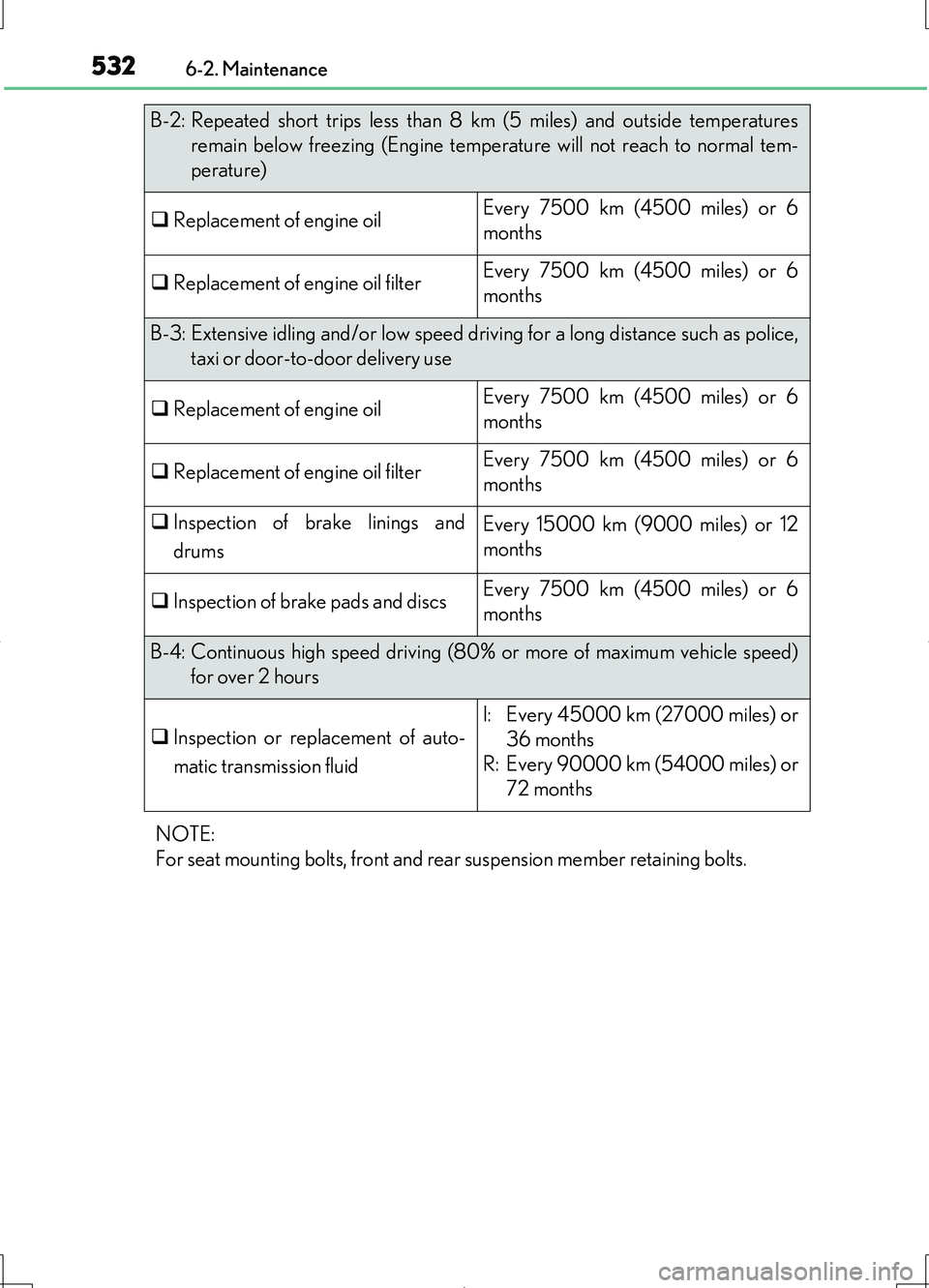

5326-2. Maintenance
LS460/LS460L_GE (OM50G06E)
NOTE:
For seat mounting bolts, front and rear suspension member retaining bolts.
B-2: Repeated short trips less than 8 km (5 miles) and outside temperatures
remain below freezing (Engine temperature will not reach to normal tem-
perature)
 Replacement of engine oilEvery 7500 km (4500 miles) or 6
months
 Replacement of engine oil filterEvery 7500 km (4500 miles) or 6
months
B-3: Extensive idling and/or low speed dr iving for a long distance such as police,
taxi or door-to-door delivery use
 Replacement of engine oilEvery 7500 km (4500 miles) or 6
months
 Replacement of engine oil filterEvery 7500 km (4500 miles) or 6
months
 Inspection of brake linings and
drums
Every 15000 km (9000 miles) or 12
months
 Inspection of brake pads and discsEvery 7500 km (4500 miles) or 6
months
B-4: Continuous high speed driving (80% or more of maximum vehicle speed)
for over 2 hours
 Inspection or replacement of auto-
matic transmission fluid
I: Every 45000 km (27000 miles) or
36 months
R: Every 90000 km (54000 miles) or
72 months
