2016 Lexus GS300h Navigation manual

193
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
AUDIO/VISUAL SYSTEM
4
Press to play/pause.Press to play/pause.
Tune/Scroll knob:
•Turn to select a file/track.
• Turn to move up/down the list.Tune/Scroll knob:
•Turn to select a file.
• Turn to move up/down the list.
• Press to select a file/track.
• Press and hold to fast forward/rewind.•Press to select a file.
• Press and hold to fast forward/rewind.
WA R N I N G
●Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
●Depending on the size and shape of the USB memory that is connected to the system, the
armrest may not close fully. In this case, do not forcibly close the armrest as this may dam-
age the USB memory or the terminal, etc.
●Do not leave your portable player in the car. In particular, high temperatures inside the vehi-
cle may damage the portable player.
●Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
●Do not insert foreign objects into the port as this may damage the portable player or its ter-
minal.
INFORMATION
●
The system can only output the sound while driving.
●Audio files and image files can be played back at the same time. However, the slide show
interval may be longer than when an audio file is not being played back.
●If tag information exists, the file/folder names will be changed to track/album names.
No.Function
AudioVideo

194
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
1Select .
zEach time is selected, the mode
changes as follows:
X When random playback is off
• file/track repeat → folder/album
repeat → off
X When random playback is on
• file/track repeat → off
1Select .
zEach time is selected, the mode
changes as follows:
• random (1 folder/album random) →
folder/album random (all folder/album
random) → off
USB AUDIO
REPEATING
The file/track or folder/album currently
being listened to can be repeated.
RANDOM ORDER
Files/tracks or folders/albums can be
automatically and randomly selected.
USB VIDEO
To change to USB video mode, select
“Browse” on the USB audio screen, then
select the “Videos” tab and select the
desired video file.

195
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
AUDIO/VISUAL SYSTEM
4
1Press the “MENU” button on the
Remote Touch.
2Select “Info”.
3Select “Photo” .
4Select the USB photo button.
5Check that the USB photo control
screen is displayed.
■DISPLAYING THE DESIRED PHO-
TO FROM THE LIST
1Select “Browse” .
2Select the desired photo folder.
3Select the desired photo.

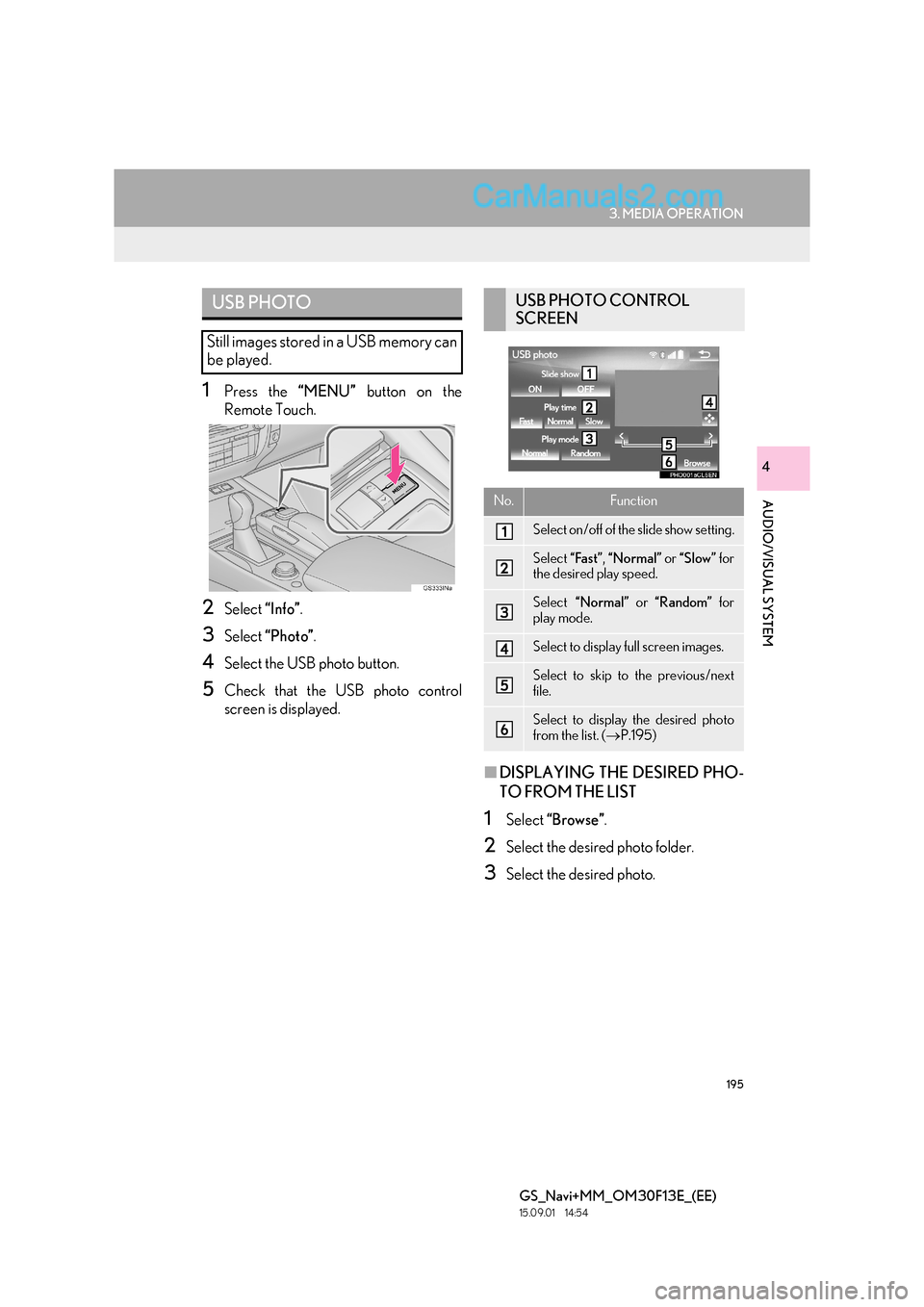

USB PHOTO
Still images stored in a USB memory can
be played.
USB PHOTO CONTROL
SCREEN
No.Function
Select on/off of the slide show setting.
Select “Fast”, “Normal” or “Slow” for
the desired play speed.
Select “Normal” or “Random” for
play mode.
Select to display full screen images.
Select to skip to the previous/next
file.
Select to display the desired photo
from the list. ( →P.195)

196
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
4. iPod
■CONTROL SCREEN
■ CONTROL PANEL
OVERVIEW
The iPod operation screen can be reached by the following methods: →P.171
XConnecting an iPod ( →P.172)
XiPod audio
XiPod video

197
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
AUDIO/VISUAL SYSTEM
4
No.Function
AudioVideo
•Select to select a track.
• Select and hold to rewind.•Select to select a file.
• Select and hold to rewind.
Select to play/pause.Select to play/pause.
• Select to select a track.
• Select and hold to fast forward.•Select to select a file.
• Select and hold to fast forward.
Select to set repeat playback. ( →P.200)
Select to set random playback. ( →P.200)
Select to display the play mode selection
screen.
To return to the top screen, select “Now
playing” on the list screen.Select to display the play mode selection
screen.
To return to the top screen, select “Now
playing” on the list screen.
•Displays cover art
• Select to display a track list.
To return to the top screen, select “Now
playing” on the list screen.


Full screen/Expand:
•Select to display full screen video. (8-
inch display)
• Select to display expanded screen
video. (12.3-inch display)
Press to play/pause.Press to play/pause.

198
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
Tune/Scroll knob:
•Turn to select a track.
• Turn to move up/down the list.Tune/Scroll knob:
•Turn to select a file.
• Turn to move up/down the list.
•Press to select a track.
• Press and hold to fast forward/rewind.•Press to select a file.
• Press and hold to fast forward/rewind.
WA R N I N G
●Do not operate the player’s controls or connect the iPod while driving.
NOTICE
●Depending on the size and shape of the iPod that is connected to the system, the armrest
may not close fully. In this case, do not forcibly close the armrest as this may damage the
iPod or the terminal, etc.
●Do not leave your portable player in the car. In particular, high temperatures inside the vehi-
cle may damage the portable player.
●Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
●Do not insert foreign objects into the port as this may damage the portable player or its ter-
minal.
No.Function
AudioVideo

199
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
AUDIO/VISUAL SYSTEM
4
INFORMATION
●
The system can only output the sound while driving.
●When an iPod is connected using a genuine iPod cable, the iPod starts charging its battery.
●Depending on the iPod, the video sound may not be able to be heard.
●Depending on the iPod and the songs in the iPod, iPod cover art may be displayed. This
function can be changed to “On” or “Off ” . (→ P.217) It may take time to display iPod cover
art, and the iPod may not be operated while the cover art display is in process.
●When an iPod is connected and the audio sour ce is changed to iPod mode, the iPod will
resume playing from the same point it was last used.
●Depending on the iPod that is connected to the system, certain functions may not be avail-
able.
●For viewing videos from an iPod, it is necessary to set “Video sound input” to “External”.
( → P. 2 1 7 )
●The system may not function properly if a conversion adapter is used to connect a device.

200
3. MEDIA OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
1Select .
zEach time is selected, the mode
changes as follows:
•track repeat
→ off
1Select .
zEach time is selected, the mode
changes as follows:
• track shuffle
→ album shuffle → off
iPod AUDIO
REPEATING
The track currently being listened to can
be repeated.
RANDOM ORDER
Tracks or albums can be automatically
and randomly selected.
iPod VIDEO
To change to iPod video mode, select
“Browse” on the iPod audio screen, then
select the “Videos” tab and select the
desired video file.
