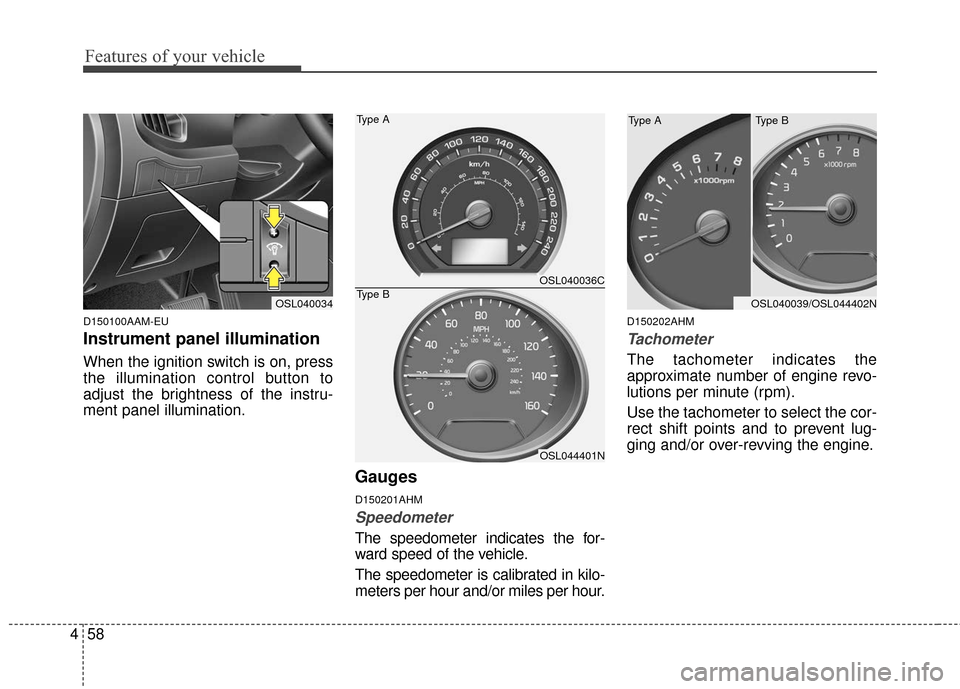

Instrument panel illumination
When the ignition switch is on, press
the illumination control button to
adjust the brightness of the instru-
ment panel illumination.
Gauges
D150201AHM
Speedometer
The speedometer indicates the for-
ward speed of the vehicle.
The speedometer is calibrated in kilo-
meters per hour and/or miles per hour.
D150202AHM
Tachometer
The tachometer indicates the
approximate number of engine revo-
lutions per minute (rpm).
Use the tachometer to select the cor-
rect shift points and to prevent lug-
ging and/or over-revving the engine.
OSL040034OSL040039/OSL044402N
OSL040036C
OSL044401N
Type A
Type B
Type B
Type A

459
Features of your vehicle
When the door is opened, or if the
engine is not started within 1 minute,
the tachometer pointer may move
slightly in the ON position with the
engine OFF. This movement is nor-
mal and will not affect the accuracy
of the tachometer once the engine is
running.
D150203AUN

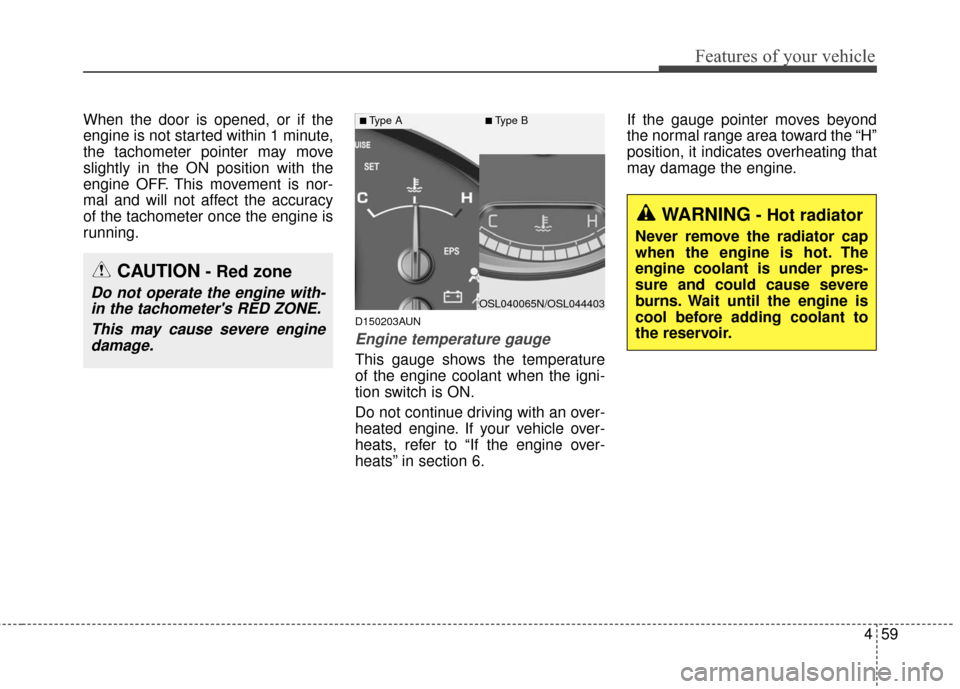

Engine temperature gauge
This gauge shows the temperature
of the engine coolant when the igni-
tion switch is ON.
Do not continue driving with an over-
heated engine. If your vehicle over-
heats, refer to “If the engine over-
heats” in section 6.If the gauge pointer moves beyond
the normal range area toward the “H”
position, it indicates overheating that
may damage the engine.
CAUTION- Red zone
Do not operate the engine with-
in the tachometer's RED ZONE.
This may cause severe enginedamage.
WARNING- Hot radiator
Never remove the radiator cap
when the engine is hot. The
engine coolant is under pres-
sure and could cause severe
burns. Wait until the engine is
cool before adding coolant to
the reservoir.
OSL040065N/OSL044403
■Type A■Type B

Features of your vehicle
60
4
D150204BHM-EE

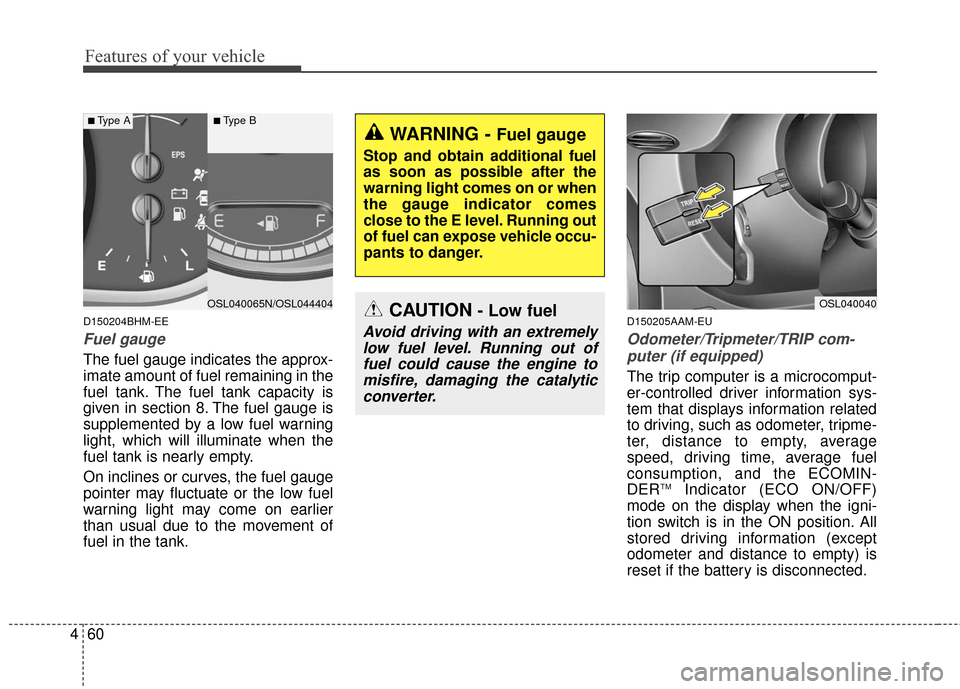

Fuel gauge
The fuel gauge indicates the approx-
imate amount of fuel remaining in the
fuel tank. The fuel tank capacity is
given in section 8. The fuel gauge is
supplemented by a low fuel warning
light, which will illuminate when the
fuel tank is nearly empty.
On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier
than usual due to the movement of
fuel in the tank.
D150205AAM-EU
Odometer/Tripmeter/TRIP com-
puter (if equipped)
The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving, such as odometer, tripme-
ter, distance to empty, average
speed, driving time, average fuel
consumption, and the ECOMIN-
DER
TMIndicator (ECO ON/OFF)
mode on the display when the igni-
tion switch is in the ON position. All
stored driving information (except
odometer and distance to empty) is
reset if the battery is disconnected.
CAUTION- Low fuel
Avoid driving with an extremely low fuel level. Running out offuel could cause the engine tomisfire, damaging the catalyticconverter.
OSL040040OSL040065N/OSL044404
■Type A■Type B
WARNING - Fuel gauge
Stop and obtain additional fuel
as soon as possible after the
warning light comes on or when
the gauge indicator comes
close to the E level. Running out
of fuel can expose vehicle occu-
pants to danger.

461
Features of your vehicle
The odometer is always displayed
until the display is turned off.
Press the TRIP button to select any
mode as follows:
Trip Modes (Type A)Trip Modes (Type B)
Odometer
The odometer indicates the total dis-
tance the vehicle has been driven.
You will also find the odometer useful
to determine when periodic mainte-
nance should be performed.
See Maintenance, section 7.
✽ ✽
NOTICE
It is unlawful to alter the odometer
of all vehicles with the intent to
change the mileage registered on the
odometer. The alteration may void
your warranty coverage.
Tripmeter B
Average speed
Driving time
Tripmeter A
Distance to empty
Average fuel consumption
Instant fuel consumption
Outside thermometer *
OSL040200/OSL044200N
■Type A■Type B
Active ECO ON/OFF *



FUEL ECONOMY



TRIP A



TRIP B
* : if equipped

Features of your vehicle
62
4
Tripmeter
TRIP A : Tripmeter A
TRIP B : Tripmeter B
This mode indicates the distance of
individual trips selected since the
last tripmeter reset.
The meter's working range is from
0.0 to 999.9 km (0.0 to 999.9 miles).
Pressing the RESET button, when
the tripmeter (TRIP A or TRIP B) is
being displayed, clears the tripmeter
to zero (0.0). Distance to empty (km or mi.)
This mode indicates the estimated
distance to empty based on the cur-
rent fuel in the fuel tank and the
amount of fuel delivered to the
engine. When the remaining distance
is below 50 km (30 miles), “---” will be
displayed and the distance to empty
indicator (RANGE) will blink until the
vehicle is refueled.
The meter’s working range is from 50
to 990 km (30 to 990 miles).Average fuel consumption
(l/100 km or MPG)
This mode calculates the average
fuel consumption from the total fuel
used and the distance since the last
average consumption reset. The total
fuel used is calculated from the fuel
consumption input. For an accurate
calculation, drive more than 50 m
(0.03 miles).
Pressing the RESET button for more
than 1 second, when the average
fuel consumption is being displayed,
clears the average fuel consumption
to zero (--.-).
OSL040204C/OSL044204N
■Type A■Type B
OSL040202C/OSL044202N
■Type A■Type B
OSL040203C/OSL044203N
■Type A■Type B
OSL040201/OSL044201N
■Type A■Type B

463
Features of your vehicle
If the vehicle speed exceeds 1 km/h
(1.6 MPH) after refueled more than 6
l(1.6 gallons), the average fuel con-
sumption will be cleared to zero (--.-).
Instant fuel consumption (if equipped)
(l/100 km or MPG)
This mode calculates the instant fuel
consumption during the last few sec-
onds. If the vehicle is not on level ground
or the battery power has been
interrupted, the “Distance to
empty” function may not operate
correctly.
The trip computer may not register
additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to
the vehicle.
The fuel consumption and distance to empty values may vary signifi-
cantly based on driving conditions,
driving habits, and condition of the
vehicle.
The distance to empty value is an estimate of the available driving
distance. This value may differ from
the actual driving distance avail-
able.
OSL040205C/OSL044205N
■Type A■Type B

Features of your vehicle
64
4
Average speed (km/h or MPH)
This mode calculates the average
speed of the vehicle since the last
average speed reset.
Even if the vehicle is not in motion,
the average speed keeps going while
the engine is running.
Pressing the RESET button for more
than 1 second, when the average
speed is being displayed or after the
engine stops and 2 hours elapsed
clears the average speed to zero (---
). Driving time
This mode indicates the total time
traveled since the last driving time
reset.
Even if the vehicle is not in motion,
the driving time keeps going while
the engine is running.
The meter’s working range is from
0:00~99:59.
Pressing the RESET button for more
than 1 second, when the driving time
is being displayed or after the engine
stops and 2 hours elapsed clears the
driving time to zero (0:00).Outside thermometer
(if equipped)
This mode indicates the outside tem-
perature around the vehicle.
The meter's working range is from -
40°C to 80°C (-40°F to 176°F).
To change the outside temperature
display unit (°C ↔
°F) :
- For Type A : Press the RESET button more than 1 second in this mode.
- For Type B : Press the reset button 5 times and then press TRIP button 5
times within 10seconds.
The outside temperature on the display may not change immedi-
ately like a general thermometer to
prevent the driver from being inat-
tentive.
OSL040207N/OSL044207N
■Type A■Type B
OSL040208C/OSL044208N
■Type A■Type B
OSL040206C/OSL044206N
■Type A■Type B

465
Features of your vehicle
D150300AAM

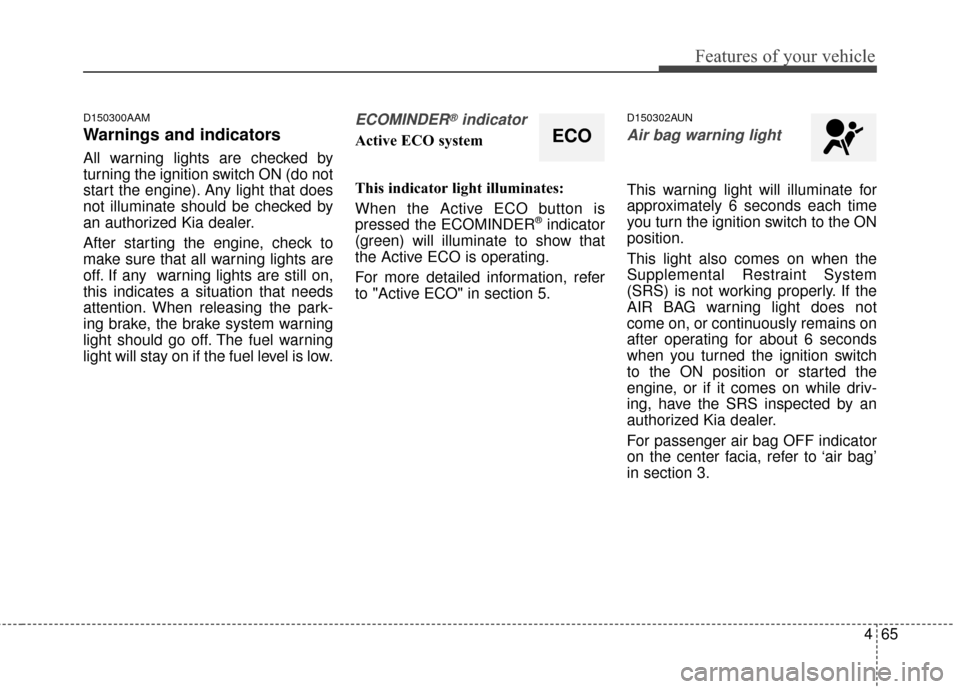

Warnings and indicators
All warning lights are checked by
turning the ignition switch ON (do not
start the engine). Any light that does
not illuminate should be checked by
an authorized Kia dealer.
After starting the engine, check to
make sure that all warning lights are
off. If any warning lights are still on,
this indicates a situation that needs
attention. When releasing the park-
ing brake, the brake system warning
light should go off. The fuel warning
light will stay on if the fuel level is low.
ECOMINDER®indicator
Active ECO system
This indicator light illuminates:
When the Active ECO button is
pressed the ECOMINDER
®indicator
(green) will illuminate to show that
the Active ECO is operating.
For more detailed information, refer
to "Active ECO" in section 5.
D150302AUN
Air bag warning light
This warning light will illuminate for
approximately 6 seconds each time
you turn the ignition switch to the ON
position.
This light also comes on when the
Supplemental Restraint System
(SRS) is not working properly. If the
AIR BAG warning light does not
come on, or continuously remains on
after operating for about 6 seconds
when you turned the ignition switch
to the ON position or started the
engine, or if it comes on while driv-
ing, have the SRS inspected by an
authorized Kia dealer.
For passenger air bag OFF indicator
on the center facia, refer to ‘air bag’
in section 3.
ECO
