2016 KIA Sportage Owner's Manual

Features of your vehicle
10
4
✽
✽

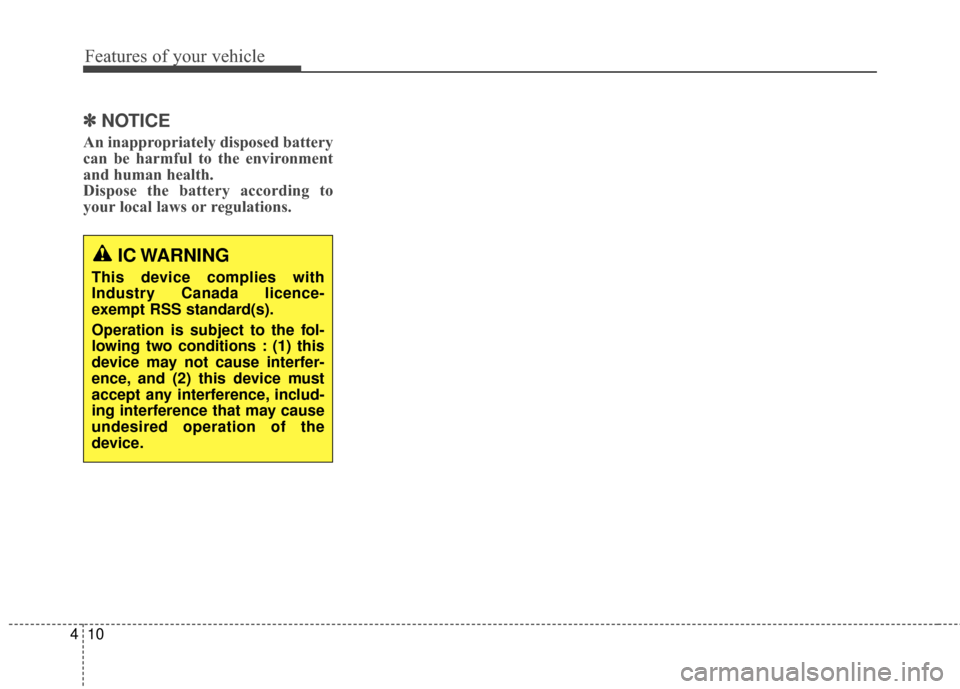

NOTICE
An inappropriately disposed battery
can be harmful to the environment
and human health.
Dispose the battery according to
your local laws or regulations.
IC WARNING
This device complies with
Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the fol-
lowing two conditions : (1) this
device may not cause interfer-
ence, and (2) this device must
accept any interference, includ-
ing interference that may cause
undesired operation of the
device.

411
Features of your vehicle

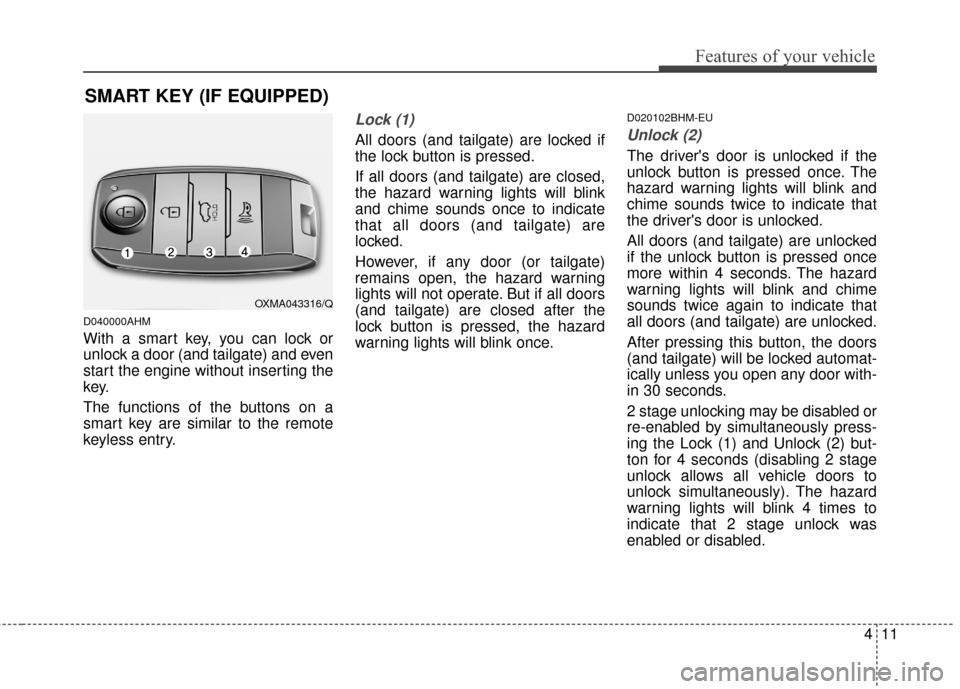

D040000AHM
With a smart key, you can lock or
unlock a door (and tailgate) and even
start the engine without inserting the
key.
The functions of the buttons on a
smart key are similar to the remote
keyless entry.
Lock (1)
All doors (and tailgate) are locked if
the lock button is pressed.
If all doors (and tailgate) are closed,
the hazard warning lights will blink
and chime sounds once to indicate
that all doors (and tailgate) are
locked.
However, if any door (or tailgate)
remains open, the hazard warning
lights will not operate. But if all doors
(and tailgate) are closed after the
lock button is pressed, the hazard
warning lights will blink once.
D020102BHM-EU
Unlock (2)
The driver's door is unlocked if the
unlock button is pressed once. The
hazard warning lights will blink and
chime sounds twice to indicate that
the driver's door is unlocked.
All doors (and tailgate) are unlocked
if the unlock button is pressed once
more within 4 seconds. The hazard
warning lights will blink and chime
sounds twice again to indicate that
all doors (and tailgate) are unlocked.
After pressing this button, the doors
(and tailgate) will be locked automat-
ically unless you open any door with-
in 30 seconds.
2 stage unlocking may be disabled or
re-enabled by simultaneously press-
ing the Lock (1) and Unlock (2) but-
ton for 4 seconds (disabling 2 stage
unlock allows all vehicle doors to
unlock simultaneously). The hazard
warning lights will blink 4 times to
indicate that 2 stage unlock was
enabled or disabled.
SMART KEY (IF EQUIPPED)
OXMA043316/Q

Features of your vehicle
12
4
D020104AHM
Tailgate unlock (3)
The tailgate is unlocked if the button
is pressed for more than 1 second.
The hazard warning lights will blink
twice to indicate that the tailgate is
unlocked.
However, after pressing this button,
the tailgate will lock automatically
unless you open the tailgate within
30 seconds.
Also, once the tailgate is opened and
then closed, the tailgate will lock
automatically.
D020105AHM
Alarm (4)
The horn sounds and the hazard
warning lights blink for about 30 sec-
onds if this button is pressed for
more than 0.5 seconds. To stop the
horn and lights, press any button on
the transmitter.
D040100AHM
Smart key functions
Carrying the smart key, you may lock
and unlock the vehicle doors (and
tailgate). Also, you may start the
engine. Refer to the following, for
more details.
D040101BHM
Locking
Pressing the button of the front out-
side door handles with all doors (and
tailgate) closed and any door
unlocked, locks all the doors (and
tailgate). The hazard warning lights
blink and the chime sounds once to
indicate that all doors (and tailgate)
are locked.
The button will only operate when
the smart key is within 0.7~1 m
(28~40 in.) from the outside door
handle. If you want to make sure that
a door has locked or not, you should
check the door lock button inside the
vehicle or pull the outside door han-
dle.
Even though you press the button,
the doors will not lock and the chime
sounds for 3 seconds if any of the fol-
lowing occurs:
The smart key is in the vehicle.
The ENGINE START/STOP button
is in the ACC or ON position.
Any door except the tailgate is opened.
OSL040006

413
Features of your vehicle
D040102AEN-EU
Unlocking
Pressing the button of the driver’s
outside door handle with all doors
(and tailgate) closed and locked,
unlocks the driver’s door. The hazard
warning lights blink and the chime
sounds twice to indicate that the dri-
ver’s door is unlocked. All doors (and
tailgate) are unlocked if the button is
pressed once more within 4 sec-
onds. The hazard warning lights will
blink and the chime will sound twice
to indicate that all the doors (and tail-
gate) are unlocked.
Pressing the button of the front pas-
senger’s outside door handle with all
doors (and tailgate) closed and
locked, unlocks all the doors (and
tailgate). The hazard warning lights
blink and the chime sounds twice to
indicate that all doors (and tailgate)
are unlocked.
The button will only operate when
the smart key is within 0.7~1 m
(28~40 in.) from the outside door
handle.When the smart key is recognized in
the area of 0.7~1 m (28~40 in.) from
the front outside door handle, other
people can also open the door with-
out possession of the smart key.
D040103AHM
Tailgate unlocking
If you are within 0.7~1 m (28~40 in.)
from the outside tailgate handle, with
your smart key in possession, the
tailgate will unlock and open when
you press the tailgate handle switch.
The hazard warning lights will blink
twice to indicate that the tailgate is
unlocked.
Also, once the tailgate is opened and
then closed, the tailgate will lock
automatically.
D040104AHM
Start-up
You can start the engine without
inserting the key. For detailed infor-
mation refer to “Starting the engine
with a smart key” in section 5.
D040300AHM
Smart key precautions
If you lose your smart key, you will
not be able to start the engine. Tow
the vehicle, if necessary, and con-
tact an authorized Kia dealer.
A maximum of 2 smart keys can be registered to a single vehicle. If you
lose a smart key, you should imme-
diately take the vehicle and key to
your authorized Kia dealer to pro-
tect it from potential theft.
The smart key will not work if any of the following occurs:
- The smart key is close to a radiotransmitter such as a radio sta-
tion or an airport which can inter-
fere with normal operation of the
smart key.
- The smart key is near a mobile two-way radio system or a cellu-
lar phone.
- Another vehicle’s smart key is being operated close to your
vehicle.

Features of your vehicle
14
4

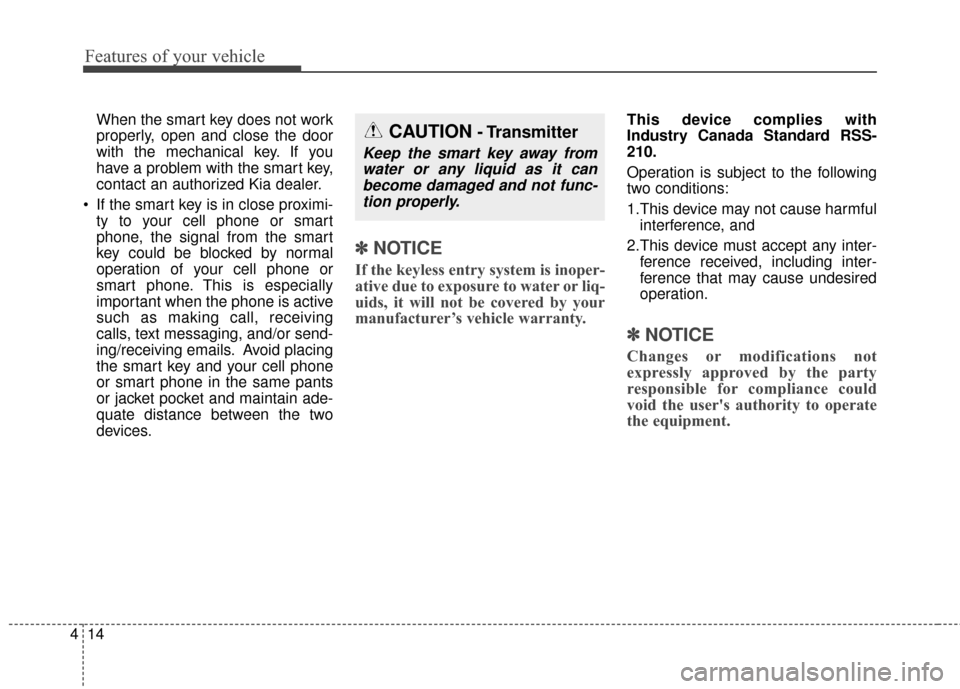

When the smart key does not work
properly, open and close the door
with the mechanical key. If you
have a problem with the smart key,
contact an authorized Kia dealer.
If the smart key is in close proximi- ty to your cell phone or smart
phone, the signal from the smart
key could be blocked by normal
operation of your cell phone or
smart phone. This is especially
important when the phone is active
such as making call, receiving
calls, text messaging, and/or send-
ing/receiving emails. Avoid placing
the smart key and your cell phone
or smart phone in the same pants
or jacket pocket and maintain ade-
quate distance between the two
devices.
✽ ✽ NOTICE
If the keyless entry system is inoper-
ative due to exposure to water or liq-
uids, it will not be covered by your
manufacturer’s vehicle warranty.
This device complies with
Industry Canada Standard RSS-
210.
Operation is subject to the following
two conditions:
1.This device may not cause harmful
interference, and
2.This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
✽ ✽ NOTICE
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
CAUTION- Transmitter
Keep the smart key away from
water or any liquid as it canbecome damaged and not func-tion properly.

415
Features of your vehicle
D040500AHM
Battery replacement
A smart key battery should last for
several years, but if the smart key is
not working properly, try replacing
the battery with a new one. If you are
unsure how to use your smart key or
replace the battery, contact an
authorized Kia dealer.
✽ ✽NOTICE
The circuit inside the smart key can
have a problem if exposed to mois-
ture or static electricity. If you are
unsure how to use your smart key or
replace the battery, contact an
authorized Kia dealer.
1. Remove the mechanical key.
2. Pry open the rear cover of the
smart key.
3. Replace the battery with a new battery (CR2032). When replacing
the battery, make sure the battery
position.
4. Install the battery in the reverse order of removal.
✽ ✽NOTICE
• Using the wrong battery can cause
the smart key to malfunction. Be
sure to use the correct battery.
• Circuits inside the smart key may develop problems when dropped,
exposed to moisture or static elec-
tricity.
• If you suspect that your smart key might have sustained some dam-
age, or you feel your smart key is
not working correctly, contact an
authorized Kia dealer.
An inappropriately disposed battery
can be harmful to the environment
and human health.
Dispose the battery according to
your local laws or regulations.
OXM043005

Features of your vehicle
16
4
IC WARNING
This device complies with
Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the fol-
lowing two conditions : (1) this
device may not cause interfer-
ence, and (2) this device must
accept any interference, includ-
ing interference that may cause
undesired operation of the
device.

417
Features of your vehicle

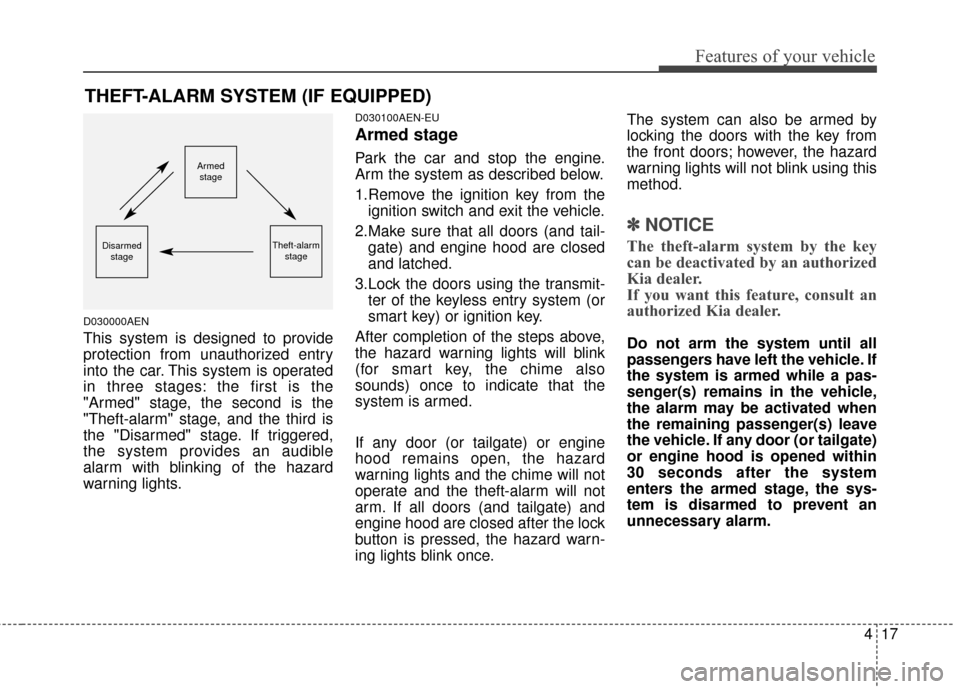

D030000AEN
This system is designed to provide
protection from unauthorized entry
into the car. This system is operated
in three stages: the first is the
"Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.
D030100AEN-EU
Armed stage
Park the car and stop the engine.
Arm the system as described below.
1.Remove the ignition key from theignition switch and exit the vehicle.
2.Make sure that all doors (and tail- gate) and engine hood are closed
and latched.
3.Lock the doors using the transmit- ter of the keyless entry system (or
smart key) or ignition key.
After completion of the steps above,
the hazard warning lights will blink
(for smart key, the chime also
sounds) once to indicate that the
system is armed.
If any door (or tailgate) or engine
hood remains open, the hazard
warning lights and the chime will not
operate and the theft-alarm will not
arm. If all doors (and tailgate) and
engine hood are closed after the lock
button is pressed, the hazard warn-
ing lights blink once. The system can also be armed by
locking the doors with the key from
the front doors; however, the hazard
warning lights will not blink using this
method.
✽ ✽
NOTICE
The theft-alarm system by the key
can be deactivated by an authorized
Kia dealer.
If you want this feature, consult an
authorized Kia dealer.
Do not arm the system until all
passengers have left the vehicle. If
the system is armed while a pas-
senger(s) remains in the vehicle,
the alarm may be activated when
the remaining passenger(s) leave
the vehicle. If any door (or tailgate)
or engine hood is opened within
30 seconds after the system
enters the armed stage, the sys-
tem is disarmed to prevent an
unnecessary alarm.
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armed
stage
Theft-alarm stageDisarmedstage
