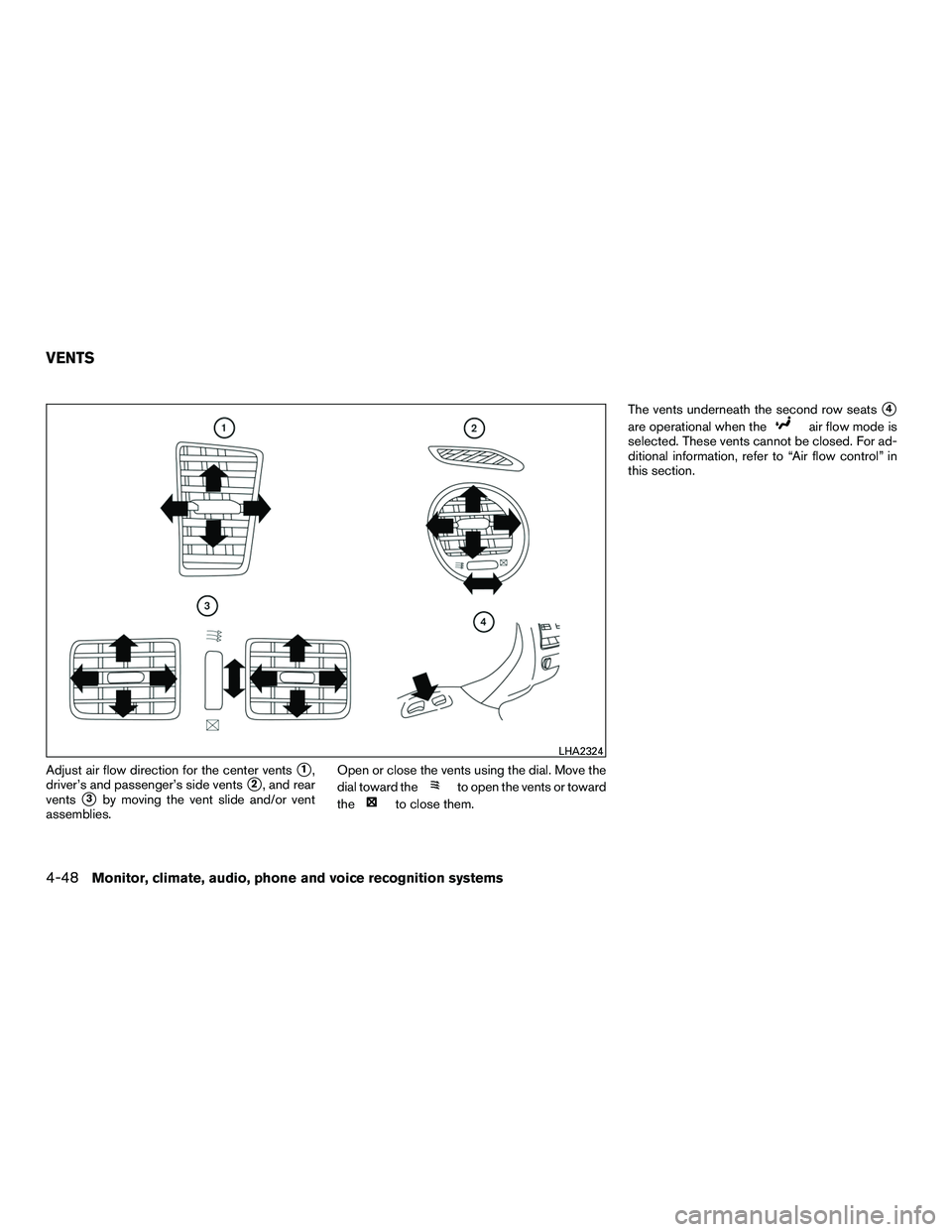

Adjust air flow direction for the center vents1,
driver’s and passenger’s side vents
2, and rear
vents
3by moving the vent slide and/or vent
assemblies. Open or close the vents using the dial. Move the
dial toward theto open the vents or toward
the
to close them. The vents underneath the second row seats
4
are operational when theair flow mode is
selected. These vents cannot be closed. For ad-
ditional information, refer to “Air flow control” in
this section.
LHA2324
VENTS
4-48Monitor, climate, audio, phone and voice recognition systems

1.(front defroster) button
2.
rear window and outside mirror
defroster switch
3. OFF button
4.
(fan speed) decrease button
5.
(fan speed) increase button
6. AUTO climate control ON button
7. REAR button
8.
Air recirculation button
9. CLIMATE button
10.
Temperature control (increase)
button (passenger’s side) 11.
Temperature control (decrease)
button (passenger’s side)
12. DUAL button
13.
Manual air flow control button
(driver’s side)
14.
Temperature control (decrease)
button (driver’s side)
15.
Temperature control (increase)
button (driver’s side)
WARNING
● The air conditioner cooling function op-
erates only when the engine is running. ●
Do not leave children or adults who would
normally require the assistance of others
alone in your vehicle. Pets should also not
be left alone. They could accidentally in-
jure themselves or others through inad-
vertent operation of the vehicle. Also, on
hot, sunny days, temperatures in a closed
vehicle could quickly become high enough
to cause severe or possibly fatal injuries
to people or animals.
●
Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
Start the engine and operate the controls to
activate the air conditioner.
NOTE: ● Odors from inside and outside the vehicle
can build up in the air conditioner unit. Odor
can enter the passenger compartment
through the vents.
● When parking, set the heater and air condi-
tioner controls to turn off air recirculation to
allow fresh air into the passenger compart-
ment. This should help reduce odors inside
the vehicle.
LHA3155
HEATER AND AIR CONDITIONER
(automatic)
Monitor, climate, audio, phone and voice recognition systems4-49

AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)
This mode may be used all year round as the
system automatically works to keep a constant
temperature. Air flow distribution, intake air con-
trol, and fan speed are also controlled automati-
cally.1. Press the AUTO button on. (The indicator on the button will illuminate and AUTO will be
displayed.)
2. Operate the driver’s side temperature con- trol buttons.
● Adjust the temperature display to about
75°F (24°C) for normal operation.
● The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution, intake air control, and fan
speed are also controlled automatically.
● A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified defrosting or defogging
1. Press thefront defroster button on.
(The indicator light on the button will come
on.)
2. Operate the temperature control buttons to set the desired temperature.
● To quickly remove ice from the outside of the
windows, use the
fan speed control
buttons to set the fan speed to maximum.
● As soon as possible after the windshield is
clean, press the AUTO button to return to
the automatic mode.
● When the
front defroster button is
pressed, the air conditioner will automati-
cally be turned on at outside temperatures
above 36°F (2°C) . The air recirculate mode
automatically turns off, allowing outside air
to be drawn into the passenger compart-
ment to further improve the defogging per-
formance.
Voice Recognition logic (if so
equipped)
When the climate control system is on, the front
and rear fan speeds may be automatically low-
ered so that commands are more easily recog-
nized. Fan speed can be adjusted using the fan
speed decrease and increase buttons, if desired.
Remote start logic (if so equipped)
Vehicles equipped with automatic climate con-
trols and remote start function may go into auto-
matic heating or cooling mode when remote start
is activated depending on outside and cabin tem-
peratures. During this period, the climate control
display and buttons will be inoperable until igni-
tion switch is turned on.
MANUAL OPERATION
Fan speed control
Press thefan speed control buttons to
manually control the fan speed.
Press the AUTO button to return to automatic
control of the fan speed.
Temperature control
Press the temperature control buttons up or
down to set the desired temperature.
The temperature can be set within the following
range:
● For U.S.: 60 to 90ºF (16 to 32ºC)
● For Canada: 64 to 90ºF (18 to 32ºC)
4-50Monitor, climate, audio, phone and voice recognition systems

Air recirculation
Press theair recirculation button to recir-
culate interior air inside the vehicle. The
indicator light on the button will come on.
The air recirculation cannot be activated when
the air conditioner is in the
front defrosting
mode.
Automatic intake air control
In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the in-
take air, press the
air recirculation button.
To return to the automatic control mode, press
and hold the
air recirculation button for
about 2 seconds. The indicator light will flash
twice, and then the intake air will be controlled
automatically.
Air flow control
Press thebutton to manually control air
flow. Pressing the button repeatedly will cycle
through the available modes and display the cor-
responding icon on the center display:
— Air flows from center and side
vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from foot outlets.
— Air flows from defroster and footoutlets.
— Air flows from defroster outlets.
To turn system off
Press the OFF button.
Rear window and outside mirror
defroster switch
For additional information, refer to “Rear window
and outside mirror defroster switch” in the “In-
struments and controls” section of this manual.
OPERATING TIPS
●When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate for a
maximum of 150 seconds. However, this is
not a malfunction. After the coolant tempera-
ture warms up, air flow from the foot outlets
will operate normally. The sunload sensor, located on the top driver’s
side of the instrument panel, helps the system
maintain a constant temperature. Do not put any-
thing on or around this sensor.LHA2173
Monitor, climate, audio, phone and voice recognition systems4-51

CLIMATE SETTING SCREEN
Climate control settings can be changed on the
screen.
Press the CLIMATE button on the instrument
panel and turn the display to the Climate mode.
Heating (A/C off)
The air conditioner does not activate in this mode.
When you need to heat only, use this mode.1. Press the CLIMATE button.
2. If the “A/C” indicator on the screen illumi- nates, select the “A/C” key. (The “A/C” indi-
cator will turn off.)
3. Press the temperature control button to set the desired temperature.
● The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
● Do not set the temperature lower than the
outside air temperature or the system may
not work properly.
● This procedure is not recommended if win-
dows fog up.
When the outside temperature decreases to ap-
proximately 32°F (0°C) , the A/C function does
not activate even if the “A/C” indicator light illu-
minates.
Dual control mode setting
You can individually set the driver and front pas-
senger side temperature and air flow mode using
each temperature control button or manual air
flow control button. 1. Press the CLIMATE button.
2. By touching the “DUAL” key, or when the passenger side temperature control button
or manual air control button is pressed, the
“DUAL” indicator on the screen will illumi-
nate.
3. To turn off the passenger side temperature control, touch the “DUAL” key and the
“DUAL” indicator will turn off.
● The Dual control mode cannot be activated
when the air conditioner is in the front de-
frosting mode.
LHA2167
4-52Monitor, climate, audio, phone and voice recognition systems

Advanced Climate Control System
(ACCS) (if so equipped)
The Advanced Climate Control System (ACCS)
keeps the air inside of the vehicle clean, using the
ion control and the automatic air intake control
with exhaust gas detecting sensor.Ion control (if so equipped)
This unit generates highly concentrated Plasma-
cluster® ions into the air blown from the vents
and reduces odor absorbed into the interior trim.
When the air conditioner is turned on, the system
generates Plasmacluster® ions automatically.
The amount of Plasmacluster® ions increases
according to the amount of air flow. When the air
flow is high,
is displayed on the screen and
when the air flow is low, the indication in the
screen changes to
.
Plasmacluster® and Plasmacluster® ion are
registered trademarks of Sharp Corporation. Exhaust gas/outside odor detection sensor
(if so equipped)
This vehicle is equipped with an exhaust gas detec-
tion sensor. When the automatic intake air control is
ON, the sensor detects industry odors such as pulp
or chemicals, and exhaust gas such as gasoline or
diesel. When such odors or gas are detected, the
system automatically changes from the outside air
circulation mode to the recirculation mode.
When the intake air control button is pressed
under the following conditions, the indicator light
on the
button will illuminate and the ex-
haust gas detection sensor will turn on.
●
The air flow control is not in the front defroster
mode (the indicator light on the
front
defroster button is turned off) .
● The outside temperature is about 32°F (0°C)
or more.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with positive and negative ions that
are emitted from the vent.
After the 5 minutes, the sensor detects exhaust gas
and automatically alternates between the recircu-
lation mode and outside air circulation mode.
LHA2222
Monitor, climate, audio, phone and voice recognition systems4-53

REAR AUTOMATIC AIR
CONDITIONING SYSTEM
1. OFF button
2.
(fan speed) increase and decrease
buttons
3. AUTO button
4. REAR button
5.
(temperature) increase and decrease
buttons (driver’s side)
To control the rear automatic air conditioning
system with the front air conditioner control panel, press the REAR button with the front air
conditioning system on. When the rear automatic
air conditioning system control is on, the indicator
light on the REAR button will illuminate and the
front display will switch to the Rear Air-
conditioning screen.
The rear automatic air conditioning system can
be adjusted with the front air conditioner control
panel when the Rear Air-conditioning screen is
displayed.
To adjust the front air conditioning system, press
the REAR button once more. The Rear Air-
conditioning screen will no longer be displayed.Automatic operation
1. Press the AUTO button. The AUTO indicator light will illuminate and “AUTO” will appear
on the display.
2. Press the temperature increase and de- crease buttons (driver’s side) to set the de-
sired temperature.
Manual operation
● Temperature control
Press the temperature increase and de-
crease buttons (driver’s side) to set the de-
sired temperature.
● Fan speed control
Press the
(fan speed) increase and
decrease buttons to manually control the fan
speed.Front Controls
LHA3190
4-54Monitor, climate, audio, phone and voice recognition systems

Rear Heating (A/C off)1. Press the REAR button to display the Rear Air-conditioning screen on the front display
when the rear automatic air conditioning
system is on.
2. Press the AUTO button. The AUTO indicator light will illuminate and “AUTO” will appear
on the display.
3. If the A/C indicator light illuminates, press the A/C button. The A/C indicator light will
turn off. 4. Press the temperature increase and de-
crease buttons (driver’s side) to set the de-
sired temperature.
● Do not set the temperature lower than the
outside air temperature. Doing so may cause
the temperature to not be controlled prop-
erly.
● To dehumidify the air, press the A/C button
before turning on the heater.
Turning the system off 1. Press the REAR button on the front control panel until the Rear Air-conditioning screen
is displayed.
2. Press the OFF button. The rear climate con- trols will turn off.
LHA2168
Monitor, climate, audio, phone and voice recognition systems4-55
