15. Power outlet (P.2-49)
16. Shift lever (P.5-17)
17. Audio system controls (P. 4-57)Front passenger air bag status light
(P. 2-13)
18. Hazard warning flasher switch (P. 6-2)
19. Push-button ignition switch (P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-73)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-75)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-95)
22. Tilt steering wheel control (P. 3-29)
23. Bluetooth® Hands-Free Phone System
(P. 4-112, 4-126)
24. Steering wheel switch for audio control
(P. 4-98)
25. Hood release (P. 3-21) Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Heated steering wheel switch (P. 2-47)
Headlight aiming control (P. 2-38)
Warning System switch (if so
equipped) (P. 2-48)
Power inverter switch (if so equipped)
(P. 2-48) Liftgate release switch (P.3-22)
Power liftgate main switch (P. 3-22)
26. Control panel and vehicle information
display switches (P. 2-16)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

15. Power outlet (P.2-49)
16. Shift lever (P.5-17)
17. Audio system controls (P. 4-57)Front passenger air bag status light
(P. 2-13)
18. Hazard warning flasher switch (P. 6-2)
19. Push-button ignition switch (P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-73)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-75)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-95)
22. Tilt steering wheel control (P. 3-29)
23. Bluetooth® Hands-Free Phone System
(P. 4-112, 4-126)
24. Steering wheel switch for audio control
(P. 4-98)
25. Hood release (P. 3-21) Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Heated steering wheel switch (P. 2-47)
Headlight aiming control (P. 2-38)
Warning System switch
(if so equipped) (P. 2-48)
Power inverter switch (if so equipped)
(P. 2-48) Liftgate release switch (P.3-22)
Power liftgate main switch (P. 3-22)
26. Control panel and vehicle information
display switches (P. 2-16)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Instruments and controls2-3

The vehicle information display is located to the
left of the speedometer. It displays such items as:● Vehicle settings
● Trip computer information
● Drive system warnings and settings (if so
equipped)
● Cruise control (if so equipped) system infor-
mation
● Intelligent Cruise Control (ICC) (if so
equipped) system information
● Intelligent Key operation information ●
Indicators and warnings
● Tire Pressure information
● Other informationHOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be changed
using the
,,and ENTER
switches located on the steering wheel.
1.
— select/enter the vehicle information
menu items or to change from one display
screen to the next (i.e. trip, TPMS, Fuel
economy)
2.
— navigate through the items in ve-
hicle information
ENTER — change or select an item in the
vehicle information display
LIC2205LIC2245
VEHICLE INFORMATION DISPLAY
2-16Instruments and controls

VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Shift to Park
4. Push ignition to OFF
5. Key Battery Low
6. Engine start operation for Intelligent Key sys-tem
7. Release Parking Brake
8. Low Fuel
9. HV System Warm up Please Wait In Park
10. Shutting Down
11. Low Washer Fluid
12. Door Open
13. Liftgate Open
14. Timer Alert – Time for a driver break?
15. Low Outside Temperature
16. Power will turn off to save the battery
17. CVT Error: See Owner’s Manual
18. Reminder: Turn OFF headlights 19. Shift to Park Press Brake & Start
20. Shift to Park Li-ion battery low
21. Low Oil Pressure: See Owner’s Manual
22. Key Registration Complete
23. Tire Pressure Low - Add Air
24. TPMS Error: See Owner’s Manual
25. Parking Sensor Error: See Owner’s Manual
(if so equipped)
26. Loose Fuel Cap
27. Push brake and start button to drive
28. High Coolant Temp: See Owner’s Manual
29. Hybrid System Overheated
30. I-Key System Error: See Owner’s Manual
31. Cruise control indicator (if so equipped)
32. Intelligent Cruise Control (ICC) indicators (if so equipped)
33. INFINITI drive mode selector indicators
34. Malfunction: See Owner’s Manual (if so equipped)
35. AWD Error: See Owner’s Manual (if so equipped) 36. AWD High Temp. Stop Vehicle (if so
equipped)
37. Tire Size Incorrect: See Owner’s Manual (if so equipped)
38. Unavailable: Road is slippery (if so equipped)
39. Unavailable: Snow Mode Active (if so equipped)
40. Unavailable: VDC OFF (if so equipped)
41. Unavailable: High Cabin Temp (if so equipped)
42. Unavailable: Side Radar Obstruction (if so equipped)
43. Unavailable: High Accelerator Temp (if so equipped)
44. BCI OFF (if so equipped)
45. Shipping Mode On Push Storage Fuse
No Key Detected
This warning appears when the Intelligent Key is
left outside the vehicle with the ignition switch in
the ON or ACC position. Make sure the Intelli-
gent Key is inside the vehicle.
Instruments and controls2-27

I-Key System Error: See Owner’s Manual
After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
The I-Key System Error message warns of a
malfunction with the Intelligent Key system. If the
light comes on while the engine is stopped, it may
be impossible to start the engine.
If the light comes on while the engine is running,
you can drive the vehicle. However in these
cases, it is recommended you contact an
INFINITI retailer for repair as soon as possible.
Cruise control indicator (if so equipped)
This indicator shows the cruise control system
status.
For additional information, refer to “Cruise con-
trol” in the “Starting and driving” section of this
manual.
Intelligent Cruise Control (ICC) indicators
(if so equipped)
These indicators show the Intelligent Cruise
Control (ICC) system status. The status is shown
by the color. For additional information, refer to
“Intelligent Cruise Control (ICC) System” in the
“Starting and driving” section of this manual.INFINITI drive mode selector indicators
These indicators show the current drive mode of
the vehicle.
For additional information, refer to “INFINITI drive
mode selector” in the “Starting and driving” sec-
tion of this manual.
Malfunction: See Owner’s Manual (if so
equipped)
This warning appears when one or more of the
following systems (if so equipped) is not func-
tioning properly:
● Forward Emergency Braking (FEB)
● Lane Departure Warning (LDW)
● Blind Spot Warning (BSW)
If one or more of these warning appears, have the
system checked. It is recommended you visit an
INFINITI retailer for this service.
AWD Error: See Owner’s Manual (if so
equipped)
This warning appears when the all-wheel drive
system is not functioning properly while the en-
gine is running. AWD High Temp. Stop Vehicle (if so
equipped)
This warning may appear while trying to free a
stuck vehicle due to increased oil temperature.
The driving mode may change to 2-Wheel Drive
(2WD) . If this warning is displayed, stop the
vehicle with the engine idling, as soon as it is safe
to do so. Then if the warning turns off, you can
continue driving.
Tire Size Incorrect: See Owner’s Manual
(if so equipped)
This warning may appear if there is a large differ-
ence between the diameters of the front and rear
wheels. Pull off the road in a safe area, with the
engine idling. Check that all the tire sizes are the
same, that the tire pressure is correct and that the
tires are not excessively worn.
Unavailable: Road is slippery (if so
equipped)
This message appears when the Distance Con-
trol Assist (DCA) system becomes unavailable
because the road is slippery. For additional infor-
mation, refer to “Distance Control Assist (DCA)”
in the “Starting and driving” section of this
manual.
Instruments and controls2-31

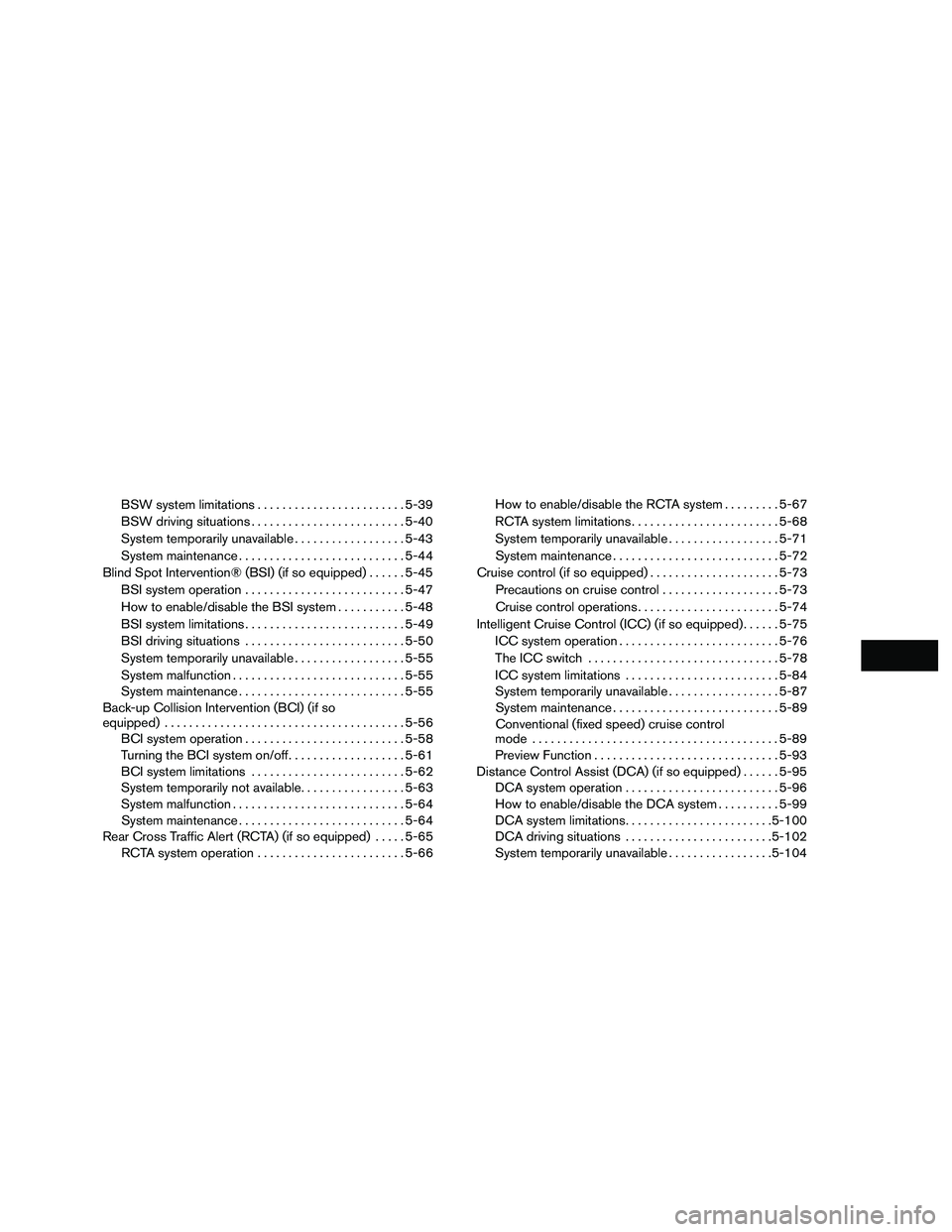

BSW system limitations........................ 5-39
BSW driving situations ......................... 5-40
System temporarily unavailable ..................5-43
System maintenance ........................... 5-44
Blind Spot Intervention® (BSI) (if so equipped) ......5-45
BSI system operation .......................... 5-47
How to enable/disable the BSI system ...........5-48
BSI system limitations .......................... 5-49
BSI driving situations .......................... 5-50
System temporarily unavailable ..................5-55
System malfunction ............................ 5-55
System maintenance ........................... 5-55
Back-up Collision Intervention (BCI) (if so
equipped) ....................................... 5-56
BCI system operation .......................... 5-58
Turning the BCI system on/off ...................5-61
BCI system limitations ......................... 5-62
System temporarily not available .................5-63
System malfunction ............................ 5-64
System maintenance ........................... 5-64
Rear Cross Traffic Alert (RCTA) (if so equipped) .....5-65
RCTA system operation ........................ 5-66How to enable/disable the RCTA system .
........5-67
RCTA system limitations ........................ 5-68
System temporarily unavailable ..................5-71
System maintenance ........................... 5-72
Cruise control (if so equipped) .....................5-73
Precautions on cruise control . ..................5-73
Cruise control operations .......................5-74
Intelligent Cruise Control (ICC) (if so equipped) ......5-75
ICC system operation .......................... 5-76
The ICC switch ............................... 5-78
ICC system limitations ......................... 5-84
System temporarily unavailable ..................5-87
System maintenance ........................... 5-89
Conventional (fixed

speed) cruise control
mode ........................................ 5-89
Preview Function .............................. 5-93
Distance Control Assist (DCA) (if so equipped) ......5-95
DCA system operation ......................... 5-96
How to enable/disable the DCA system ..........5-99
DCA system limitations ........................ 5-100
DCA driving situations ........................ 5-102
System temporarily unavailable .................5-104

STANDARD MODE
STANDARD MODE is recommended for normal
driving. Turn the drive mode select switch to the
center position. “STANDARD” appears in the ve-
hicle information display for 2 seconds.
SPORT MODE
The SPORT mode adjusts the engine and trans-
mission to enhance performance. Turn the drive
mode select switch to the SPORT position.
“SPORT” appears in the vehicle information dis-
play for 2 seconds.
NOTE:
In the SPORT mode, fuel economy may be
reduced.
SNOW MODE
SNOW mode is used on snowy roads or slippery
areas. When the SNOW mode is activated, en-
gine output is controlled to avoid wheel spin. Turn
the SNOW mode off for normal driving. Turn the
drive mode select switch to the SNOW position.
“SNOW” appears in the vehicle information dis-
play for 2 seconds.
ECO MODE
The ECO mode adjusts the engine and transmis-
sion to enhance fuel economy.
NOTE:
Selecting this drive mode will not necessar-
ily improve fuel economy as many driving
factors influence its effectiveness.
Operation
Turn the drive mode select switch to the ECO
position. “ECO” appears in the vehicle informa-
tion display for 2 seconds and the ECO drive
indicator light illuminates on the instrument panel.
When the accelerator pedal is depressed within
the range of economy drive, the ECO drive indi-
cator light illuminates in green. When the accel-
erator pedal is depressed above the range of
economy drive, the color of the ECO drive indi-
cator light changes to orange. For ECO pedal
system equipped models, refer to “ECO pedal
system” in this section.
The ECO drive indicator light will not illuminate in
the following cases:● When the shift lever is in the R (Reverse)
position.
● When the vehicle speed is below 3 mph
(4.8 km/h) or over 90 mph (144 km/h). ●
When the Intelligent Cruise Control (ICC)
system (if so equipped) is operated.
ECO pedal system (if so equipped)
The ECO pedal system helps assist the driver to
improve fuel economy by increasing the reaction
force of the accelerator pedal. When the ECO
drive indicator light is blinking or turns off, the
ECO pedal system increases the reaction force
of the accelerator pedal.
ECO drive indicator Illuminate or blink
when
Illuminate
(green) When the pedal is
depressed within
range of economy drive
Blinks
(green) When the pedal
is depressed
likely over the range of
economy drive
When the ECO drive indicator illuminates in
green, the accelerator reaction force is normal.
When the ECO drive indicator light is blinking or
turns off, the ECO pedal system increases the
reaction force of the accelerator pedal.
Starting and driving5-23

●When the Intelligent Cruise Control (ICC)
approach warning occurs.
● When the hazard warning flashers are oper-
ated.
● When driving on a curve at high speed.
After the above conditions have finished and the
necessary operating conditions are satisfied, the
LDP system application of the brakes will resume.
Condition C:
If the following messages appear in the vehicle
information display, a chime will sound and the
LDP system will be turned off automatically. ● “Unavailable Road is slippery”:
When the VDC system (except Traction
Control System (TCS) function) or ABS op-
erates.
● “Unavailable VDC OFF”:
When the VDC system is turned off.
● “Unavailable Snow mode active”:
When the drive mode select switch is turned
to the SNOW mode.
Action to take:
When the above conditions no longer exist, turn
off the LDP system. Push the dynamic driver
assistance switch again to turn the LDP system
back on. Temporary disabled status at high tem-
perature:
If the vehicle is parked in direct sunlight under
high temperature conditions (over approximately
104°F (40°C)) and then the LDP system is turned
on, the LDP system may be deactivated auto-
matically and the following message will appear
on the vehicle information display: “Unavailable
High Cabin Temp.” When the interior tempera-
ture is reduced, the system will resume operating
automatically.
SYSTEM MAINTENANCE
The lane camera unit1for the LDP system is
located above the inside mirror. To keep the
proper operation of the LDP systems and prevent
a system malfunction, be sure to observe the
following:
● Always keep the windshield clean.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
camera unit.
SSD0453
Starting and driving5-35
