2016 INFINITI QX60 HYBRID Owner's Manual

Types of tires.................8-35
Uniform tire quality grading .........9-29
Wheels and tires ...............8-29
Wheel/tire size .................9-9
Tire pressure ...................8-29
Low tire pressure warning light .......2-10
Tire Pressure Monitoring System (TPMS) . . . .5-5
Top tether strap child restraint .........1-31
Towing Flat towing ..................9-28
Towing load/specification ..........9-22
Tow truck towing ...............6-14
Trailer towing .................9-18
Towing a trailer ..................9-18
Transceiver HomeLink® Universal
Transceiver .......2-68, 2-69, 2-71, 2-72
Transmission Continuously Variable Transmission (CVT)
fluid ......................8-14
Driving with Continuously Variable
Transmission (CVT) .............5-17
Travel (See registering a vehicle in another
country) ......................9-10
Trip odometer ...................2-5
Turn signal switch ................2-42
U
Uniform tire quality grading ...........9-29
USB interface Audio file operation ..........4-84, 4-85
Video file operation .............4-87
USB (Universal Serial Bus) Connection Port
(models with Navigation System) ........4-85USB (Universal Serial Bus) Connection Port
(models without Navigation System)
......4-83
V
Vanity mirror ...................3-31
Vehicle dimensions and weights .........9-9
Vehicle does not start ..............6-10
Vehicle dynamic control (VDC) off switch . . .2-47
Vehicle dynamic control (VDC) system . . . .5-137
Vehicle Dynamic Control (VDC) system . . .5-137
Vehicle identification ...............9-10
Vehicle identification number (VIN) .......9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10
Vehicle identification number (VIN) plate . . . .9-10
Vehicle immobilizer system ...........5-16
V ehicle Information

Display...........2-16
Vehicle loading information ...........9-14
Vehicle recovery ..............6-16, 6-17
Vehicle security system .............2-32
(INFINITI vehicle immobilizer system) ,
engine start ...........2-34, 3-4, 5-16
Vents .......................4-48
Visors .......................3-31
Voice Prompt Interrupt ........4-115, 4-128
Voice recognition system ...........4-138
W
Warning Air bag warning light .........1-66, 2-12
Anti-lock brake warning light .........2-8
Battery charge warning light .........2-8Blind Spot Intervention (BSI) warning
light
......................5-45
Blind Spot Warning (BSW) warning
light ......................5-36
Brake warning light ...........2-8, 2-9
Distance Control Assist (DCA) .......5-95
Hazard warning flasher switch ........6-2
Lane Departure Prevention . .5-25, 5-30, 5-33
Lane Departure Warning
light ...............5-25, 5-30, 5-33
Loose fuel cap warning ...........2-30
Low fuel warning light ......2-9, 2-11, 2-28
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ......................2-29
Passenger air bag and status light .....1-57
Seat belt warning light ........1-18, 2-12
Supplemental air bag warning
light ..................1-66, 2-12
Vehicle security system ...........2-32
Warning/indicator lights and audible
reminders .................2-7, 2-8
Warning labels (for SRS) ..........1-65
Warning/indicator lights and audible
reminders ...................2-7, 2-8
Audible reminders ............2-7, 2-8
Indicator lights ..............2-7, 2-8
Warning lights ..............2-7, 2-8
W arning lights...............

.2-7, 2-8
Warning systems switch ............2-48
Washer switch Rear window wiper and washer
switches ...................2-37
Weights (See dimensions and weights) .....9-9
Wheels and tires .................8-29
Wheel/tire size ...................9-9
10-7

When traveling or registering in another
country......................9-10
Windows .....................2-59
Locking passengers’ windows .......2-60
Power rear windows .............2-61
Power windows ...............2-59
Rear power windows ............2-61
Windshield-washer fluid .............8-16
Windshield wiper blades ............8-21
Wiper Rear window wiper and washer
switches ...................2-37
Wiper blades .................8-21
Wiper and washer switch ............2-35
10-8

FUEL RECOMMENDATION:
INFINITI recommends the use of unleaded pre-
mium gasoline with an octane rating of at least
91 AKI (Anti-Knock Index) number (Research
octane number 96) . If unleaded premium gaso-
line is not available, you may use unleaded regu-
lar gasoline with an octane rating of at least
87 AKI number (Research octane number 91) ,
but you may notice a decrease in performance.
CAUTION
●Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect the
warranty coverage.
● Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst.
● Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed to
run on E-15 E-85 fuel. Using E-15 or E-85
fuel in a vehicle not specifically de-
signed for E-15 or E-85 fuel can ad-
versely affect the emission control de-
vices and systems of the vehicle.
Damage caused by such fuel is not cov-
ered by the INFINITI New Vehicle Lim-
ited Warranty. ●
Do not use fuel that contains the octane
booster methylcyclopentadienyl man-
ganese tricarbonyl (MMT) . Using fuel
containing MMT may adversely affect
vehicle performance and vehicle emis-
sions. Not all fuel dispensers are la-
beled to indicate MMT content, so you
may have to consult your gasoline re-
tailer for more details. Note that Fed-
eral and California laws prohibit the use
of MMT in reformulated gasoline.
● U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and
black label with the common abbrevia-
tion or the appropriate percentage for
that region.
For additional information, refer to “Recom-
mended fluids/lubricants and capacities” in the
“Technical and consumer information” section of
this manual.
ENGINE OIL RECOMMENDATION
● Genuine NISSAN engine oil or equivalent
● Engine oil with API Certification Mark, Vis-
cosity SAE 0W-20
For additional information, refer to “Engine oil and
oil filter recommendations” in the “Technical and
consumer information” section of this manual.
COLD TIRE PRESSURE:
Refer to Tire and Loading Information label.
The label is typically located on the driver side
center pillar or on the driver’s door. For additional
information, refer to “Wheels and tires” in the
“Maintenance and do-it-yourself” section of this
manual.
RECOMMENDED NEW VEHICLE
BREAK-IN PROCEDURE:
During the first 1,200 miles (2,000 km) of vehicle
use, follow the break-in procedure recommenda-
tions for the future reliability and economy of your
new vehicle. For additional information, refer to
“Break-in schedule” in the “Starting and driving”
section of this manual. Failure to follow these
recommendations may result in vehicle damage
or shortened engine life.
GAS STATION INFORMATION

2016 Infiniti QX60 Hybrid Owner’s Manual
Printing: December 2015 (04) / OM16EA HL50U0 / Printed in U.S.A.
For your safety, read carefully and keep in this vehicle.2016 Infiniti QX60 Hybrid

Owner’s Manual Supplement
The information contained within this supplement updates the following information in the
2016 INFINITI QX60 and 2016 INFINITI QX60 HEV:
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)in the “Safety—Seats, seat belts and
supplemental restraint system” section.
●If the Passenger Air bag Status light () is illuminated with the front passenger seat
empty, refer to this addendum card (vehicles built on or after 4/1/2016) .
●If the Passenger Air bag Status light () is OFF with the front passenger seat empty,
refer to the information in the Owner’s Manual (vehicles built before 4/1/2016) .
Read carefully and keep in vehicle.
Printing: March 2016 (01)
Publication No. SU16EA IOCSU0

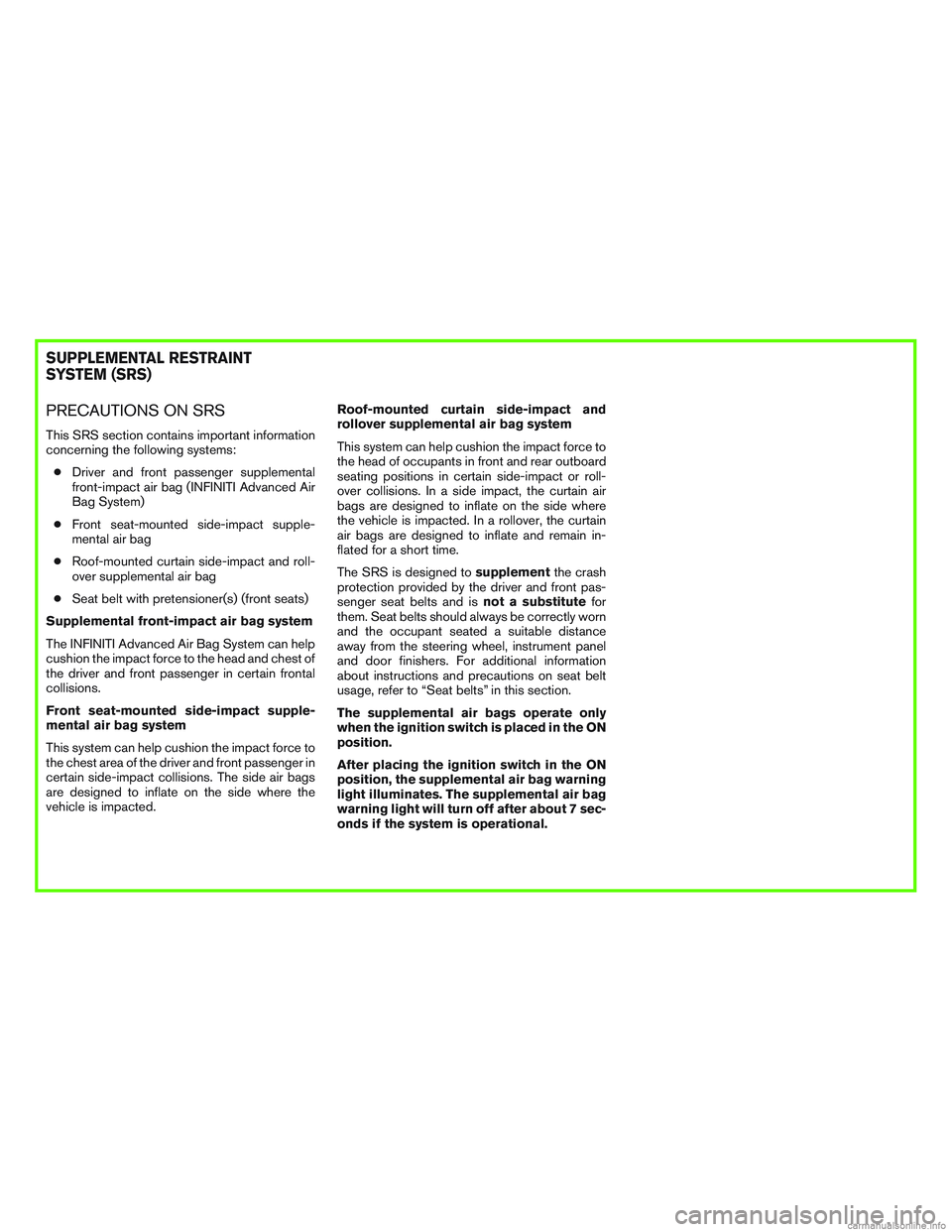

PRECAUTIONS ON SRS
This SRS section contains important information
concerning the following systems:
●Driver and front passenger supplemental
front-impact air bag (INFINITI Advanced Air
Bag System)
●Front seat-mounted side-impact supple-
mental air bag
●Roof-mounted curtain side-impact and roll-
over supplemental air bag
●Seat belt with pretensioner(s) (front seats)
Supplemental front-impact air bag system
The INFINITI Advanced Air Bag System can help
cushion the impact force to the head and chest of
the driver and front passenger in certain frontal
collisions.
Front seat-mounted side-impact supple-
mental air bag system
This system can help cushion the impact force to
the chest area of the driver and front passenger in
certain side-impact collisions. The side air bags
are designed to inflate on the side where the
vehicle is impacted.Roof-mounted curtain side-impact and
rollover supplemental air bag system
This system can help cushion the impact force to
the head of occupants in front and rear outboard
seating positions in certain side-impact or roll-
over collisions. In a side impact, the curtain air
bags are designed to inflate on the side where
the vehicle is impacted. In a rollover, the curtain
air bags are designed to inflate and remain in-
flated for a short time.
The SRS is designed tosupplementthe crash
protection provided by the driver and front pas-
senger seat belts and isnot a substitutefor
them. Seat belts should always be correctly worn
and the occupant seated a suitable distance
away from the steering wheel, instrument panel
and door finishers. For additional information
about instructions and precautions on seat belt
usage, refer to “Seat belts” in this section.
The supplemental air bags operate only
when the ignition switch is placed in the ON
position.
After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

WARNING
●The front air bags ordinarily will not
inflate in the event of a side impact, rear
impact, rollover, or lower severity fron-
tal collision. Always wear your seat
belts to help reduce the risk or severity
of injury in various kinds of accidents.
●The front passenger air bag will not
inflate if the passenger air bag status
light is lit. For additional information,
refer to “Front passenger air bag and
status light” in this section.●The seat belts and the front air bags are
most effective when you are sitting well
back and upright in the seat. The front
air bags inflate with great force. Even
with the INFINITI Advanced Air Bag Sys-
tem, if you are unrestrained, leaning
forward, sitting sideways or out of posi-
tion in any way, you are at greater risk of
injury or death in a crash. You may also
receive serious or fatal injuries from the
front air bag if you are up against it
when it inflates. Always sit back againstthe seatback and as far away as practi-
cal from the steering wheel or instru-
ment panel. Always properly use the
seat belts.
●The driver and front passenger seat belt
buckles are equipped with sensors that
detect if the seat belts are fastened. The
INFINITI Advanced Air Bag System
monitors the severity of a collision and
seat belt usage then inflates the air
bags as needed. Failure to properly
wear seat belts can increase the risk or
severity of injury in an accident.
●The front passenger seat is equipped
with an occupant classification sensor
(weight sensor) that turns the front pas-
senger air bag OFF under some condi-
tions. This sensor is only used in this
seat. Failure to be properly seated and
wearing the seat belt can increase the
risk or severity of injury in an accident.
For additional information, refer to
“Front passenger air bag and status
light” in this section.
●Keep hands on the outside of the steer-
ing wheel. Placing them inside the
steering wheel rim could increase the
risk that they are injured when the front
air bag inflates.
WRS0031

WARNING
●Never let children ride unrestrained or
extend their hands or face out of the
window. Do not attempt to hold them in
your lap or arms. Some examples of
dangerous riding positions are shown
in the illustrations.
ARS1133ARS1041
