2016 Hyundai Santa Fe display

Info Nearby
The list of traffic information around the
current vehicle position is displayed.
1. Press [MAP] > Touch [Menu] >
[Traffic] > [Info Nearby].
2. Touch the desired option to check
the detailed information.
3. Touch [Show Map] after checking it.
4. Touch [Zoom+] to view the map in
detail. Touch [Zoom-] to view the
map a wider area.5. Touch
to return to the previous
screen. Press MAP to return to the
current location map screen.
Info On Route
The list of traffic information found on
the recommended route from the cur-
rent vehicle position to the destination
is displayed.
A detour route to avoid the event is
searched from the current vehicle posi-
tion to the destination. Also, you can
check the detailed information about
the displayed events.
1. Press [MAP] > Touch [Menu] >
[Traffic] > [Info On Route].
2. Touch the desired option to check
the detailed information. 3. If you need to take a detour, touch
[Detour].
Note
Touch [Show Map], if you want to
view the position about the event
found on the route. Touch
to
return to the previous screen. Press
MAP to return to the current loca-
tion map screen.
4. Touch the preferred route.
5. Touch [Start].
Drive in accordance with the screen
and voice information.
38
Using the map menu

To connect using the unit
settings (2)
1. Press on the control panel.
2. Press [Search for Bluetooth
Devices].
3. Follow steps 4-5 on the page 39.
 Note
If you touch
on the control panel
again after connected via Bluetooth
wireless technology, the Bluetooth main
screen appears on the screen.
To connect using the phone
settings
Your phone’s Bluetooth feature may
be set to off by default. To use the
Bluetooth feature, Bluetooth must be
turned on in your phone. Refer to your
phone’s user guide.
1. Enable the phone’s Bluetooth
component. This might be in a
menu called Settings, Bluetooth,
Connections, or Hands-free.
2. Press [
] > Touch [Bluetooth] >
[External Device Authorization].
If you want to cancel, touch [Cancel].
3. Initiate a search for Bluetooth
devices. These settings might be
located in a menu called Bluetooth,
Connections, or Hands-free.
4. Select the your device from the list
of phone.5. Input the passkey (Default: 0000)
showed on the screen in your phone
when the pop-up screen is dis-
played on the screen.
When it is successfully connected,
the [Bluetooth] screen appears on
the screen.
 Note
• It works the same as the wired head-
set for mobile phone. The headset
functionality is for telephone conversa-
tion. It is not for listening to music.
• Unlike the hands-free functionality,
Headset connection will allow only two
functions “answering calls” and “mak-
ing a call from the latest call”. Also the
caller’s number is not displayed when
answering calls.
• If connecting through a Bluetooth
phone, the hands-free connection or
headset connection may not operate
depending on the type of the phone.
40
Bluetooth wireless technology

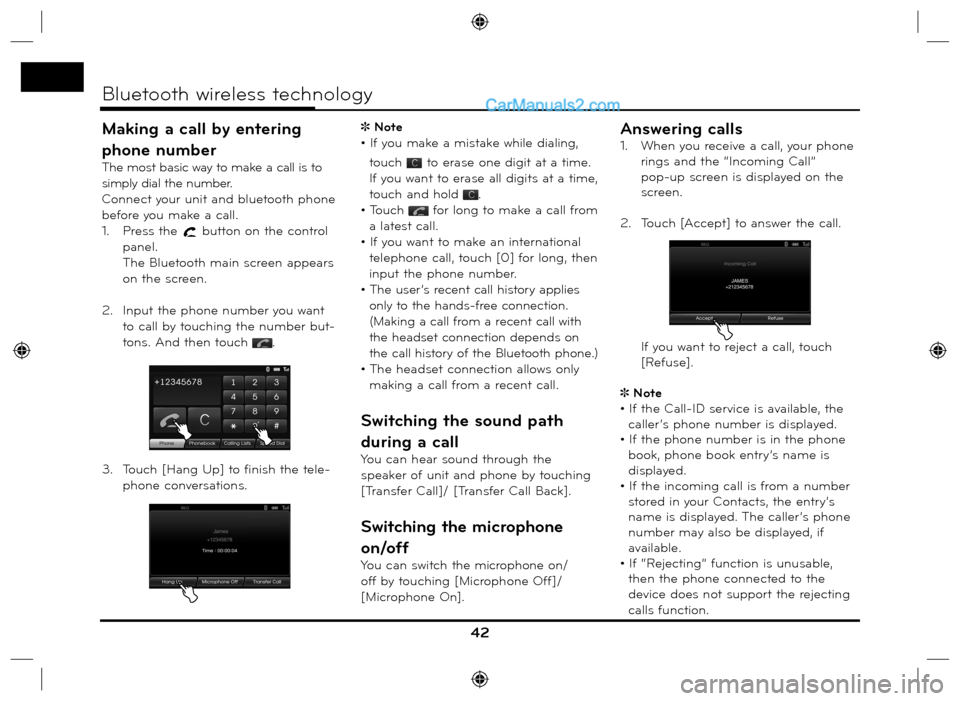

Making a call by entering
phone number
The most basic way to make a call is to
simply dial the number.
Connect your unit and bluetooth phone
before you make a call.
1. Press the
button on the control
panel.
The Bluetooth main screen appears
on the screen.
2. Input the phone number you want
to call by touching the number but-
tons. And then touch
.
3. Touch [Hang Up] to finish the tele-
phone conversations. Note
• If you make a mistake while dialing,
touch
to erase one digit at a time.
If you want to erase all digits at a time,
touch and hold
.
• Touch
for long to make a call from
a latest call.
• If you want to make an international
telephone call, touch [0] for long, then
input the phone number.
• The user’s recent call history applies
only to the hands-free connection.
(Making a call from a recent call with
the headset connection depends on
the call history of the Bluetooth phone.)
• The headset connection allows only
making a call from a recent call.
Switching the sound path
during a call
You can hear sound through the
speaker of unit and phone by touching
[Transfer Call]/ [Transfer Call Back].
Switching the microphone
on/off
You can switch the microphone on/
off by touching [Microphone Off]/
[Microphone On].
Answering calls
1. When you receive a call, your phone
rings and the “Incoming Call”
pop-up screen is displayed on the
screen.
2. Touch [Accept] to answer the call.
If you want to reject a call, touch
[Refuse].
 Note
• If the Call-ID service is available, the
caller’s phone number is displayed.
• If the phone number is in the phone
book, phone book entry’s name is
displayed.
• If the incoming call is from a number
stored in your Contacts, the entry’s
name is displayed. The caller’s phone
number may also be displayed, if
available.
• If “Rejecting” function is unusable,
then the phone connected to the
device does not support the rejecting
calls function.
42
Bluetooth wireless technology

Using your Phone Book
You can use the phone book entries
stored on the memory of phone sup-
porting PBAP (Phone Book Access
Profile) profile.
After connecting your unit and blue-
tooth phone via Bluetooth wireless tech-
nology, the numbers in your phone’s
phone book is transferred automatically
into phone book.
Calling a number in the phone book
After finding the entry in the phone
book you want to call, you can select
the number and make a call.
1. Press
on the control panel. And
then touch [Phonebook].2. Touch a phone book entry you want
to call.
Touching
or switches to the
next or previous page in the list.
3. Touch [Hang Up] to finish the tele-
phone conversations.
Searching the phone book entry by
alphabet
If there are many entries in the phone
book list, it can be useful to display
them in the alphabetical order for easier
searching.
1. Touch [Search By Name] on the
“Phone book” screen.2. Input the first letter of the entry
in the phone book list you want to
search by using the keypad, then
touch [OK].
3. Touch a phone book entry you want
to call.
Touching
or switches to the
next or previous page in the list.
4. Touch [Hang Up] to finish the tele-
phone conversations.
43
Bluetooth wireless technology

Locating a folder/file using
the list
Disc - Audio CD USB
Disc - MP3/WMA You can listen to music by displaying
the track/folder/file list.
1. Touch the [List] button during play-
back.
2. In case of Audio CD, touch the file
you want.
In case of MP3/WMA file, touch the
folder button you want. If there is no
folder, touch the file you want.
3. The selected track/file is played.Note

In case of MP3/WMA file, touch the
button to move to upper folder.
Touch the
or buttons to select
the list you want to view.
If you want to move to the playlist
screen, touch
.
Searching music iPod
You can search iPod for playlist, art-
ist names, album titles, Genre, songs,
composer, audio books, podcasts.
For details about iPod, refer to the iPod
User Guide.
1. Touch [List] during playback.
2. Touch the desired item.
• [Playlists]: Plays the songs in the
[Playlists].
• [Artists]: Plays the songs in the
[Artists].
• [Albums]: Plays the songs in the
[Albums].
• [Genres]: Plays the songs in the
[Genres].
• [Songs]: Plays the songs in the
[Songs].
• [Composers]: Plays the songs in
the [Composers].
• [Audiobooks]: Plays the songs/
chapters in the
[Audiobooks].
• [Podcasts]: Plays the songs/chapters
in the [Podcasts].
Note
If you want to move to upper folder,
touch
.
Touch the
or buttons to select
the list you want to view.
If you want to move to the playlist
screen, touch
.
49
CD/MP3/WMA/USB/iPod operation
Example: Audio CD
Audio CD
MP3/WMA file

Listening to the radio sta-
tions
1. Press the “RADIO” button to select
the radio.
2. Press the “RADIO” repeatedly to
select a band.
The mode switches as follows.
FM t AM t FM...
Note
To select the FM/AM by touching the
screen, touch
on the screen to
select the AM and then touch
. 3. Auto tuning:
Touch
/ on the screen. Or
press
/ on the control panel.
- When a station is received, search-
ing stops.
Manual tuning:
Rotate the Jog dial leftward/ right-
ward on the control panel.
- The frequencies move up and
down step by step.
Storing and recalling
stations
You can easily store up to 12 preset sta-
tions for later recall at the touch of a
button.
1. Select the band (FM, AM) you want to
store a station into.
2. Select the desired frequency.
3. Touch [Presets] on the screen.4. Touch and hold one of the preset
buttons.
The preset station information will be
displayed.
The selected preset station has been
stored in memory.
If you move to the previous/next
page, touch /.
5. Repeat steps 1 and 4 to preset other
stations.
Next time, if you touch the preset but-
tons
, the station is recalled from the
memory.
Note
When a station is preset on the preset
station button number on which anoth-
er station of the same band has already
been preset, the previously preset sta-
tion is automatically erased.
52
Radio operation

64
If the traffic problem is on the calculated route, the symbol will be highlighted.
Symbols for the display of traffic problems
SymbolDescription
Rock fall
Accident
Other danger
Road narrow
Chipping
Road work
Slippery road, RainSymbolDescription
Stationary traffic
Queuing traffic
Wind Storm
Snow, Ice
Block road, Closed
Emergency phone not
work
