OEU014006
The actual shape may differ from the illustration.
■
■
Van, Truck (with auxiliary battery)

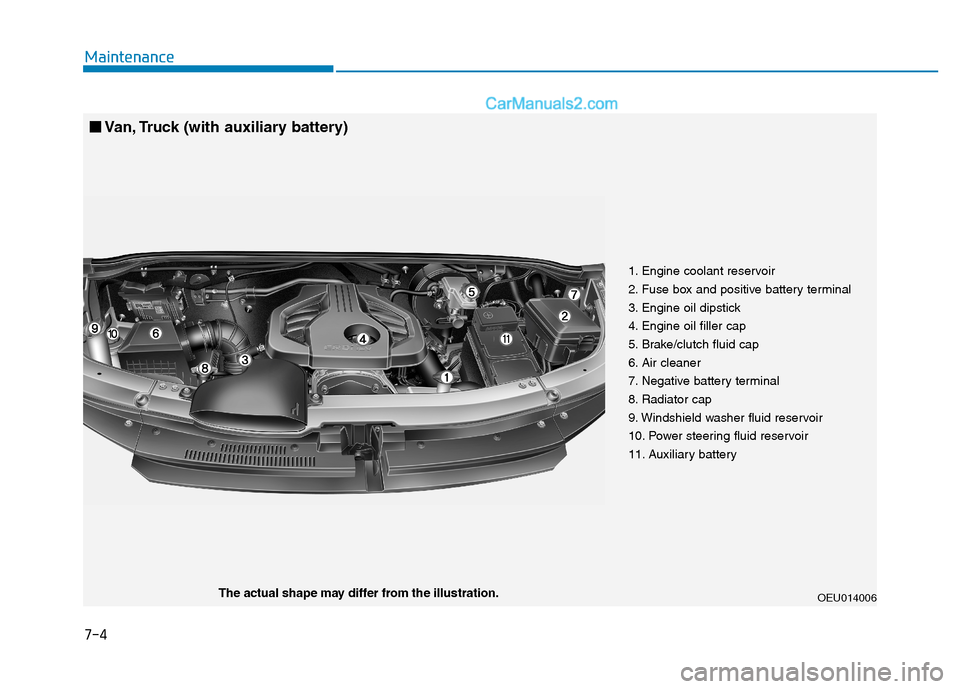

1. Engine coolant reservoir
2. Fuse box and positive battery terminal
3. Engine oil dipstick
4. Engine oil filler cap
5. Brake/clutch fluid cap
6. Air cleaner
7. Negative battery terminal
8. Radiator cap
9. Windshield washer fluid reservoir
10. Power steering fluid reservoir
11. Auxiliary battery

7-53
7
Maintenance
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse block in
the engine compartment. If a fuse is
blown, it must be replaced.Engine compartment panel fusereplacement
1.Turn the ignition switch and all other switches off.
2.Remove the fuse box cover by pressing the tap and pulling up.
3.Check the removed fuse; replace it if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4.Push in a new fuse of the same rat- ing, and make sure it fits tightly in
the clips.
If it fits loosely, we recommend that
you consult an authorized
HYUNDAI dealer.
OEU074029 After checking the fuse box in
the engine compartment,
securely install the fuse box
cover. If not, electrical failures
may occur from water leakingin.
CAUTION

7-55
7
Maintenance
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at thetime of printing.
When you inspect the fuse box on
your vehicle, refer to the fuse boxlabel.
NOTICE
■Inner fuse box (Driver’s seat side)
OEU074059/OEU074060/OEU074058/OEU074039
■
Inner fuse box (Instrument panel)
■Main fuse box
■Battery fuse box
Fuse/Relay panel description
Inside the fuse/relay box covers, you can find the fuse/relay label describing
fuse/relay name and capacity.

7-57
7
Maintenance
No.Fuse ratingFuse NameCircuit Protected
1210AMEMORYCluster (B+), A/C Control Module(B+), Drive Door Module(B+ECU), Assist Door Module(B+ECU), DTG(B+), OBDII (B+)
137.5ABRAKE SWBrake Switch, Stop Lamp
1410AMODULE E-3Cluster, Drive Door Module, Assist Door Module, A/C Control Module, Seat HTD Switch
Left/Right, VDC off Switch, AVN, Seat HTD Module Left/Right, DTG, LDWS Module, RPAS
Sensor, Yaw Rate Sensor, Fuel Water Sensor
1510AMIDDLE
DR LOCKMiddle Door Lock Actuator
1610ATAILGATE DR LOCKTailgate Door Lock Actuator
1710AMODULE E-4AUDIO E300/E800(ACC), AVN(ACC), LDC Module(ACC), CM(ACC)
1820AENG BOX (IG1)UH BOX (ABS3 7.5A, SNSR5 7.5A, INHIBITOR 7.5A, BACK UP LAMP 7.5A)
1910ADCUSEAT BOX (DCU SNSR Relay 'S')
207.5A2
CMCM (IG1)
217.5AMODULE-1Rain Sensor
2210AINTERIOR LAMPSEAT BOX(PASS ROOM LAMP Relay 'S'), Key Warning Switch, Step Lamp(MID/ASS),
OH_CONSOLE Lamp, Map Lamp, Passenger Reading Lamp, Cargo_Lamp(Middle / TGAT)

7-58
Maintenance
No.Fuse ratingFuse NameCircuit Protected
2310AMODULE-2HLLD Actuator Left/Right, Glow Relay Module(IG1), Brake Switch, FPAS Sensor, C/PAD Switch, BEZEL Switch, LDC Module(IG1)
247.5AMODULE-5I_S_MIRR(IG2), CM(IG2), Passenger Heater Module(IG2), Seat HTD Module Left/Right(IG2),
F/FILTER Relay 'S'
2510A2
IMMOImmobilizer Module(B+), Key Warning Switch
267.5A1
IMMOImmobilizer Module(IG1)
2720ASEAT BOX (IG2)SEAT BOX (ELECTRIC VENTILATOR2 10A, A/CON RR(IG2) 10A, IG2 10A(AUX POWER(IG2)
Relay 'S'))
287.5A1
A/CONA/C Control Module(IG2)
2915AA/BAGA/BAG Control Module(IG1)
307.52
EMERGENCY CALLEmergency-Call(IG1)

7-59
7
Maintenance

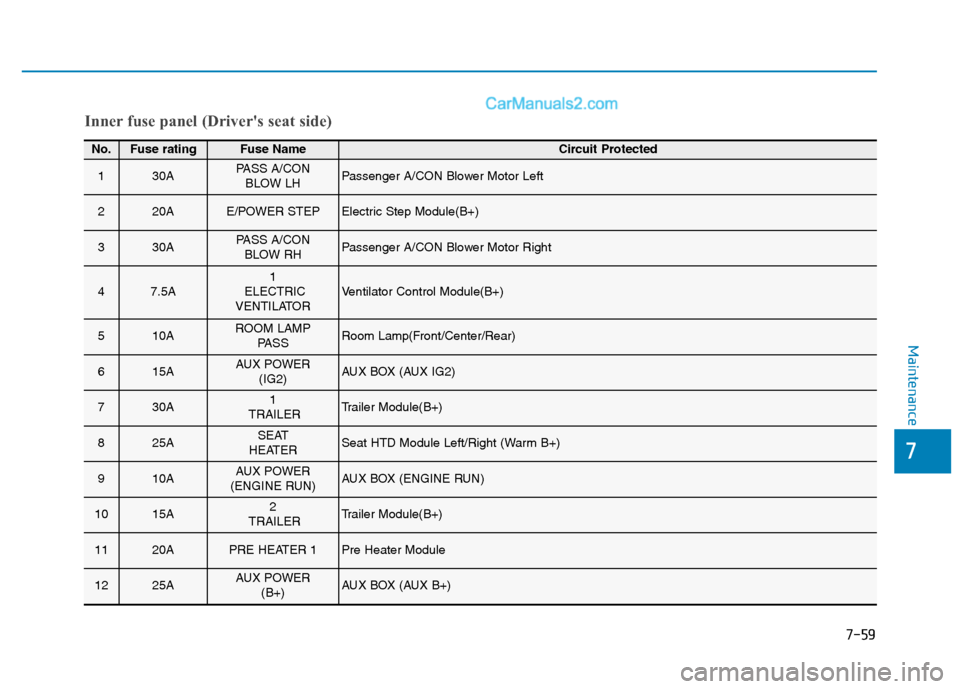

Inner fuse panel (Driver's seat side)
No.Fuse ratingFuse Name Circuit Protected
130APASS A/CONBLOW LHPassenger A/CON Blower Motor Left
220AE/POWER STEPElectric Step Module(B+)
330APASS A/CONBLOW RHPassenger A/CON Blower Motor Right
47.5A1
ELECTRIC
VENTILATORVentilator Control Module(B+)
510AROOM LAMP PASSRoom Lamp(Front/Center/Rear)
615AAUX POWER (IG2)AUX BOX (AUX IG2)
730A1
TRAILERTrailer Module(B+)
825ASEAT
HEATERSeat HTD Module Left/Right (Warm B+)
910AAUX POWER
(ENGINE RUN)AUX BOX (ENGINE RUN)
1015A2
TRAILERTrailer Module(B+)
1120APRE HEATER 1Pre Heater Module
1225AAUX POWER (B+)AUX BOX (AUX B+)

7-61
7
Maintenance
No.Fuse ratingFuse Name Circuit Protected
2520A2
DCUDosing Control Module(B+)
2620A3
DCUDosing Control Module(B+)
2710AIG2Electric Step Module, SEAT BOX(AUX POWER (IG2) Relay 'S')
2830APASS A/CON C/FAN RHPassenger A/CON Blower Motor Right
2925APASS HTR FRTPassenger Heater Blower Motor Front
3025APASS HTR RRPassenger Heater Blower Motor Rear

7-62
Maintenance
Engine compartment main fuse panel
No.Fuse ratingFuse Name Circuit Protected
110A2
A/CONA/C Compressor PASS
215A4
ECUEngine Control Module (Permanent Battery (+))
310A1
A/CONA/C Compressor CAB
410A1
SENSORElectric VGT Actuator, EGR Cooling Bypass, UH_BOX(Fuel Pump Relay 'S')
510ASPARE
620A1
ECUEngine Control Module (Battery (+))
710A2
SENSORUH_BOX(A/CON1 Relay 'S', A/CON2 Relay 'S', CONDENSER FAN Relay LH,RH1/2 'S')
820A2
ECUEngine Control Module (Battery (+))
910A3
SENSORLAMBDA Sensor
107.5ABACK UP LAMPRear Combi Lamp Left/Right (Back Up), Inside Mirror (Reverse), Trailer Module (Back Up),
Vehicle Dynamic Control Module (Reverse Gear Switch), Reverse Warning Buzzer
117.5A3
ABSAnti-Lock Brake Module (IG1), Vehicle Dynamic Control Module (IG1), Steering Angle Sensor (IG1)
127.5A5
SENSORAir Flow Sensor, Engine Control Module (TERMINAL15(IG1 INPUT))
