7-63
7
Maintenance
No.Fuse ratingFuse Name Circuit Protected
137.5AINHIBITORUH_BOX(Start Inhibit Relay 'S')
1460A3
B+Smart Junction Box (B+3)
1560AVDCVehicle Dynamic Control Module (B+ Pump Motor)
1640A2
ABSAnti-Lock Brake Module (B+ Solenoid Valve), Vehicle Dynamic Control Module(B+ Solenoid
Valve)
1740A1
ABSAnti-Lock Brake Module (B+ Pump Motor)
1860A2
B+Smart Junction Box (B+2)
1980AGLOWGlow Relay Module (Plus Direct)
2050A4
B+Smart Junction Box (B+4)
2150AEMSEngine Management System Block (B+)
2215AHORNHORN
2310APTOPTO Magnetic Valve
2420AF/PUMPFuel Pump Sender (Fuel Pump Motor(+))

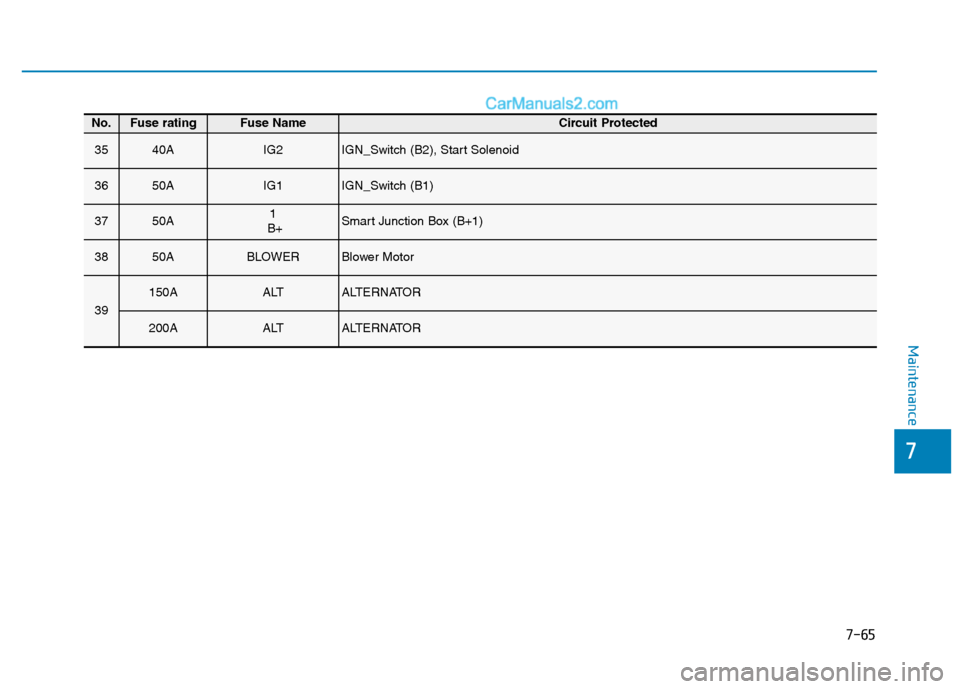

7-65
7
Maintenance
No.Fuse ratingFuse Name Circuit Protected
3540AIG2IGN_Switch (B2), Start Solenoid
3650AIG1IGN_Switch (B1)
3750A1
B+Smart Junction Box (B+1)
3850ABLOWERBlower Motor
39
150AALTALTERNATOR
200AALTALTERNATOR
7-66
Maintenance
Battery fuse panel
No.Fuse ratingFuse Name Circuit Protected
140ADCU_MAINDosing Control Module (B+)
2150APASS,HTR(BUS)
PASS,A/CON(BUS)
AUX,BATT(TRK/VAN)1. BUS : SEAT BOX (PASS HTR FRT 25A, PASS HTR/BLOW SIG FR 7.5A, PASS HTR RR 25A,
PASS HTR/BLOW SIG RR 7.5A, PASS A/CON C/FAN LH 30A, PASS A/CON C/FAN RH 30A,
PASS A/CON BLOW LH 30A, PASS A/CON BLOW SIG LH 7.5A, PASS A/CON BLOW RH 30A,
PASS A/CON BLOW SIG RH 7.5A)
2. VAN/TRUCK : AUX Battery
370A2
SEAT_F/BOXSEAT BOX (B+2/B+3), PM Sensor, NOX Sensor (front/Rear), Dosing Control Module (IG1 INPUT)
470A1
SEAT_F/BOXSEAT BOX (B+1/B+4)
