2016 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

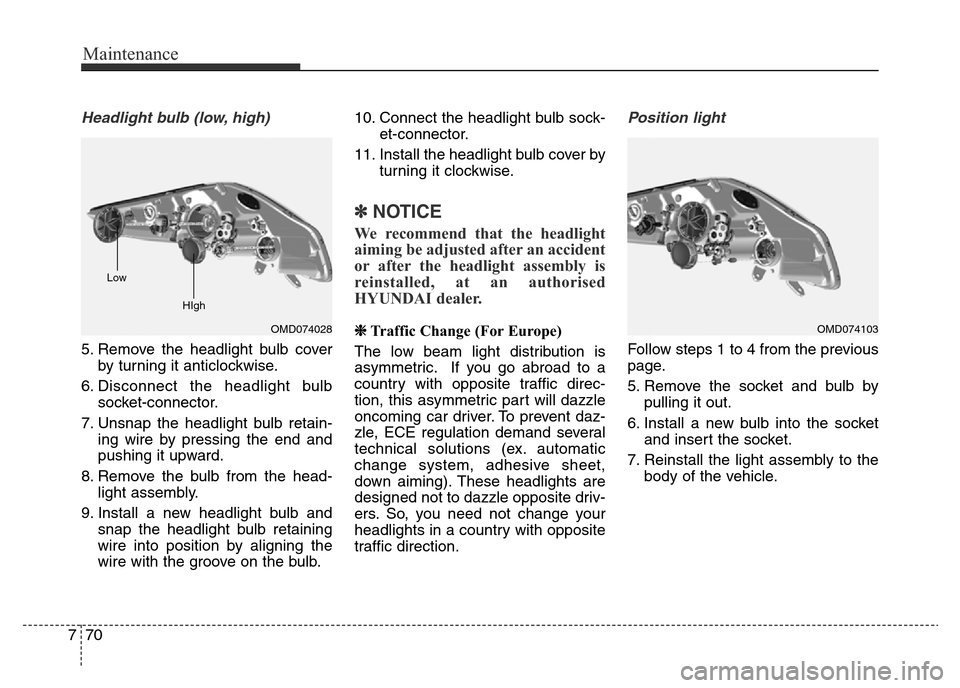

Maintenance
70 7
Headlight bulb (low, high)
5. Remove the headlight bulb cover
by turning it anticlockwise.
6. Disconnect the headlight bulb
socket-connector.
7. Unsnap the headlight bulb retain-
ing wire by pressing the end and
pushing it upward.
8. Remove the bulb from the head-
light assembly.
9. Install a new headlight bulb and
snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.10. Connect the headlight bulb sock-
et-connector.
11. Install the headlight bulb cover by
turning it clockwise.
✽NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is
reinstalled, at an authorised
HYUNDAI dealer.
❈Traffic Change (For Europe)
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direc-
tion, this asymmetric part will dazzle
oncoming car driver. To prevent daz-
zle, ECE regulation demand several
technical solutions (ex. automatic
change system, adhesive sheet,
down aiming). These headlights are
designed not to dazzle opposite driv-
ers. So, you need not change your
headlights in a country with opposite
traffic direction.
Position light
Follow steps 1 to 4 from the previous
page.
5. Remove the socket and bulb by
pulling it out.
6. Install a new bulb into the socket
and insert the socket.
7. Reinstall the light assembly to the
body of the vehicle.
OMD074103OMD074028 Low
HIgh

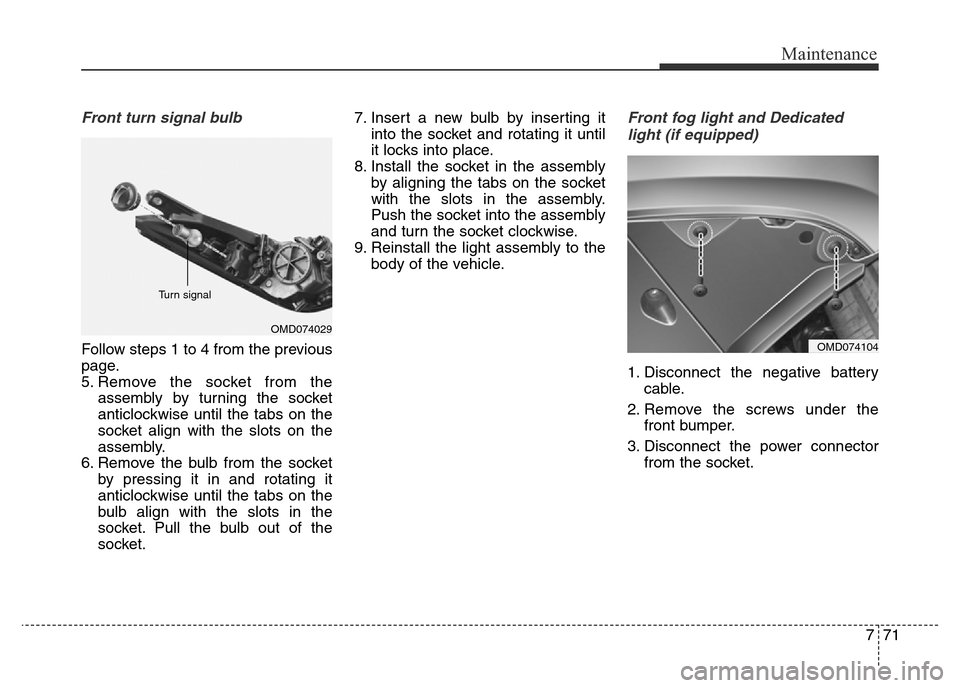

771
Maintenance
Front turn signal bulb
Follow steps 1 to 4 from the previous
page.
5. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
6. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Reinstall the light assembly to the
body of the vehicle.
Front fog light and Dedicated
light (if equipped)
1. Disconnect the negative battery
cable.
2. Remove the screws under the
front bumper.
3. Disconnect the power connector
from the socket.
OMD074104
OMD074029 Turn signal

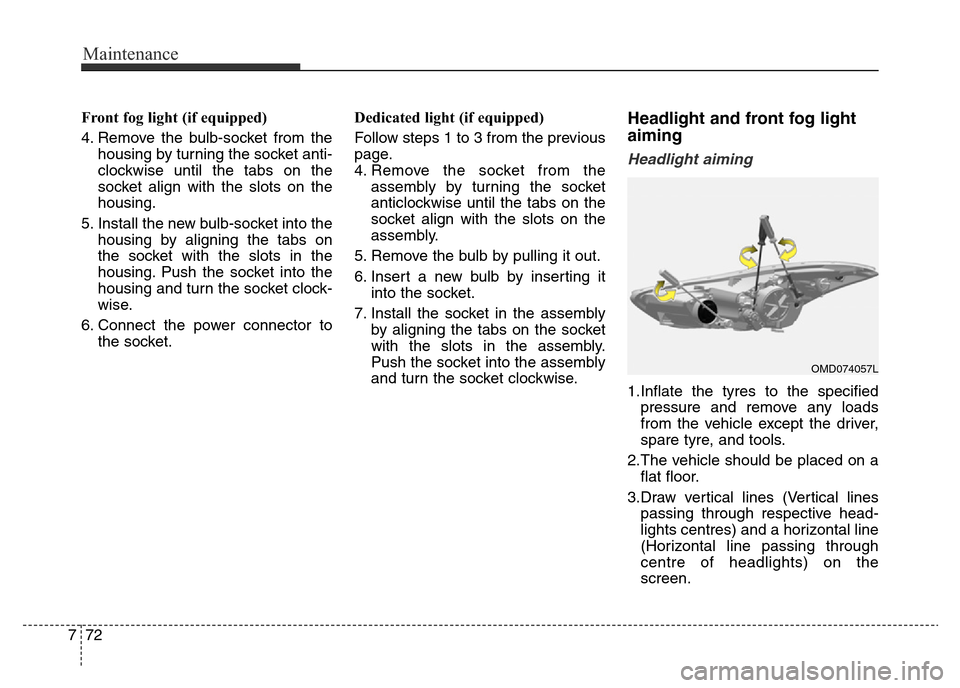

Maintenance
72 7
Front fog light (if equipped)
4. Remove the bulb-socket from the
housing by turning the socket anti-
clockwise until the tabs on the
socket align with the slots on the
housing.
5. Install the new bulb-socket into the
housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock-
wise.
6. Connect the power connector to
the socket.Dedicated light (if equipped)
Follow steps 1 to 3 from the previous
page.
4. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
5. Remove the bulb by pulling it out.
6. Insert a new bulb by inserting it
into the socket.
7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.Headlight and front fog light
aiming
Headlight aiming
1.Inflate the tyres to the specified
pressure and remove any loads
from the vehicle except the driver,
spare tyre, and tools.
2.The vehicle should be placed on a
flat floor.
3.Draw vertical lines (Vertical lines
passing through respective head-
lights centres) and a horizontal line
(Horizontal line passing through
centre of headlights) on the
screen.
OMD074057L

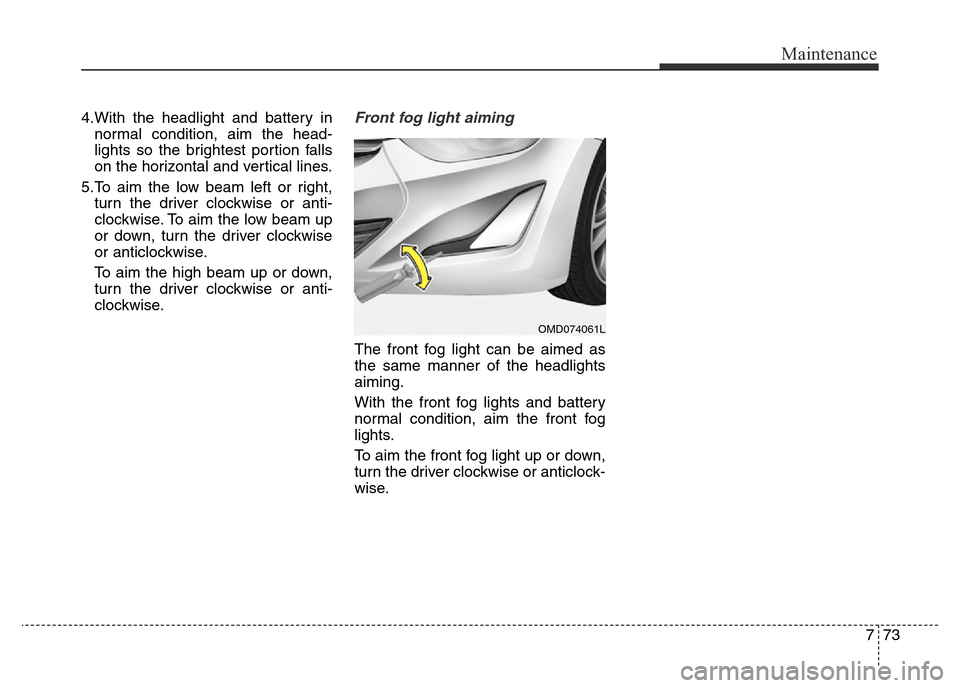

773
Maintenance
4.With the headlight and battery in
normal condition, aim the head-
lights so the brightest portion falls
on the horizontal and vertical lines.
5.To aim the low beam left or right,
turn the driver clockwise or anti-
clockwise. To aim the low beam up
or down, turn the driver clockwise
or anticlockwise.
To aim the high beam up or down,
turn the driver clockwise or anti-
clockwise.Front fog light aiming
The front fog light can be aimed as
the same manner of the headlights
aiming.
With the front fog lights and battery
normal condition, aim the front fog
lights.
To aim the front fog light up or down,
turn the driver clockwise or anticlock-
wise.
OMD074061L

Maintenance
74 7
Vehicle
ConditionH1 H2H3
W1 W2W3
With DRL*Without
DRL*With DRL*Without
DRL*
Without driverMFR 706 (27.8) 659 (25.9)
396 (15.6)
404 (15.9)1,318 (51.9)
1,076 (42.4)1480 (58.3) 1480 (58.3) PROJ. 703 (27.7) 660 (26) 1,314 (51.7)
HID 703 (27.7) 660 (26) 1,314 (51.7)
With driverMFR 699 (27.5) 652 (25.7)
389 (15.3)
397 (15.6)1,318 (51.9)
1480 (58.3) 1480 (58.3) PROJ. 699 (27.5) 653 (25.7) 1,314 (51.7)
HID 699 (27.5) 653 (25.7) 1,314 (51.7)
DRL : Daytime Running LightUnit: mm (in)
Aiming point
H1 : Height between the headlight bulb centre and ground (Low beam)
H2 : Height between the headlight bulb centre and ground (High beam)
H3 : Height between the fog light bulb centre and ground
W1 : Distance between the two headlight bulbs centres (Low beam)
W2 : Distance between the two headlight bulbs centres (High beam)
W3 : Distance between the two fog light bulbs centres

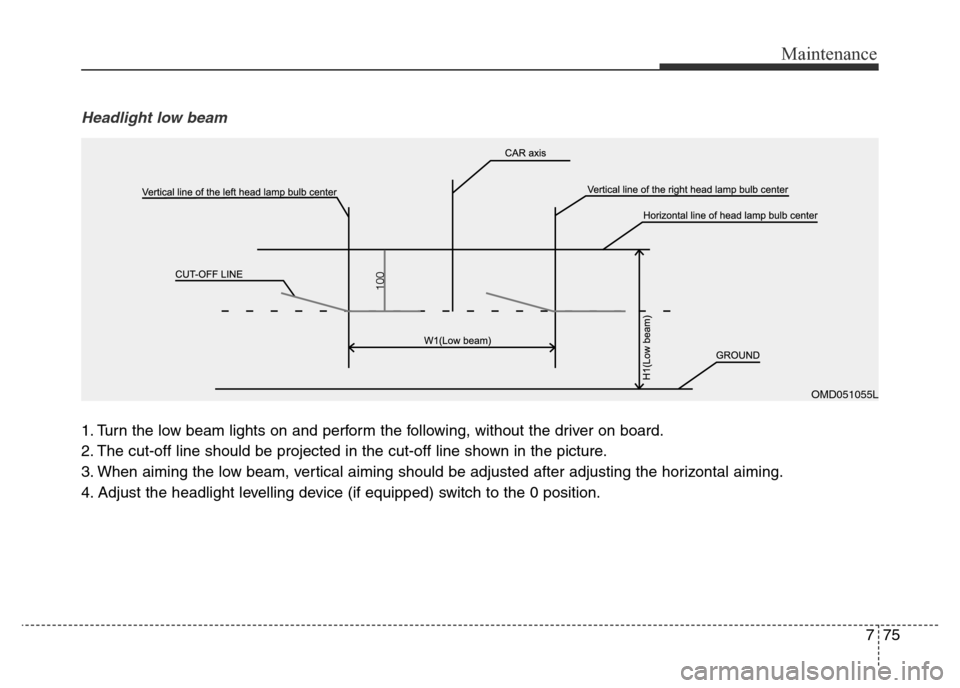

775
Maintenance
Headlight low beam
1. Turn the low beam lights on and perform the following, without the driver on board.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. Adjust the headlight levelling device (if equipped) switch to the 0 position.
OMD051055L

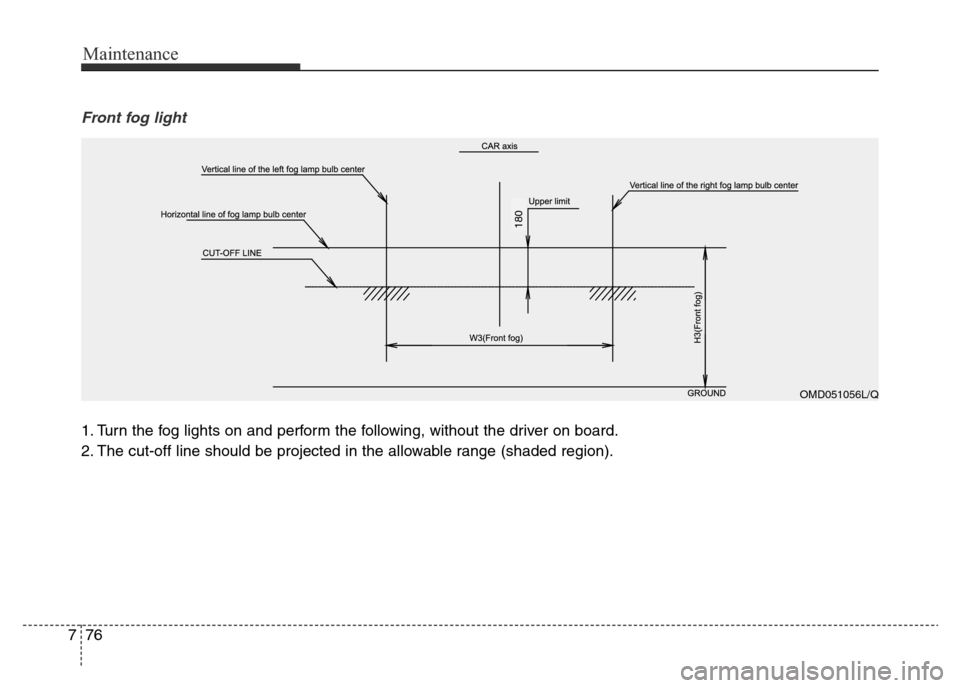

Maintenance
76 7
Front fog light
1. Turn the fog lights on and perform the following, without the driver on board.
2. The cut-off line should be projected in the allowable range (shaded region).
OMD051056L/Q
180

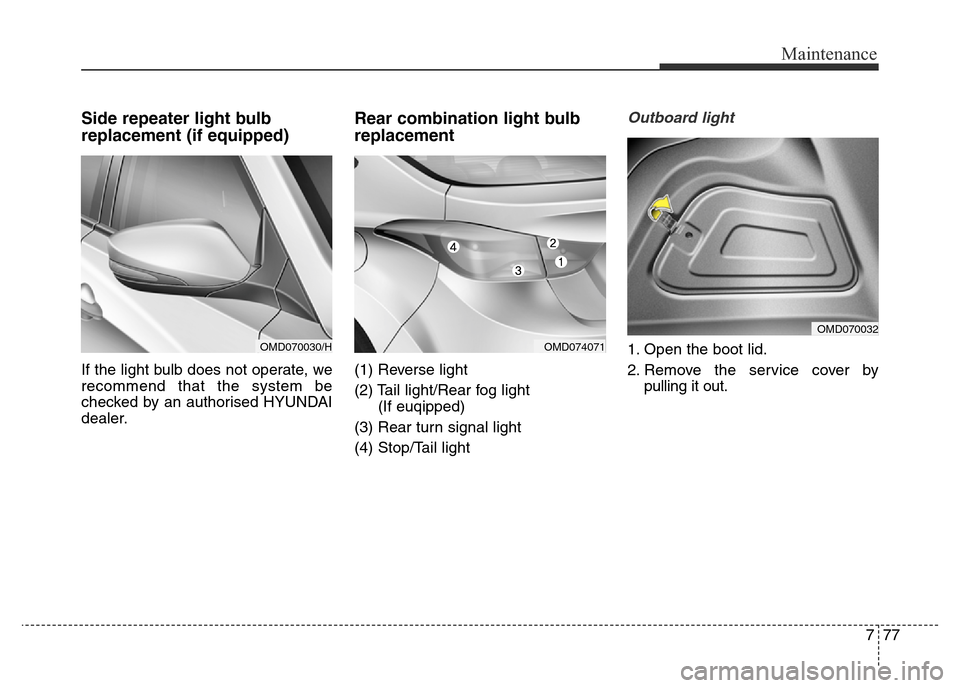

777
Maintenance
Side repeater light bulb
replacement (if equipped)
If the light bulb does not operate, we
recommend that the system be
checked by an authorised HYUNDAI
dealer.
Rear combination light bulb
replacement
(1) Reverse light
(2) Tail light/Rear fog light
(If euqipped)
(3) Rear turn signal light
(4) Stop/Tail light
Outboard light
1. Open the boot lid.
2. Remove the service cover by
pulling it out.OMD070030/HOMD074071
OMD070032
