2016 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

Maintenance
54 7

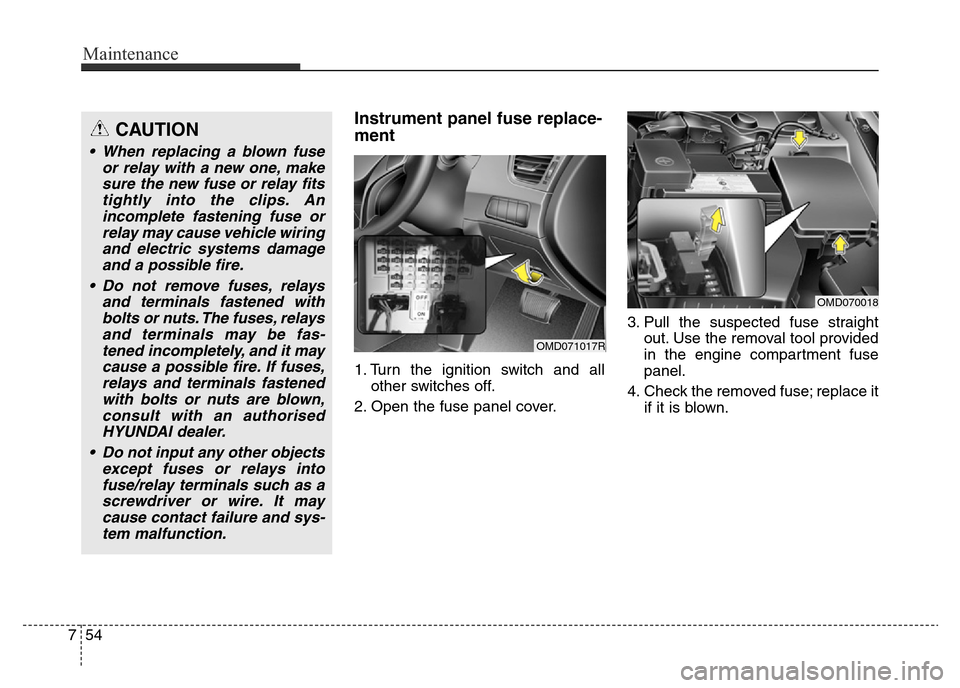

Instrument panel fuse replace-
ment
1. Turn the ignition switch and all
other switches off.
2. Open the fuse panel cover.3. Pull the suspected fuse straight
out. Use the removal tool provided
in the engine compartment fuse
panel.
4. Check the removed fuse; replace it
if it is blown.
OMD071017R
OMD070018
CAUTION
• When replacing a blown fuse
or relay with a new one, make
sure the new fuse or relay fits
tightly into the clips. An
incomplete fastening fuse or
relay may cause vehicle wiring
and electric systems damage
and a possible fire.
• Do not remove fuses, relays
and terminals fastened with
bolts or nuts. The fuses, relays
and terminals may be fas-
tened incompletely, and it may
cause a possible fire. If fuses,
relays and terminals fastened
with bolts or nuts are blown,
consult with an authorised
HYUNDAI dealer.
• Do not input any other objects
except fuses or relays into
fuse/relay terminals such as a
screwdriver or wire. It may
cause contact failure and sys-
tem malfunction.

755
Maintenance
5. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips.
If it fits loosely, we recommend that
you consult an authorised HYUNDAI
dealer.
If you do not have a spare, use a
fuse of the same rating from a circuit
you may not need for operating the
vehicle, such as the cigarette lighter
fuse.
If the electrical components do not
work and the fuses are OK, check
the fuse panel in the engine com-
partment. If a fuse is blown, it must
be replaced.
Fuse switch
Always, put the mode switch in the
ON position.
If you move the switch to the OFF
position, some items such as the
audio and digital clock must be reset.
Also, the transmitter (or smart key)
may not work properly.
Engine compartment panel
fuse replacement
1. Turn the ignition switch and all
other switches off.
2. Remove the fuse box cover by
pressing the tab and pulling up the
cover.
CAUTION
Always place the fuse switch in
the ON position whilst driving
the vehicle.
OMD070020
OMD071019R

Maintenance
56 7

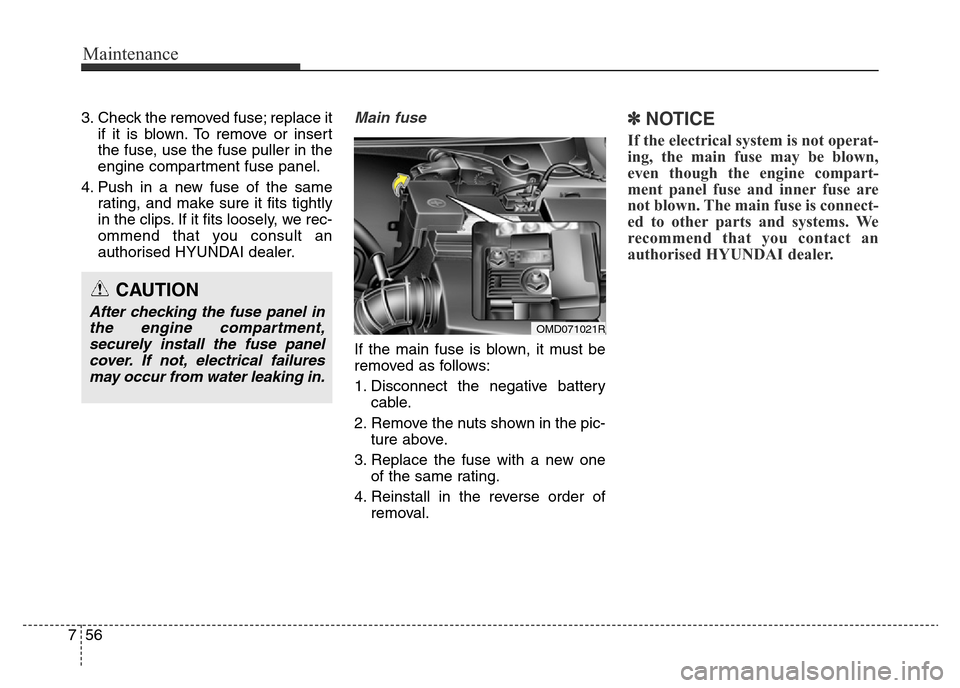

3. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, we rec-
ommend that you consult an
authorised HYUNDAI dealer.Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery
cable.
2. Remove the nuts shown in the pic-
ture above.
3. Replace the fuse with a new one
of the same rating.
4. Reinstall in the reverse order of
removal.
✽NOTICE
If the electrical system is not operat-
ing, the main fuse may be blown,
even though the engine compart-
ment panel fuse and inner fuse are
not blown. The main fuse is connect-
ed to other parts and systems. We
recommend that you contact an
authorised HYUNDAI dealer.
OMD071021R
CAUTION
After checking the fuse panel in
the engine compartment,
securely install the fuse panel
cover. If not, electrical failures
may occur from water leaking in.

757
Maintenance

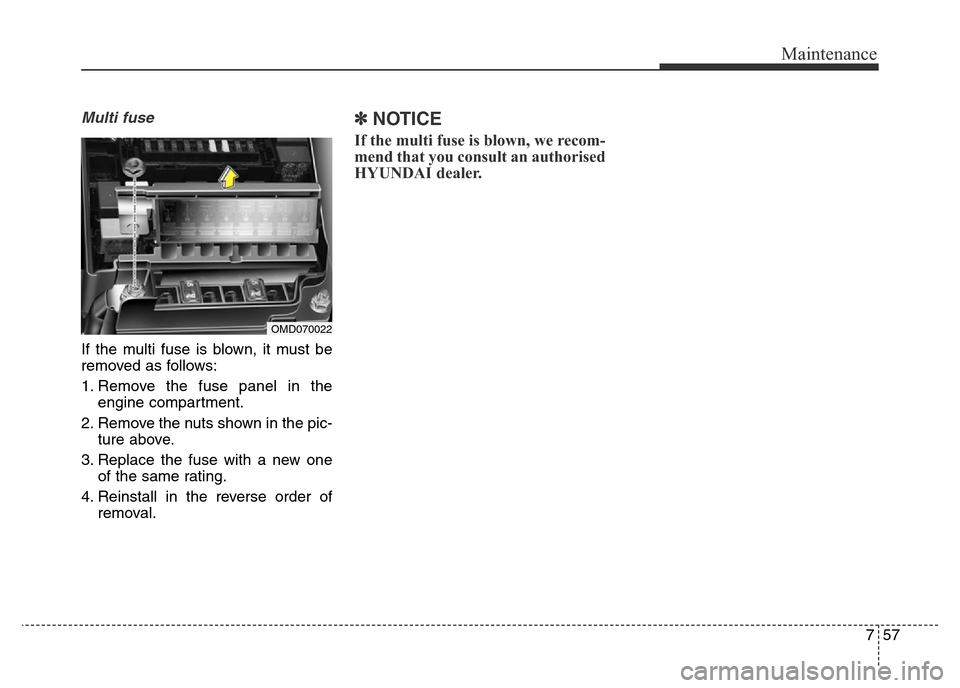

Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Remove the fuse panel in the
engine compartment.
2. Remove the nuts shown in the pic-
ture above.
3. Replace the fuse with a new one
of the same rating.
4. Reinstall in the reverse order of
removal.
✽NOTICE
If the multi fuse is blown, we recom-
mend that you consult an authorised
HYUNDAI dealer.
OMD070022

Maintenance
58 7
Fuse/relay panel description
Inner fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing the fuse/relay name and
capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OMD071023R
OMD074063L

759
Maintenance

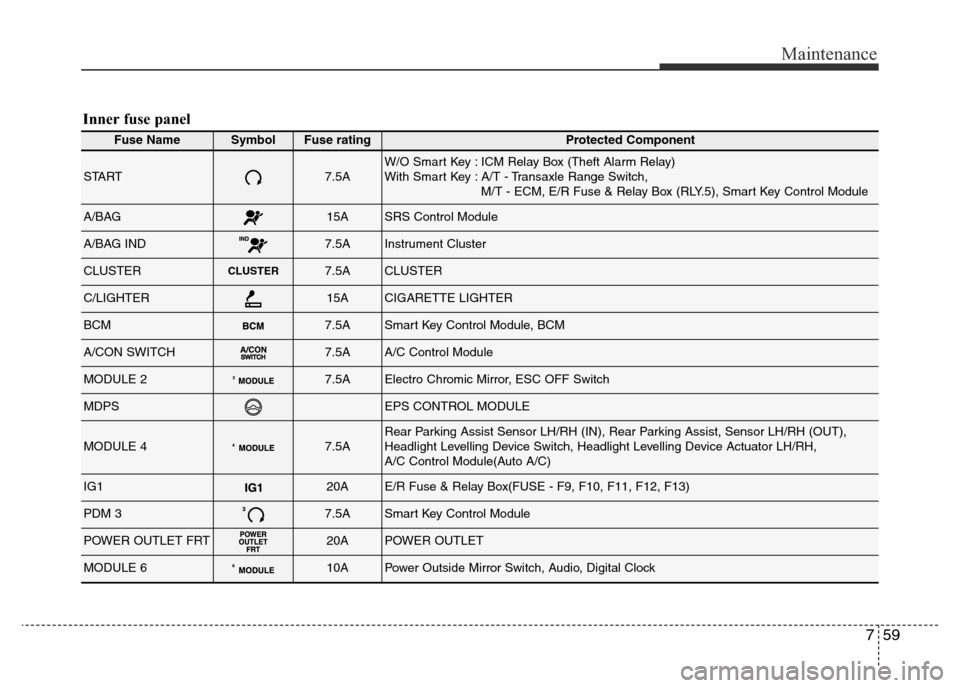

Inner fuse panel
Fuse NameSymbolFuse ratingProtected Component
START7.5AW/O Smart Key : ICM Relay Box (Theft Alarm Relay)
With Smart Key : A/T - Transaxle Range Switch,
M/T - ECM, E/R Fuse & Relay Box (RLY.5), Smart Key Control Module
A/BAG15ASRS Control Module
A/BAG IND7.5AInstrument Cluster
CLUSTERCLUSTER7.5ACLUSTER
C/LIGHTER15ACIGARETTE LIGHTER
BCM7.5ASmart Key Control Module, BCM
A/CON SWITCH7.5AA/C Control Module
MODULE 27.5AElectro Chromic Mirror, ESC OFF Switch
MDPSEPS CONTROL MODULE
MODULE 47.5ARear Parking Assist Sensor LH/RH (IN), Rear Parking Assist, Sensor LH/RH (OUT),
Headlight Levelling Device Switch, Headlight Levelling Device Actuator LH/RH,
A/C Control Module(Auto A/C)
IG120AE/R Fuse & Relay Box(FUSE - F9, F10, F11, F12, F13)
PDM 37.5ASmart Key Control Module
POWER OUTLET FRT20APOWER OUTLET
MODULE 610APower Outside Mirror Switch, Audio, Digital Clock

Maintenance
60 7

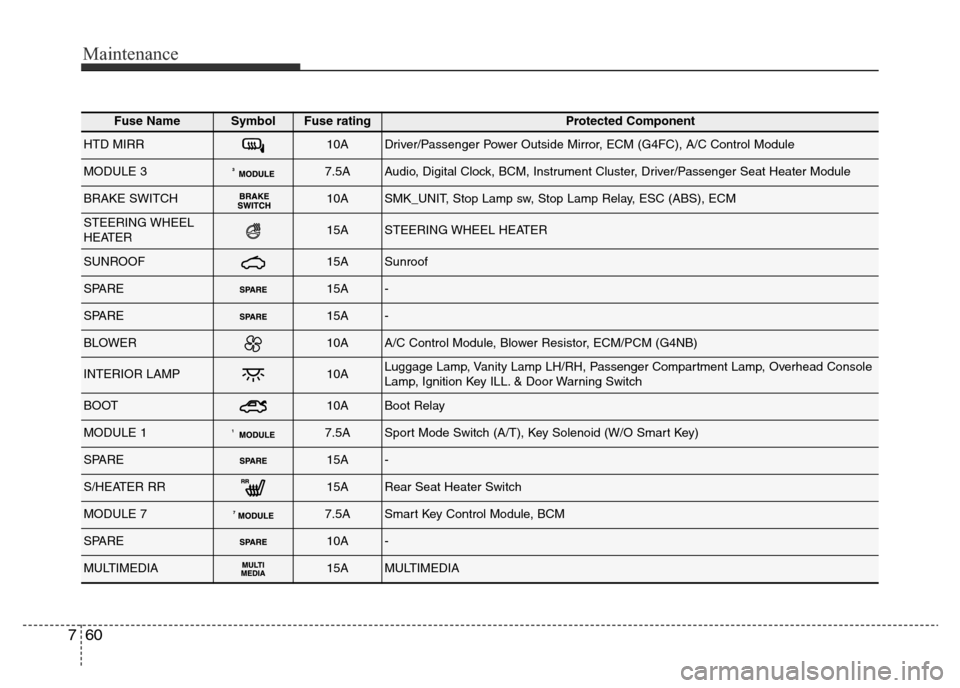

Fuse NameSymbolFuse ratingProtected Component
HTD MIRR10ADriver/Passenger Power Outside Mirror, ECM (G4FC), A/C Control Module
MODULE 37.5AAudio, Digital Clock, BCM, Instrument Cluster, Driver/Passenger Seat Heater Module
BRAKE SWITCH10ASMK_UNIT, Stop Lamp sw, Stop Lamp Relay, ESC (ABS), ECM
STEERING WHEEL
HEATER15ASTEERING WHEEL HEATER
SUNROOF15ASunroof
SPARE15A-
SPARE15A-
BLOWER10AA/C Control Module, Blower Resistor, ECM/PCM (G4NB)
INTERIOR LAMP10ALuggage Lamp, Vanity Lamp LH/RH, Passenger Compartment Lamp, Overhead Console
Lamp, Ignition Key ILL. & Door Warning Switch
BOOT10ABoot Relay
MODULE 17.5ASport Mode Switch (A/T), Key Solenoid (W/O Smart Key)
SPARE 15A-
S/HEATER RR15ARear Seat Heater Switch
MODULE 77.5ASmart Key Control Module, BCM
SPARE10A-
MULTIMEDIA15AMULTIMEDIA

761
Maintenance

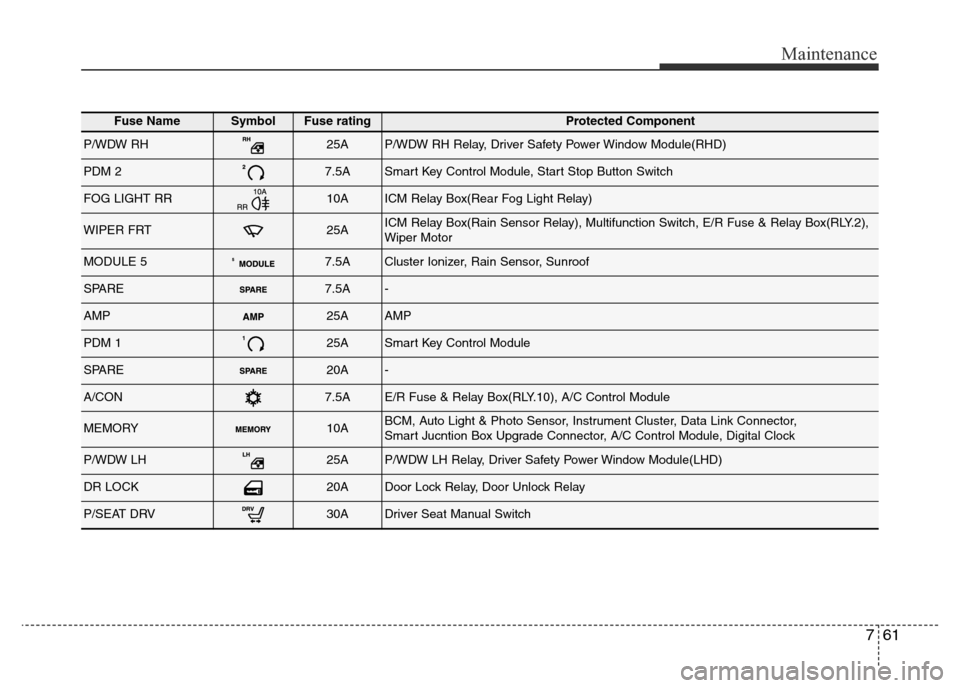

Fuse NameSymbolFuse ratingProtected Component
P/WDW RH25AP/WDW RH Relay, Driver Safety Power Window Module(RHD)
PDM 27.5ASmart Key Control Module, Start Stop Button Switch
FOG LIGHT RR10AICM Relay Box(Rear Fog Light Relay)
WIPER FRT25AICM Relay Box(Rain Sensor Relay), Multifunction Switch, E/R Fuse & Relay Box(RLY.2),
Wiper Motor
MODULE 57.5ACluster Ionizer, Rain Sensor, Sunroof
SPARE7.5A-
AMP25AAMP
PDM 125ASmart Key Control Module
SPARE20A-
A/CON7.5AE/R Fuse & Relay Box(RLY.10), A/C Control Module
MEMORY10ABCM, Auto Light & Photo Sensor, Instrument Cluster, Data Link Connector,
Smart Jucntion Box Upgrade Connector, A/C Control Module, Digital Clock
P/WDW LH25AP/WDW LH Relay, Driver Safety Power Window Module(LHD)
DR LOCK20ADoor Lock Relay, Door Unlock Relay
P/SEAT DRV30ADriver Seat Manual Switch
