2016 HONDA ODYSSEY remote start

520
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the multi-information display.
●If the TO START, HOLD REMOTE NEAR START BUTTON message appears
2If the Smart Entry Remote Battery is Weak P. 521
uMake sure the smart entry remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 143
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 499●If the interior lights come on normally 2 Fuses P. 533
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 407, 409
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 135
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 92
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 538
If the problem continues:
2Emergency Towing P. 539
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 523
Models with multi- information display
16 US ODYSSEY-31TK86500.book 520 ページ ２０１５年６月２４日　水曜日　午後３時０分

521
uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected

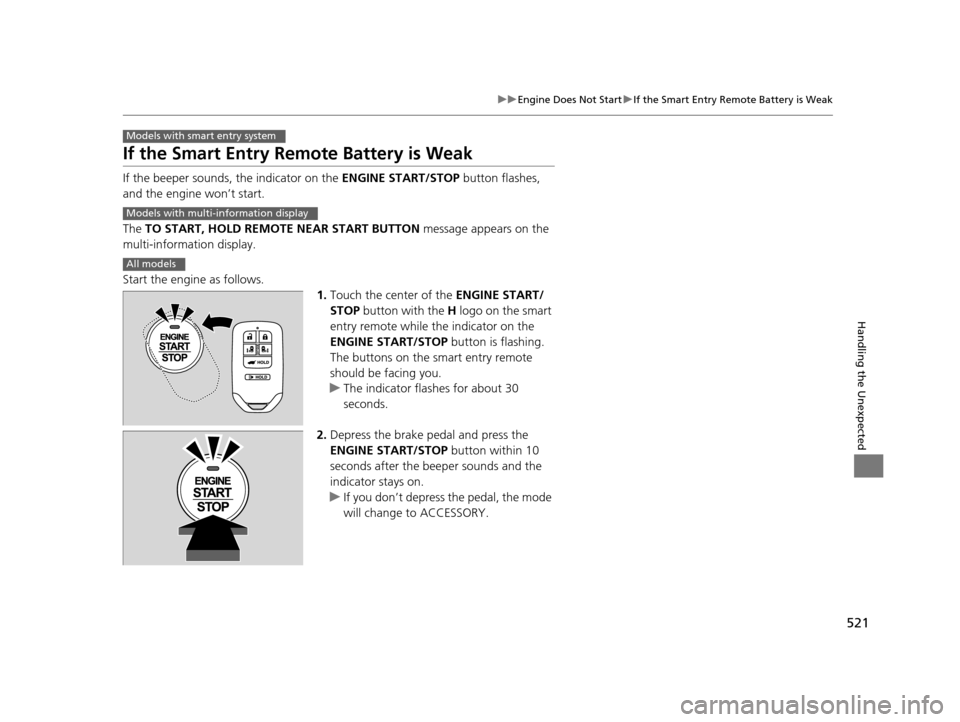

If the Smart Entry Remote Battery is Weak
If the beeper sounds, the indicator on the ENGINE START/STOP button flashes,
and the engine won’t start.
The TO START, HOLD REMOTE NEAR START BUTTON message appears on the
multi-information display.
Start the engine as follows. 1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the smart entry remote
should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
indicator stays on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
Models with smart entry system
Models with multi- information display
All models
16 US ODYSSEY-31TK86500.book 521 ページ ２０１５年６月２４日　水曜日　午後３時０分

557
Index
Lights On .................................................. 77
Low Fuel ................................................... 73
Low Oil Pressure ............................... 71, 528
Low Tire Pressure .............................. 76, 428
Low Tire Pressure/TPMS ............ 76, 428, 429
Maintenance Minder......................... 82, 455
Malfunction Indicator Lamp .............. 71, 529
Parking Brake and Brake System (Red) ............................................... 70, 530
Parking Sensor .......................................... 75
Power Sliding Door ................................... 83
Power Tailgate .......................................... 82
Seat Belt Reminder.............................. 31, 73
Security System Alarm............................... 79
Shift Lever Position.................................... 72
Smart Entry System ................................... 79
Starter System........................................... 79
Supplemental Restraint System ........... 49, 74
System Message ....................................... 77
TPMS ................................................ 76, 430
Transmission ............................................. 72
Turn Signal ............................................... 77
Vehicle Stability Assist (VSA® ) System ........ 74
VSA ® (Vehicle Stability Assist) System ...... 426
VSA ® OFF.......................................... 74, 427
Washer Level ............................................ 82
Information .............................................. 541
Information Button ................................... 96
Information Display ................................... 93
Instant Fuel Economy .......................... 94, 97 Instrument Panel
........................................ 69
Brightness Control ................................... 153
Integrated Sunshades ............................... 190
Interface Dial ............................................ 234
Interior Lights ........................................... 176
Interior Rearview Mirror .......................... 158
J
Jack (Wheel Nut Wrench) ........................ 514
Jump Starting ........................................... 523
K
Key Number Tag ....................................... 111
Keyless Lockout Prevention ..................... 117
Keys ........................................................... 110
Lockout Prevention .................................. 117
Master Keys ............................................. 110
Number Tag ............................................ 111
Rear Door Won’t Open ............................ 119
Remote Transmitter ................................. 115
Types and Functions ................................ 110
Valet Key ................................................. 111
Won’t Turn ................................................ 22
Kickdown (Automatic Transmission) ....... 412
L
Lane Departure Warning (LDW).............. 422
LaneWatchTM............................................. 434 Language (HFL)
................................ 328, 361
LATCH (Child Seats) .................................... 57
Lights ................................................. 147, 475
Automatic ............................................... 148
Bulb Replacement ................................... 475
Daytime Running Lights........................... 150
Fog Lights ............................................... 150
High Beam Indicator .................................. 77
Interior .................................................... 176
Light Switches ......................................... 147
Lights On Indicator .................................... 77
Turn Signals ............................................ 147
Load Limits ................................................ 399
Locking/Unlocking .................................... 110
Auto Door Locking/Unlocking.................. 120
Childproof Door Locks............................. 119
From Inside ............................................. 118
From Outside .......................................... 113
Keys ........................................................ 110
Using a Key ............................................. 116
Lockout Prevention System ..................... 117
Low Battery Charge ................................. 528
Low Fuel Indicator ...................................... 73
Low Oil Pressure Indicator ................. 71, 528
Low Smart Entry Remote Signal
Strength .................................................. 112
Lower Anchors ............................................ 57
Luggage (Maximum Load Limit) ............. 399
16 US ODYSSEY-31TK86500.book 557 ページ ２０１５年６月２４日　水曜日　午後３時０分

559
Index
Refueling.................................................. 446
Fuel Gauge ............................................... 92
Gasoline ......................................... 446, 542
Low Fuel Indicator..................................... 73
Regulations .............................. 429, 493, 545
Remote Transmitter ................................. 115
Removable Center Console ..................... 178
Removing a Second Row Outer Seat ...... 170
Removing the Second Row Center Seat ......................................................... 172
Replacement
Battery ............................................ 500, 502
Bulbs ...................................................... 475
Fuses ...................... 533, 534, 535, 536, 537
Tires........................................................ 496
Wiper Blade Rubber ................................ 486
Reporting Safety Defects ......................... 546
Resetting a Trip Meter ......................... 94, 97
S
Safe Driving................................................ 25
Safety Check ............................................... 29
Safety Labels .............................................. 67
Safety Message ............................................ 1
Seat Belts .................................................... 30
Adjusting the Shoulder Anchor ................. 34
Automatic Seat Belt Tensioners ................. 32
Checking .................................................. 38
Detachable Anchor ................................... 35
Fastening .................................................. 33 Installing a Child Seat with a Lap/Shoulder Seat
Belt.......................................................... 60
Pregnant Women ...................................... 37
Reminder................................................... 31
Warning Indicator ................................ 31, 73
Seat Heaters .............................................. 189
Seats .......................................................... 161
Adjusting ................................................. 161
Front Seats .............................................. 161
Rear Seats ............................................... 169
Seat Heaters ............................................ 189
Security System ......................................... 135
Immobilizer System Indicator ..................... 78
Security System Alarm Indicator ................. 79
SEL/RESET Button ........................................ 96
Select Lever ......................................... 18, 413
Operation .......................................... 18, 414
Releasing ................................................. 525
Won’t Move ............................................ 525
Select/Reset Knob ....................................... 93
Selecting a Child Seat ................................. 56
Selector Knob (Audio) .............................. 211
Shift Lever ........................................... 18, 413
Shift Lever Position Indicator ............. 72, 414
Shifting (Transmission) ............................. 413
Shoulder Anchor ......................................... 34
Side Airbags ................................................ 46
Side Curtain Airbags ................................... 48
Sliding Doors ............................................. 127
Power Sliding Doors ................................ 129 Sliding the Second Row Outer Seats
Outward .................................................. 171
Smart Entry with Push Button Start System ..................................................... 113
Snow Tires ................................................. 498
Spare Tire .......................................... 511, 543
Spark Plugs ............................................... 542
Specifications ............................................ 542
Specified Fuel ................................... 446, 542
Speedometer .............................................. 92
SRS Airbags (Airbags) ................................. 42
Starting the Engine .......................... 407, 409
Does Not Start......................................... 520
Engine Switch Buzzer .............................. 142
Jump Starting .......................................... 523
Steering Wheel ......................................... 157
Adjusting ................................................ 157
Stopping ................................................... 440
Summer Tires ............................................ 498
Sunglasses Holder ..................................... 188
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering
Wheel) ............................................. 4, 5, 142
System Message Indicator .......................... 77
T
Tachometer................................................. 92
Tailgate ..................................................... 121
Unable to Open....................................... 540
16 US ODYSSEY-31TK86500.book 559 ページ ２０１５年６月２４日　水曜日　午後３時０分
