2016 HONDA ODYSSEY automatic transmission fluid

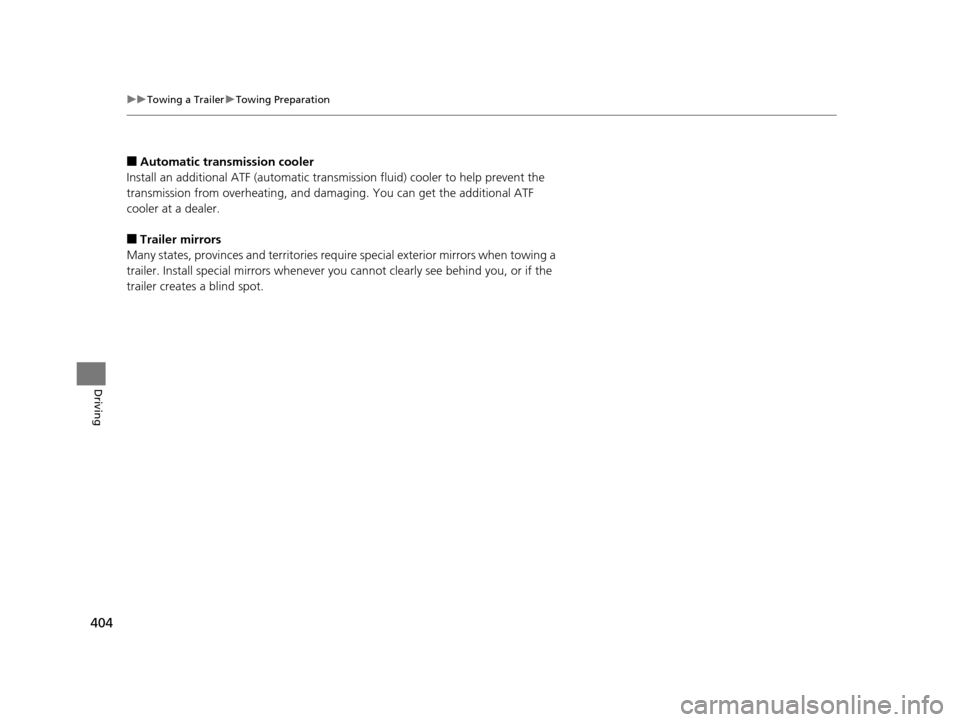

404
uuTowing a Trailer uTowing Preparation
Driving
■Automatic transmission cooler
Install an additional ATF (automatic transmission fluid) cooler to help prevent the
transmission from overheating, and damaging. You can get the additional ATF
cooler at a dealer.
■Trailer mirrors
Many states, provinces and te rritories require special exterior mirrors when towing a
trailer. Install special mirrors whenever you cannot clearly see behind you, or if the
trailer creates a blind spot.
16 US ODYSSEY-31TK86500.book 404 ページ ２０１５年６月２４日　水曜日　午後３時０分

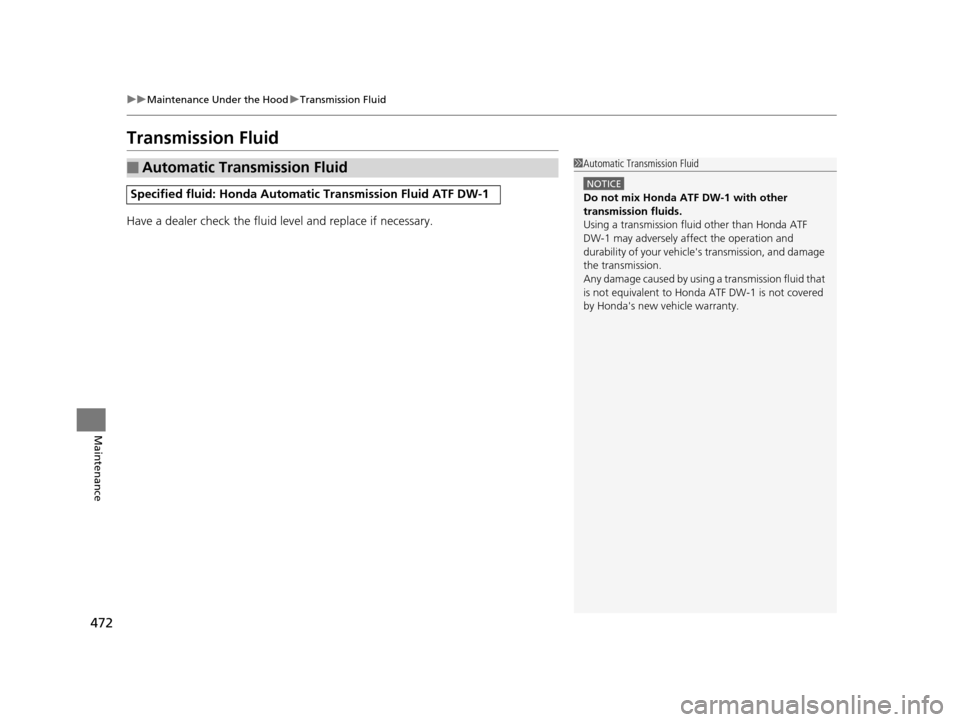

472
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
■Automatic Transmission Fluid
Specified fluid: Honda Automatic Transmission Fluid ATF DW-1
1Automatic Transmission Fluid
NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Honda ATF
DW-1 may adversely af fect the operation and
durability of your vehicle' s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda's new vehicle warranty.
16 US ODYSSEY-31TK86500.book 472 ページ ２０１５年６月２４日　水曜日　午後３時０分

543
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 3.3 US qt (3.1 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.93 US gal (7.3 ℓ)
(change including the remaining
0.225 US gal (0.85 ℓ) in the reserve tank)
■ Tire
*1: Touring models
RegularSizeP235/65R17 103T
P235/60R18 102T*1
Pressure
psi(kPa[kgf/cm2])33 (230 [2.3])
35 (240 [2.4])*1
Compact
Spare Size
T135/80D17 103M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7J
18 x 7J*1
Compact Spare17 x 4T
16 US ODYSSEY-31TK86500.book 543 ページ ２０１５年６月２４日　水曜日　午後３時０分

Index
553
Index
Index
A
AAC................................... 221, 229, 252, 262
ABS (Anti-lock Brake System) .................. 438
AC Power Outlet ...................................... 185
Accessories and Modifications ................ 450
Accessory Power Sockets ......................... 183
Additives Coolant .................................................. 470
Engine Oil ............................................... 465
Washer ................................................... 474
Additives, Engine Oil ............................... 465
Adjusting Armrest .................................................. 175
Front Seats.............................................. 161
Head Restraints ....................................... 164
Mirrors.................................................... 158
Rear Seats ....................................... 162, 169
Steering Wheel ....................................... 157
Temperature ....................................... 95, 98
Aha
TM Menu ............................................. 261
AhaTM Radio .............................................. 271
Air Conditioning System (Climate Control
System) .................................................... 198
Changing the Mode................................ 198
Defrosting the Windshield and
Windows .............................................. 199
Dust and Pollen Filter .............................. 504
Recirculation/Fresh Air Mode................... 198
Sensors ................................................... 203 Using Automatic Climate Control ............ 198
Air Conditioning System (Heating and
Cooling System) ...................................... 194
Cooling ................................................... 196
Defrosting the Windshield and
Windows ............................................... 196
Dust and Pollen Filter ............................... 504
Heating ................................................... 195
Air Pressure ....................................... 491, 543
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
Airbag Care ............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator .............................................. 49, 74
Passenger Airbag Off Indicator .................. 50
Sensors ...................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 48
AM/FM Radio .................................... 218, 245
Anti-lock Brake System (ABS) .................. 438
Indicator .................................................... 73
Armrest ..................................................... 175
Audio Remote Controls ............................ 210
Audio System ............................................ 206
Adjusting the Sound ................ 216, 237, 243
Auxiliary Input Jack .................................. 207
Error Messages ........................................ 267
General Information ................................ 272 Internet Radio ................................. 227, 259
iPod ................................................ 224, 255
MP3/WMA/AAC .............. 221, 229, 252, 262
Reactivating ............................................ 208
Recommended CDs ................................. 273
Recommended Devices............................ 275
Remote Controls ..................................... 210
Security Code .......................................... 208
Shortcuts................................................. 236
Theft Protection ...................................... 208
Touch Screen .......................................... 235
USB Flash Drives ...................................... 275
USB Port.................................................. 207
Audio with Touch Screen ......................... 235
Authorized Manuals ................................ 551
Auto Door Locking/Unlocking ................. 120
Customize ............................... 103, 302, 317
Automatic Lighting .................................. 148
Automatic Transmission ........................... 412
Creeping ................................................. 412
Fluid ........................................................ 472
Kickdown ................................................ 412
Operating the Shift Lever................... 18, 414
Shift Lever Does Not Move ...................... 525
Shifting ................................................... 413
Auxiliary Input Jack .................................. 207
Average Fuel Economy ........................ 94, 97
Average Speed ........................................... 98
16 US ODYSSEY-31TK86500.book 553 ページ ２０１５年６月２４日　水曜日　午後３時０分

554
Index
B
Battery....................................................... 499
Charging System Indicator ................. 72, 528
Jump Starting .......................................... 523
Maintenance (Checking the Battery) ........ 499
Maintenance (Replacing).................. 500, 502
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 181
Blind Spot Information (BSI) System ........ 432
Bluetooth ® Audio ............................. 232, 265
Bluetooth ® HandsFreeLink ®............. 327, 360
Booster Seats (For Children) ....................... 65
Brake System ............................................. 436
Anti-lock Brake System (ABS) ................... 438
Brake Assist System ................................. 439
Fluid ........................................................ 473
Foot Brake ............................................... 437
Indicator ............................................ 70, 530
Parking Brake .......................................... 436
Brightness Control (Instrument Panel) .... 153
BSI (Blind Spot Information) System ........ 432
Bulb Replacement ..................................... 475
Back-Up Light/Taillights............................ 483
Brake Light, Rear Turn Signal Light, and Rear
Side Marker/Taill ights ............................. 481
Fog Lights ................................................ 479
Front Turn Signal/Par king/Side Marker
Lights..................................................... 480
Headlights ............................................... 475
High-Mount Brake Light .......................... 485
Rear License Plate Lights .......................... 484 Side Turn Signal/Emergency Indicator
Lights .................................................... 480
Bulb Specifications ................................... 542
C
Carbon Monoxide Gas ............................... 66
Cargo Hooks ............................................. 186
Carrying Cargo ................................. 397, 399
CD Player ........................................... 221, 252
Center Pocket ........................................... 180
Certification Label .................................... 544
Changing Bulbs ........................................ 475
Charging System Indicator ................. 72, 528
Child Safety ................................................. 52
Childproof Door Locks............................. 119
Child Seat .................................................... 52
Booster Seats ............................................ 65
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 60
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 62
Childproof Door Locks ............................. 119
Cleaning the Exterior ............................... 507
Cleaning the Interior ................................ 505
Climate Control System ............................ 198
Changing the Mode ................................ 198 Defrosting the Windshield and
Windows .............................................. 199
Dust and Pollen Filter .............................. 504
Recirculation/Fresh Air Mode................... 198
Sensors ................................................... 203
Using Automatic Climate Control............ 198
Clock ......................................................... 108
Coat Hooks ............................................... 186
Compact Spare Tire .......................... 511, 543
Compass .................................................... 392
Controls .................................................... 107
Coolant (Engine) ...................................... 470
Adding to the Radiator ........................... 471
Adding to the Reserve Tank .................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Creeping (Automatic Transmission) ........ 412
Cruise Control .......................................... 415
Indicator ................................................... 82
Cup Holders .............................................. 181
Customer Service Information ................ 552
Customized Features ......................... 99, 295
D
Daytime Running Lights .......................... 150
Dead Battery ............................................ 523
Defrosting the Windshield and Windows ......................................... 196, 199
Detachable Anchor .................................... 35
Devices that Emit Radio Waves ............... 545
16 US ODYSSEY-31TK86500.book 554 ページ ２０１５年６月２４日　水曜日　午後３時０分

555
Index
DimmingHeadlights .............................................. 147
Rearview Mirror ...................................... 158
Dipstick (Engine Oil) ................................ 466
Directional Signals (Turn Signal) ............. 147
Display Button .................................. 212, 238
Door Mirrors ............................................. 159
Doors ........................................................ 110
Auto Door Locking.................................. 120
Auto Door Unlocking .............................. 120
Door and Tailgate Open Indicator ....... 29, 75
Keys........................................................ 110
Locking/Unlocking the Doors from the Inside .............................................. 118
Locking/Unlocking the Doors from the Outside ........................................... 113
Lockout Prevention System ..................... 117
DOT Tire Quality Grading ........................ 493
Driving ...................................................... 395
Automatic Transmission .......................... 412
Braking ................................................... 436
Cruise Control ........................................ 415
Shifting Gear .......................................... 413
Starting the Engine ......................... 407, 409
Driving Position Memory System ............ 155
Dust and Pollen Filter .............................. 504
E
Elapsed Time.............................................. 97
Electronic Stability Control (ESC) ............ 426Emergency
................................................ 539
Emergency Engine Stop ........................... 522
Emissions Testing (Readiness Codes) ....... 547
Engine ....................................................... 544
Coolant ................................................... 470
Jump Starting .......................................... 523
Oil ........................................................... 465
Starting ........................................... 407, 409
Switch Buzzer .......................................... 142
Engine Coolant ......................................... 470
Adding to the Radiator ............................ 471
Adding to the Reserve Tank ..................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Engine Oil ................................................. 465
Adding .................................................... 467
Checking ................................................. 466
Displaying Oil Life ............................ 455, 459
Low Oil Pressure Indicator .................. 71, 528
Recommended Engine Oil ........................ 465
ENGINE START/STOP Button .................... 143
Exhaust Gas Hazard (Carbon
Monoxide) ................................................. 66
Expanded View Driver’s Mirror ............... 160
Exterior Care (Cleaning) ........................... 507
Exterior Mirrors ........................................ 159
F
Features..................................................... 205 Filters
Dust and Pollen ....................................... 504
Oil ........................................................... 468
Flat Tire ..................................................... 511
Flip-up Trash Bag Ring ............................. 179
Floor Mats ................................................. 506
Fluids Automatic Transmission .......................... 472
Brake ...................................................... 473
Engine Coolant ....................................... 470
Power Steering ........................................ 474
Windshield Washer ................................. 474
Fog Light Indicator ..................................... 78
Folding Down the Rear Seats .......... 162, 173
Foot Brake ................................................ 437
Forward Collision Warning (FCW) ........... 418
Front Airbags (SRS) ..................................... 42
Front Seats ................................................ 161
Adjusting ................................................ 161
Fuel ...................................................... 19, 446
Economy ................................................. 449
Gauge ....................................................... 92
Instant Fuel Economy .......................... 94, 97
Low Fuel Indicator ..................................... 73
Range ................................................. 94, 97
Recommendation .................................... 446
Refueling................................................. 446
Fuel Economy ........................................... 449
Fuel Fill Cap ........................................ 19, 448
Message.................................................. 529
Fuel Fill Door ...................................... 19, 447
16 US ODYSSEY-31TK86500.book 555 ページ ２０１５年６月２４日　水曜日　午後３時０分

560
Index
TemperatureGauge ....................................................... 92
Outside Temperature Display ............... 95, 98
Temperature Gauge ................................... 92
Temperature Sensor ..................... 95, 98, 203
Third Row Seat Access .............................. 169
Time (Adjusting) ....................................... 108
Tire Pressure Monitoring System
(TPMS) ...................................................... 428
Indicator .................................... 76, 531, 532
Tires ........................................................... 490
Air Pressure ..................................... 491, 543
Checking and Maintaining ....................... 490
Inspection ................................................ 490
Labeling................................................... 491
Puncture (Flat Tire) ................................... 511
Regulations.............................................. 493
Rotation .................................................. 497
Spare Tire ........................................ 511, 543
Summer................................................... 498
Tire Chains .............................................. 498
Wear Indicators ....................................... 495
Winter ..................................................... 498
Tools .......................................................... 510
Towing a Trailer ........................................ 401
Equipment and Accessories...................... 402
Load Limits .............................................. 401
Towing Your Vehicle ................................ 406
Emergency............................................... 539 TPMS (Tire Pressure Monitoring
System) .................................................... 428
Indicator.................................... 76, 531, 532
Transmission ............................................. 413
Automatic ............................................... 412
Fluid ........................................................ 472
Number................................................... 544
Shift Lever Position Indicator.............. 72, 414
Trip Meter ............................................. 94, 97
Troubleshooting ....................................... 509
Blown Fuse.............. 533, 534, 535, 536, 537
Brake Pedal Vibrates .................................. 22
Buzzer Sounds When Opening Door.......... 23
Emergency Towing .................................. 539
Engine Won’t Start .................................. 520
Noise When Braking .................................. 23
Overheating ............................................ 526
Puncture/Flat Tire .................................... 511
Select Lever Won’t Move ......................... 525
Sliding Door Won’t Open .................. 23, 119
Warning Indicators .................................... 70
Tucking away the One-Motion Third row
magic Seat ............................................... 173
Turn Signals .............................................. 147
Indicators (Instrument Panel) ..................... 77
U
Unlocking the Doors ................................ 113
Unlocking the Front Doors from
the Inside ................................................ 118 USB Flash Drives
....................................... 275
USB Port .................................................... 207
Using the Smart Entry wi th Push Button Start
System ..................................................... 113
V
Vacuum ..................................................... 191
Valet Key .................................................. 111
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 544
Vehicle Stability Assist (VSA ®) ................. 426
Off Button .............................................. 427
Off Indicator ............................................. 74
System Indicator ....................................... 74
Ventilation ....................................... 194, 198
Viscosity (Oil) .................................... 465, 543
VSA ® (Vehicle Stability Assist) ................. 426
W
Warning and Information
Messages ............................................. 84, 86
Warning Indicator On/Blinking ............... 528
Warning Labels .......................................... 67
Warranties (Warranty Manual provided
separately) .............................................. 549
Watts ........................................................ 542
Wear Indicators (Tire) .............................. 495
Wheel Cover ............................................. 515
Wheel Nut Wrench (Jack Handle) ........... 514
16 US ODYSSEY-31TK86500.book 560 ページ ２０１５年６月２４日　水曜日　午後３時０分
