2016 FORD TAURUS Owners Manual

Page 289 of 424

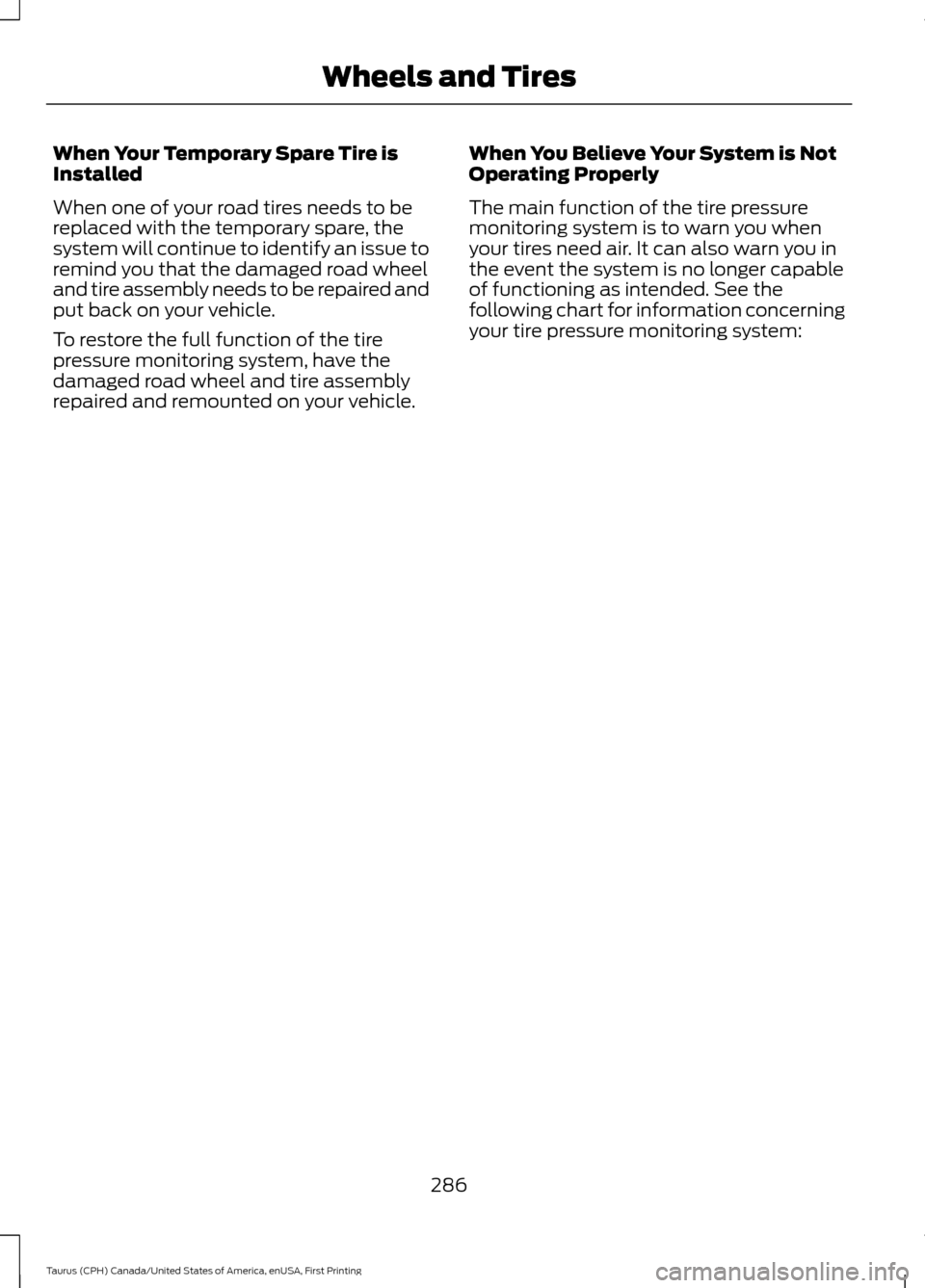

FORD TAURUS 2016 6.G Owners Manual When Your Temporary Spare Tire is
Installed
When one of your road tires needs to be
replaced with the temporary spare, the
system will continue to identify an issue to
remind you that the damaged road

Page 290 of 424

FORD TAURUS 2016 6.G Owners Manual Customer action required
Possible cause
Low tire pressure
warning light
Make sure tires are at the proper pres-
sure. See Inflating your tires in this
chapter. After inflating your tires to the
manufa

Page 291 of 424

FORD TAURUS 2016 6.G Owners Manual How Temperature Affects Your Tire
Pressure
The tire pressure monitoring system
monitors tire pressure in each pneumatic
tire. While driving in a normal manner, a
typical passenger tire inflation press

Page 292 of 424

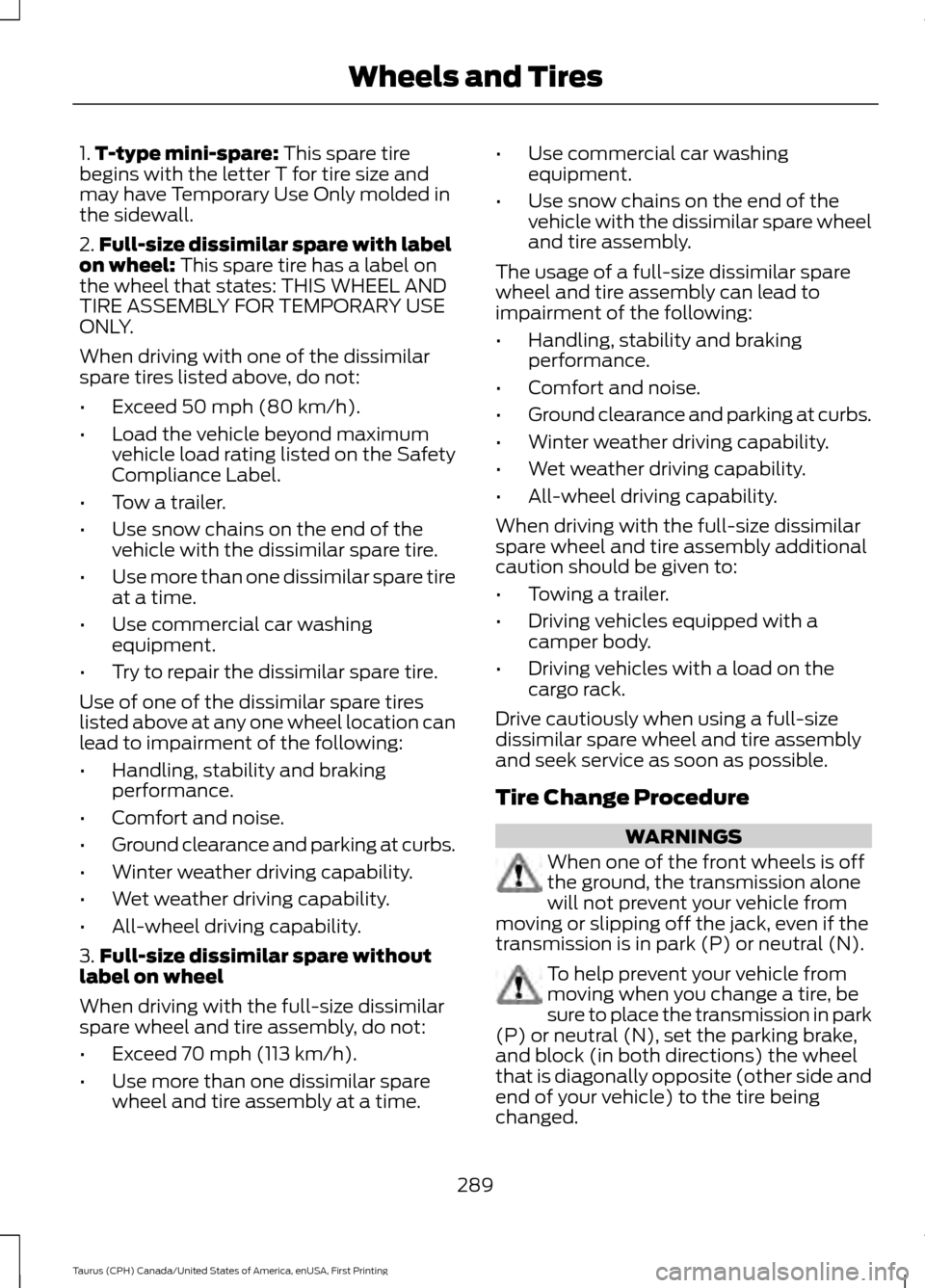

FORD TAURUS 2016 6.G Owners Manual 1.
T-type mini-spare: This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
 This spare tire

Page 293 of 424

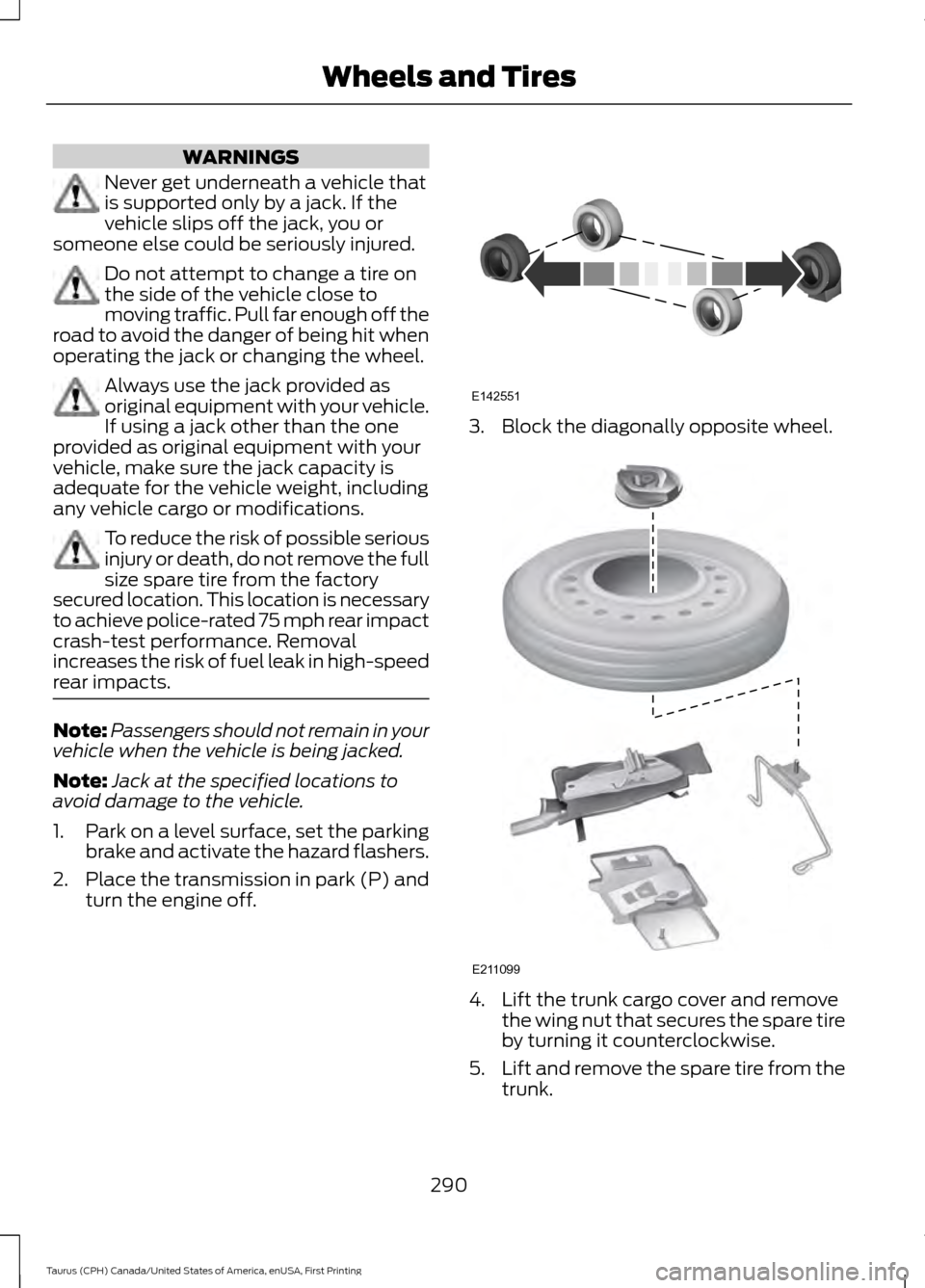

FORD TAURUS 2016 6.G Owners Manual WARNINGS
Never get underneath a vehicle that
is supported only by a jack. If the
vehicle slips off the jack, you or
someone else could be seriously injured. Do not attempt to change a tire on
the side

Page 294 of 424

FORD TAURUS 2016 6.G Owners Manual 6. Remove the second wing nut that
secures the jack retention bracket by
turning it counterclockwise, then
remove the jack kit from your vehicle.
7. Remove the jack and the wrench from the felt bag. F

Page 295 of 424

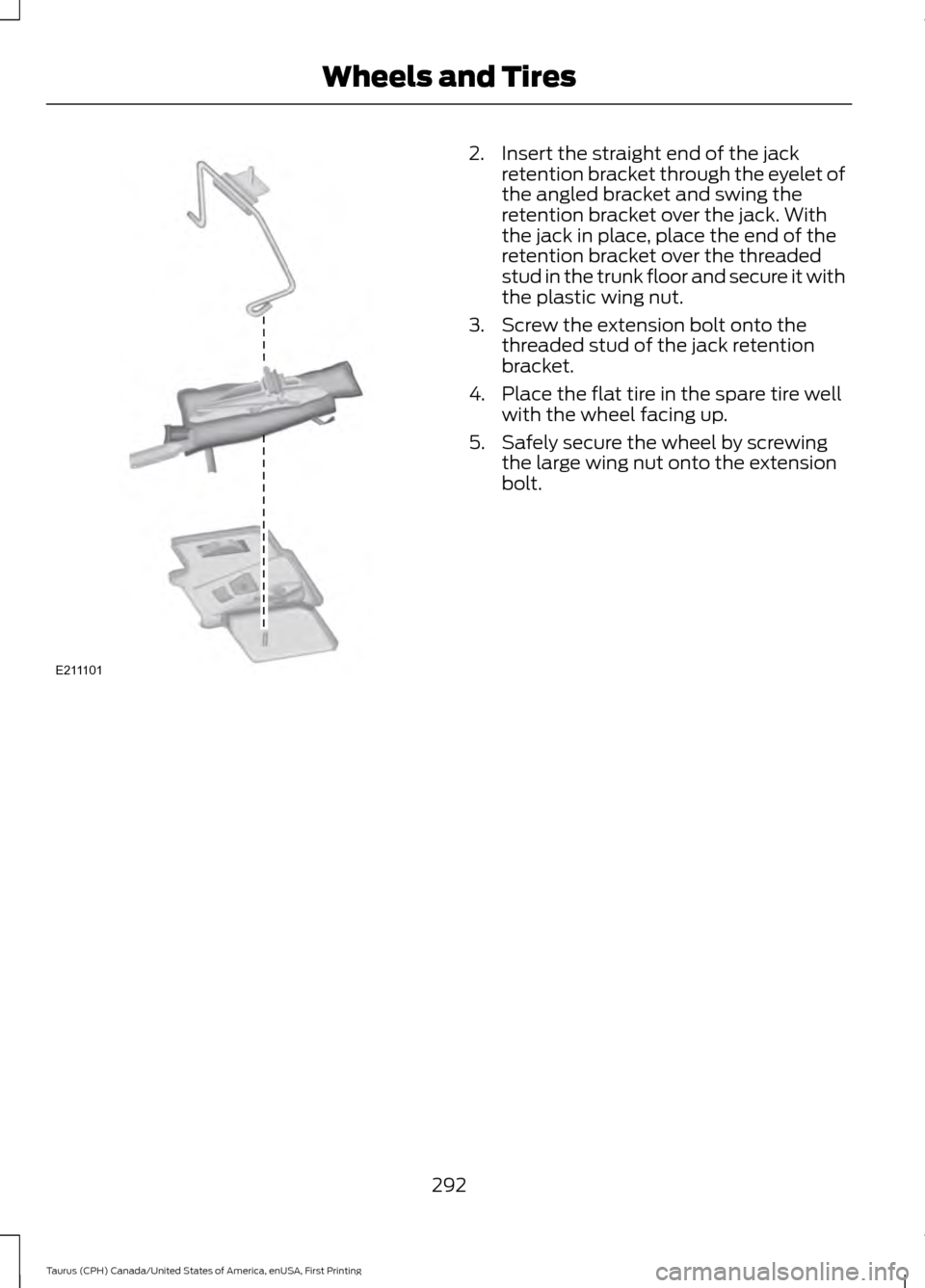

FORD TAURUS 2016 6.G Owners Manual 2. Insert the straight end of the jack
retention bracket through the eyelet of
the angled bracket and swing the
retention bracket over the jack. With
the jack in place, place the end of the
retention

Page 296 of 424

FORD TAURUS 2016 6.G Owners Manual TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or
