2016 FIAT TIPO 4DOORS Owners Manual

Versions1.3 Multijet 95 HP E6 / E6
ECO1.3 Multijet 95 HP E5(*)1.6 Multijet
Engine code 55266963 199B1000 55260384
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6 × 82 69.6 × 82 79.5 × 80.5
Total displacement (cm³) 1248 1248 1598
Compression ratio 16.8 ± 0.2 16.8 ± 0.4 16.5 ± 0.4
Maximum power (EC) (kW) 70 70 88
corresponding engine speed (rpm) 3750 4000 3750
Maximum torque (EC) (Nm) 200 200 320
corresponding engine speed (rpm) 1500 1500 1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) (for versions/markets, where provided)
WARNING
164)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
151

WHEELS
RIMS AND TYRES PROVIDED
165)
Version Wheels Tyres provided
1.4 16V 95 HP6J X 15H2 - ET 38 195 / 65 R15 91H
6 1/2J X 16H2 - ET 39 205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**)
1.6 E.TorQ6J X 15H2 - ET 38 195 / 65 R15 91H
6 1/2J X 16H2 - ET 39 205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**)
1.3 MultiJet 95 HP6J X 15H2 - ET 38 195 / 65 R15 91H
6 1/2J X 16H2 - ET 39 205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**)
1.6 Multijet 120 HP6J X 15H2 - ET 38 195 / 65 R15 91H
6 1/2J X 16H2 - ET 39 205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**)
(**) (where provided)
On versions with 195 / 65 R15 and 205 / 55 R16 tyres, use smaller snow chains with a maximum projection of 9 mm beyond
the tyre profile.
152
TECHNICAL DATA

COLD TYRE INFLATION PRESSURE (bar)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
Engine versions TyresUnladen/medium load Full load
Full size spare
wheel(*)Front Rear Front Rear
1.4 16V 95 HP195 / 65 R15
2.2 2.1 2.6 2.5
2.4 205 / 55 R16
225 / 45 R17
1.3 Multijet 95 HP /
1.6 Multijet 120 HP /
1.6 E.TorQ195 / 65 R15
2.3 2.1 2.6 2.5 205 / 55 R16
225 / 45 R17
(*) After using the spare wheel in an emergency, where necessary, align the pressure of the wheel to the recommended value as soon as
possible, with reference to the following table.
WARNING
165)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
153

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D EFGH I
893 2636 1003 4532 1497 1542 1543 2002 1792
Luggage compartment capacity: 520 litres.
14910106J0001EM
154
TECHNICAL DATA

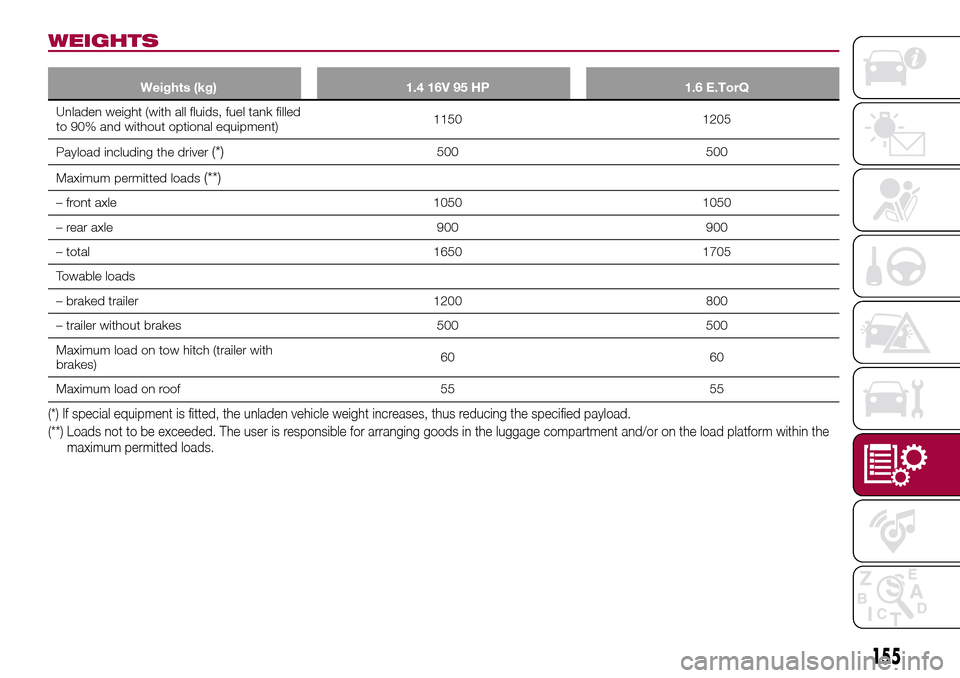

WEIGHTS
Weights (kg) 1.4 16V 95 HP 1.6 E.TorQ
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1150 1205
Payload including the driver
(*)500 500
Maximum permitted loads
(**)
– front axle 1050 1050
– rear axle 900 900
– total 1650 1705
Towable loads
– braked trailer 1200 800
– trailer without brakes 500 500
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof 55 55
(*) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
155

Weights (kg) 1.3 MultiJet 95 HP 1.6 Multijet 120 HP
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1205 1270
Payload including the driver
(**)500 500
Maximum permitted loads
(***)
– front axle 1050 1050
– rear axle 900 900
– total 1705 1770
Towable loads
– braked trailer 1200 1200
– trailer without brakes 500 500
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof 55 55
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
156
TECHNICAL DATA

REFUELLING
1.4 16V 95 HP 1.6 E.TorQ Prescribed fuels and original lubricants
Fuel tank (litres) 45 45
Unleaded petrol with R.O.N. no lower than 95 (EN228
specifications)
including a reserve of (litres) 7 7
Engine cooling system (litres) 4.6 5.4Mixture of distilled water and PARAFLU
UPliquid at 50%
(*)
Engine sump (litres) 2.8 4.4
SELENIA K P.E. (EN228 specification) (1.4 16V 95 HP
versions) / SELENIA DIGITEK P.E. (1.6 E.Torq versions)
Engine sump and filter (litres) 2.95 .
Gearbox casing/differential (litres) 1.76 6.2TUTELA TRANSMISSION GEARFORCE (1.4 16V 95 HP
versions) / TUTELA TRANSMISSION GI/VI (1.6 E.Torq
versions)
Hydraulic brake circuit (kg) 0.74 0.74 TUTELA TOP 4S
Windscreen washer fluid reservoir
(litres)3 3 Mixture of water and TUTELA PROFESSIONAL SC35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised
water.
157
47

1.3 Multijet
95 HP E51.3 Multijet
95 HP E6 /
E6 ECO1.6 Multijet
120 HPPrescribed fuels and original lubricants
Fuel tank (litres) 45 45 45
Diesel for motor vehicles (EN590 Specification)
including a reserve of (litres) 7 7 7
Engine cooling system (litres) 6.1 6.1 6.1Mixture of distilled water and PARAFLU
UP
50%(**)
Engine sump (litres) 3.0 3.7 4.4
SELENIA WR P.E. (E5 versions) / SELENIA WR
FORWARD (E6 versions)
Engine sump and filter (litres) 3.2 3.9 4.8
Gearbox casing/differential (litres) 2.0 2.0 1.8 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.74 0.74 0.74 TUTELA TOP 4S
Windscreen washer fluid reservoir
(litres)333Mixture of water and TUTELA PROFESSIONAL
SC35
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised
water.
