2016 FIAT DOBLO PANORAMA technical specifications

SUSPENSION
Versions Front Rear
Front
independent wheel MacPherson typeMulti-link independent, coil springs,
telescopic shock absorbers and anti-roll bar
(according to version) Rear
222
TECHNICAL SPECIFICATIONS

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless
radial carcass tyres. All approved tyres
are listed in the registration document.
IMPORTANT If there are any
discrepancies between the Owner
Handbook and the registration
document, take the information from
the latter.
For safe driving, the vehicle must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers
with tubeless tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim
to rim: -1±1mm.
The values refer to the vehicle in
running order.CORRECT READING OF
THE TYRE
Example: 185/65 R 15
88H(see fig. 229)
185Rated width (S, distance in mm
between sidewalls)
65Height/width ratio (H/S) as a
percentage
RRadial tyre
15Rim diameter in inches (Ø)
88Load index (payload)
HMaximum speed index
Maximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Maximum speed index
for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load index (payload)
70335 kg
71345 kg
72355 kg
73365 kg
74375 kg
75387 kg
76400 kg
77412 kg
78425 kg
79437 kg
80450 kg
81462 kg
82475 kg
83487 kg
84500 kg
85515 kg
86530 kg
87545 kg
88560 kg
89580 kg
229F1A0247
224
TECHNICAL SPECIFICATIONS

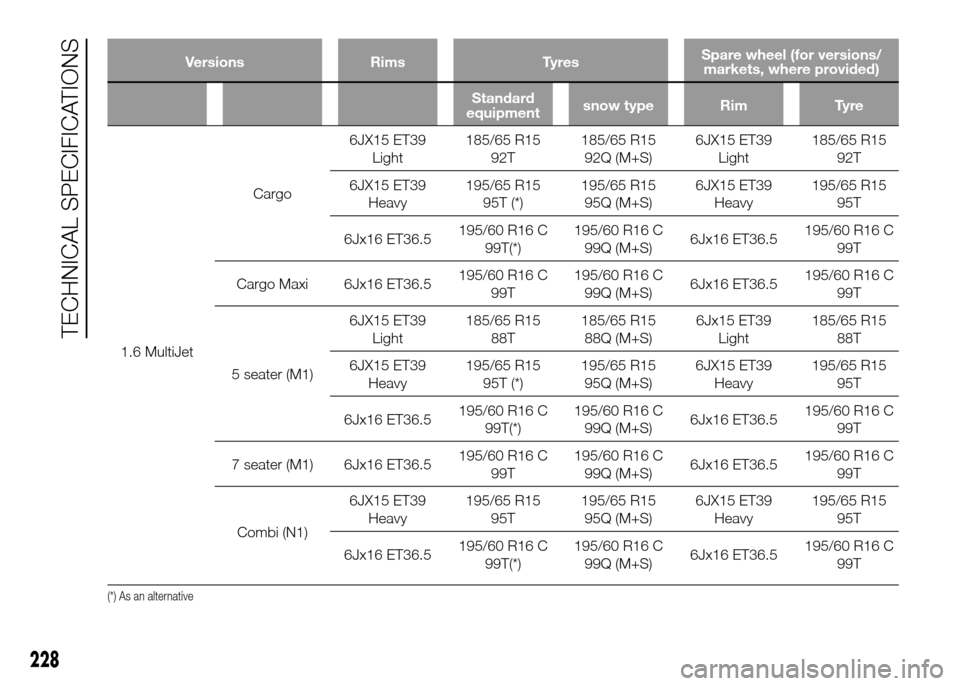

RIMS AND TYRES PROVIDED
Versions RimsTy r e sSpare wheel (for versions/
markets, where provided)
Standard
equipmentsnow type Rim Tyre
1.4 All models 6Jx16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
1.4 T-JET All models 6Jx16 ET36.5195/60 R16 C
99/97T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99/97T
226
TECHNICAL SPECIFICATIONS

Versions Rims TyresSpare wheel (for versions/
markets, where provided)
Standard
equipmentsnow type Rim Tyre
1.6 MultiJetCargo6JX15 ET39
Light185/65 R15
92T185/65 R15
92Q (M+S)6JX15 ET39
Light185/65 R15
92T
6JX15 ET39
Heavy195/65 R15
95T (*)195/65 R15
95Q (M+S)6JX15 ET39
Heavy195/65 R15
95T
6Jx16 ET36.5195/60 R16 C
99T(*)195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
Cargo Maxi 6Jx16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
5 seater (M1)6JX15 ET39
Light185/65 R15
88T185/65 R15
88Q (M+S)6Jx15 ET39
Light185/65 R15
88T
6JX15 ET39
Heavy195/65 R15
95T (*)195/65 R15
95Q (M+S)6JX15 ET39
Heavy195/65 R15
95T
6Jx16 ET36.5195/60 R16 C
99T(*)195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
7 seater (M1) 6Jx16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
Combi (N1)6JX15 ET39
Heavy195/65 R15
95T195/65 R15
95Q (M+S)6JX15 ET39
Heavy195/65 R15
95T
6Jx16 ET36.5195/60 R16 C
99T(*)195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
(*) As an alternative
228
TECHNICAL SPECIFICATIONS

COLD TYRE INFLATION PRESSURE (bar)
SizeMedium load Full load
Front Rear Front Rear
185/65 R15 88T 2,5 2,5 2,9 2,9
185/65 R15 92T 2,5 2,6 2,9 3
195/65 R15 95T 2,42.4 Doblò (M1)
2,62.6 Doblò (M1)
2.4 Doblò Cargo 2.7 Doblò Cargo
3.0 Doblò Combi (N1) 3.2 Doblò Combi (N1)
195/60 R16C 99/97T 2,7 2,7 2,72.8 Doblò 5P (M1)
3.3 Doblò Cargo
3.6 Doblò 7P (M1) /
3.6 Doblò Combi (N1) /
3.6 Doblò Cargo Maxi
195/60 R16C 99/97T
M+S2,7 2,7 2,73.6 (on all versions and
always with Traction
Plus)
The pressure value can be up to +1.0 bar more than the prescribed one when the tyres are warm. However, recheck that the
value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres. When travelling at speeds over 160 km/h,
inflate the tyres to the values specified for fully laden conditions.
230
TECHNICAL SPECIFICATIONS

Long wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
232F0V0556
232
TECHNICAL SPECIFICATIONS

High roof versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
ABCDE FGH
High Roof
versions4406 911 2755 7402115(*)/
2125(**)1510 1832 1530
(*) Doblò versions
(**) Doblò Cargo versions
Small variations in size are possible depending on the dimensions of the rims.
233F0V0557
234
TECHNICAL SPECIFICATIONS

Flatbed long wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
ABCDE FGH I LMNOP
5416 4577 3105 911 561 1510 1845 1530 1789 1870 2405 1395 1400 600
Small variations in size are possible depending on the dimensions of the rims.
235F0V0573
