2016 FIAT DOBLO PANORAMA technical specifications

UseFluid and lubricant features for a correct use
of the vehicleOriginal fluids and
lubricantsApplications
Protective agent
for radiatorsRed protective agent with antifreeze action, based
on inhibited monoethylene glycol with organic
formula. Exceeds CUNA NC 956-16, ASTM D
3306 specifications.
Classification FIAT 9.55523.PARAFLUUP(*)
Contractual Technical
Reference No. F101.M01Cooling circuits Use
rate 50% up to -35°C.
Mixture with different
formulation products
not allowed.
Diesel fuel
additiveAdditive for diesel antifreeze, protecting diesel
engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen
washer fluidMixture of alcohol and surfactants CUNA NC
956-II.
Classification FIAT 9.55522.TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
268
TECHNICAL SPECIFICATIONS

FUEL
CONSUMPTION
The fuel consumption figures given in
the tables below are determined on the
basis of the type-approval tests laid
down by specific European Directives.
These consumption values refer to
basic vehicles without optionals.
The procedures below are followed for
measuring consumption:
❒urban cycle: begins with cold
starting, followed by driving
simulating the use of the vehicle in
town;
❒extra-urban cycle: driving that
simulates using the vehicle out of
town with frequent acceleration in all
gears; the speed varies from 0 to 120
km/h;
❒combined consumption: calculated
with a weighting of approximately
37% of the urban cycle and 63% of
the extra-urban cycle.IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the vehicle,
trim level/equipment/accessories,
climate control system, vehicle load,
roof rack, other situations that affect air
drag may lead to different fuel
consumption levels than those
measured.IMPORTANT
In practice, fuel consumption may be
higher than the values obtained during
the approval tests.
Here are some of the major factors that
can lead to a difference between test
and real consumption.
1) Vehicle condition: inadequate
servicing, use of roof racks, trailers,
heavy loading, high usage of electrical
devices and the air conditioning.
2) Driving style: frequent cold starts for
short journeys, poor engine warming
technique, gear selection, high speeds,
sudden acceleration and braking.
3) Traffic and road conditions: driving in
traffic, steep hills or winding roads,
road surface conditions.
4) Atmospheric conditions: intemperate
weather, wind, rain, snow, high altitude.
5) Proportion of use in towns and
cities, in the country and on
motorways.
270
TECHNICAL SPECIFICATIONS

4. Vehicle speed: fuel consumption
increases exponentially as the speed of
the vehicle increases. Keep your speed
moderate and as even as possible,
avoiding unnecessary braking and
acceleration, which cause excessive
fuel consumption and increased
emissions. Keeping a safe distance
from the vehicle in front helps to
maintain a steady speed.
5. Acceleration: accelerating violently
severely affects consumption and
emissions. Acceleration should be
gradual and should not exceed the
maximum engine torque rate.
272
TECHNICAL SPECIFICATIONS

VERSIONS CONSUMPTION
1.4 16V Euro 5 / Euro 6 NO Start&Stop Urban Extra-urban Combined
Cargo Short wheelbase - Cargo Short wheelbase,
Increased payload - Cargo Long wheelbase9.9 5.8 7.3
Combi 5-seater, Short wheelbase - Combi
5-seater, Long wheelbase - Doblò 5/7-seater10.0 5.9 7.4
Cargo Short wheelbase, High roof - Cargo Short
wheelbase, High roof, Increased payload10.2 5.9 7.5
Doblò 5/7-seater, High roof 10.3 6.1 7.6
Flatbed short wheelbase / long wheelbase (F.C.*
1250)9.8 5.8 7.3
Flatbed short wheelbase / long wheelbase (F.C.*
1360)10.0 6.0 7.5
Flatbed short wheelbase / long wheelbase (F.C.*
1470)10.1 6.0 7.5
Flatbed short wheelbase / long wheelbase (F.C.*
1590)10.3 6.2 7.7
Flatbed short wheelbase / long wheelbase (F.C.*
1700)10.5 6.5 8.0
*Flywheel class
274
TECHNICAL SPECIFICATIONS

.

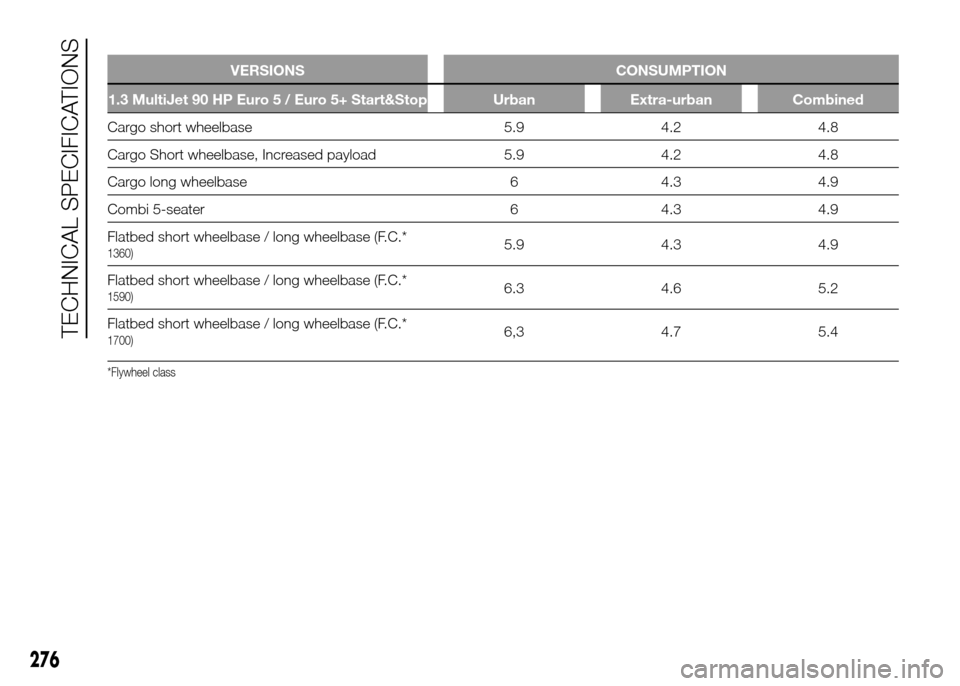

VERSIONS CONSUMPTION
1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Urban Extra-urban Combined
Cargo short wheelbase 5.9 4.2 4.8
Cargo Short wheelbase, Increased payload 5.9 4.2 4.8
Cargo long wheelbase 6 4.3 4.9
Combi 5-seater 6 4.3 4.9
Flatbed short wheelbase / long wheelbase (F.C.*
1360)5.9 4.3 4.9
Flatbed short wheelbase / long wheelbase (F.C.*
1590)6.3 4.6 5.2
Flatbed short wheelbase / long wheelbase (F.C.*
1700)6,3 4.7 5.4
*Flywheel class
276
TECHNICAL SPECIFICATIONS

.
VERSIONS CONSUMPTION
1.3 MultiJet 90 HP Euro5/Euro5+NO
Start&Stop with DPFUrban Extra-urban Combined
Cargo Short wheelbase - Cargo Short wheelbase,
Increased payload - Cargo Long wheelbase6.5 4.2 5.0
Combi 5-seater, Short wheelbase / Long
wheelbase6.6 4.3 5.1
Flatbed short wheelbase / long wheelbase (F.C.*
1360)6.6 4.3 5.1
Flatbed short wheelbase / long wheelbase (F.C.*
1590)6.9 4.6 5.4
Flatbed short wheelbase / long wheelbase (F.C.*
1700)7.1 4.8 5.6
*Flywheel class
278
TECHNICAL SPECIFICATIONS

.
VERSIONS CONSUMPTION
1.3 MultiJet 75 HP Euro 5+ DPF Start&Stop Urban Extra-urban Combined
Cargo 1,000 kg short wheelbase / long wheelbase 6.3 4.6 5.2
Cargo short wheelbase / Cargo short wheelbase,
increased payload5.9 4.2 4.8
Cargo long wheelbase, increased payload / Combi
5-seater6 4.3 4.9
.
VERSIONS CONSUMPTION
1.3 MultiJet 75 HP Euro 5+ DPF NO
Start&StopUrban Extra-urban Combined
Cargo 1,000 kg short wheelbase / long wheelbase 6.9 4.6 5.4
Cargo Short wheelbase / Cargo Short wheelbase,
Increased payload / Cargo Long wheelbase6.5 4.2 5.0
Combi 5-seater / Cargo long wheelbase /
Increased payload6.6 4.3 5.1
280
TECHNICAL SPECIFICATIONS

VERSIONS CONSUMPTION
1.6 MultiJet 105 HP Euro5/Euro5+
Start&StopUrban Extra-urban Combined
Flatbed short wheelbase / long wheelbase (F.C.*1810)6.8 6.2 6.4
*Flywheel class.
VERSIONS CONSUMPTION
1.6 MultiJet 105 HP Euro5/Euro5+
Start&Stop Eco PackUrban Extra-urban Combined
Cargo Short Wheelbase 5.4 4.3 4.7
Cargo Increased payload, Short wheelbase / Long
wheelbase5.5 4.3 4.7
Combi Short wheelbase 5.4 4.4 4.8
Combi Long wheelbase 5.5 4.6 4.9
Panorama Short wheelbase / long wheelbase -
Doblò Short wheelbase / long wheelbase5.4 4.4 4.8
Cargo / Cargo Increased payload, Short
wheelbase, High roof5.8 4.7 5.1
Cargo Long wheelbase - High roof 5.7 4.9 5.2
Panorama Short wheelbase High roof 5.8 4.8 5.2
Flatbed short wheelbase / long wheelbase (F.C.*
1360)5.4 4.6 4.9
*Flywheel class
