2016 FIAT 500X Keyless

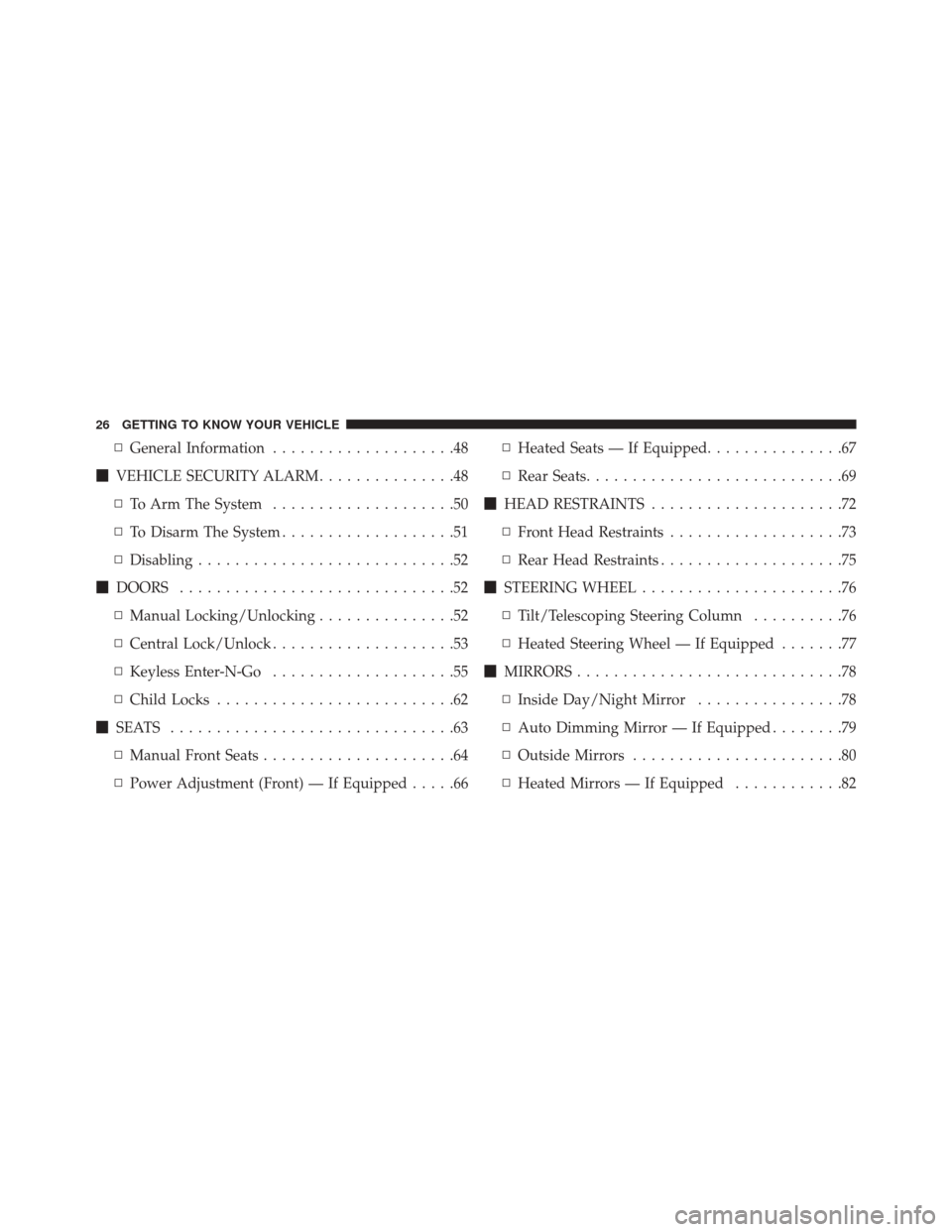

▫General Information ....................48
 VEHICLE SECURITY ALARM ...............48
▫ To Arm The System ....................50
▫ To Disarm The System ...................51
▫ Disabling ............................52
 DOORS ..............................52
▫ Manual Locking/Unlocking ...............52
▫ Central Lock/Unlock ....................53
▫ Keyless Enter-N-Go ....................55
▫ Child Locks ..........................62
 SEATS ...............................63
▫ Manual Front Seats .....................64
▫ Power Adjustment (Front) — If Equipped .....66▫
Heated Seats — If Equipped ...............67
▫ Rear Seats ............................69
 HEAD RESTRAINTS .....................72
▫ Front Head Restraints ...................73
▫ Rear Head Restraints ....................75
 STEERING WHEEL ......................76
▫ Tilt/Telescoping Steering Column ..........76
▫ Heated Steering Wheel — If Equipped .......77
 MIRRORS .............................78
▫ Inside Day/Night Mirror ................78
▫ Auto Dimming Mirror — If Equipped ........79
▫ Outside Mirrors .......................80
▫ Heated Mirrors — If Equipped ............82
26 GETTING TO KNOW YOUR VEHICLE

Electronic Key Fob
On versions equipped withKeyless Enter-N-Go,the car
is equipped with an Electronic Key Fob.
The Key Fob with Remote Control contains a Remote
Keyless Entry (RKE) transmitter. The RKE system allows
you to lock or unlock the doors and liftgate or activate the
Panic Alarm from distances up to approximately 66 ft (20
m) using a handheld Key Fob with a RKE transmitter.
The RKE transmitter does not need to be pointed at the
vehicle to activate the system.
NOTE: In the ON/RUN position, the trunk release
button is disabled. Only the UNLOCK button is enabled.
Keyless Enter-N-Go Key Fob
1 — Door Lock Button
2 — Remote Start Button
3 — Panic Button
4 — Emergency Key
5 — Door Unlock Button
4
GETTING TO KNOW YOUR VEHICLE 31

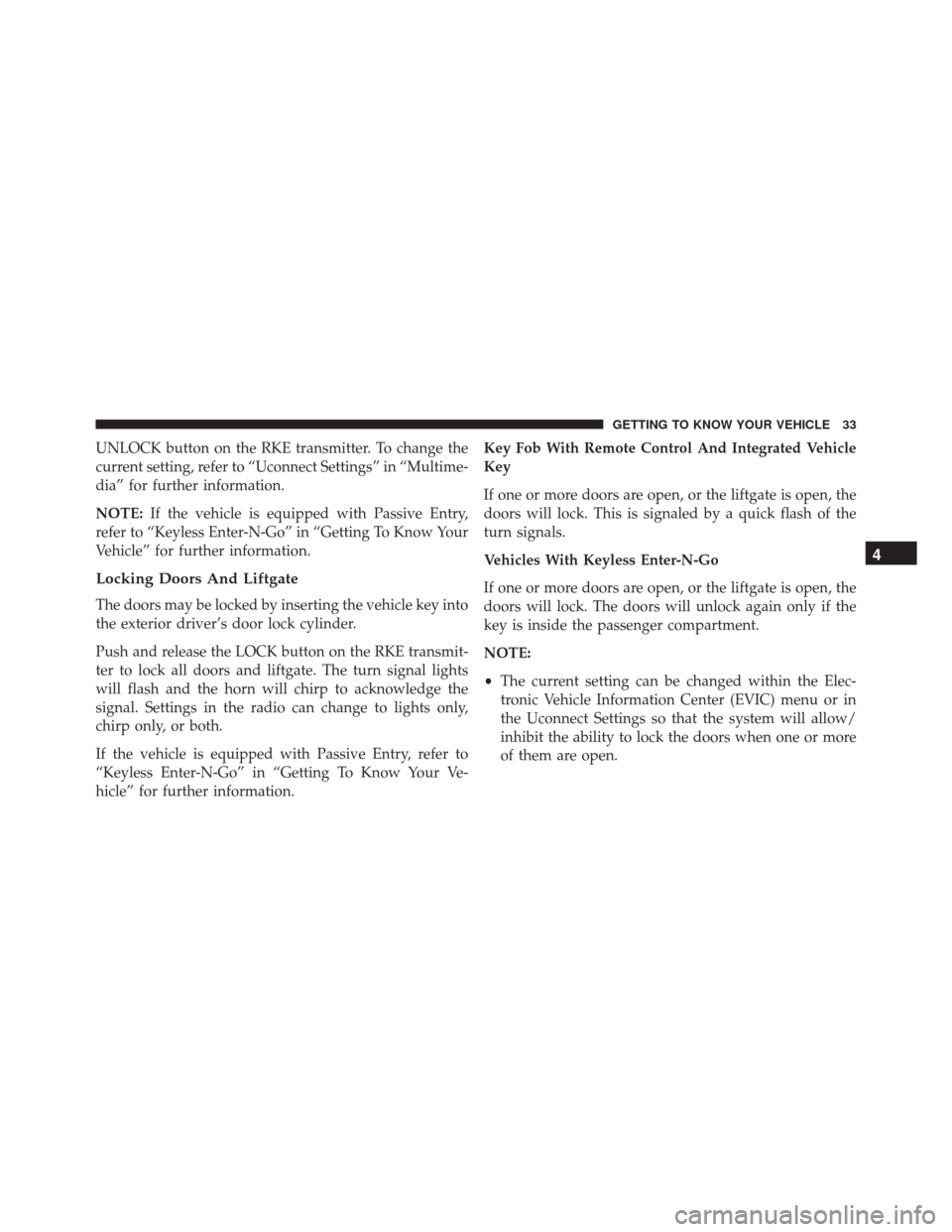

UNLOCK button on the RKE transmitter. To change the
current setting, refer to “Uconnect Settings” in “Multime-
dia” for further information.
NOTE:If the vehicle is equipped with Passive Entry,
refer to “Keyless Enter-N-Go” in “Getting To Know Your
Vehicle” for further information.
Locking Doors And Liftgate
The doors may be locked by inserting the vehicle key into
the exterior driver’s door lock cylinder.
Push and release the LOCK button on the RKE transmit-
ter to lock all doors and liftgate. The turn signal lights
will flash and the horn will chirp to acknowledge the
signal. Settings in the radio can change to lights only,
chirp only, or both.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go” in “Getting To Know Your Ve-
hicle” for further information. Key Fob With Remote Control And Integrated Vehicle
Key
If one or more doors are open, or the liftgate is open, the
doors will lock. This is signaled by a quick flash of the
turn signals.
Vehicles With Keyless Enter-N-Go
If one or more doors are open, or the liftgate is open, the
doors will lock. The doors will unlock again only if the
key is inside the passenger compartment.
NOTE:
•
The current setting can be changed within the Elec-
tronic Vehicle Information Center (EVIC) menu or in
the Uconnect Settings so that the system will allow/
inhibit the ability to lock the doors when one or more
of them are open.
4
GETTING TO KNOW YOUR VEHICLE 33

Separating Keyless Enter-N-Go Transmitter Case
1. Remove the emergency key by sliding the mechanicallatch on the back of the RKE transmitter sideways
with your thumb. Then, pull the key out with your
other hand.
2. Separating RKE halves requires screw removal (if equipped) and gently prying the two halves of the
RKE transmitter apart with the emergency key. Make
sure not to damage the seal during removal.
3. Remove the battery by turning the back cover over(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar surface. Then,
replace the battery.
When replacing the battery, match the + sign on the
battery to the + sign on the inside of the battery clip,
Separating Keyless Enter-N-Go Transmitter Case
36 GETTING TO KNOW YOUR VEHICLE

located on the back cover. Avoid touching the new
battery with your fingers. Skin oils may cause battery
deterioration. If you touch a battery, clean it with rubbing
alcohol.
To assemble the RKE transmitter case, snap the two
halves together and insert the emergency key.Request For Additional Keys
NOTE:Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
• For vehicles equipped with Keyless Enter-N-Go,
always remember to place the ignition in the OFF
position.
Duplication of Key Fobs may be performed at an autho-
rized dealer. This procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
Keyless Enter-N-Go Battery
4
GETTING TO KNOW YOUR VEHICLE 37

NOTE:When having the Sentry Key Immobilizer System
serviced, bring all vehicle keys with you to an authorized
dealer.
IGNITION SWITCH
Operation
Your vehicle uses either a key start ignition system or
keyless ignition system. The key start ignition system
consists of a Key Fob with a Remote Keyless Entry (RKE)
transmitter and an Integrated Mechanical Key Ignition.
The keyless ignition system consists of a Key Fob with
Remote Keyless Entry (RKE) transmitter and a Keyless
Push Button Ignition.
Mechanical Key
The Mechanical Key has three operating positions, two
with detents and one that is spring-loaded. The detent
positions are STOP/OFF, MAR/RUN, and AVV/START.
The AVV/START position is a spring-loaded momentary contact position. When released from the AVV/START
position, the switch automatically returns to the MAR/
RUN position.
1 — STOP/OFF
•
The engine is stopped.Integrated Mechanical Key Ignition
38 GETTING TO KNOW YOUR VEHICLE

•The key can be removed from the ignition.
• The steering column can be locked (with the ignition
key removed).
• Some electrical devices (e.g. power locks, alarm, etc.)
are still available.
2 — MAR/RUN
• Driving position.
• Electrical devices are available.
3 — AVV/START
• Start the engine.
The ignition switch is provided with a safety mechanism.
If the engine fails to start, the ignition will return to the
STOP/OFF position prior to repeating the starting pro-
cedure. On models equipped with an automatic transmission, the
ignition key is only removable when the shift lever is in
PARK.
Electronic Key
This Keyless Enter-N-Go system feature allows the driver
to operate the ignition switch with the push of a button as
long as the Remote Keyless Entry (RKE) transmitter is in
the passenger compartment.
The Keyless Push Button Ignition has three operating
positions. The three positions are STOP, RUN, and
START.4
GETTING TO KNOW YOUR VEHICLE 39

NOTE:If the ignition switch does not change with the
push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery. In this situation, a back up
method can be used to operate the ignition switch. Put
the nose side (side opposite of the emergency key) of the
Key Fob against the ENGINE START/STOP button and
push to operate the ignition switch.
The Keyless Push Button Ignition can be placed in the
following positions:
STOP
•The engine is stopped.
Engine Start Stop Button
