2016 Citroen JUMPER dashboard

8
jumper_en_Chap01_vue-ensemble_ed01-2015
InStruMEntS And cOntrOLS
instrument panels, screens, speedometer 23
W
arning lamps,
indicator lamps

24-31
Gauges, indicators


32, 35
Gear shift indicator


36-37
Lighting controls


45-47
Automatic illumination of headlamps


46
Guide-me-home lighting


46
Parking lamps


47
o

pening the bonnet

127
Dashboard fuses


145-146
V

ehicle configuration

87-89
Setting the time


88
Headlamp beam height adjustment

47
Front/rear fog lamps

45
Pneumatic suspension


96-97
Stop & Start


40-42 Front/rear wipers


48
Screenwash/headlamp wash


48
T

rip computer
92
Starter

, ignition switch
38
Hill start


39
Cruise control


49-51, 52-54
Speed limiter


55-57
Fixed speed limiter


58
instruments and controls 4-5
Steering wheel, reach adjustment

37
Horn


99
Steering mounted radio controls


186, 233
Mirrors, electric windows


85-86
Locking the load space


22
Additional heating, rear air
conditioning


65-66
Programmable additional heating


67-70
Location

14
jumper_en_Chap02_Pret-a-Partir_ed01-2015
3-ButtOn r EMO t E c O ntr OL
u nlocking the cab
Pressing this button unlocks your
vehicle's cab.
The interior courtesy lamp comes
on briefly and the direction
indicators flash twice.
The indicator lamp in the central locking
button, located in the dashboard, goes off.
unlocking the
load space
Pressing this button unlocks the
side door and the rear doors of
the load space.
The direction indicators flash twice.
i

f your vehicle has an alarm, pressing this
button deactivates it.
central locking
Pressing this button briefly locks
all of your vehicle's doors, cab
and load space.
i f one of the
doors is open or is not closed
correctly, the central locking will not work.
The direction indicators flash once. The
indicator lamp on the control on the centre
console comes on then flashes.
i

f your vehicle has an alarm, pressing this
button sets it.
The indicator lamp in the central
locking button, located in the
dashboard, comes on and
flashes.
Access

15
jumper_en_Chap02_Pret-a-Partir_ed01-2015
2-ButtOn r EMO t E c O ntr OL
c entral unlocking
Pressing this button
simultaneously unlocks all of your
vehicle's doors.
The interior courtesy lamp comes
on for a moment and the direction indicators
flash twice.
i

f your vehicle has an alarm, pressing this
button deactivates it.
The indicator lamp in the central locking
button, located in the dashboard, goes off.
central locking
Pressing this button
simultaneously locks all of your
vehicle's doors.
i f one of the
doors is open or not fully closed,
the central locking does not take place.
The direction indicators flash twice.
i

f your vehicle has an alarm, pressing this
button sets it.
deadlocking
Pressing this button twice in
succession deadlocks the vehicle. i t
is then impossible to open the doors
from the inside or the outside.
The direction indicators flash three times.
Folding / unfolding the key
Press this button to release the
key from its housing.
To fold the key, press the button
then fold the key into the housing.
n

ever leave anyone inside the vehicle
when it is deadlocked.
i

f you do not press the button, there is
a risk of damaging the mechanism.
The indicator lamp in the central
locking button, located in the
dashboard, comes on and
flashes.
2
Access
rEAdY tO GO

17
jumper_en_Chap02_Pret-a-Partir_ed01-2015
MAIn FunctIOnS OF tHE KEY
type of keyunlocking the cabin Locking the doorsu nlocking the rear doors
Mechanical key Turn anti-clockwise (driver's
side). Turn clockwise (driver's side). -
r

emote control -
Signalling
Direction indicators 2 flashes.1 flash.2 flashes.
i

ndicator lamp in the central
locking control button on the dashboard
o

ff.
o
n for about 3 seconds, then flashing. Flashing.
Using the mechanical key in the drivers' door lock barrel does not activ\
ate (set) or deactivate the alarm.
2
Access
rEAdY tO GO

47
jumper_en_Chap03_Ergo-et-confort_ed01-2015
HEAdLAMP BEAM
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function works in the dipped and main
beam headlamps position.Press these controls, located
on the dashboard, several times
in succession to adjust the
headlamps.
An indicator in the screen shows
the adjustment position selected
(0, 1, 2, 3).
PArKInG LAMPS
This system enables you to leave the lamps
on when parked; with the ignition off, key in
the ST
o
P position or key removed.
Move the ring on the lighting stalk to position
o

then to dipped or main beam headlamps.
t

he indicator lamp in the
instrument panel comes on.
The lamps will remain on while
you are parked.
Leaving the lighting on for long periods may
significantly reduce the state of charge of
your vehicle's battery.
travelling abroad
i
f using your vehicle in a country
that drives on the other side of the road,
the headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a C i T roën dealer or a qualified
workshop.
3
EASE OF uSE and cOMFOrt
Steering mounted controls

61
jumper_en_Chap03_Ergo-et-confort_ed01-2015

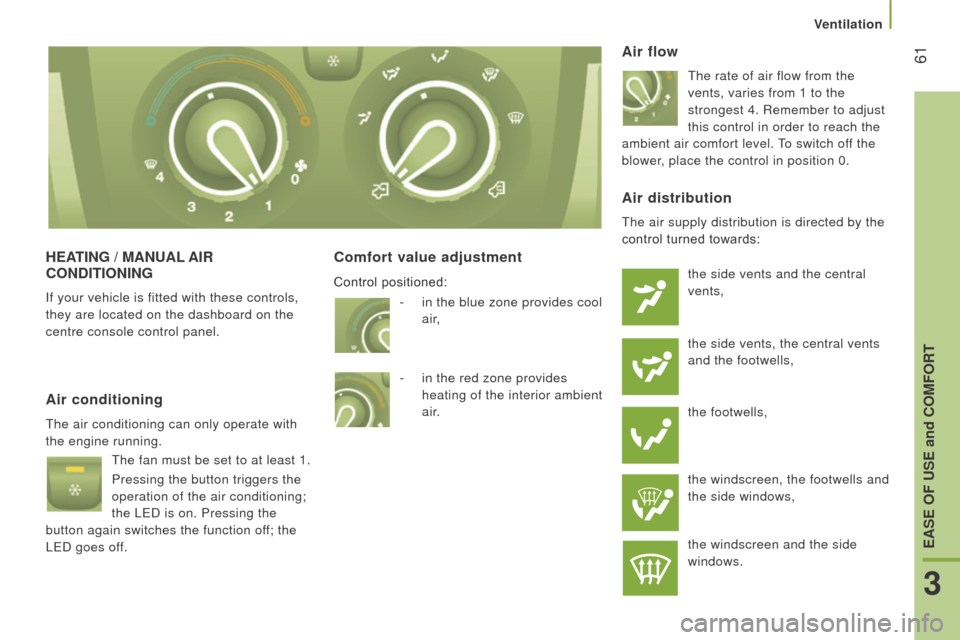

HEAtI n G / M A nu AL AI r
c O nd I t IO n I n G
if your vehicle is fitted with these controls,
they are located on the dashboard on the
centre console control panel.
comfort value adjustment Air flow
The rate of air flow from the
vents, varies from 1 to the
strongest 4.
r emember to adjust
this control in order to reach the
ambient air comfort level. To switch off the
blower, place the control in position 0.
Air conditioning
The air conditioning can only operate with
the engine running.
The fan must be set to at least 1.
Pressing the button triggers the
operation of the air conditioning;
the LED is on. Pressing the
button again switches the function off; the
LED goes off.
Air distribution
The air supply distribution is directed by the
control turned towards:
the side vents and the central
vents,
the side vents, the central vents
and the footwells,
the footwells,
the windscreen, the footwells and
the side windows,
the windscreen and the side
windows.
-

in the blue zone provides cool


air,
-

in the red zone provides


heating of the interior ambient
air.
Control positioned:
Ventilation
3
EASE OF uSE and cOMFOrt

63
jumper_en_Chap03_Ergo-et-confort_ed01-2015
dIGItAL AIr c O nd I t IO n I n G -
M O n O -z O n E
if your vehicle is fitted with this system, the
controls are located in the middle of the
dashboard.
AutO mode
Switching on F u LL A utO mode:
pressing the A
ut
O
control
switches on the system's functions,
confirmed by the display of F
u LL
A
ut
O

. This is the normal operating mode for
the digital air conditioning system.
Using the moving ring surrounding the AUT
o


control, set the comfort temperature to be
reached according to a setting between:
-

HI (High to ≈
32) and,
-

LO (Low to ≈
16).
The system controls the distribution, flow and
intake of air to ensure comfort equivalent to the
setting displayed and sufficient recirculation of
air in the passenger compartment.
n

o further adjustments are required.
Control screen for your digital air
conditioning system.
AutO mode with personalisation
Switch on in AutO
mode, certain
settings can be modified: the
distribution, the air flow, the air
conditioning and the air intake/
recirculation.
The display changes from F
u LL A ut
O
to
A
ut
O

.
To return to fully automatic operation, press
this button again. The display on the control
panel changes from A
ut
O
to F u LL A ut
O
.
i

f the system is not able to maintain
the setting selected following manual
adjustments, the setting flashes then A
ut
O
is cleared. Press the

A ut
O
control to return
to the automatic settings.
Switching off the air conditioning
Pressing this control switches
off the air conditioning functions.
The snowflake is cleared from the
screen.
complete switch-off
Pressing this control switches
the system off. The LED and the
screen switch off.
When the engine is running and the air
conditioning is on, this symbol and the
message
F
u
LL A
utO
are displayed.
The other components are displayed
according to the settings selected by the user.
Ventilation
3
EASE OF uSE and cOMFOrt

64
jumper_en_Chap03_Ergo-et-confort_ed01-2015
comfort value adjustment ring
The settings range between:
-
increasing the interior ambient air

temperature H
i (High) which goes up to
to a maximum setting of 32,
-

cooling the interior ambient air

temperature L
o (Low) which goes down
to a setting of 16.
Air distribution
A press illuminates the LED on the buttons
which distribute the air flow towards:
the windscreen and front side
window vents (demisting/
defrosting the windows),
the central and side vents (chest
and face),
the vents in the front and rear
areas (feet).
The combination of buttons permits
improvement of air distribution.
Air flow
Successive presses of this button
increase (+) or reduce (-) the
force of the air flow to the interior.
Intake of exterior air / r ecirculation of interior air
When the LED is on, the air
recirculates inside the passenger
compartment to prevent the entry of exterior
odours and smoke. This position should be
temporary.
When the ambient air comfort level has been
reached, pressing the button switches the
LED off and reopens the exterior air intake.
Pressing the A
ut
O
button also restores
the intake of exterior air.
r eturning to this
position permits renewal of the air in the
passenger compartment and demisting.
Pressing the A
ut
O
button again restores
the F
u
LL A ut
O
function.
rapid demisting / defrosting
Pressing this control permits
rapid clearing of the windows.
The LED is on.
The system manages the air conditioning,
the flow and intake of air, the defrosting
of the rear screen and provides optimum
distribution of the air to the windscreen and
front side windows.
i

f your vehicle is fitted with additional
heating, switch it off to ensure rapid and
effective demisting/defrosting.
AddItIOnAL r EA r VE nt ILAt IO n
The controls for this system, additional to
the standard cabin ventilation system, are
on the lower dashboard, to the left of the
steering wheel.
Air outlet
A press on this control activates
the extraction of air to the
outside; the LED comes on.
Press again to switch off.
Air inlet
A press on this control activates
the entry of air into the cabin; the
LED comes on. Press again to
switch off.
Ventilation
