2016 Citroen JUMPER jump cable

142
jumper_en_Chap08_Aide-rapide_ed01-2015
A. Positive metal point on your vehicle
B.
Slave battery
c

.
Earth on your vehicle
Make connections only to the points


indicated and illustrated above. Failure
to observe this instruction introduces
the risk of short-circuit!Starting from another battery
B
A
tt

E
r
Y
c
harging the battery using
a charger
- Connect the red cable to the metal
point
A then to the positive (+) terminal


of the slave battery B .
-

Connect one end of the green or black

cable to the negative (-) terminal of the
slave battery B .
-

Connect the other end of the green or

black cable to the earth point
c
on your

vehicle.
-
o perate the starter, let the engine run.
-

W
ait for the engine to return to idle, then
disconnect the cables. -
Go to the battery located in the front left
floor.
-

Disconnect the battery
.
-

Follow the instructions for use given by

the battery charger manufacturer.
-
r econnect starting with the negative (-)
terminal.
-

Check that the terminals and connectors

are clean.
i f they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
Discharged battery

157
jumper_en_Chap08_Aide-rapide_ed01-2015
● For versions with alloy wheels, remove
the three fixing screws I from the
strap
j
.
●


Remove the assembly from inside the

alloy wheel.

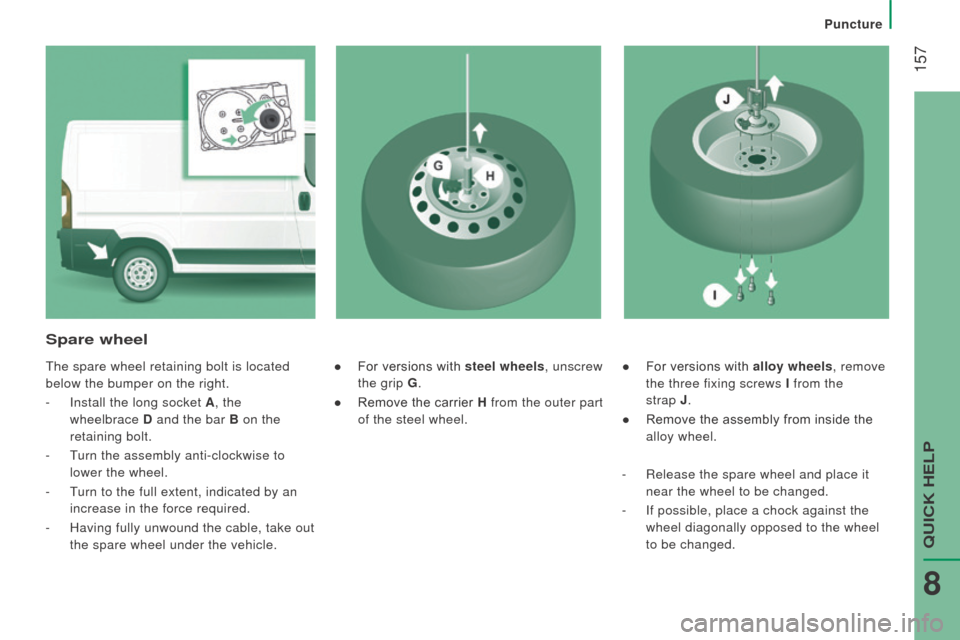

Spare wheel
The spare wheel retaining bolt is located
below the bumper on the right.
-
i nstall the long socket A , the
wheelbrace
d
and the bar

B on the
retaining bolt.
-

T
urn the assembly anti-clockwise to
lower the wheel.
-

T
urn to the full extent, indicated by an
increase in the force required.
-

Having fully unwound the cable, take out

the spare wheel under the vehicle. ●
For versions with steel wheels, unscrew
the grip G .
●

Remove the carrier
H from the outer part
of the steel wheel.
-
r elease the spare wheel and place it
near the wheel to be changed.
-
i f possible, place a chock against the
wheel diagonally opposed to the wheel
to be changed.
Puncture
QUiCK HELP
8

160
jumper_en_Chap08_Aide-rapide_ed01-2015
refer to the "Technical data -
i
dentification markings" section for the
location of the tyre pressure label.
-
Fit the long socket
A
, the wheelbrace
d

and bar B to the securing screw.
-

T

urn the assembly clockwise to fully
draw in the cable and raise the wheel
under the vehicle.
-

Check that the wheel is positioned


horizontally flat against the floor of the
vehicle and that the the cut-out for the
carrier system is visible.
-

Stow the tools and the trim (depending


on version).
refitting the repaired wheel
refitting the repaired wheel is the same as
fitting the spare wheel; don't forget to refit
the wheel trim.
The spare wheel is not designed to be used
over long distances. Have the tightening of
the bolts and pressure of the spare wheel
checked by a C
i T roën dealer or a qualified
workshop without delay.
Also, have the original wheel repaired and
refitted by a C
i T roën dealer or a qualified
workshop as soon as possible.
Puncture

166
jumper_en_Chap08_Aide-rapide_ed01-2015
removing the towball
Disconnect the trailer harness from the
socket 2 on the carrier.
Detach the cable on the trailer from the
safety ring 3 on the carrier.
Unhook the trailer from the towball.
r

efit the protective cover to the towball.
r

emove the protective cover from the
towball.
Attach the trailer to the towball.
Attach the cable on the trailer to the safety
ring 3 on the carrier.
Connect the trailer harness to the socket 2
on the carrier.
r
emove the cap from the lock and press it
onto the head of the key.i nsert the key into the lock 6.
o

pen the lock using the key.
Transport solutions
