2016 Citroen JUMPER dashboard

66
jumper_en_Chap03_Ergo-et-confort_ed01-2015
Activation/deactivation
This control, located on the
control panel at the left-hand end
of the dashboard, enables you to
activate/deactivate the operation
of the rear controls from the driver's seat.
The first press activates (LED on).
A second press deactivates (LED off). To deactivate the fan, place the control in
position 0.
However, a safety device will ventilate the
rear circuit automatically, even if the control
is in position 0, to prevent the formation of
condensation.
Air flow
c
omfort value adjustment
- on the blue, delivers cool air
,
-
on the red, delivers heating of

the ambient air.
The
o
FF control on the "Mono-zone" central
control panel switches the function off. Control positioned:
The force of the fan blown air,
via the vents, varies from 1 to the
strongest 4.
To obtain a comfortable level of
ambient air, remember to adjust
this control.
Ventilation

77
jumper_en_Chap03_Ergo-et-confort_ed01-2015
Folding writing table
This is located in the centre of the
dashboard.
The clip can be used to secure documents,
slips, ...
Pull or push the top of the table to unfold or
fold it.To insert or extract a CD, you must first
fold the table.
i

f your vehicle is fitted with a two-seat front
bench and a passenger front airbag, the
table cannot be raised.
Multifunction carrier
This can be used to support a portable
device, such as a smartphone in a vertical
position or a touch screen tablet in a
horizontal position. Pull the top of the carrier to unfold it.
Turn the side lever to release the upper and
lower clamps.
Spread the clamps to fit the portable device.
r

aise the side lever to lock the clamps.
Before folding the carrier

, remove the
portable device by repeating the same
operations.
Push the top of the carrier to fold it.
Practical information
3
EASE OF uSE and cOMFOrt

78
jumper_en_Chap03_Ergo-et-confort_ed01-2015
cooled glove box
This is located in the top right of the
dashboard, passenger side.
The air delivered to the glove box is the
same as that from the vents.
Passenger glove box
Front door pockets
Depending on the country of sale, one of
the door pockets may house the temporary
puncture repair kit.
Practical information

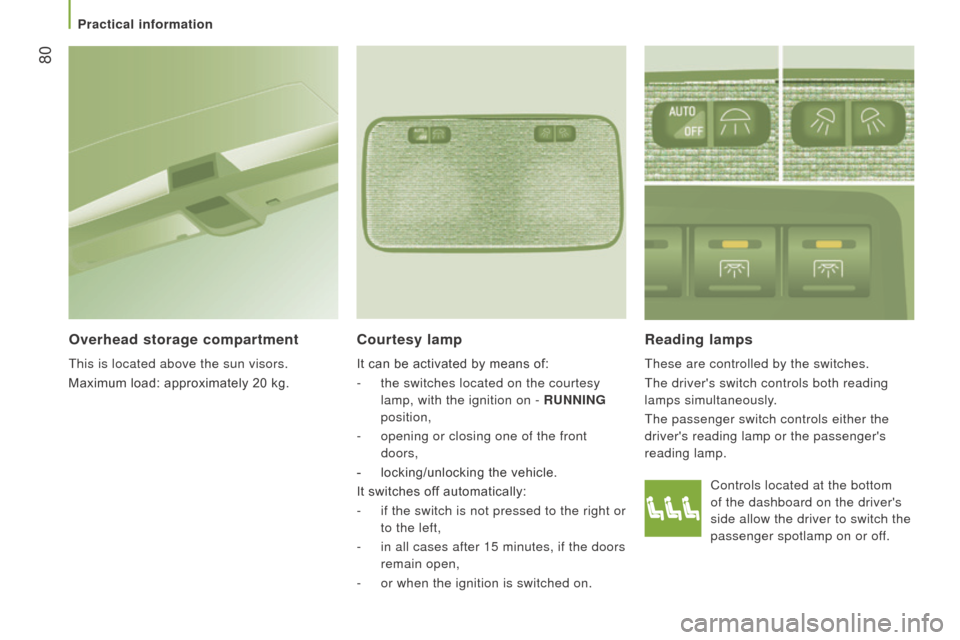

80
jumper_en_Chap03_Ergo-et-confort_ed01-2015
Controls located at the bottom
of the dashboard on the driver's
side allow the driver to switch the
passenger spotlamp on or off.
reading lamps
These are controlled by the switches.
The driver's switch controls both reading
lamps simultaneously.
The passenger switch controls either the
driver's reading lamp or the passenger's
reading lamp.
courtesy lamp
It can be activated by means of:
-
the switches located on the courtesy

lamp, with the ignition on -
runn I n G
position,
-

opening or closing one of the front

doors,
-

locking/unlocking the vehicle.
It switches of

f automatically:
-

if the switch is not pressed to the right or

to the left,
-

in all cases after 15 minutes, if the doors

remain open,
-

or when the ignition is switched on.
Overhead storage compartment
This is located above the sun visors.
Maximum load: approximately 20 kg.
Practical information

90
jumper_en_Chap04_Technologie-a-bord_ed01-2015
using the touch screen audio
system
This audio system control panel, located in
the middle of the dashboard, gives access to
personalisation menus for certain systems.
The corresponding information appears in
the touch screen.
Nine languages are offered: Dutch, English,
French, German,
i talian, Polish, Portuguese,
Spanish and Turkish.
As a safety precaution, some menus
can only be accessed when the ignition
is off. This control panel button gives
access to the "Settings" menu.
"Settings" menu
1. "Display".
2.
"V
oice commands".
3.
"T
ime and Date".
4.
"Safety / Help".
5.
"Lighting".
6.
"Doors & locking".
7.
"Audio".
8.
"T
elephone / Bluetooth".
9.
"
r adio settings".
10.
"
r estore Settings" to return to factory
settings.
11 .
"Del. pers. data" to delete all of your

personal data, related to the Bluetooth
equipment in the audio system.
This button in the screen allows
you to go up a level in a menu or
increase a value.
This button in the screen allows
you to go down a level in a menu
or decrease a value.
For more information on the audio
system, the telephone, the radio and the
navigation system, the sub-menus 2, 7,
8 , 9 and 11 are described in detail in the
"Audio and telematics" section.
The settings for sub-menus 4 , 5 and
6 vary according to the equipment
installed on the vehicle.
Vehicle configuration

101
jumper_en_Chap05_Securite_ed01-2015
trAjEctOrY c O ntr OL SYS t EMS
Switching off
This system cannot be deactivated by
the
driver.
dynamic stability control
( d S c )
The electronic stability programme acts on
the brake of one or more wheels and on the
engine to keep the vehicle on the trajectory
required by the driver, within the limits of the
laws of physics.
With the DSC system, maintain course
without trying to countersteer.
Operation
The DSC system is activated automatically
each time the vehicle is started. Operating fault
i

llumination of this warning lamp,
accompanied by an audible signal
and confirmed by a message
in the instrument panel screen,
indicates a fault with the DSC system.
Have it checked by a C
i T roën dealer or a
qualified workshop. Operation
This system is activated automatically every
time the vehicle is started.
i

n the event of a problem of adhesion or
trajectory, this system comes into play.
Switching off
i

n exceptional conditions (starting a vehicle
which is bogged down, stuck in snow,
on soft ground...), it may be advisable to
deactivate the AS
r system, so that the
wheels can spin freely and regain grip.
-

Press this button, located in the

middle of the dashboard, to deactivate
the
system.
Anti-slip regulation (ASr)
Anti-slip regulation (also known as traction
control) optimises traction, avoiding wheel
spin by acting on the brakes of the driving
wheels and the engine.
i

f the button's warning lamp comes
on, accompanied by a message in the
instrument panel screen, this indicates that
the AS
r system is deactivated.
i

t comes into operation in the
event of a grip or trajectory
problem.
This is indicated by flashing of this warning
lamp in the instrument panel.
5
Driving safely
SAFETY

103
jumper_en_Chap05_Securite_ed01-2015
Intelligent traction c ontrol
System to improve traction on slippery
surfaces (snow, black ice, mud...)
This system checks for situations of difficult
surface adhesion that could make it difficult
to move off or make progress.
i

n these situations, Intelligent t
raction

c

ontrol takes over from the AS r system,
by transferring drive to the wheel with the
best grip on the ground to provide the best
traction and trajectory control. Switching on
o

n starting the vehicle, this system is
deactivated.
Press this button, located in the middle of
the dashboard, to activate the system; the
indicator lamp in the button comes on.
This system is active up to about 18 mph
(30 km/h).
Once the speed exceed 18 mph (30 km/h),
the system is deactivated automatically, but
the indicator lamp in the button stays on.
The system is reactivated automatically as
soon as the speed drops below 18 mph
(30 km/h). Switching off
Press this button, located in the middle of
the dashboard, to deactivate the system;

the indicator lamp in the button goes off and
the AS r system is active again.
Operating fault
i
f a fault occurs with the intelligent
traction control system, this
warning lamp comes on.
Have the system checked by a C
i T roën

dealer or a qualified workshop.
5
Driving safely
SAFETY

104
jumper_en_Chap05_Securite_ed01-2015
Hill descent control
System that provides assistance when
descending on surfaces with poor grip (mud,
gravel...) or on a steep gradient.
This system reduces the risk of slip or loss
of control of the vehicle while descending a
hill.
i
t keeps the vehicle at a steady speed during
a descent by acting independently and with
varying force on each of the brakes. Switching off
Press this button, located in the middle of the
dashboard, to deactivate the system; the indicator
lamp in the button goes off.
Above 30 mph (50 km/h), the system is completely
deactivated; the indicator lamp in the button goes off.
Operating fault
i

f a fault occurs with the hill
descent control system, this
warning lamp comes on.
Have the system checked by a C
i T roën

dealer or a qualified workshop.
Switching on
o

n starting the vehicle, the system is
deactivated.
With the speed below 18 mph (30 km/h)
press this button, located in the middle of
the dashboard, to activate the system; the
indicator lamp in the button comes on.
o

nce the vehicle starts its descent, you can
release the accelerator and brake pedals;
the indicator lamp in the button flashes.
The brake lamps come on automatically
when the system is brought into operation.i
f the speed of the vehicle exceeds 18

mph
(30 km/h), the system is automatically
deactivated, but the indicator lamp in the
button stays on.
The system reactivates automatically as
soon as the speed of the vehicle drops
below 18 mph (30 km/h).
For the system to operate, the slope
must be steeper than 8%.
Do not use the system with the gearbox in
neutral.
Engage an appropriate gear for the speed of
the vehicle, to avoid the engine stalling.
You can press the accelerator or brake
pedal at any time. The system may not be available if the
brakes overheat. Wait a few minutes
for them to cool down before trying again.
Driving safely
