2016 Citroen JUMPER fold seats

7
jumper_en_Chap01_vue-ensemble_ed01-2015
Seat belts 106-108
Airbags 110-112
Deactivating the passenger's front airbag

1
11, 114
Parking brake, handbrake

98
Front seats, adjustments


71-72
Seat with variable damping


72
2-seat bench


73 Child seats


1
13-116, 119-120
12 volt socket, USB port

79, 81-82 Battery (+), charging,


starting 142-144
Earth point (-) 128, 142
Fuses in the right hand door pillar 145, 147
IntErIOr
Seats / rear bench
seats 74-75
Rear heating /
air conditioning

65-66
Sliding side door


20
Folding foot board


84
Sliding side windows


83
r
ear view mirror
85
Lane departure warning system

105
Cab courtesy lamp

80, 152
Changing a courtesy lamp bulb

149, 152
i

S o F i X mountings
1
17-118 Tools, jack

76, 156
Accessories

124
Load space


81-82
●


stowing rings,
●


load retainer
,
●

interior roof box,
●


side trims,
●


12 volt socket,
●


courtesy lamp,
T

orch 83
1
oVErViEW
Location

73
jumper_en_Chap03_Ergo-et-confort_ed01-2015

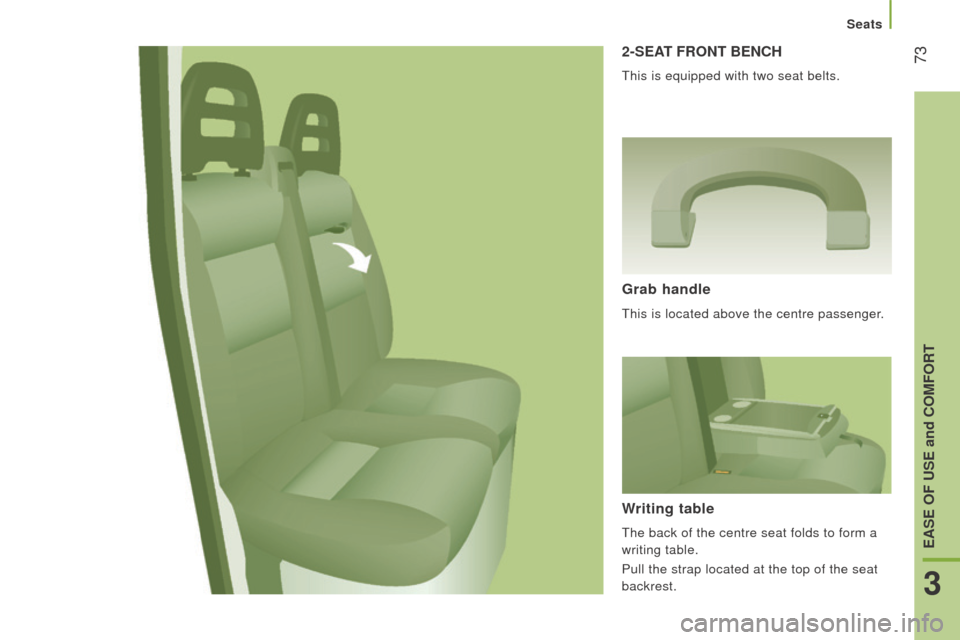

2-SEAt F r O nt BE nc H
This is equipped with two seat belts.
Grab handle
This is located above the centre passenger.
Writing table
The back of the centre seat folds to form a
writing table.
Pull the strap located at the top of the seat
backrest.
Seats
3
EASE OF uSE and cOMFOrt

74
jumper_en_Chap03_Ergo-et-confort_ed01-2015

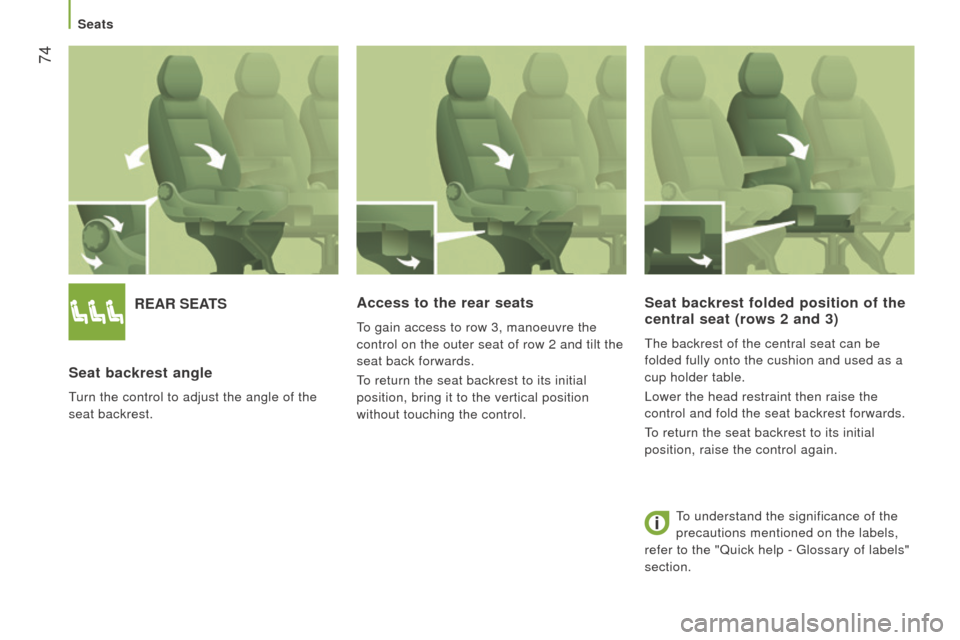

rEAr SEAtS
Seat backrest angle
Turn the control to adjust the angle of the
seat backrest.
Access to the rear seats
To gain access to row 3, manoeuvre the
control on the outer seat of row 2 and tilt the
seat back forwards.
To return the seat backrest to its initial
position, bring it to the vertical position
without touching the control.
Seat backrest folded position of the
central seat (rows 2 and 3)
The backrest of the central seat can be
folded fully onto the cushion and used as a
cup holder table.
Lower the head restraint then raise the
control and fold the seat backrest forwards.
To return the seat backrest to its initial
position, raise the control again.
To understand the significance of the
precautions mentioned on the labels,
refer to the "Quick help - Glossary of labels"
section.
Seats

75
jumper_en_Chap03_Ergo-et-confort_ed01-2015
rEAr BEncH SEAtS
r emoving the bench seat
Good practice
Ensure that the seat belts are always
accessible and easy for the passenger to
fasten.
Passengers must correctly adjust the head
restraint of their seat, before adjusting and
fastening their seat belt.Access to the rear seats
Lower the head restraints then raise the first
lever and tilt the seat back forwards.
Seat backrest folded position
remove the head restraints then tilt the seat
backrest as described above.
With your right hand, raise the second lever

then tilt the seat backrest 5° towards the
rear.
With your left hand, tilt the seat backrest
fully forwards onto the cushion. Turn the two levers upwards to release the
front anchorages
r

aise the bench seat and remove it.
At least two people are required to
remove the bench seat.
Fold the seat backrest onto the cushion as
described above.
Turn the two grips forward to release the
rear anchorages.
Tilt the base of the bench seat forwards to
place the assembly in the vertical position.r emoved head restraints must be stowed
securely.
Do not travel in row 3 with the row 2 bench
in the vertical position.
Do not leave objects on the folded
row
2 backrest.
Seats
3
EASE OF uSE and cOMFOrt

107
jumper_en_Chap05_Securite_ed01-2015
rEAr SEAt BELt S
The rear seats/bench seats are fitted with
three-point seat belts and inertia reels.
The centre seat has a seat belt guide and
inertia reel, solid with the seat back.
A carrier is provided at each outer seat to
allow the seat belt buckle to be secured
when not in use.
Good practice
The driver must ensure that passengers use
the seat belts correctly and that they are all
strapped in securely before moving off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size.
Do not use accessories (clothes pegs, clips,
safety pins, etc.) which allow the seat belt
straps to fit loosely.
You can unfasten the seat belt by pressing
the red button on the buckle. Guide the seat
belt after unfastening.
Ensure that the seat belt has reeled in
correctly after use.
After folding or moving a seat or a rear
bench seat, ensure that the seat belt has
reeled in correctly and that the buckle is
ready to accommodate the tongue.
The airbag warning lamp also
comes on if the pretensioners are
deployed. Contact a C
i T roën

dealer or a qualified workshop.
In the event of an impact
o
nly for the front seats, and depending on
the nature and seriousness of the impact,
the pretensioning device may be deployed
before and independently of inflation of the
airbags.
i t instantly tightens the seat belts
against the body of the occupants.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
The force limiter reduces the pressure of the
seat belt against the body of the occupants.
The pyrotechnic pretensioners are active
when the ignition is switched on and the
seat belt fastened.
The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.
Seat belts
5
SAFETY
