2016 Citroen DS3 Owner's Manual

11Access
DS3-Cabrio_en_Chap02_ouvertures_ed02-2015
If the roof is carrying out an opening operation in zone B , an action on the boot opening
control causes the roof to close. The boot will be released when the roof reaches position 2 .
You can then raise the boot lid.
Conditions for opening the boot with the roof in zone B
To avoid inter ference between the boot and the roof in zone B, opening the boot depends on the position of the roof.
If the roof is carrying out a closing operation in zone B , an action on the boot opening
control has no effect on the roof operation, but the boot will only be released once the roof
has reached position 2 . You can then raise the boot lid.
During an opening or closing operation of the roof in zone B following an "anti-panic"
function, the boot opening control is inhibited. It will work again once the roof has reached
position 2 or position 3 .
If the roof is position 3 , an action on the boot opening control causes the closing of the roof
to position 2 . When the roof has reached this position, the boot lid will be released. You can
then raise the boot lid.

Access12
DS3-Cabrio_en_Chap02_ouvertures_ed02-2015
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
Unlocking
Emergency release
 Insert a small screwdriver into hole A of
each lateral latch to unlock the boot.
 Fold back the rear seat to gain access to
the two latches, from inside the boot.
Before opening the boot, ensure that
the roof is not in zone B . For information on the perimeter
protection of your vehicle, refer to the
DS 3 handbook. The alarm provides only
perimeter
protection for your vehicle.
Alarm
System for the protection and dissuasion
against theft of your vehicle.

13Comfort
DS3-Cabrio_en_Chap03_confort_ed02-2015

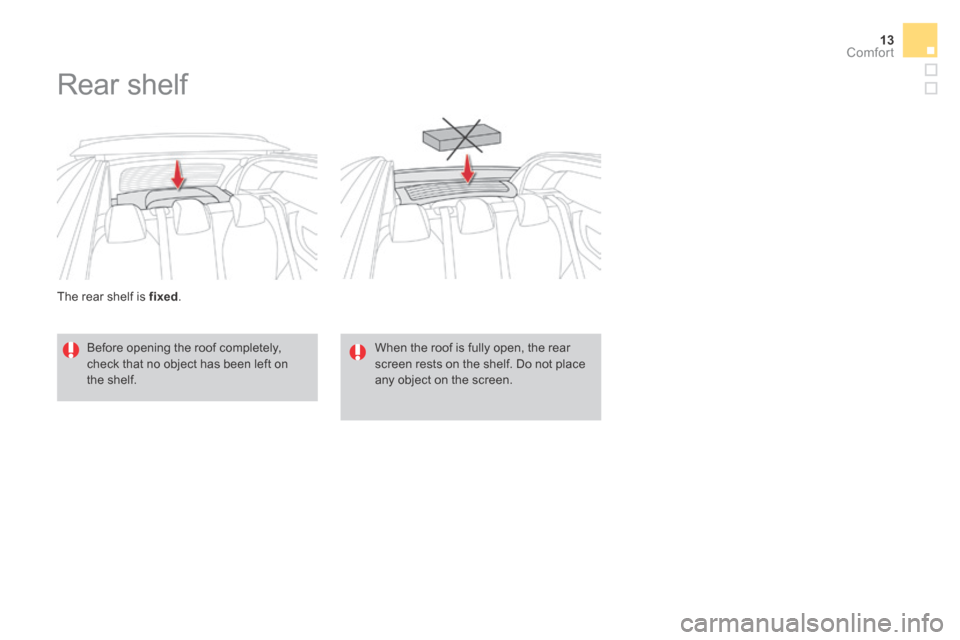

The rear shelf is fixed .
Rear shelf
Before opening the roof completely,
check that no object has been left on
the shelf. When the roof is fully open, the rear
screen rests on the shelf. Do not place
any object on the screen.

Practical information14
DS3-Cabrio_en_Chap08_info-pratiques_ed02-2015
Changing a fuse
 To unclip the upper boot trim, pull it down, starting on the left.
 Remove the trim by tipping it downwards.
 Change the fuses.
To reassemble, carry out these operations in reverse order, starting at the back
of the boot.
Fuse under the bonnet
(maxi-fuse)
Fuse N° Rating Functions
- 20 A Soft top roof
- 20 A Soft top roof
If the roof is in zone B when a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse
replacement, first close the roof manually from inside the boot (by folding the rear seats).
There are three fuses for the soft top roof.
Fuses under the rear shelf
Fuse N°
Rating Functions
MF08 40 A Soft top roof
The maxi-fuses provide additional protection
for the electrical systems. All work on the
maxi-fuses must be carried out by a CITROËN
dealer or a qualified workshop.

15Practical information
DS3-Cabrio_en_Chap08_info-pratiques_ed02-2015
Recommendations on the care of your vehicle
Remove bird droppings or tree resins
as their acidity may damage the roof.
To avoid damaging the roof, never use
a high pressure jet wash. Never use chemical products,
detergents, stain removers, solvents,
alcohol, petrol, ... to clean the roof.
The general recommendations on the care of your vehicle are given in the maintenance and warranty guide.
Allow the vehicle to dry in a shaded
area and avoid direct exposure to
the sun. We recommend that you wash
your vehicle in an automatic roller car
wash. To remove marks, sponge them (but
never rub them) using soapy water,
then immediately rinse with clean
water.
To waterproof the roof, use only special
waterproofing products for fabric roofs.
Soft top
Before washing the soft top, first
remove as much dirt as possible from
the sur face using a soft brush or a
vacuum cleaner.
For the regular maintenance of the
soft top and to conserve its original
appearance, we recommend an
ecological "Fly remover - Soft top roof
cleaner" from the "TECHNATURE"
range. To obtain this product go to a
CITROËN dealer.
Aero-acoustic deflector
We recommend that you clean the
aero-acoustic defector with care using
a soft brush.

Technical data16
DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015
Petrol enginesPureTech 82V Ti 120PureTech 110PureTech 110 S&S
Gearbox Manual (5-speed) Automatic (4-speed)
E AT 6 (6-speed automatic)
Manual (5-speed) EAT6 (6 -speed automatic)
Model code: SB... HMZ6 5FS9 HNVT HNZ6/S H NZ T/S H N V T/S
Cubic capacity (cc) 1 199 1 598 - 1 199 -
Bore x stroke (mm) 75 x 90.5 77 x 85.8 - 75 x 90.5 -
Max power: EU standard (kW) * 60 88 - 81 -
Max power engine speed (rpm) 5 750 6 000 - 5 500 -
Max torque: EU standard (Nm) 118 160 - 205 -
Max torque engine speed (rpm) 2 750 4 250 - 1 500 -
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Catalytic converter Ye s Ye s Ye s Ye s Ye s
Engine oil capacity (in litres) (with filter replacement) 3.25 4.25 - 3.25 -
.../S: model fitted with Stop & Start.
Petrol engines
* The maximum power corresponds to the type-approved value on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

17Technical data
DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015
* The maximum power corresponds to the type-approved value on a test bed, under conditions defined by European legislation (Directive 1999/99/EC). ** For Belgium.
Petrol engines
.../S: model fitted with Stop & Start.
Petrol enginesPureTech 130 S&STHP 165 S&STHP 150 S&S **
Gearbox Manual (6-speed) Manual (6-speed)
Model code: SB... HNYM/S 5GZM/S 5GWM/S **
Cubic capacity (cc) 1 199 1 598
Bore x stroke (mm) 75 x 90.5 77 x 85.8
Max power: EU standard (kW) * 96 120 11 0 * *
Max power engine speed (rpm) 5 500 6 000
Max torque: EU standard (Nm) 230 240
Max torque engine speed (rpm) 1 750 1 400
Fuel Unleaded Unleaded
Catalytic converter Ye s Ye s
Engine oil capacity (in litres) (with filter replacement) 3.5 4.25

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines - GT RACING
Petrol engine208 Racing
Gearbox Manual (6-speed)
Model code : SB... 5GRM/S
Cubic capacity (cc) 1 598
Bore x stroke (mm) 77 x 85.8
Max power: EU standard (kW) * 153
Max power engine speed (rpm) 5 800
Max torque: EU standard (Nm) 300
Max torque engine speed (rpm) 1 700
Fuel Unleaded
Catalytic converter Ye s
Engine oil capacity (in litres) (with filter replacement) 4.25
