2016 Citroen C5 Owner's Manual

215
C5_en_Chap08_information_ed01-2015
F On the front bumper, unclip the cover by
levering at the bottom with the flat end of
the towing eye.
F Screw the towing eye in fully.
F Attach a towing arm.
F Switch on the hazard warning lamps on
both vehicles.
Towing your vehicle
Failure to observe this recommendation
could result in damage to certain
braking components and the absence
of braking assistance the next time the
engine is started.
In the event of a problem or malfunction
with the automatic gearbox, the vehicle
may be immobilised with a gear
engaged. In this case the front of the
vehicle must be lifted for towing. F
On the rear bumper, unclip the cover:
● by pressing at the bottom,
● then by levering at the top using the flat
end of the towing eye.
F Screw the towing eye in fully.
F Attach a towing arm.
F Switch on the hazard warning lamps on
both vehicles.
Towing another vehicle
F Place the gear lever in neutral (position N
with an automatic gearbox).
8
Practical information

216
C5_en_Chap08_information_ed01-2015
Towing a trailer
Your vehicle is primarily designed for transporting people and luggage, but it may also be used for towing a trailer.
Side wind
F Take into account the increased sensitivity
to side wind.
Driving advice
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
We recommend the use of genuine
CITR
oËn towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITR oËn dealer or a
qualified workshop.
If the towbar is not fitted by a
CITROËN dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.
Driving with a trailer places greater demands
on the towing vehicle and the driver must take
particular care.
Distribution of loads
F d istribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.
a ir density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.
F If the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Refer to the "Technical data" section for
details of the weights and towed loads
which apply to your vehicle.
Practical information

217
C5_en_Chap08_information_ed01-2015
Blanking cover
When towing, you must remove the blanking
cover in the front bumper as well as the bonnet
seal if fitted.
Contact a CITROËN dealer or a qualified
workshop for this.
Ty r e s
F Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling
on the trailer.
The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
8
Practical information

218
C5_en_Chap08_information_ed01-2015
Roof bars
The design of your vehicle requires the use
of roof bars that are tested and approved by
CITROËN, for your safety and to avoid damage
to the roof and tailgate.
Regardless of the type of loading equipment
to be transported on the roof (bicycle carrier,
ski carrier...), it is imperative that you add
transverse roof bars. Any securing or lashing to
components other than the roof bars is strictly
prohibited.
Recommendations
F Distribute your load evenly, avoiding
overloading on one side.
F Arrange the heaviest part of the load as
close as possible to the roof.
F a nchor the load securely and draw
attention to it if any part of it is
overhanging.
F Drive gently, as the vehicle will be more
liable to the effects of side winds (vehicle
stability may be altered).
F Remove the roof bars as soon as they are
no longer needed. Maximum load that can be distributed
on the roof bars (for a loading height
not exceeding 40 cm; except bicycle
carrier): 80 kg.
If the height exceeds 40 cm, adapt your
speed to the profile of the road to avoid
damaging the roof bars and the fixings
on the roof.
Please refer to national legislation in
order to comply with the regulations
concerning the transportation of objects
which are longer than the vehicle.
Practical information

219
C5_en_Chap08_information_ed01-2015
Very cold climate protection*
HDi 160 Diesel engine
Normal position
The flap 2 is in a horizontal position in the air
duct 3.
Snow position
F Push and rotate the knob 1 by 90 ° in the
direction of the arrow in order to position
the flap 2 in a vertical position in the air
duct 3 .
To return to the normal position, push the
knob 1 then rotate in the opposite direction.
It is essential to remove the very cold
protection when:
- the ambient temperature exceeds 10 °C.- driving at speeds of over 75 mph
(approximately 120 km/h).
Adjustable device which prevents the intake of snow particles, which could obstruct the air filter.
* Depending on the country of sale.
8
Practical information

220
C5_en_Chap08_information_ed01-2015

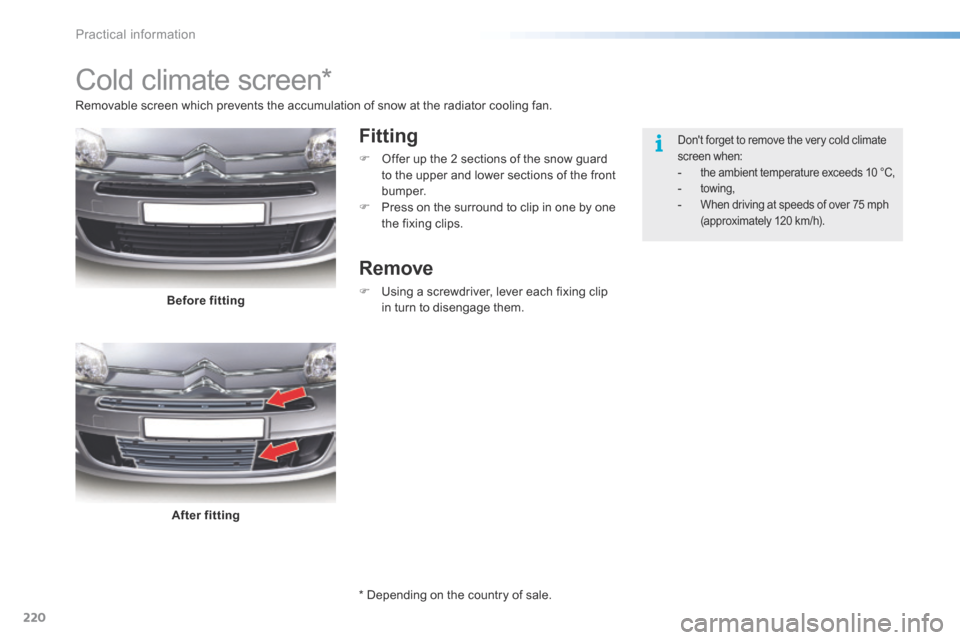

Cold climate screen*
Fitting
F Offer up the 2 sections of the snow guard
to the upper and lower sections of the front
b u m p e r.
F Press on the surround to clip in one by one
the fixing clips.
Remove
F Using a screwdriver, lever each fixing clip
in turn to disengage them.
Before fitting
After fitting
Don't forget to remove the very cold climate
screen when:
- the ambient temperature exceeds 10 °C,- towing,- When driving at speeds of over 75 mph
(approximately 120 km/h).
Removable screen which prevents the accumulation of snow at the radiator cooling fan.
* Depending on the country of sale.
Practical information

221
C5_en_Chap08_information_ed01-2015
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.
accessories
"Comfort":
front and rear parking sensors, isotherm
module, reading lamp, sun blinds, headrest-
mounted coat hanger...
"Transport solutions":
boot liner, boot carpet, towbars, towbar wiring
harness, transverse roof bars, bicycle carrier,
ski carrier, roof boxes, boot dividers, boot net,
boot organiser, sliding boot tray, platform on
towbar, ...
"Style":
alloy wheels, rear spoiler, chromed mirror
shells, door sill protectors, gear lever knobs...
"Security and safety":
anti-intrusion alarm, warning triangle and
high visibility vest, breathalyzer, first aid kit,
snow chains, non-skid covers, security wheel
bolts, vehicle tracking system, child seats, fire
extinguisher, caravan mirror, pet cage and seat
belt, dog guard...
"Protection":
mats*, seat covers, mud flaps, bumper
protectors, vehicle covers, door and boot sill
protectors...
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
8
Practical information

222
C5_en_Chap08_information_ed01-2015
"Multimedia":
Wi-Fi on board, 230V socket, audio systems,
speakers, semi-integral navigation systems,
portable navigation systems, hands-free kit,
DVD player, USB Box, mapping update CD,
driving aid, Hi-Fi module...The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a CITRoËn dealer
for information on the range of
recommended equipment and
accessories.
Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITR oËn dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC). Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
Practical information
