2016 Citroen C4 PICASSO tow

220
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed01-2016
Screenwash and washer jets
Windscreen wash and headlamp wash
Adjusting the jets
The f ront  w ashers  i nclude  a n  a djustment  f or  t he
h

eight   of   delivery   from   the   jets.
If
  you   want   to   modify   the   factory   setting,   turn
t

he   screw   on   each   jet   anti-clockwise,   towards
t

he   "+"   to   raise   the   jet   or   clockwise,   towards
t

he "-"   to   lower   it.
Headlamp wash
F Pull  the   windscreen   wiper   stalk   towards  y
ou.   The   windscreen   wash   then   the
w

indscreen   wipers   operate   for   a   fixed
p

eriod.
A
  few   moments   after   releasing   the   wiper   stalk,
t

here is a last wipe to clear any runs from the
screen. The headlamps operate when the vehicle is
moving
  and   when   the   dipped   beam   headlamps
a

re   on.   However,   to   reduce   the   consumption
o

f screenwash fluid, the headlamp wash only
operates with every 7th use of the screenwash
or
  once   every   25   miles   (40   km),   during   a   given
j

o u r n ey.
Lighting and visibility

224
C4-Picasso-II_en_Chap06_securite_ed01-2016
Hazard warning lamps
Visual warning with all of the direction i
ndicators   flashing   to   alert   other   road   users   to   a
v

ehicle   breakdown,   towing   or   accident.
F

P
ress this button, all of the direction
indicators
 f

lash.
They
  can   operate   with   the   ignition   off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on the   deceleration,   the   hazard   warning   lamps
c

ome   on   automatically.
They switch off automatically the first time you
accelerate.
F

Y
ou   can   also   switch   them   off   by   pressing
t

he   button.
Horn
F Press   the   central   part   of   the   steering  w
heel. This
  system   allows   you   to   make   an   emergency
o

r   assistance   call   to   the   emergency   services   or
t

o   the   dedicated   CITROËN   service.
Emergency or
a

ssistance call
For more information on the use of this
function, refer to the "Audio and telematics"
section.
Safety

225
C4-Picasso-II_en_Chap06_securite_ed01-2016
Electronic stability control (ESC) incorporating the   following   systems:
-

a
nti-lock   braking   system   (ABS)   and
e

lectronic   brake   force   distribution   (EBFD),
-

e
mergency   braking   assistance   (EBA),
-

w
heel   anti-slip   regulation   (ASR)   or   traction
c

ontrol,
-

d
ynamic   stability   control   (DSC).
Electronic stability control (ESC)
Definitions
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
This system improves the stability and
manoeuvrability  of   your   vehicle   when   braking
a

nd contributes towards improved control on
corners, in particular on poor or slippery road
surfaces.
The
  ABS   prevents   wheel   lock   in   the   event   of
em

ergency
 b
raking.
The
  EBFD   manages   the   braking   pressure
w

heel   by   wheel.
Emergency braking assistance
(EBA)
In an emergency, this system enables you to reach   the   optimum   braking   pressure   more
q

uickly   and   therefore   reduce   the   stopping
di

stance.
It
  is   triggered   according   to   the   speed   at   which
t

he   brake   pedal   is   pressed.   This   is   felt   by   a
r

eduction in the resistance of the pedal and an
increase
  in   the   effectiveness   of   the   braking.
Anti-slip regulation (ASR)
The ASR system (also known as Traction Control) optimises traction in order to limit
wheel
  slip   by   acting   on   the   brakes   of   the   driving
w

heels   and   on   the   engine.   It   also   improves
t

he directional stability of the vehicle on
acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that required by
the driver, the DSC monitors each wheel and
automatically
  acts   on   the   brake   of   one   or   more
w

heels   and   on   the   engine   to   return   the   vehicle
t

o the required path, within the limits of the laws
of
  physics.
6
Safety

229
C4-Picasso-II_en_Chap06_securite_ed01-2016
2nd row seat belts
The rear seats are each fitted with a seat belt,
three-point  anchorages   with   inertia   reel   and
f

orce   limiter   (except   for   the   centre   rear   seat).Guide the belt as it reels in and place the
tongue
  on   the   magnet   at   the   side   anchorage
po

int.
2nd row outer seat belts
(stowing)
6
Safety

230
C4-Picasso-II_en_Chap06_securite_ed01-2016
2nd row centre seat belt
The seat belt for the centre rear seat is built into the roof.
Fastening
F Pull  the   strap   and   insert   the   tongue   A into
the   right   hand   buckle.
F

I
nsert   tongue   B   into   the   left   hand   buckle.
F

C
heck   that   each   buckle   is   correctly
f

astened   by   pulling   on   the   belt   webbing.
Unfastening
F Press  the   red   button   in   buckle   B, then
buckle A .
F

G
uide the seat belt as it reels in and place
the
  tongue   B and then A   on   the   magnet   in
t

he   roof   anchorage   point.
Before any operation of the rear seats,
to
  avoid   damage   to   the   seat   belts
c

heck   that   there   is   no   slack   in   the   outer
b

elts   and   secure   their   tongues   on   the
a

nchorage   points.   The   centre   seat   belt
m

ust   be   fully   reeled   in.
3rd row seat belts
Fastening
F Detach  the   seat   belt   strap   from   its   retaining  l
oop   located   on   the   side   trim   of   the   boot.
F

P
ull   on   the   strap   and   insert   the   tongue   into
t

he   buckle.
F

C
heck   that   the   buckle   is   correctly   fastened
b

y   pulling   on   the   belt   strap.
Unfastening and stowing
F Press  the   red   button   in   buckle.
F  G uide   the   seat   belt   strap   as   it   reels   in.
F

S
ecure   the   strap,   flat   in   the   retaining   loop.
Ensure that the seat belts are secured
when
  not   in   use.
Safety

232
C4-Picasso-II_en_Chap06_securite_ed01-2016
The driver must ensure that passengers use the seat belts correctly and that they are all
fastened
  before   setting   off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do
  not   interchange   the   seat   belt   buckles   as
t

hey   will   not   fulfill   their   role   fully.
The seat belts are fitted with an inertia reel
permitting
  automatic   adjustment   of   the
l

ength   of   the   strap   to   your   size.   The   seat   belt
i

s   stowed   automatically   when   not   in   use.
Before and after use, ensure that the seat
belt
  is   reeled   in   correctly.
The lower part of the strap must be
positioned
  as   low   as   possible   on   the   pelvis.
The upper part must be positioned in the
hollow
  of   the   shoulder.
The inertia reels are fitted with an automatic
locking
  device   which   comes   into   operation   in
t

he   event   of   a   collision,   emergency   braking
o

r   if   the   vehicle   rolls   over.   You   can   release
t

he   device   by   pulling   the   strap   firmly   and
t

hen   releasing   it   so   that   it   reels   in   slightly.Recommendations for children
Use a suitable child seat if the passenger is less than 12 years old or shorter than one
and
  a   half   metres.
Never use the same seat belt to secure more
than
  one   person.
Never
  allow   a   child   to   travel   on   your   lap.
For more information on Child seats , refer
to
  the   corresponding   section.
In

order

to

be

effective,

a

seat

belt

must:
-
 b
e

tightened

as

close

to

the

body

as
 p
ossible,
-

b

e pulled in front of you with a smooth
movement,

checking

that

it

does

not

t

wist,
-

b

e used to restrain only one person,
-

n

ot

bear

any

trace

of

cuts

or

fraying,
-

n

ot be converted or modified to avoid
affecting
 it

s
 p

erformance.
In the event of an impact
Depending on the nature and
seriousness of the impact , the
pretensioning
  device   may   be   deployed
b

efore   and   independently   of   the   airbags.
D

eployment of the pretensioners is
accompanied
  by   a   slight   discharge   of
h

armless   smoke   and   a   noise,   due   to   the
a

ctivation   of   the   pyrotechnic   cartridge
i

ncorporated   in   the   system.
In
  all   cases,   the   airbag   warning   lamp   comes
o

n.
Following
  an   impact,   have   the   seat   belts
s

ystem   checked,   and   if   necessary   replaced,
b

y a CITROËN dealer or a qualified
workshop.
In accordance with current safety
regulations,

for

all

repairs

on

your

vehicle's

s

eat

belts,

go

to

a

qualified

workshop

with
 t
he

skills

and

equipment

needed,

which

a
 C
ITROËN

dealer

is

able

to

provide.
Have

your

seat

belts

checked

regularly

by

a


CITROËN

dealer

or

a

qualified

workshop,

p

articularly

if

the

straps

show

signs

of

d

amage.
Clean the seat belt straps with soapy
water

or

a

textile

cleaning

product,

sold

by

C

ITROËN

dealers.
After

folding

or

moving

a

seat

or

rear

bench

s

eat, ensure that the seat belt is positioned
and

reeled

in

correctly.
Advice
Safety

233
C4-Picasso-II_en_Chap06_securite_ed01-2016

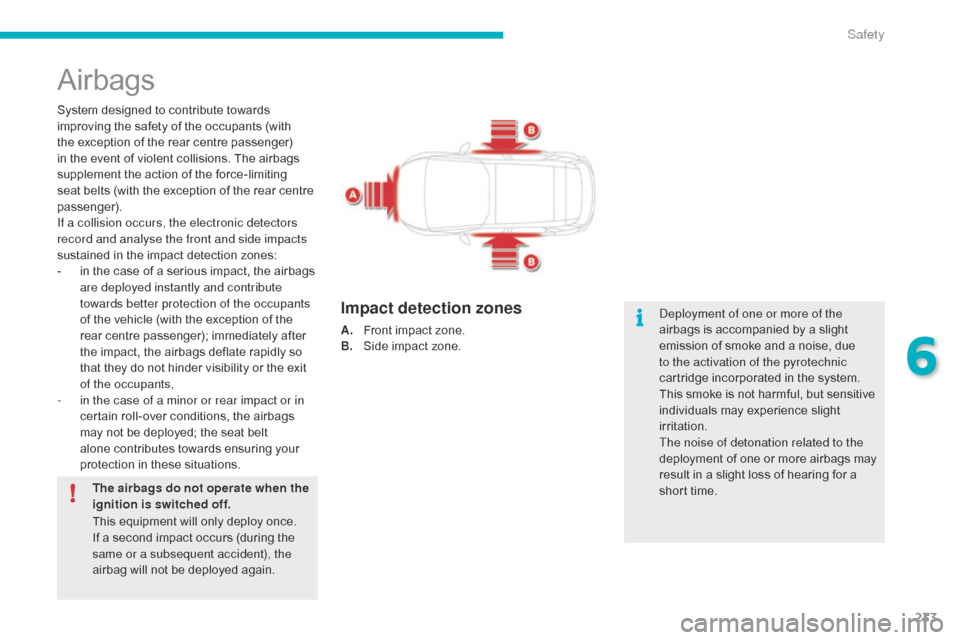

Airbags
System designed to contribute towards improving   the   safety   of   the   occupants   (with
t

he   exception   of   the   rear   centre   passenger)
i

n   the   event   of   violent   collisions.   The   airbags
s

upplement   the   action   of   the   force-limiting
s

eat   belts   (with   the   exception   of   the   rear   centre
p

assenger).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained
  in   the   impact   detection   zones:
-

i
n   the   case   of   a   serious   impact,   the   airbags
a

re deployed instantly and contribute
towards better protection of the occupants
of
  the   vehicle   (with   the   exception   of   the
r

ear   centre   passenger);   immediately   after
t

he   impact,   the   airbags   deflate   rapidly   so
t

hat   they   do   not   hinder   visibility   or   the   exit
o

f the occupants,
-

i
n the case of a minor or rear impact or in
certain
  roll-over   conditions,   the   airbags
m

ay   not   be   deployed;   the   seat   belt
a

lone   contributes   towards   ensuring   your
p

rotection   in   these   situations.
The airbags do not operate when the
ignition is switched off.
This
  equipment   will   only   deploy   once.
I

f   a   second   impact   occurs   (during   the
s

ame or a subsequent accident), the
airbag
  will   not   be   deployed   again. Deployment of one or more of the
airbags
  is   accompanied   by   a   slight
e

mission   of   smoke   and   a   noise,   due
t

o the activation of the pyrotechnic
cartridge
  incorporated   in   the   system.
This
  smoke   is   not   harmful,   but   sensitive
i

ndividuals   may   experience   slight
ir

ritation.
The noise of detonation related to the
deployment
  of   one   or   more   airbags   may
r

esult   in   a   slight   loss   of   hearing   for   a
s

hort   time.
Impact detection zones
A. Front  impact   zone.
B. S ide   impact   zone.
6
Safety

235
C4-Picasso-II_en_Chap06_securite_ed01-2016
Lateral airbags
Deployment
A lateral airbag is deployed unilaterally in the event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to
  the   longitudinal   centreline   of   the   vehicle   on   a
h

orizontal plane and directed from the outside
towards
  the   inside   of   the   vehicle.
The
  lateral   airbag   inflates   between   the   hip   and
s

houlder of the front occupant of the vehicle
and
  the   corresponding   door   trim   panel.
System which protects the driver and front
passenger
  in   the   event   of   a   serious   side   impact
i

n   order   to   limit   the   risk   of   injury   to   the   chest,
b

etween   the   hip   and   the   shoulder.
Each   lateral   airbag   is   fitted   in   the   seat   backrest
f

rame,   door   side.
Impact detection zones
A. Front
  impact   zone.
B. S ide   impact   zone.
6
Safety
