2016 CITROEN C-ELYSÉE key

117

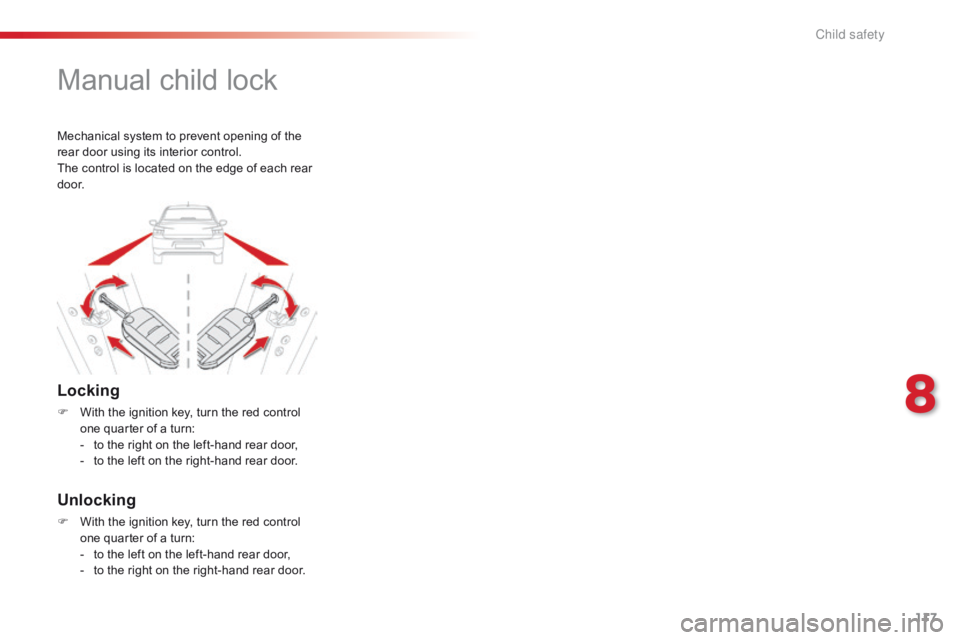

Manual child lock
Locking
F With the ignition key, turn the red control one quarter of a turn:
-

t
o the right on the left-hand rear door,
-

t
o the left on the right-hand rear door.
Unlocking
F With the ignition key, turn the red control one quarter of a turn:
-

t
o the left on the left-hand rear door,
-

t
o the right on the right-hand rear door.
Mechanical system to prevent opening of the
rear door using its interior control.
The control is located on the edge of each rear
d o o r.
8
C

153
Towing your vehicleTowing another vehicle
F On the front bumper, unclip the cover by
pressing on the left edge.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar. Put the gear lever into neutral
(position


N for an electronic or
automatic gearbox).
Failure to follow this instruction may
cause damage to some components
(braking, transmission...) and the
absence of braking assistance when
the engine is restarted.
F U nlock the steering by turning the key
in the ignition one notch and release the
parking brake.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently, drive slowly and for a short
distance. This towing is strictly prohibited (risk of
damaging your vehicle).
9
Practical information

05
192
USING THE TELEPHONE
A virtual keypad is displayed on the
screen: enter a code of at least 4 digits
then press the control knob to confirm.
A message is displayed on the screen of the
telephone: enter the same code and confirm. A message appears in the screen to confirm the result of the
connection.
Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices. Accept the connection to the telephone.
If pairing fails, try again; the number of attempts is not limited. The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be configured in the telephone to allow
the connection each time the vehicle is started.
In some cases, the reference number of the telephone or the
Bluetooth address may appear instead of the name of the telephone.
Pair/connect the telephone then listen: see the AUDIO section.
Streaming - Playing audio files via
Bluetooth

05
198
USING THE TELEPHONE
From the contextual menu, select
"DTMF tones" and confirm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
"Switch" and confirm to return to a call
left on hold.
Interactive voice response
Call on hold
In the contextual menu:
-

select "

Telephone mode " to
transfer the call to the telephone.
-

deselect "

Telephone mode" to
transfer the call to the vehicle.
In certain cases, the combined mode has to activated from the
telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone). Combined mode
(to leave the vehicle without ending the call)

224
Exterior
Remote control key 30 -33
- o pening / closing
-

a
nti-theft protection
-
s

tarting
-
b

attery
Boot
3

7-38
-

o
pening / closing
-
em

ergency release
Temporary puncture
repair kit

1
22-127
Wipers

87
- 88
Changing a wiper blade

1
51
Changing bulbs
1

40-141
-

r
ear lamps
-

3rd brake lamp
-
n
umber plate lamps
-
fo

glamp
Fuel tank, misfuel prevention
1

18-120
Running out of fuel (Diesel)

1
21
Accessories
1

57-158
ESP/ASR

9

5
Tyre pressures

1

76
Changing a wheel

1

28 -134
-

t

ools
-

r

emoving / refitting
Snow chains

1

35
Under-inflation detection
9

1-93
Lighting controls

8

1- 85
Daytime running lamps

8

5
Headlamp beam adjustment

8

6
Changing bulbs
1

36-139
-

f

ront lamps
-
fo

glamps
-

d

irection indicator repeaters
Towing
15

2-153
Very cold climate screen(s)

1

56
Door mirrors

4

3 - 44
Doors
3
0 -33, 36
-

o

pening / closing
-

c

entral locking
-

s

econdary control
Alarm
3

4-35
Electric windows

3

9 Rear parking sensors

7
9 - 80
To w b a r
1
5 4
Visual search

231
Labels, identification .....................................17 6
Lamps, front .................................................. 13
6
Lamps, warning and indicator

...............................
.............11 -1 9
Level, brake fluid

........................................... 16

7
Levels and checks

..............................
..163 -168
Lighting
................

............................................ 81
Lighting bulbs (replacement)
....................................... 1

3 6 -141
Lighting control stalk

....................................... 81
L

ighting, guide-me home
................................85
L

ighting, interior
.............................................. 89
Lo

ading
..............................
.......................8, 160
Load reduction mode

.................................... 14

9
Locating your vehicle

...................................... 31
L

ow fuel level
..............................
............18, 118
Lower windscreen defrosting

..........................54
M

ain beam
..............................
................ 81, 137
Maintenance
..............................

....................... 8
Maintenance (advice)
.................................... 15

7
Manual air conditioning
(without screen)

............................................ 48
M

ap reading lamps
......................................... 89
M

arkings, identification
................................. 17

6
Mat
.......

......................................................... 159
Menu, main

..............................
.....................180
Mirror, rear view

.............................................. 44
M

irrors, door.................................................... 43Misfuel prevention ...............................
..........11 9
Mountings for ISOFIX seats
.........................11
2
MP3 CD

................
......................... 185, 186, 214
Number plate lamps

......................................1

41
oil

filter
...............
...........................................169
oi

l level.......................................................... 165
Opening the bonnet

......................................16

2
Opening the boot

..............................
........30, 37
Opening the doors

...............................
.....30, 36
Operation indicator lamps

.........................11

-1 9
M
N
O
Inflating tyres .................................................... 8
Inputs for audio system ........... 5 7, 186, 189, 217
Instrument panel

...............................
..............10
Instrument panel screen

........................... 1
0, 74
Interior fittings
...........................................

55, 56
ISOFIX mountings ..........................112, 115, 116
Jack
........

....................................................... 128
JACK socket

............................ 5
7, 186, 189, 217
Keeping children safe

..............9
8, 100, 103 -117
Key in ignition warning

....................................63
K

ey with remote control
...................... 3
0 -33, 61
L
J
K
.
alphabetical index

7
5
Driving
C-Elysee-add_en_Chap05_conduite_ed01-2014
Stop & Start
Operation
Going into engine STOP mode
The "ECO" warning lamp comes on in the instrument panel and the engine goes into standby:
- with a 5-speed electronic gearbox , with the with a 5-speed electronic gearbox , with the with a 5-speed electronic gearboxvehicle stationary, when you press the brake pedal or put the gear lever in position N .
A time counter calculates the sum of the periods in STOP mode during a journey. It rests itself to zero every time the ignition is switched on with the key.
Special cases: STOP mode not available
STOP mode is not invoked when: - the driver's door is open, - the driver's seat belt is not fastened, - the engine is needed to maintain a comfortable temperature in the passenger compartment, - demisting is active, - some special conditions (battery charge, engine temperature, braking assistance, ambient temperature...) where the engine is needed to assure control of a system.
The "ECO" warning lamp flashes for a few seconds then goes off.
This operation is perfectly normal.
The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently. Per fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Never refuel with the engine in STOP mode; you must switch off the ignition with the key.
For your comfort, during parking manoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear. STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...

9
5
Driving
C-Elysee-add_en_Chap05_conduite_ed01-2014
Maintenance
In the event of a fault with the system, the "ECO OFF" switch warning lamp flashes then comes on continuously. Have it checked by a CITROËN dealer or a qualified workshop.
In the event of a fault in STOP mode, the vehicle may stall. All of the warning lamps in the instrument panel come on. It is then necessary to switch off the ignition and start the engine again using the key.
Operating fault
This system requires a battery with a special specification and technology (reference numbers available from a CITROËN dealer or a qualified workshop). Fitting a battery not listed by CITROËN introduces the risk of malfunction of the system.
Before doing anything under the bonnet, deactivate the Stop & Start system to avoid any risk of injury resulting from automatic operation of START mode.
The Stop & Start system makes use of advanced technology. All work on this type of battery must be done by a CITROËN dealer or a qualified workshop.
Reactivation
The system is reactivated automatically at every new start using the key.
Press the "ECO OFF" switch again. The system is active again; this is confirmed by the switch warning lamp going off, accompanied by a message in the screen.
