Fuel used for petrol
engines
The petrol engines are compatible with
E10 bio-petrol (containing 10 % ethanol),
conforming to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
Fuel used for Diesel
engines
The Diesel engines are compatible with
biofuels which conform to current and future
European standards (Diesel fuel which
complies with standard EN 590 mixed with
a biofuel which complies with standard
EN
14214) available at the pumps (containing
up to 7 % Fatty Acid Methyl Ester).
B30 biofuel can be used in certain Diesel
engines. However, this use, even occasional,
requires strict application of the special
servicing conditions. Contact a CITROËN
dealer or a qualified workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
Practical information

171
EngineVTi 72 VTi 115
Gearbox Manual
(5-speed) Electronic
(5-speed) Manual
(5-speed) Automatic
(4-speed)
Model code: DD... HMY0HMY0/P NFP0NFP9
Cubic capacity (cc) 1 1991 587
Bore x stroke (mm) 75 x 90.578.5 x 82
Max power: EU standard (kW)* 5385
Max power engine speed (rpm) 5 5006 050
Max torque: EU standard (Nm) 11 0150
Max torque engine speed (rpm) 3 0004 000
Fuel Unleaded 91 RON to 98 RONUnleaded 91 RON to 98 RON
Catalytic converter yesyes
Engine oil capacity in litres (with filter
replacement) 3.25
3.5
Petrol engines
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation
(Directive 1 999/99/EC).
11
Technical data

173

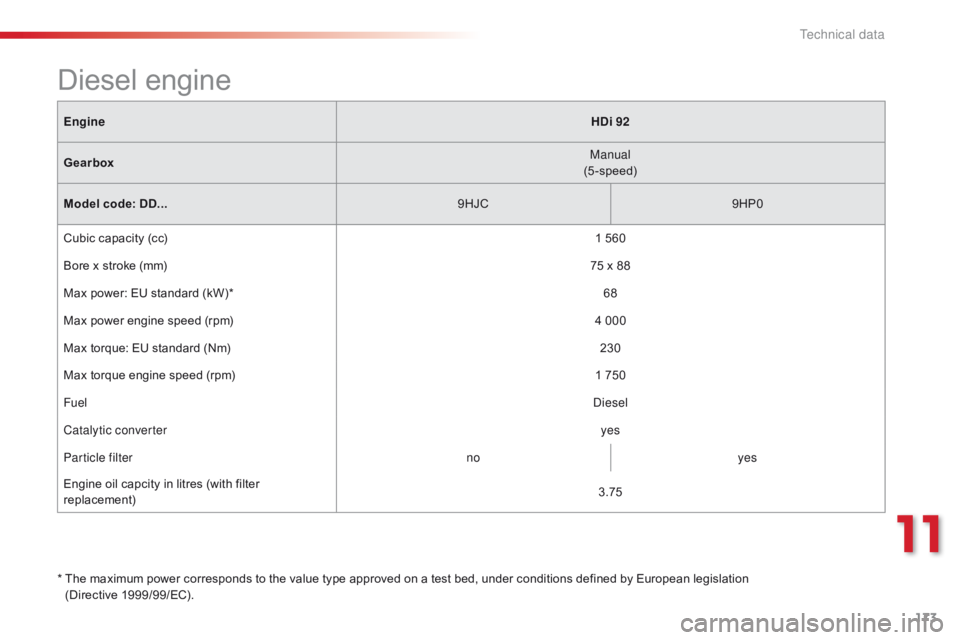

EngineHDi 92
Gearbox Manual
(5-speed)
Model code: DD... 9HJC9HP0
Cubic capacity (cc) 1 560
Bore x stroke (mm) 75 x 88
Max power: EU standard (kW)* 68
Max power engine speed (rpm) 4 000
Max torque: EU standard (Nm) 230
Max torque engine speed (rpm) 1 750
Fuel
die

sel
Catalytic converter yes
Particle filter noyes
Engine oil capcity in litres (with filter
replacement) 3.75
Diesel engine
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation
(Directive 1 999/99/EC).
11
Technical data

22
Technical data
C-Elysee-add_en_Chap11_caracteristiques-techniques_ed01-2014
EnginePureTech 72V T i 115PureTech 82PureTech 82 S&S
Gearbox Manual (5-speed)
ETG electronic (5-speed)
Manual (5-speed) Automatic (4-speed) Manual (5-speed)
ETG electronic (5-speed)
Model code : DD... HMY0 HMY0/P NFP0 NFP6 NFP9 HMZ6 HMZ6/PS
Cubic capacity (cc) 1 199 1 587 1 199 1 200
Bore x stroke (mm) 75 x 90.5 78.5 x 82 75 x 90.5 75 x 90.6
Max power: EU standard (kW) * 53 85 60 60
Max power engine speed (rpm) 5 500 6 050 5 750 5 750
Max torque: EU standard (Nm) 11 0 150 118 118
Max torque engine speed (rpm) 3 000 4 000 2 750 2 750
Fuel Unleaded 91 RON to 98 RON Unleaded 91 RON to 98 RON Unleaded 91 RON to 98 RON
Unleaded 91 RON to 98 RON
Catalytic converter yes yes yes yes
Engine oil capacity in litres (with filter replacement) 3.25 3.5 3.25 3.25
Petrol engines
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

24
Technical data
C-Elysee-add_en_Chap11_caracteristiques-techniques_ed01-2014
EngineHDi 92BlueHDi 100
Gearbox Manual (5-speed) Manual (5-speed)
Model code: DD... 9HJC 9HP0 BHY6
Cubic capacity (cc) 1 560 1 560
Bore x stroke (mm) 75 x 88 75 x 88.3
Max power: EU standard (kW) * 68 73
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 230 254
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter yes yes
Particle filter no yes yes
Engine oil capcity in litres (with filter replacement) 3.75 3.75
Diesel engines
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

22
Technical data
C-Elysee-add_en_Chap11_caracteristiques-techniques_ed01-2014
EnginePureTech 72V T i 115PureTech 82PureTech 82 S&S
Gearbox Manual (5-speed)
ETG electronic (5-speed)
Manual (5-speed) Automatic (4-speed) Manual (5-speed)
ETG electronic (5-speed)
Model code : DD... HMY0 HMY0/P NFP0 NFP6 NFP9 HMZ6 HMZ6/PS
Cubic capacity (cc) 1 199 1 587 1 199 1 200
Bore x stroke (mm) 75 x 90.5 78.5 x 82 75 x 90.5 75 x 90.6
Max power: EU standard (kW) * 53 85 60 60
Max power engine speed (rpm) 5 500 6 050 5 750 5 750
Max torque: EU standard (Nm) 11 0 150 118 118
Max torque engine speed (rpm) 3 000 4 000 2 750 2 750
Fuel Unleaded 91 RON to 98 RON Unleaded 91 RON to 98 RON Unleaded 91 RON to 98 RON
Unleaded 91 RON to 98 RON
Catalytic converter yes yes yes yes
Engine oil capacity in litres (with filter replacement) 3.25 3.5 3.25 3.25
Petrol engines
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

24
Technical data
C-Elysee-add_en_Chap11_caracteristiques-techniques_ed01-2014
EngineHDi 92BlueHDi 100
Gearbox Manual (5-speed) Manual (5-speed)
Model code: DD... 9HJC 9HP0 BHY6
Cubic capacity (cc) 1 560 1 560
Bore x stroke (mm) 75 x 88 75 x 88.3
Max power: EU standard (kW) * 68 73
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 230 254
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter yes yes
Particle filter no yes yes
Engine oil capcity in litres (with filter replacement) 3.75 3.75
Diesel engines
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
