2016 CHRYSLER TOWN AND COUNTRY Owners Manual

NOTE:It is illegal to remove or alter the VIN.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a collision resulting in serious injury or
death.
Stamped VIN Location
1
INTRODUCTION 7

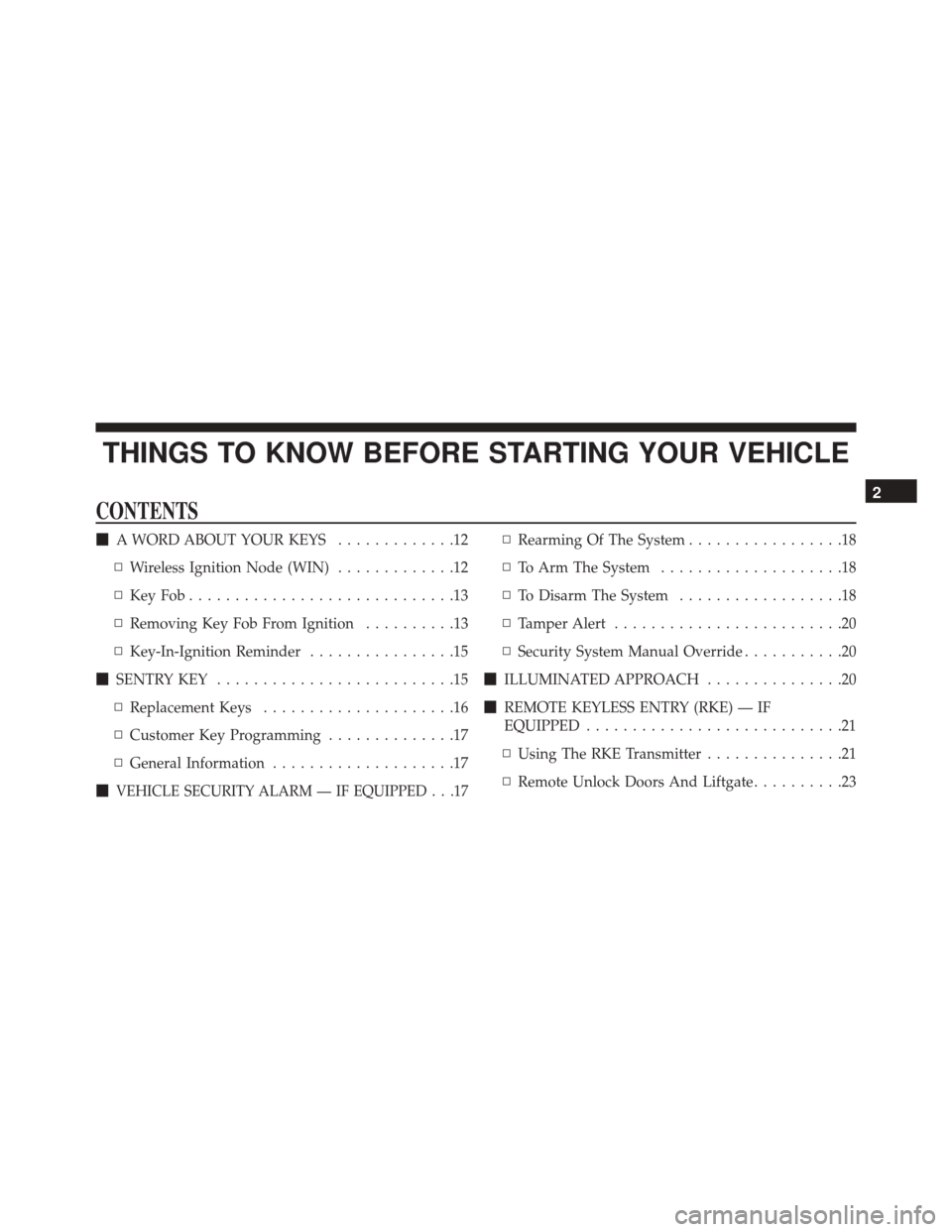

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Wireless Ignition Node (WIN) .............12
▫ KeyFob.............................13
▫ Removing Key Fob From Ignition ..........13
▫ Key-In-Ignition Reminder ................15
 SENTRY KEY ..........................15
▫ Replacement Keys .....................16
▫ Customer Key Programming ..............17
▫ General Information ....................17

VEHICLE SECURITY ALARM — IF EQUIPPED . . .17
▫ Rearming Of The System .................18
▫ To Arm The System ....................18
▫ To Disarm The System ..................18
▫ Tamper Alert .........................20
▫ Security System Manual Override ...........20
 ILLUMINATED APPROACH ...............20
 REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED ............................21
▫ Using The RKE Transmitter ...............21
▫ Remote Unlock Doors And Liftgate ..........23
2

▫Sound Horn With Remote Lock ............24
▫ Using The Panic Alarm ..................25
▫ Power Open/Close Power Liftgate — If
Equipped ............................25
▫ Power Open/Close Left Power Sliding Door — If
Equipped ............................26
▫ Power Open/Close Right Power Sliding Door —
If Equipped ..........................26
▫ Turn Off Flash Lights With RKE Lock — If
Equipped ............................27
▫ Programming Additional Transmitters ........28
▫ Transmitter Battery Replacement ...........28
▫ General Information ....................30

REMOTE STARTING SYSTEM — IF EQUIPPED . .30
▫ How To Use Remote Start ................31
 DOOR LOCKS .........................35
▫ Manual Door Locks .....................35
▫ Power Door Locks — If Equipped ..........37
 KEYLESS ENTER-N-GO ..................39
 WINDOWS ...........................44
▫ Power Vent Windows — If Equipped ........44
▫ Power Windows .......................44
 SLIDING SIDE DOOR ....................49
▫ Power Sliding Side Door — If Equipped ......50
▫ Sliding Side Door Child Protection Lock ......54
 LIFTGATE ............................56
▫ Power Liftgate — If Equipped .............57

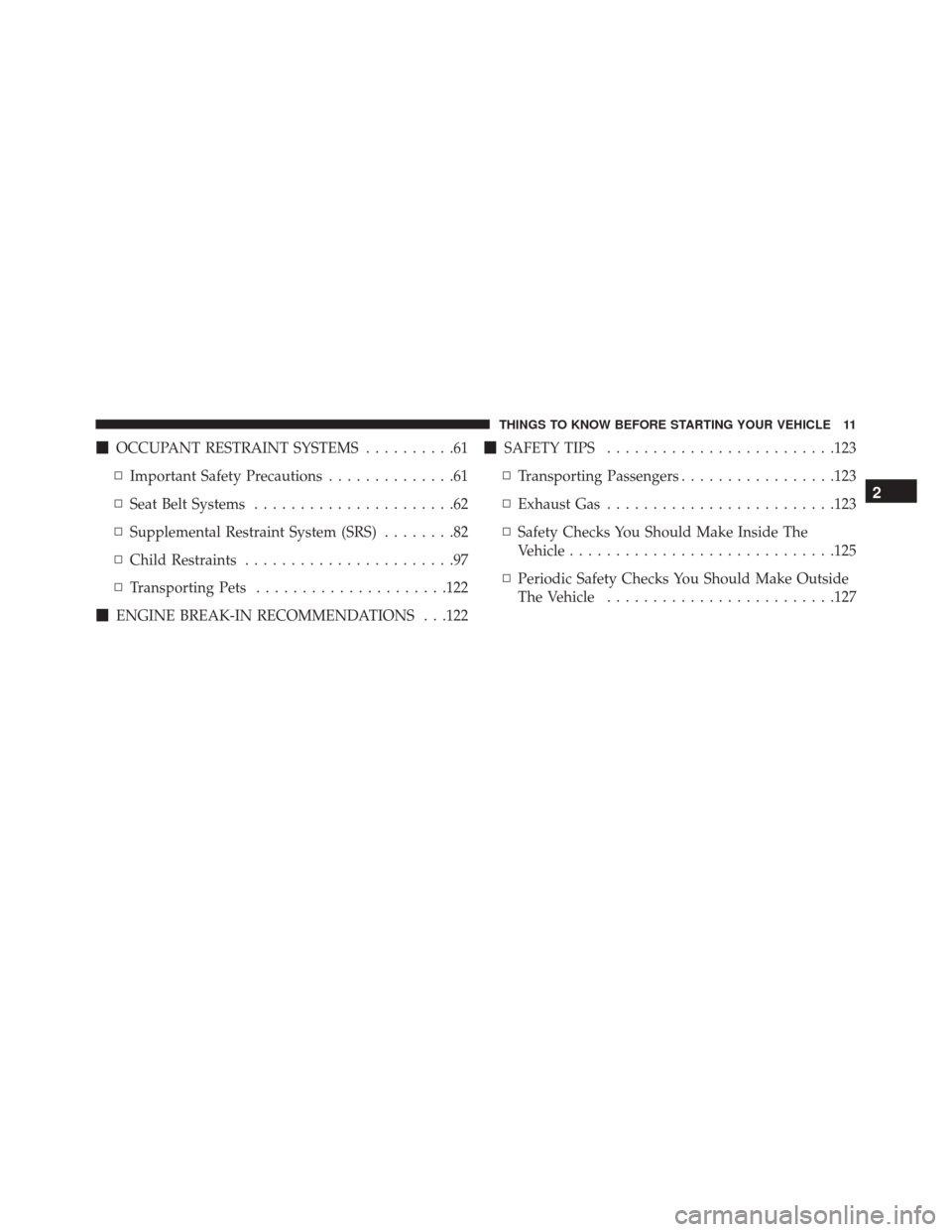

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

OCCUPANT RESTRAINT SYSTEMS ..........61
▫ Important Safety Precautions ..............61
▫ Seat Belt Systems ......................62
▫ Supplemental Restraint System (SRS) ........82
▫ Child Restraints .......................97
▫ Transporting Pets .....................122
 ENGINE BREAK-IN RECOMMENDATIONS . . .122
SAFETY TIPS ........................ .123
▫ Transporting Passengers .................123
▫ Exhaust Gas ........................ .123
▫ Safety Checks You Should Make Inside The
Vehicle ............................ .125
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ........................ .127
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
Your vehicle is equipped with a keyless ignition system.
This system consists of a Key Fob with Remote Keyless
Entry (RKE) transmitter and a Wireless Ignition Node
(WIN) with integral ignition switch. You can insert the
Key Fob into the ignition switch with either side up.
Keyless Enter-N-Go Feature If Equipped
This vehicle may be equipped with the Keyless Enter-
N-Go feature. Please refer to “Starting Procedures” in
“Starting And Operating” for further information.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
with detents and one that is spring-loaded. The detent
positions are OFF, ACC, and ON/RUN. The START
position is a spring-loaded momentary contact position.When released from the START position, the switch
automatically returns to the ON/RUN position.Wireless Ignition Node (WIN)
1 — OFF
2 — ACCESSORY
3 — ON/RUN
4 — START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key Fob
The Key Fob operates the ignition switch. Insert the
square end of the Key Fob into the ignition switch located
on the instrument panel and rotate to the desired posi-
tion. It also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which stores in the
rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. The emergency key is also for locking the lower
glove compartment. You can keep the emergency key
with you when valet parking.
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.NOTE:
You can insert the double-sided emergency key
into the lock cylinder with either side up.
Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the Key Fob to the
OFF position and then remove the Key Fob.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

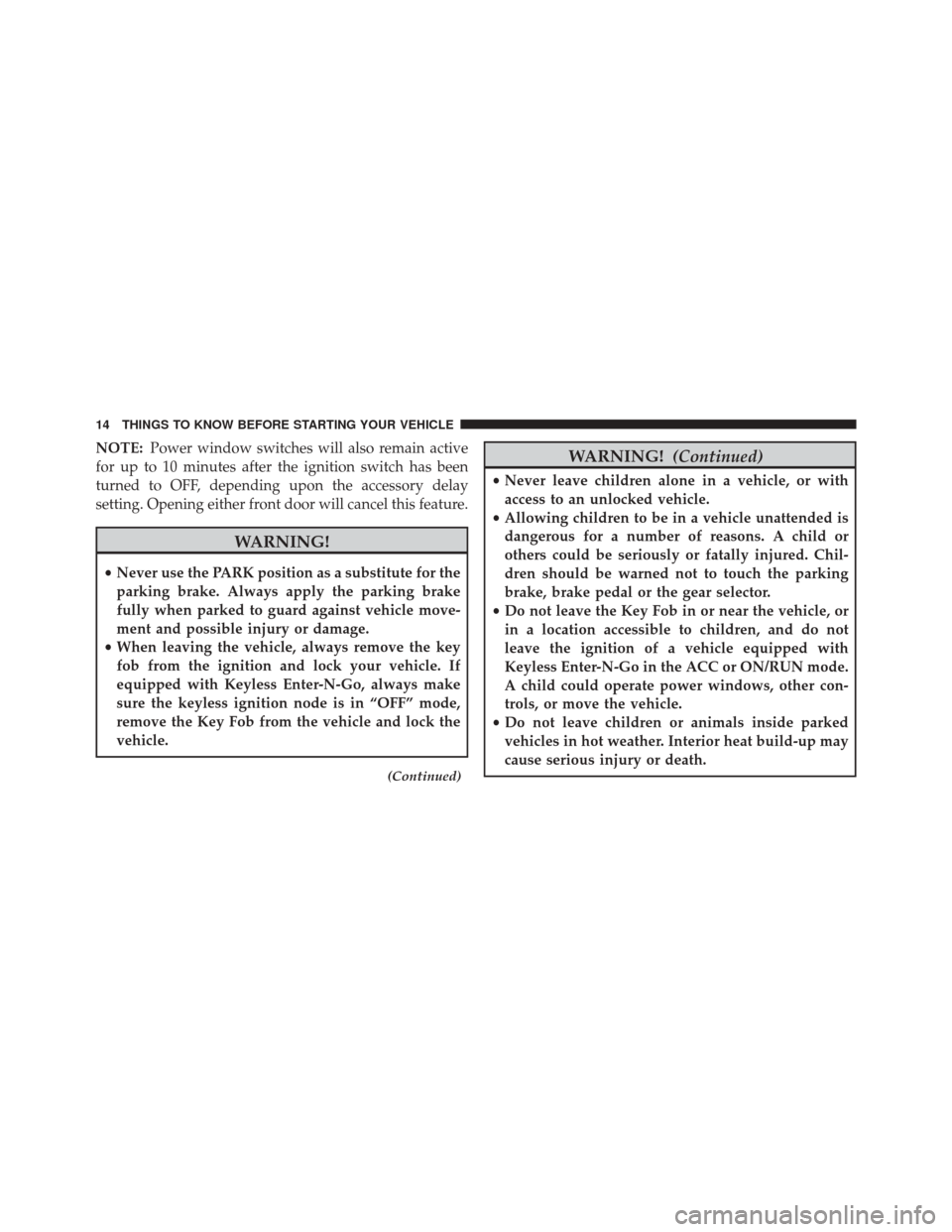

NOTE:Power window switches will also remain active
for up to 10 minutes after the ignition switch has been
turned to OFF, depending upon the accessory delay
setting. Opening either front door will cancel this feature.
WARNING!
• Never use the PARK position as a substitute for the
parking brake. Always apply the parking brake
fully when parked to guard against vehicle move-
ment and possible injury or damage.
• When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle. If
equipped with Keyless Enter-N-Go, always make
sure the keyless ignition node is in “OFF” mode,
remove the Key Fob from the vehicle and lock the
vehicle.
(Continued)
WARNING! (Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode.
A child could operate power windows, other con-
trols, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
