2016 Alfa Romeo Giulia Owner's Manual

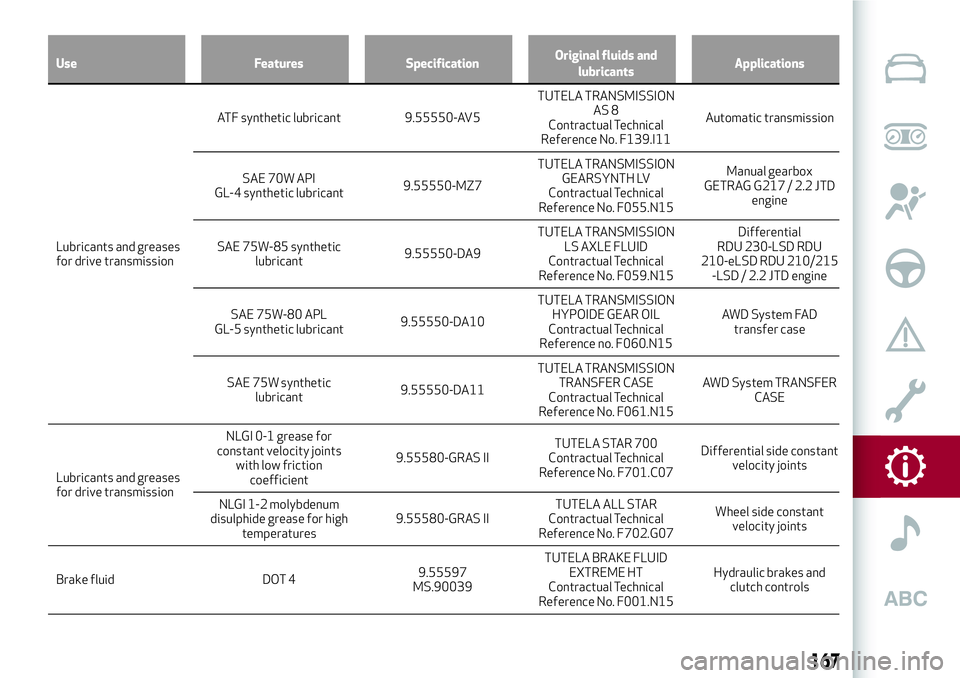

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionATF synthetic lubricant 9.55550-AV5TUTELA TRANSMISSION
AS 8
Contractual Technical
Reference No. F139.I11Automatic transmission
SAE 70W API
GL-4 synthetic lubricant9.55550-MZ7TUTELA TRANSMISSION
GEARSYNTH LV
Contractual Technical
Reference No. F055.N15Manual gearbox
GETRAG G217 / 2.2 JTD
engine
SAE 75W-85 synthetic
lubricant9.55550-DA9TUTELA TRANSMISSION
LS AXLE FLUID
Contractual Technical
Reference No. F059.N15Differential
RDU 230-LSD RDU
210-eLSD RDU 210/215
-LSD / 2.2 JTD engine
SAE 75W-80 APL
GL-5 synthetic lubricant9.55550-DA10TUTELA TRANSMISSION
HYPOIDE GEAR OIL
Contractual Technical
Reference no. F060.N15AWD System FAD
transfer case
SAE 75W synthetic
lubricant9.55550-DA11TUTELA TRANSMISSION
TRANSFER CASE
Contractual Technical
Reference No. F061.N15AWD System TRANSFER
CASE
Lubricants and greases
for drive transmissionNLGI 0-1 grease for
constant velocity joints
with low friction
coefficient9.55580-GRAS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
NLGI 1-2 molybdenum
disulphide grease for high
temperatures9.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Brake fluid DOT 49.55597
MS.90039TUTELA BRAKE FLUID
EXTREME HT
Contractual Technical
Reference No. F001.N15Hydraulic brakes and
clutch controls
167

Use Features SpecificationOriginal fluids and
lubricantsApplications
Protective agent for
radiatorsCUNA NC 956-16
ASTMD33069.55523
MS.90032PARAFLU UP
Contractual Technical
Reference No. F101.M01Use rate 50% Not
mixable with different
formulation products.
(*)
Windscreen washer
fluidCUNA NC 956-119.55522
MS.90043TUTELA PROFESSIONAL
SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in windscreen
washer/wiper systems
Diesel fuel additiveAntifreeze additive for
diesel fuel, with
protective action for
diesel enginesTUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
fuel (25 cc per 10 litres)
HVACR1234yf or R134yf
(depending on the
market)
(*) For particularly harsh climate conditions, a mixture of 60% PARAFLU UP and 40% demineralised water is recommended.
IMPORTANT
74)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the
warranty.
168
TECHNICAL DATA

PERFORMANCE
Top performance after the initial period of vehicle usage.
Versions Maximum speed mph (km/h)Acceleration from 0-62 mph
(0-100 km/h) sec.
2.2 JTD 136 HP enginemanual transmission 130 mph (210 km/h) 9.2
2.2 JTD 136 HP enginemanual transmission
(*)130 mph (210 km/h) 9.2
2.2 JTD 150 HP enginemanual transmission 137 mph (220 km/h) 8.4
2.2 JTD 150 HP enginemanual transmission
(*)137 mph (220 km/h) 8.4
2.2 JTD 180 HP enginemanual transmission 143 mph (230 km/h) 7.2
2.2 JTD 180 HP enginemanual transmission
(*)143 mph (230 km/h) 7.2
2.2 JTD 136 HP engineautomatic transmission 130 mph (210 km/h) 8.9
2.2 JTD 136 HP engineautomatic transmission
(*)130 mph (210 km/h) 8.9
2.2 JTD 150 HP engineautomatic transmission 137 mph (220 km/h) 8.1
2.2 JTD 150 HP engineautomatic transmission
(*)137 mph (220 km/h) 8.1
2.2 JTD 180 HP engineautomatic transmission 143 mph (230 km/h) 6.8
2.2 JTD 180 HP engineautomatic transmission
(*)143 mph (230 km/h) 6.8
(*) Version for specific markets.
169

FUEL CONSUMPTION
FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by specific
European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured.
IMPORTANT The fuel consumption will get more regular only after having driven the first 1,850 mi (3,000 km).
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (UK gal/62 mi - litres/100 km)
Versions Urban Extra-urban Combined
2.2 JTD 136 HP enginemanual transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 136 HP enginemanual transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 150 HP enginemanual transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 150 HP enginemanual transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 180 HP enginemanual transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 180 HP enginemanual transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 136 HP engineautomatic transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 136 HP engineautomatic transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 150 HP engineautomatic transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 150 HP engineautomatic transmission
(*)1.12 UK gal (5.1 lt) 0.73 UK gal (3.3 lt) 0.88 UK gal (4.0 lt)
2.2 JTD 180 HP engineautomatic transmission 1.17 UK gal (5.3 lt) 0.77 UK gal (3.5 lt) 0.92 UK gal (4.2 lt)
2.2 JTD 180 HP engineautomatic transmission
(*)1.12 UK gal (5.1 lt) 0.74 UK gal (3.4 lt) 0.88 UK gal (4.0 lt)
(*) Version for specific markets.
170
TECHNICAL DATA

CO2EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
VersionsCO EMISSIONS2ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE (g/km)
2.2 JTD 136 HP enginemanual transmission 109
2.2 JTD 136 HP enginemanual transmission
(*)105
2.2 JTD 150 HP enginemanual transmission 109
2.2 JTD 150 HP enginemanual transmission
(*)105
2.2 JTD 180 HP enginemanual transmission 109
2.2 JTD 180 HP enginemanual transmission
(*)105
2.2 JTD 136 HP engineautomatic transmission 109
2.2 JTD 136 HP engineautomatic transmission
(*)105
2.2 JTD 150 HP engineautomatic transmission 109
2.2 JTD 150 HP engineautomatic transmission
(*)105
2.2 JTD 180 HP engineautomatic transmission 109
2.2 JTD 180 HP engineautomatic transmission
(*)105
(*) Version for specific markets.
171

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFE
(for markets where provided)
For years, Alfa Romeo S.p.A. has pursued a global commitment to protect and respect the environment by continually improving its
production processes and developing increasingly "eco-compatible" products. To grant customers the best possible service in terms
of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of their life, Alfa
Romeo S.p.A. is offering its customers the chance to hand over their car at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses as a
result of it having a zero or negative market value.
To hand your car over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another car or an
Alfa Romeo S.p.A.-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality service
for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an Alfa Romeo S.p.A. dealership or by calling
the number in the Warranty Booklet or by consulting the Alfa Romeo S.p.A. website.
172
TECHNICAL DATA

This chapter describes the main functions of the Connect 6.5” /
Connect NAV 6.5” / Connect 3D NAV 8.8” system that can be fitted
on the vehicle.
MULTIMEDIA
ROAD SAFETY...............................174
RECEPTION CONDITIONS........................174
CARE AND MAINTENANCE.......................174
ANTITHEFT PROTECTION........................175
IMPORTANT NOTES............................175
CONTROLS.................................177
CONTROLS ON STEERING WHEEL...................180
INTRODUCTION..............................182
RADIO MODE................................182
MEDIA MODE................................183
Bluetooth® SOURCE ............................183
USB/iPod/AUX SUPPORT........................183
PHONE MODE...............................184
NAVIGATION MODE ............................185
SETTINGS..................................185
APPLICATIONS...............................188
VOICE COMMANDS . . ..........................188

ROAD SAFETY
161) 162)
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
RECEPTION CONDITIONS
Reception conditions change constantly
while driving. Reception may be
interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
adjusted when receiving traffic
information and news.
CARE AND MAINTENANCE
75) 76)
Observe the following precautions to
ensure the system is fully operational:
the display lens should not come into
contact with pointed or rigid objects
which could damage its surface; use a
soft, dry anti-static cloth to clean and do
not press.
never use alcohol, petrols and
derivatives to clean the display lens.
prevent any liquid from entering the
system: this could damage it beyond
repair.
