2016 Acura MDX Owner's Manual

uuMaintenance Under the Hood uEngine Coolant
456
Maintenance
1. Make sure the engine and radiator are
cool.
2. Remove the engine compartment cover.
2 Engine Compartment Cover P. 449
3.Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system.
Do not push the cap down when turning.
4. Push down and turn the radiator cap
counterclockwise to remove it.
5. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
6. Put the radiator cap back on, and tighten it
fully.
7. Pour coolant into the reserve tank until it
reaches the MAX mark. Put the cap back
on the reserve tank.
■Radiator1 Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.Radiator Cap
16 ACURA MDX-31TZ56200.book 456 ページ ２０１５年３月４日　水曜日　午後２時５９分

457
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
■Automatic Transmission Fluid
Specified fluid: Acura Au tomatic Transmission Flui d ATF-TYPE 3.1 or higher
1Automatic Transmission Fluid
NOTICE
Do not mix Acura ATF-TYPE 3.1 (or higher) with
other transmission fluids.
Using a transmission fluid ot her than Acura ATF-TYPE
3.1 (or higher) may advers ely affect the operation
and durability of your ve hicle’s transmission, and
damage the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Acura ATF-TYPE 3.1 (or higher) is
not covered by Acura’s new vehicle warranty.
16 ACURA MDX-31TZ56200.book 457 ページ ２０１５年３月４日　水曜日　午後２時５９分

458
uuMaintenance Under the Hood uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
Refilling Window Washer Fluid
If the washer fluid is low, a message appears on the MID.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Acura Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Acura brake fl uid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Acura Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect for l eaks or worn brake pads as
soon as possible.
Brake Reservoir
MIN
MAX
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
16 ACURA MDX-31TZ56200.book 458 ページ ２０１５年３月４日　水曜日　午後２時５９分

459
Maintenance
Replacing Light Bulbs
Headlight Bulbs
Headlight bulbs are LED type. Have an authorized Acura dealer inspect and replace
the light assembly.
Daytime Running Light Bulbs
Daytime running light bulbs are LED type. Ha ve an authorized Acura dealer inspect
and replace the light assembly.
Fog Light Bulbs*
Fog light bulbs are LED type. Have an auth orized Acura dealer inspect and replace
the light assembly.
1 Headlight Bulbs
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
* Not available on all models
16 ACURA MDX-31TZ56200.book 459 ページ ２０１５年３月４日　水曜日　午後２時５９分

460
uuReplacing Light Bulbs uFront Turn Signal/Front Side Marker/Parking Light Bulbs
Maintenance
Front Turn Signal/Front Side Marker/Parking Light
Bulbs
When replacing, use the following bulbs.
1.Remove the holding clip and screw, pull the
inner fender back.
2. Turn the socket to the left and remove it.
3. Remove the old bulb and insert a new bulb.
Side Turn Signal/Emergency Indicator Light Bulbs
Door mirrors have the side turn lights. Ha ve an authorized Acura dealer inspect and
replace the light assembly.
Front Turn Signal/Side Marker/Parking Light: 28/8 W (Amber)
1 Front Turn Signal/Front Side Marker/Parking Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Push until the
pin is flat.
Clip
Inner Fender
Bulb
Socket
16 ACURA MDX-31TZ56200.book 460 ページ ２０１５年３月４日　水曜日　午後２時５９分

461
uuReplacing Light Bulbs uBrake Light and Turn Signal Light Bulbs
Continued
Maintenance
Brake Light and Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover.
u Starting at the bottom, carefully pull the
cover straight out, working upward until
all pins are removed from their the
grommets.
u The grommets should remain in the
body.
2. Use a Phillip-head screwdriver to remove
the bolts.
3. Pull the light assembly out of the rear pillar.
Brake Light: 21 W
Rear Turn Signal Light: 21 W
Bolts
16 ACURA MDX-31TZ56200.book 461 ページ ２０１５年３月４日　水曜日　午後２時５９分

462
uuReplacing Light Bulbs uTaillight and Rear Side Marker Light Bulbs
Maintenance
4. Turn the socket to the left and remove it.
Remove the old bulb.
5. Insert a new bulb.
6. Slide the light assembly onto the guide on
the body.
7. Align the pins with the body grommets,
then push in unt il they fully seat.
Taillight and Rear Side Marker Light Bulbs
Taillight and rear side marker light bulbs are the LED type. Have an authorized Acura
dealer inspect and replace the light assembly.
Bulb Socket
16 ACURA MDX-31TZ56200.book 462 ページ ２０１５年３月４日　水曜日　午後２時５９分

463
uuReplacing Light Bulbs uBack-Up Light
Maintenance

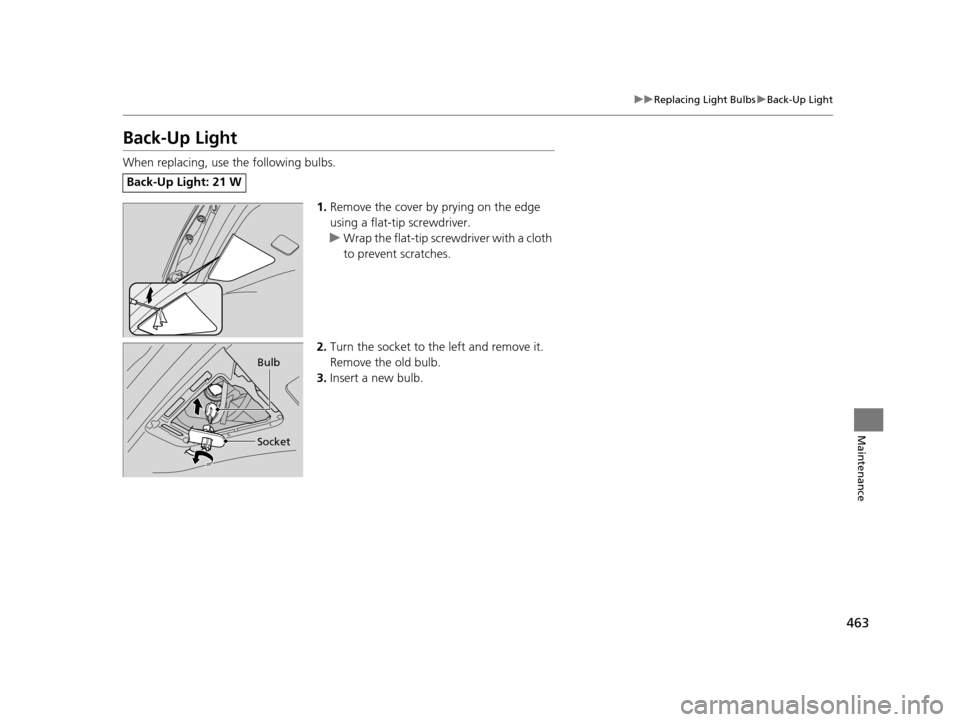

Back-Up Light
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. Turn the socket to th e left and remove it.
Remove the old bulb.
3. Insert a new bulb.
Back-Up Light: 21 W
Bulb
Socket
