2016 Acura MDX Owner's Manual

uuCleaning uExterior Care
488
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. Use a sponge and mild detergent to wipe away promptly.
Be careful not to use harsh chemicals (inc luding some commercial wheel cleaners) or
a stiff brush. They can damage the clear coat of the aluminum alloy wheels that
helps keep the aluminum from corroding and tarnishing.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe up
spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the correct coating material when
you want to repair the pa inted surface of the parts
made of resin.
16 ACURA MDX-31TZ56200.book 488 ページ ２０１５年３月４日　水曜日　午後２時５９分

489
uuCleaning uExterior Care
Maintenance
The inside lenses of exterior lights (headlights, brake light s, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts wate r accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
16 ACURA MDX-31TZ56200.book 489 ページ ２０１５年３月４日　水曜日　午後２時５９分

490
16 ACURA MDX-31TZ56200.book 490 ページ ２０１５年３月４日　水曜日　午後２時５９分

491
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 492
If a Tire Goes Flat Changing a Flat Tire
*....................... 493
Temporarily Repair ing a Flat Tire*..... 500
Engine Does Not Start Checking the Engine ........................ 512
If the Keyless Access Remote Battery is Weak ............................................. 513
Emergency Engine Stop ................... 514
Jump Starting .................................... 515 Overheating
How to Handle Overheating............. 517
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ............................................. 519
If the Charging System Indicator Comes
On ................................................. 519
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 520
If the Brake System Indicator (Red) Comes On .................................................... 521
If the Speed-Sensitive Electric Power Steering
(EPS) System Indicator Comes On ........... 521
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 522
If the Transmission I ndicator Blinks along
with the Warning Message ............ 522
Fuses Fuse Locations ................................. 523
Inspecting and Changing Fuses ........ 530
Emergency Towing ........................... 531
When You Cannot Unlock the Fuel Fill Door.. 532
When You Cannot Open the Tailgate.. 533
* Not available on all models
16 ACURA MDX-31TZ56200.book 491 ページ ２０１５年３月４日　水曜日　午後２時５９分

492
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle
Jack
Jack Handle Bar Towing Hook
Tool Case
Models with a compact spare tire
16 ACURA MDX-31TZ56200.book 492 ページ ２０１５年３月４日　水曜日　午後２時５９分

493Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire*
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slip pery surface and apply the parking brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Changing a Flat Tire*
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
* Not available on all models
16 ACURA MDX-31TZ56200.book 493 ページ ２０１５年３月４日　水曜日　午後２時５９分

uuIf a Tire Goes Flat uChanging a Flat Tire*
494
Handling the Unexpected
1. Push the rear edge of the handle on the
floor lid and open the lid.
2. Take out the cargo floor box.
3. Take the jack, wheel nut wrench, and jack
handle bar out of the tool case.
■Getting Ready to Replace the Flat Tire1Changing a Flat Tire*
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Handle
Cargo Floor Box
Tool Case
* Not available on all models
16 ACURA MDX-31TZ56200.book 494 ページ ２０１５年３月４日　水曜日　午後２時５９分

495
uuIf a Tire Goes Flat uChanging a Flat Tire*
Continued
Handling the Unexpected

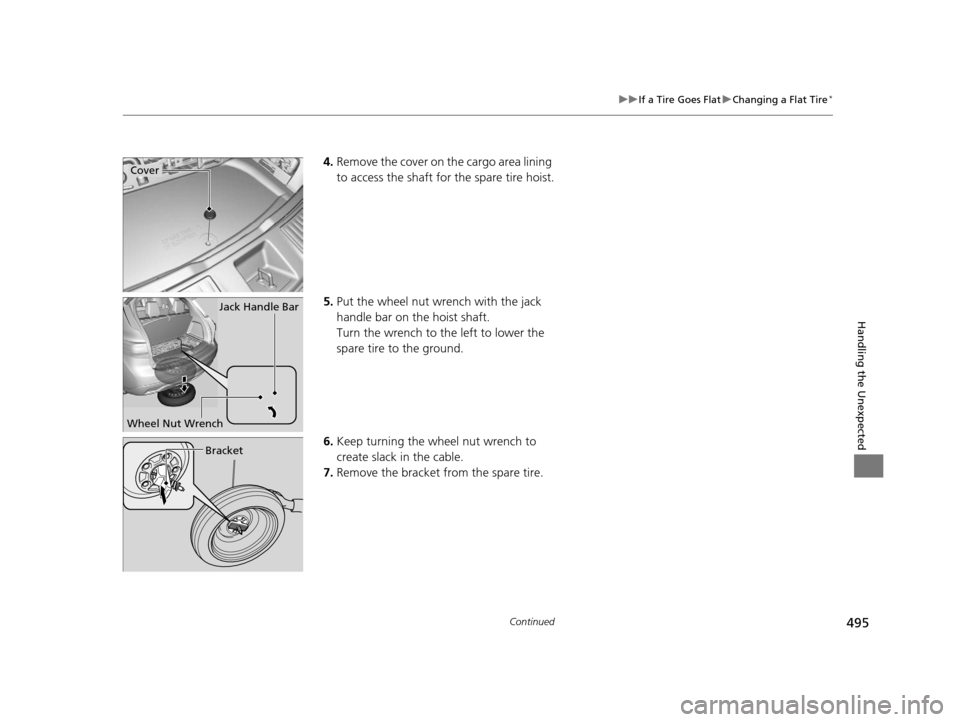

4. Remove the cover on the cargo area lining
to access the shaft for the spare tire hoist.
5. Put the wheel nut wrench with the jack
handle bar on the hoist shaft.
Turn the wrench to the left to lower the
spare tire to the ground.
6. Keep turning the wh eel nut wrench to
create slack in the cable.
7. Remove the bracket from the spare tire.Cover
Jack Handle Bar
Wheel Nut Wrench
Bracket
16 ACURA MDX-31TZ56200.book 495 ページ ２０１５年３月４日　水曜日　午後２時５９分
