2016 Acura MDX ad blue

216
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth ® HandsFreeLink®
3.When your phone appears on the
list, select it by pressing u.X
If your phone does not appear,
you can select Refresh to search
again.
X
If your phone still does not
appear, move r to select
Phone not Found? and search
for Bluetooth ® devices using
your phone. From your phone,
select HandsFreeLink .
4. HFL gives you a pairing code on the
audio/information screen.
X
Confirm if the pairing code on
the screen and your phone
match. This may vary by phone.
5. You will receive a notification on
the screen if pairing is successful.
MDX_KA-31TZ58200.book 216 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

217
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth® HandsFreeLink®
HSETTINGS button
X System Settings
X Edit Pairing Code
Rotate i to select Fixed or
Random . Press u.
■Changing the Pairing Code
1 Changing the Pairing Code
The pairing code may be six or four digits
depending on your phone.
The default pair ing code is
0000
until you
change the setting.
To create your own, select
Fixed
, and delete the
current code, then enter a new one.
For a randomly generated pairing code each time
you pair a phone, select
Random
.
MDX_KA-31TZ58200.book 217 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

218
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth ® HandsFreeLink®
HSETTINGS button
X Phone Settings
X Bluetooth Device List
1.Rotate i to select a paired phone
you want to replace. Press u.
2. Rotate i to select Replace This
Device . Press u.
3. HFL enters the pairing process and
searches a new phone.
X
Follow the prompts to pair a
new phone.
4. You will receive a notification on
the screen if pairing is successful.
■Changing the Currently Paired Phone
1 Changing the Currently Paired Phone
The replaced phone will keep the same speed
dial entries, and security PIN information from
the previously paired phone.
MDX_KA-31TZ58200.book 218 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

219
XX
Bluetooth® HandsFreeLink®
XPairing a Phone
Bluetooth® HandsFreeLink®
HSETTINGS button
X Phone Settings
X Bluetooth Device List
1.Rotate i to select a paired phone
you want to replace. Press u.
2. Rotate i to select Delete This
Device . Press u.
3. You will receive a confirmation
message on the screen. Rotate i
to select Yes. Press u .
4. You will receive a notification on
the screen if deleti on is successful.
■Deleting a Paired Phone
MDX_KA-31TZ58200.book 219 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

220
XX
Bluetooth® HandsFreeLink®
XImporting Phonebook Data
Bluetooth ® HandsFreeLink®
Importing Phon ebook Data
When your phone is paired, the
contents of its phonebook and call
history are automatically imported to
HFL.
1Importing Phonebook Data
When you select a person from the list in the
cellular phonebook, you can see up to three
category icons. The icons indicate what types of
numbers are stored for that name.
On some phones, it may not be possible to
import the category icons to HFL.
The phonebook is updated after every
connection. Call histor y is updated after every
connection or call.
Pref Fax
Home Car
Mobile Other
Work Message
Pager Voice
MDX_KA-31TZ58200.book 220 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

221
XX
Bluetooth® HandsFreeLink®
XSetting Up Speed Dialing
Bluetooth ® HandsFreeLink®
Setting Up Speed DialingHMENU button (on Phone screen)
X Speed Dial
Up to 20 speed dial numbers can be stored per phone. 1.Rotate i to select New Entry .
Press u.
2. Rotate i to select a number
entry method. Press u.
The following options are available:
• Import from Call History : Select a number from the call history.
• Manual Input : Input the number manually.
• Import from Phonebook : Select a number from the linked cell phone's imported
phonebook.
1 Setting Up Speed Dialing
When a voice tag is stored, press the d button
to call the number using the voice tag. Say ”Call“
and the voice tag name.
MDX_KA-31TZ58200.book 221 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

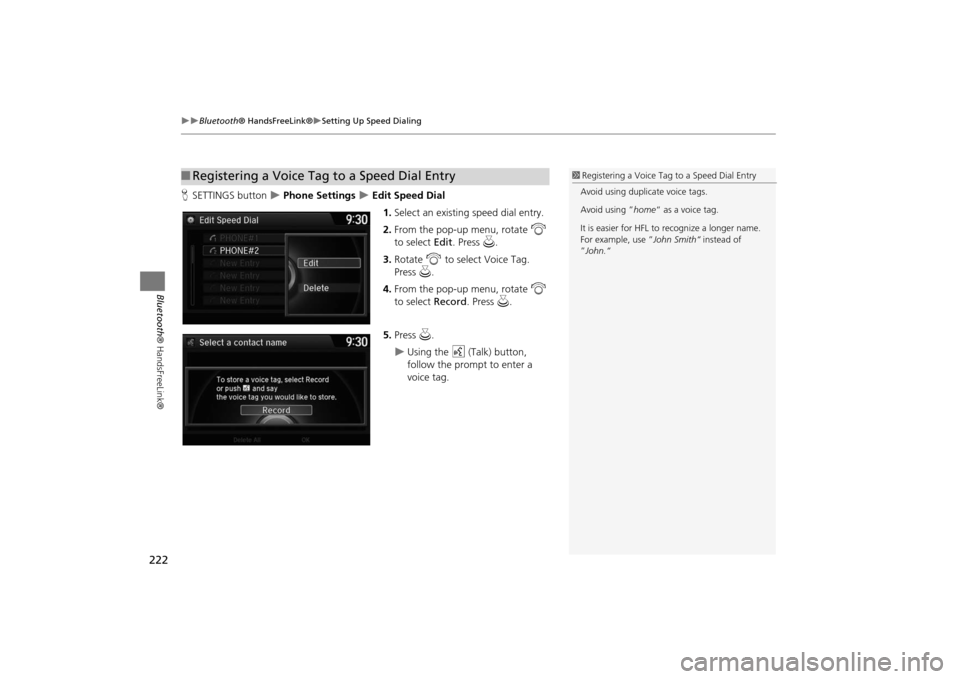

222
XX
Bluetooth® HandsFreeLink®
XSetting Up Speed Dialing
Bluetooth ® HandsFreeLink®
HSETTINGS button
X Phone Settings
X Edit Speed Dial
1.Select an existing speed dial entry.
2. From the pop-up menu, rotate i
to select Edit. Press u .
3. Rotate i to select Voice Tag.
Press u.
4. From the pop-up menu, rotate i
to select Record. Press u.
5. Press u.
X
Using the d (Talk) button,
follow the prompt to enter a
voice tag.
■ Registering a Voice Tag to a Speed Dial Entry
1 Registering a Voice Tag to a Speed Dial Entry
Avoid using duplicate voice tags.
Avoid using ” home“ as a voice tag.
It is easier for HFL to recognize a longer name.
For example, use ” John Smith“ instead of
”John.“
MDX_KA-31TZ58200.book 222 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

223
XX
Bluetooth® HandsFreeLink®
XSetting Up Speed Dialing
Bluetooth ® HandsFreeLink®
■To delete a voice tag
1. Select an existing speed dial entry.
2. From the pop-up menu, rotate i
to select Edit. Press u.
3. Rotate i to select Voice Tag.
Press u.
4. From the pop-up menu, rotate i
to select Clear. Press u.
5. You will receive a confirmation
message on the screen. Rotate to
select Yes. Press u.
■ To delete a speed dial
1. Select an existing speed dial entry.
2. From the pop-up menu, rotate i
to select Delete. Press u.
3. You will receive a confirmation
message on the screen. Rotate to
select Yes. Press u.
MDX_KA-31TZ58200.book 223 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
