EBU31520Cup holdersBe sure to tightly close the cap of any plastic
bottle before placing it in a cup holder.
Some plastic bottles may not fit into the cup
holders depending on their size and shape.
1. Storage compartment
1. Storage compartment
1
1
1. Storage compartmentMaximum load limit:Storage compartment between the driver
seat and the passenger seat:6.4 kg (13.5 lb)
1
U2MB7AE0.book Page 19 Thursday, January 29, 2015 3:42 PM

4-20
4
WARNING
EWB03240Never ride with any open or glass con-
tainers in the cup holders; otherwise, the
contents may spill and the glass contain-
ers may be thrown about and break, and
possibly injure people in the vehicle dur-
ing sudden braking or an accident.
 Do not place any other items than seal-
able plastic containers in the cup hold-
ers; otherwise, they may be thrown
about and possibly injure people in the
vehicle during sudden braking or an ac-
cident.
EBU33630Cargo bed
WARNING
EWB03250Never carry passengers in the cargo
bed.
 Do not exceed the specified maximum
load limits. Heavier cargo could cause
loss of control because of improper
weight balance. There are six cargo hooks in the cargo bed.1. Cup holder
1
U2MB7AE0.book Page 20 Thursday, January 29, 2015 3:42 PM

4-21
4
For additional loading information, see page
6-7.
Removing and installing the tailgate
To remove the tailgateUnhook the latches, and then pull up the tail-
gate.
To install the tailgatePlace the tailgate in the original position, and
then hook the latches.
1. Cargo hook
1. Cargo hookMaximum load limit: 136.0 kg (300 lb)
1
1
1. Tailgate
2. Latch2
2
1
U2MB7AE0.book Page 21 Thursday, January 29, 2015 3:42 PM

4-22
4
The tailgate can also be installed at the front
of the cargo bed. Install the tailgate and hook
the latches as shown.EBU33611Adjusting the front shock absorber as-
sembliesThese shock absorber assemblies are
equipped with a spring preload adjusting nut,
a rebound damping force adjusting screw, a
compression damping force adjusting bolt(for fast compression damping), and a com-
pression damping force adjusting screw (for
slow compression damping).
WARNING
EWB02492
Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
adjusting screw or the oil reservoir with
your bare hand or skin until suspension
components have cooled.
 Always adjust the shock absorber as-
semblies on the left and right side to the
same setting. Uneven adjustment can
cause poor handling and loss of stability,
which could lead to an accident. NOTICEECB00091Never turn an adjusting mechanism be-
yond the minimum and maximum settings.
1. Tailgate
2. Latch2
2
1
U2MB7AE0.book Page 22 Thursday, January 29, 2015 3:42 PM

4-23
4
TIPAlthough the total number of clicks or turns of
a damping force adjusting mechanism may
not exactly match the following specifications
due to small differences in production, the ac-
tual number of clicks or turns always repre-
sents the entire adjusting range. To obtain a
precise adjustment, it would be advisable to
check the number of clicks or turns of each
damping force adjusting mechanism and to
modify the specifications as necessary. Spring preload1. Loosen the locknut.
2. Turn the spring preload adjusting nut in direction (a) to increase the spring pre-
load and thereby harden the suspension,
and in direction (b) to decrease the spring
preload and thereby soften the suspen-
sion.
TIPA special wrench can be obtained at a
Yamaha dealer to make this adjustment.
 The spring preload setting is determined by
measuring distance A, shown in the illustra-
tion. The shorter distance A is, the higher
the spring preload; the longer distance A is,
the lower the spring preload. With each
complete turn of the adjusting nut, distance
A is changed by 1.5 mm (0.06 in). 1. Special wrench
2. Locknut
3. Spring preload adjusting nut
2
1
3
(a)
(b)
U2MB7AE0.book Page 23 Thursday, January 29, 2015 3:42 PM

4-24
4
3. Tighten the locknut to the specifiedtorque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten it to the specified torque.
[ECB00082]
Rebound damping force
Turn the rebound damping force adjusting
screw in direction (a) to increase the rebound
damping force and thereby harden the damp-
ing, and in direction (b) to decrease the re-
bound damping force and thereby soften the
damping.
Spring preload setting: Minimum (soft):Distance A = 313.5 mm (12.34 in)
Standard: Distance A = 305.5 mm (12.03 in)
Maximum (hard): Distance A = 298.5 mm (11.75 in)1. Distance A
1
Tightening torque:Locknut:30 Nm (3.0 m·kgf, 22 ft·lbf)1. Rebound damping force adjusting screw
1
(a)
(b)
U2MB7AE0.book Page 24 Thursday, January 29, 2015 3:42 PM

4-25
4
Compression damping force
Compression damping force (for fast com-pression damping)To increase the compression damping force
and thereby harden the compression damp-
ing, turn the compression damping force ad-
justing bolt in direction (a). To decrease the
compression damping force and thereby
soften the compression damping, turn the
adjusting bolt in direction (b).Rebound damping setting:Minimum (soft):30 click(s) in direction (b)*
Standard: 13 click(s) in direction (b)*
Maximum (hard): 1 click(s) in direction (b)*
* With the adjusting screw fully turned in di- rection (a)
1. Compression damping force adjusting bolt (for fast compression damping)Compression damping setting (for fast com-
pression damping):
Minimum (soft):2 turn(s) out from the fully turned in posi-
tion
Standard: 1 1/4 turn(s) out from the fully turned in
position
Maximum (hard): Adjusting bolt fully turned in
1(a)
(b)
U2MB7AE0.book Page 25 Thursday, January 29, 2015 3:42 PM

4-26
4
Compression damping force (for slow com-pression damping)To increase the compression damping force
and thereby harden the compression damp-
ing, turn the compression damping force ad-
justing screw in direction (a). To decrease the
compression damping force and thereby
soften the compression damping, turn the
adjusting screw in direction (b).
WARNING
EWB00411These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and
understand the following information be-
fore handling the shock absorber assem-
blies.
 Do not tamper with or attempt to open
the cylinder assemblies.
 Do not subject the shock absorber as-
semblies to an open flame or other high
heat source. This may cause the unit to
explode due to excessive gas pressure.

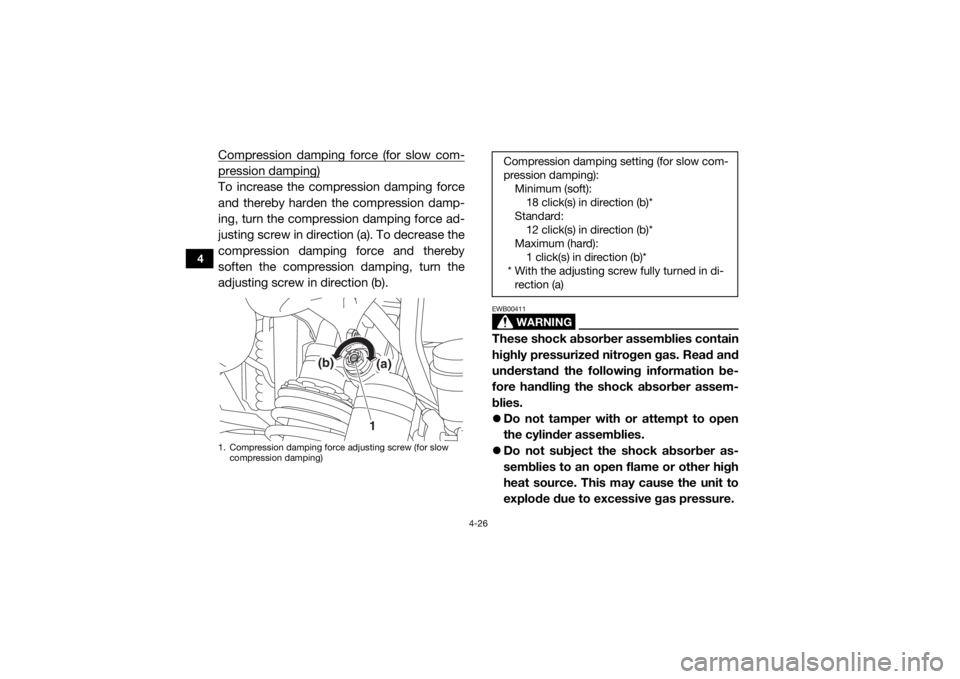

1. Compression damping force adjusting screw (for slow
compression damping)
1(a)
(b)
Compression damping setting (for slow com-
pression damping):
Minimum (soft):18 click(s) in direction (b)*
Standard: 12 click(s) in direction (b)*
Maximum (hard): 1 click(s) in direction (b)*
* With the adjusting screw fully turned in di- rection (a)
