2015 YAMAHA WOLVERINE Owners Manual

8-33
8

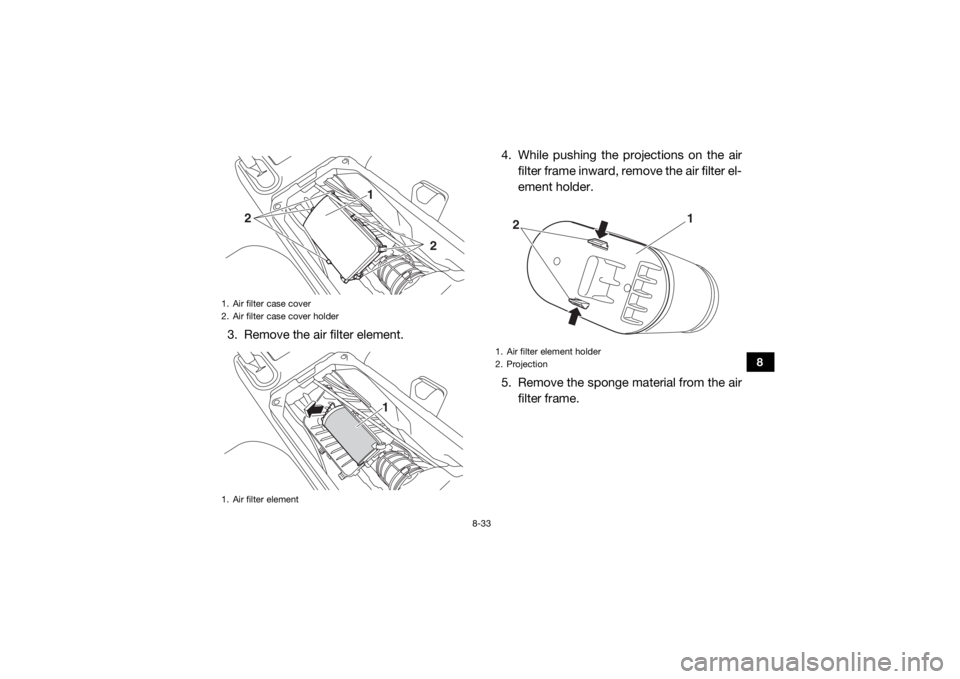

3. Remove the air filter element.4. While pushing the projections on the air
filter frame inward, remove the air filter el-
ement holder.
5. Remove the sponge material from the air filter frame.1. Air filter case cover
2. Air filter case cover holder
1. Air filter element
1
2
2
1
1. Air filter element holder
2. Projection
1
2
U2MB7AE0.book Page 33 Thursday, January 29, 2015 3:42 PM

8-34
8
6. Wash the sponge material gently butthoroughly in parts cleaning solvent.
WARNING! Using gasoline or other flammable solvents to clean the air fil-
ter element can cause a fire or explo-
sion, which could lead to serious
injury.
[EWB03360]
7. Squeeze the excess solvent out of the
sponge material. NOTICE: Do not twist
the sponge material when squeezing
it.
[ECB00442]
8. Wash the sponge material in warm soapy
water to remove remaining solvent, then
rinse thoroughly with plain warm water.
9. Squeeze excess water out of the sponge
material. NOTICE: Do not twist the
sponge material when squeezing it.
[ECB00442]
10. Allow the sponge material to dry thor- oughly. Inspect the sponge material and
replace it if damaged.
1. Air filter element holder
2. Sponge material
3. Air filter frame
3
2
1
U2MB7AE0.book Page 34 Thursday, January 29, 2015 3:42 PM

8-35
8
11. Thoroughly apply Yamaha foam air filteroil or other quality liquid foam air filter oil
(not spray type) to the sponge material.
The sponge material should be wet but
not dripping.
12. Pull the sponge material over its frame.
13. Install the air filt er element holder.
14. Install the air filter element.
15. Fit the holders on the air filter case cover
onto the projections on the air filter case,
and then install the air filter case cover by
hooking the holders onto the cover. 16. Install the storage compartment as
shown.
EBU33672Cleaning the air filter case/air duct
check hoseThere is a check hose at the bottom of the air
filter case and at the bottom of the air duct.
The check hoses can be accessed under the
vehicle. If dust or water collects in a check
hose, empty the hose and clean the air filter
element and air filter case.
1. Holder
2. Projection
1
2
U2MB7AE0.book Page 35 Thursday, January 29, 2015 3:42 PM

8-36
8
EBU33690V-belt case drain plugThe V-belt case drain plug is located behind
the left panel. (See page 8-11 for left panel re-
moval and installation procedures.)
After riding in water deep enough to allow wa-
ter to enter the V-belt case, remove the drain
plug to drain any water from the case.
If water drains from the V-belt case after re-
moving the drain plug, have a Yamaha dealer
inspect the vehicle, as the water may affect
other engine parts.
EBU32450Cleaning the spark arrester
WARNING
EWB03370Hot exhaust system may cause burns. To
avoid burns or fires, make sure that the en-
gine is stopped and the exhaust system is
cool before cleaning the spark arrester. Do
not start the engine while cleaning the ex-
haust system. 1. Remove the tailpipe bolts.
1. Air duct check hose
2. Air filter case check hose2
1
1. V-belt case drain plug
1
U2MB7AE0.book Page 36 Thursday, January 29, 2015 3:42 PM

8-37
8
2. Remove the tailpipe by pulling it out ofthe muffler, and then remove the gasket.
3. Tap the tailpipe lightly, and then use a
wire brush to remove any carbon depos-
its from the spark arrester portion of the
tailpipe and inside of the tailpipe housing. 4. Install the gasket, and then insert the tail-
pipe into the muffler and align the bolt
holes.
5. Install the bolts and tighten them to the
specified torque.1. Tailpipe bolt
1
1
1. Gasket
2. Spark arrester
3. TailpipeTightening torque:Tailpipe bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
3
2
1
U2MB7AE0.book Page 37 Thursday, January 29, 2015 3:42 PM

8-38
8
EBU32460Valve clearanceThe correct valve clearance changes with
use, resulting in improper fuel/air supply or
engine noise. To prevent this, the valve clear-
ance must be adjusted regularly. This adjust-
ment however, should be left to a
professional Yamaha service technician.EBU32470BrakesReplacement of brake components requires
professional knowledge. Brake service
should be performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or ad-
justed brakes could lead to a loss in brak-
ing ability and an accident.
EBU32480Checking the front and rear brake padsEach brake pad is provided with wear indica-
tor grooves, which allow you to check the
brake pad wear without having to disassem-
ble the brake. To check the brake pad wear,
check the wear indicator grooves. If a brake
pad has worn to the point that the wear indi-
cator grooves have almost disappeared, have
a Yamaha dealer replace the brake pads as a
set.
The wheels need to be removed to check the
brake pads. (See pages 8-44, 8-46 for wheel
removal and installation procedures.)
U2MB7AE0.book Page 38 Thursday, January 29, 2015 3:42 PM

8-39
8
EBU32500Checking the brake fluid levelBefore riding, check that the brake fluid is
above the minimum level mark. Check the
brake fluid level with the top of the reservoir
level. Replenish the brake fluid if necessary.
WARNING
EWB02721Improper maintenance can result in loss of
braking ability. Observe these precau-
tions:
Insufficient brake fluid may allow air to
enter the brake system, reducing brak-
ing performance.
1. Brake pad wear indicator groove
1
1. Minimum level markSpecified brake fluid: DOT 4
1
U2MB7AE0.book Page 39 Thursday, January 29, 2015 3:42 PM

8-40
8
Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed
container.
 Use only the specified brake fluid; other-
wise, the rubber seals may deteriorate,
causing leakage.
 Refill with the same type of brake fluid.
Adding a brake fluid other than DOT 4
may result in a harmful chemical reac-
tion.
 Be careful that water does not enter the
brake fluid reservoir when refilling. Wa-
ter will significantly lower the boiling
point of the fluid and may result in vapor
lock. NOTICEECB01161Brake fluid may damage painted surfaces
or plastic parts. Always clean up spilled
fluid immediately.
As the brake pads wear, it is normal for the
brake fluid level to gradually go down. A low
brake fluid level may indicate worn brake
pads and/or brake system leakage; therefore,
be sure to check the brake pads for wear and
the brake system for leakage. If the brake fluid
level goes down suddenly, have a Yamaha
dealer check the cause before further riding.EBU32520Brake fluid replacementComplete fluid replacement should be done
only by trained Yamaha service personnel.
Have a Yamaha dealer replace the following
components during periodic maintenance or
when they are damaged or leaking.
Replace the oil seals every two years.
 Replace the brake hoses every four years.EBU32530Checking the brake pedalHave a Yamaha dealer check the brakes at
the intervals specified in the periodic mainte-
nance and lubrication chart. There should be
U2MB7AE0.book Page 40 Thursday, January 29, 2015 3:42 PM
