2015 YAMAHA V1 Owners Manual

Safety information
19
EJU30992
Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility
to treat these other people, and the lands,
waters, and wildlife with respect and courte-
sy.
Whenever and wherever you ride, think of
yourself as the guest of those around you.
Remember, for example, that the sound of
your watercraft may be music to you, but it
could be just noise to others. And the exciting
splash of your wake can make waves others
won’t enjoy.
Avoid riding close to shoreline homes and
waterfowl nesting areas or other wildlife ar-
eas, and keep a respectful distance from fish-
ermen, other boats, swimmers, and
populated beaches. When travel in areas like
these is unavoidable, ride slowly and obey all
laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within reg-
ulated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. Dis-
pose of water and any fuel and oil residue in
the engine compartment according to local
regulations. And keep your surroundings
pleasant for the people and wildlife that share
the waterways: don’t litter.When you ride responsibly, with respect and
courtesy for others, you help ensure that our
waterways stay open for the enjoyment of a
variety of recreational opportunities.
UF2P72E0.book Page 19 Tuesday, August 26, 2014 10:08 AM

Description
20
EJU40303
Watercraft glossary
Trolling speed
“Trolling” is the lowest maneuvering speed. You are applying little or no throttle. The water-
craft is down in the water, and there is no wake.
Sub-planing speed
“Sub-planing” is a medium speed. The bow of the watercraft is slightly up from the water sur-
face, but you are still traveling through the water. There is a wake.
Planing speed
“Planing” is a faster speed. The watercraft is more level and is skimming on top of the water.
There is a wake.
Bow
The front end of the watercraft.
Stern
The rear end of the watercraft.
Starboard
The right side of the watercraft when facing forward.
Port
The left side of the watercraft when facing forward.
Bilge water
Water that has collected in the engine compartment.
Yamaha Engine Management System (YEMS)
YEMS is an integrated, computerized management system that controls and adjusts ignition
timing, fuel injection, engine diagnostics, and the off-throttle steering (OTS) system.
UF2P72E0.book Page 20 Tuesday, August 26, 2014 10:08 AM

Description
21
EJU31012
Location of main components
Exterior
5
6789 4 3 2 1
1Hood
2Handlebar
3Seat (page 34)
4Footwell
5Bow eye (page 35)
6Fuel filler cap (page 40)
7Cooling water pilot outlet (page 27)
8Gunwale
9Sponson
UF2P72E0.book Page 21 Tuesday, August 26, 2014 10:08 AM

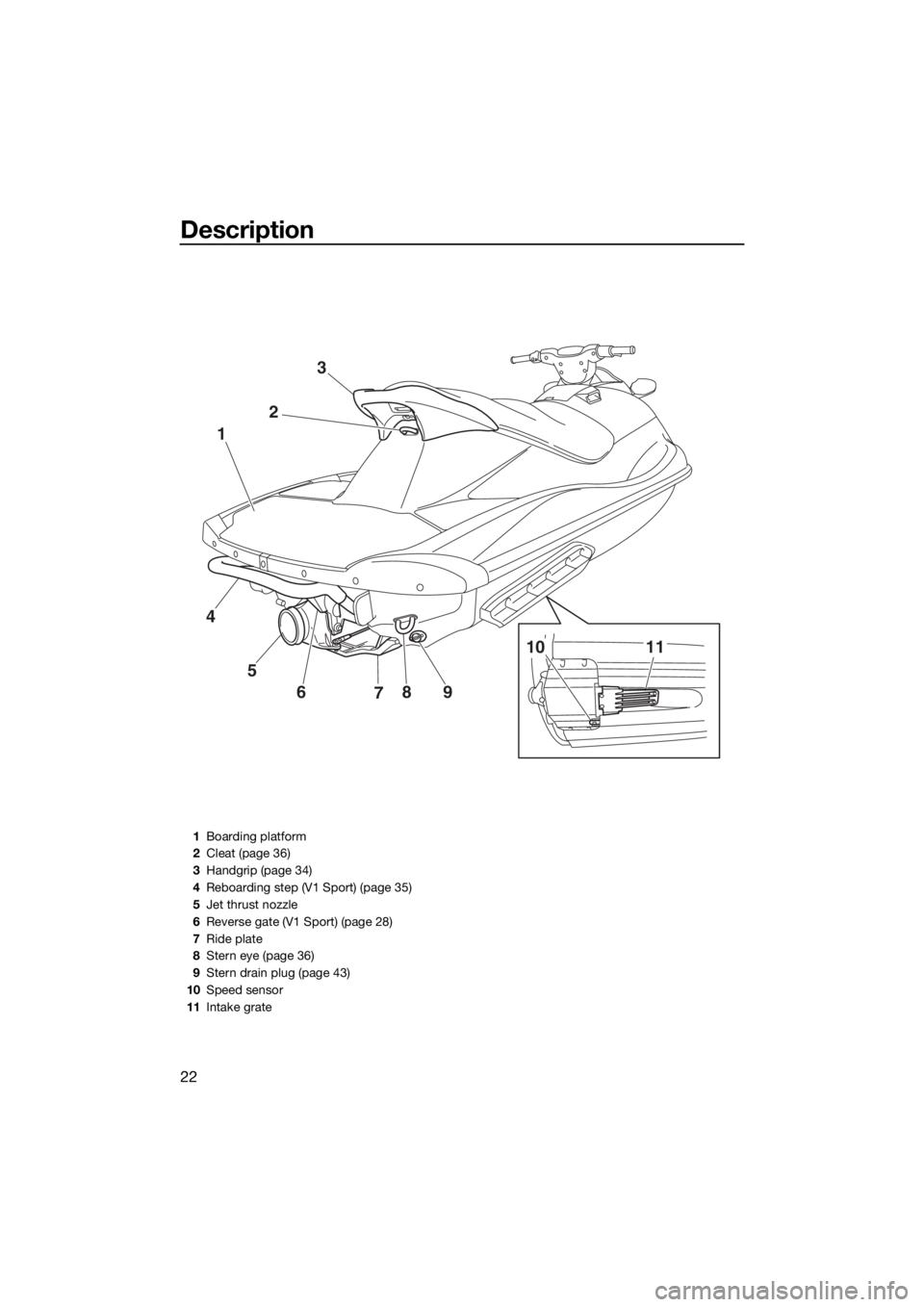

Description
22
9
8
7 6 5 4123
10 11
1Boarding platform
2Cleat (page 36)
3Handgrip (page 34)
4Reboarding step (V1 Sport) (page 35)
5Jet thrust nozzle
6Reverse gate (V1 Sport) (page 28)
7Ride plate
8Stern eye (page 36)
9Stern drain plug (page 43)
10Speed sensor
11Intake grate
UF2P72E0.book Page 22 Tuesday, August 26, 2014 10:08 AM

Description
23
5
4 1
23
9
1011 7
68
1Start switch (page 25)
2Engine shut-off switch (page 25)
3Clip (page 25)
4Engine shut-off cord (lanyard) (page 25)
5Engine stop switch (page 25)
6Glove compartment (page 37)
7Multifunction information center (page 29)
8Rearview mirror
9Beverage holder (V1 Sport) (page 38)
10Shift lever (V1 Sport) (page 28)
11Throttle lever (page 26)
UF2P72E0.book Page 23 Tuesday, August 26, 2014 10:08 AM

Description
24
Engine compartment
6
789
12
345
1Water separator (page 27)
2Fuel tank
3Air filter case
4Battery (page 50)
5Flushing hose connector
6Electrical box
7Spark plug/Spark plug cap/Ignition coil
8Oil tank filler cap/Dipstick
9Oil tank
UF2P72E0.book Page 24 Tuesday, August 26, 2014 10:08 AM

Control function operation
25
EJU31026
Watercraft control functionsEJU31153Engine stop switch “ ”
The engine stop switch (red button) stops the
engine when the switch is pushed.
EJU31164Engine shut-off switch “ ”
The engine shut-off switch automatically
stops the engine when the clip, on the end of
the engine shut-off cord (lanyard), is removed
from the switch, such as if the operator falls
off the watercraft.
Insert the clip under the engine shut-off
switch before starting the engine.
When the engine is not running, remove the
clip from the engine shut-off switch to pre-vent accidental starting or unauthorized op-
eration by children or others.
EJU43560Start switch “ ”
NOTICE
ECJ01311
Do not run the engine over 4000 r/min on
land. Also, do not run the engine for more
than 15 seconds without supplying water,
otherwise the engine could overheat.
The start switch (green button) starts the en-
gine when the switch is pushed.
Release the start switch as soon as the en-
gine starts to run. If the engine does not start
in 5 seconds, release the start switch, wait 15
seconds, and then try again. NOTICE: Never
push the start switch while the engine is
running. Do not operate the start switch
for more than 5 seconds, otherwise the
battery will be discharged and the engine
1Engine stop switch
1Engine shut-off switch
2Clip
3Engine shut-off cord (lanyard)
1
STOP
312
UF2P72E0.book Page 25 Tuesday, August 26, 2014 10:08 AM

Control function operation
26
will not start. Also, the starter motor could
be damaged.
[ECJ01041]
The engine will not start under any of the fol-
lowing conditions:
Clip is removed from the engine shut-off
switch.
Throttle lever is squeezed.EJU31212Throttle lever
The throttle lever increases the engine speed
when the lever is squeezed.
The throttle lever returns automatically to its
fully closed (idle) position when released.
EJU31262Steering system
By turning the handlebars in the direction you
wish to travel, the angle of the jet thrust noz-zle is changed, and the direction of the water-
craft is changed accordingly.
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must
always be applied when attempting a turn,
except at trolling speed.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever. The OTS system assists in
turning by continuing to supply some thrust
while the watercraft is decelerating, but you
can turn more sharply if you apply throttle
while turning the handlebars. The OTS sys-
tem does not function below planing speeds
or when the engine is off. Once the engine
slows down, the watercraft will no longer turn
in response to handlebar input until you apply
throttle again or you reach trolling speed.
1Start switch
1Throttle lever
START
1
1
1Handlebar
2Jet thrust nozzle
2
1
