2015 YAMAHA FJR1300AS Owners Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
EAU17245
Periodic inspection, adjustment, and
lubrication will keep your vehicle in the
safest and most efficient condition
possible. Safety is an obligation of the
vehicle owner/operator. The most im-
portant points of vehicle inspection,
adjustment, and lubrication are ex-
plained on the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However, de-
pending on the weather, terrain, geo-
graphical location, and individual use,
the maintenance intervals may need to
be shortened.
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer perform
service.
WARNING
EWA15123
Turn off the engine when performing
maintenance unless otherwise
specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-3 for more in-
formation about carbon monox-
ide.
WARNING
EWA15461
Brake discs, calipers, drums, and
linings can become very hot during
use. To avoid possible burns, let
brake components cool before
touching them.
EAU17303
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replace-
ment, or repair of the emission control
devices and systems may be per-
formed by any repair establishment or
individual that is certified (if applicable).
Yamaha dealers are trained and
equipped to perform these particular
services.
U1MDE1E0.book Page 1 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU17362
Owner’s tool kitThe owner’s tool kit is located under
the rider seat. (See page 3-35.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.1.
HL
1
U1MDE1E0.book Page 2 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU46862
TIPThe annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.
From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and tech-
nical skills.
EAU46911
Periodic maintenance chart for the emission control systemNO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel line• Check fuel hoses for cracks or
damage.√√√√√
2*Spark plugs• Check condition.
• Clean and regap.√√
•Replace.√√
3*Valves• Check valve clearance.
•Adjust.Every 40000 km (24000 mi)
4*Fuel injection sys-
tem• Adjust synchronization.√√√√√√
5*Mufflers and ex-
haust pipes• Check the screw clamps for
looseness.√√√√√
6*Air induction sys-
tem• Check the air cut-off valve, reed
valve, and hose for damage.
• Replace any damaged parts if
necessary.√√√√√
U1MDE1E0.book Page 3 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
EAU1770K
General maintenance and lubrication chartNO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Air filter element• Clean.√√
• Replace.√√
2*YCC-S clutch• Check operation, fluid level and
vehicle for fluid leakage.√√√√√
3*Front brake• Check operation, fluid level and
vehicle for fluid leakage.√√√√√√
• Replace brake pads. Whenever worn to the limit
4*Rear brake• Check operation, fluid level and
vehicle for fluid leakage.√√√√√√
• Replace brake pads. Whenever worn to the limit
5*Brake hoses• Check for cracks or damage.
• Check for correct routing and
clamping.√√√√√
• Replace. Every 4 years
6*Brake fluid• Replace. Every 2 years
7*Wheels• Check runout and for damage.√√√√
8*Tires• Check tread depth and for dam-
age.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.√√√√√
9*Wheel bearings• Check bearings for looseness or
damage.√√√√
U1MDE1E0.book Page 4 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
10*Swingarm• Check operation and for exces-
sive play.√√√√
• Lubricate with lithium-soap-
based grease.Every 50000 km (30000 mi)
11*Steering bearings• Check bearing play and steering
for roughness.√√√√√
• Lubricate with lithium-soap-
based grease.Every 20000 km (12000 mi)
12*Chassis fasteners• Make sure that all nuts, bolts and
screws are properly tightened.√√√√√
13Brake lever pivot
shaft• Lubricate with silicone grease.√√√√√
14Brake pedal pivot
shaft• Lubricate with lithium-soap-
based grease.√√√√√
15*Shift pedal pivot
shaft• Lubricate with lithium-soap-
based grease.√√√√√
16Sidestand, center-
stand• Check operation.
• Lubricate with lithium-soap-
based grease.√√√√√
17*Sidestand switch• Check operation.√√√√√√
18*Front fork• Check operation and for oil leak-
age.√√√√
19*Shock absorber as-
sembly• Check operation and shock ab-
sorber for oil leakage.√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U1MDE1E0.book Page 5 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
20*Rear suspension re-
lay arm and con-
necting arm
pivoting points• Check operation.√√√√
• Lubricate with lithium-soap-
based grease.√√
21 Engine oil• Change.
• Check oil level and vehicle for oil
leakage.√√√√√√
22Engine oil filter car-
tridge• Replace.√√√
23*Cooling system• Check coolant level and vehicle
for coolant leakage.√√√√√
• Change coolant. Every 3 years
24 Final gear oil• Check oil level and vehicle for oil
leakage.
• Change.√√√√√
25*Front and rear
brake switches• Check operation.√√√√√√
26Moving parts and
cables• Lubricate.√√√√√
27*Throttle grip• Check operation.
• Check throttle grip free play, and
adjust if necessary.
• Lubricate cable and grip housing.√√√√√
28*Lights, signals and
switches• Check operation.
• Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U1MDE1E0.book Page 6 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU40551
TIPThe air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake and YCC-S clutch service
• Regularly check and, if necessary, correct the brake and YCC-S clutch fluid levels.
• Every two years replace the internal components of the brake master cylinders and calipers as well as YCC-S clutch
master and release cylinders, and change the brake and YCC-S clutch fluids.
• Replace the brake and YCC-S clutch hoses every four years and if cracked or damaged.
U1MDE1E0.book Page 7 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU18773

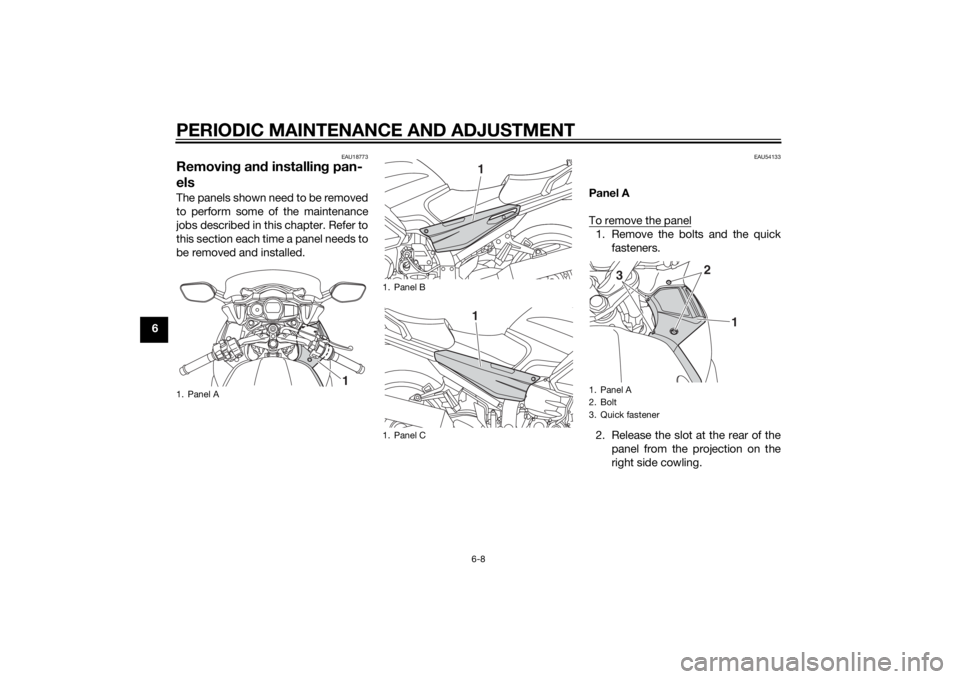

Removing and installing pan-
elsThe panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU54133
Panel A
To remove the panel1. Remove the bolts and the quick
fasteners.
2. Release the slot at the rear of the
panel from the projection on the
right side cowling.
1. Panel A
1
1. Panel B
1. Panel C
11
1. Panel A
2. Bolt
3. Quick fastener
1
2
3
