Gross axle weight rating, front
Gross axle weight rating, rear

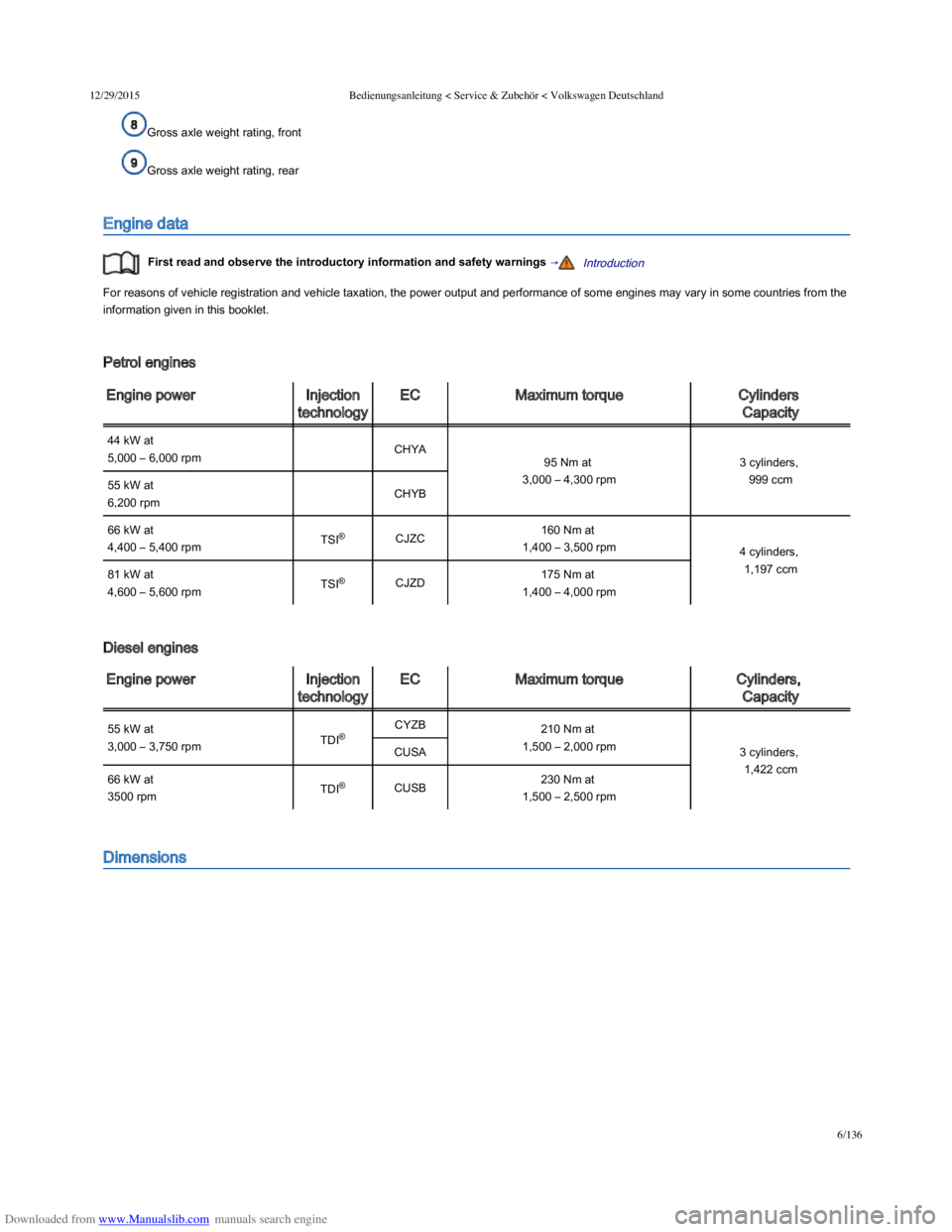

Engine data
First read and observe the introductory information and safety warnings →Introduction
For reasons of vehicle registration and vehicle taxation, the power output and performance of some engines may vary in some countries from the
information given in this booklet.
Petrol engines
Engine powerInjection
technology
ECMaximum torqueCylinders
Capacity
44 kW at
5,000 – 6,000 rpm CHYA
95 Nm at
3,000 – 4,300 rpm
3 cylinders,
999 ccm55 kW at
6,200 rpm CHYB
66 kW at
4,400 – 5,400 rpmTSI®CJZC160 Nm at
1,400 – 3,500 rpm4 cylinders,
1,197 ccm81 kW at
4,600 – 5,600 rpmTSI®CJZD175 Nm at
1,400 – 4,000 rpm
Diesel engines
Engine powerInjection
technology
ECMaximum torqueCylinders,
Capacity
55 kW at
3,000 – 3,750 rpmTDI®CYZB210 Nm at
1,500 – 2,000 rpm3 cylinders,
1,422 ccm
CUSA
66 kW at
3500 rpmTDI®CUSB230 Nm at
1,500 – 2,500 rpm
Dimensions
