2015 VAUXHALL MOVANO_B Owner's Manual

In brief7Seat adjustmentSeat positioning
Pull handle, slide seat, release
handle.
Seat position 3 37, Seat adjustment
3 38.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Pull lever, adjust inclination and
release lever.Allow the seat to
engage audibly.
Seat position 3 37, Seat adjustment
3 38.
Seat height
Lever motion
up=seat higherdown=seat lower
Seat position 3 37, Seat adjustment
3 38.

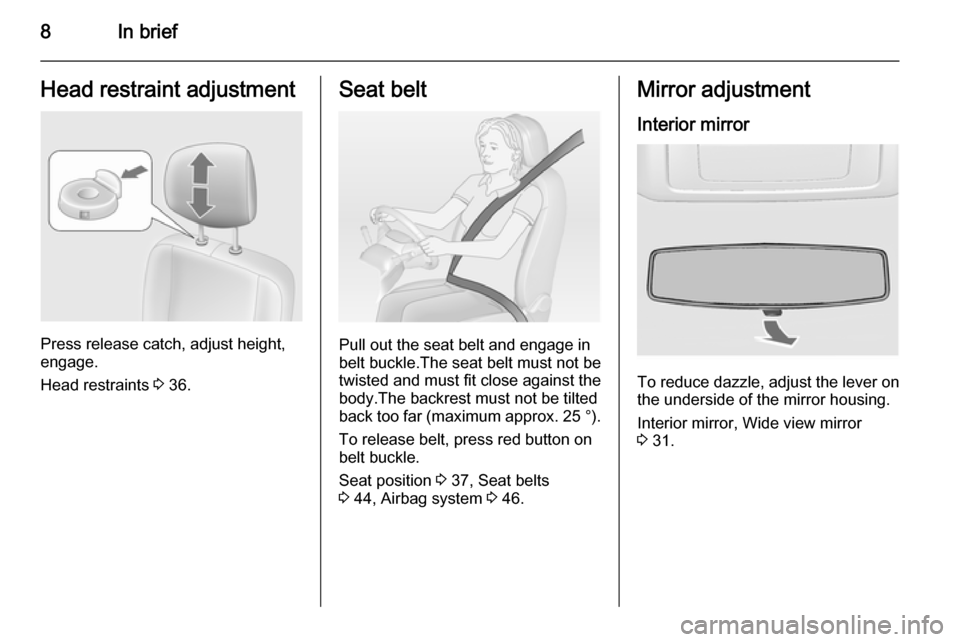

8In briefHead restraint adjustment
Press release catch, adjust height,
engage.
Head restraints 3 36.
Seat belt
Pull out the seat belt and engage in
belt buckle.The seat belt must not be twisted and must fit close against the
body.The backrest must not be tilted
back too far (maximum approx. 25 °).
To release belt, press red button on
belt buckle.
Seat position 3 37, Seat belts
3 44, Airbag system 3 46.
Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror, Wide view mirror
3 31.

In brief9
Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 30.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 30,
Electric adjustment 3 30, Folding
exterior mirrors 3 30, Heated
exterior mirrors 3 31.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 46, Ignition
positions 3 110.

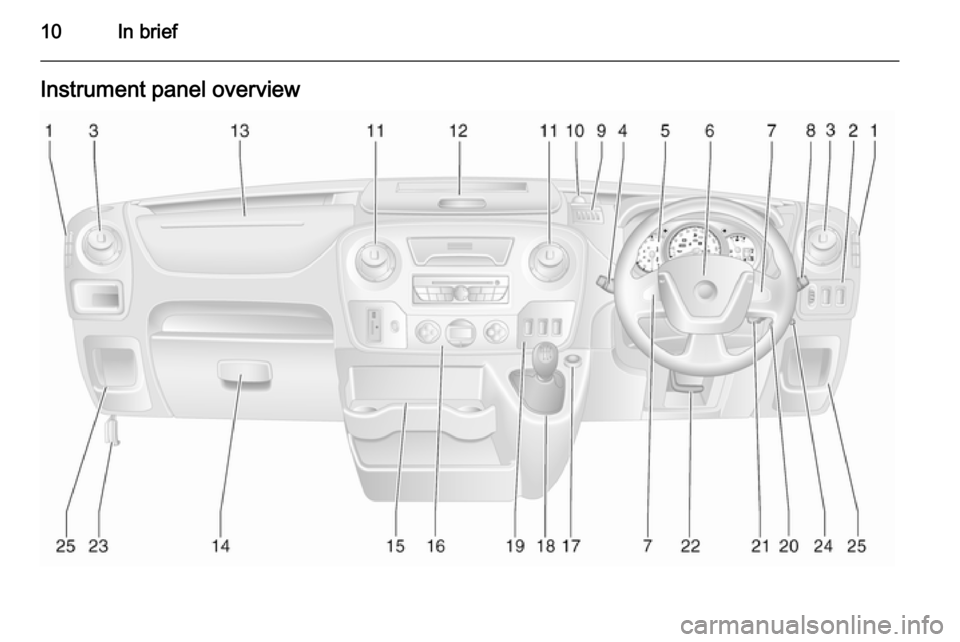

10In briefInstrument panel overview

In brief11
1Fixed air vents .................... 106
2 Headlight range
adjustment ........................... 90
Ultrasonic parking assist .....128
Traction control system ......123
Electronic stability program 124
3 Side air vents .....................106
4 Light switch .......................... 89
Turn and lane-change
signals .................................. 91
High beam and low beam,
headlight flash ......................90
Sidelights .............................. 89
Automatic light control .......... 89
Exit lighting ........................... 94
Front fog lights .....................91
Rear fog light ........................ 92
5 Instruments .......................... 74
Transmission display ............76
Driver Information Centre ...... 846 Horn ..................................... 70
Driver airbag ........................ 50
7 Remote control on
steering wheel .......................69
Cruise control .....................125
8 Windscreen wiper,
windscreen washer system ..70
Trip computer ........................ 86
9 Coin tray ............................... 61
10 Power outlet ......................... 72
11 Centre air vents .................. 106
12 Storage compartment ...........61
13 Front passenger airbag .........50
Storage compartment ..........61
14 Glovebox .............................. 62
15 Cupholders ........................... 62
16 Climate control system ......... 96
17 Cigarette lighter .................... 73
Power outlet ......................... 7218Gear lever, Manual
transmission ........................ 117
Manual transmission
automated ........................... 117
19 Cruise control and speed
limiter ................................. 125
Manual transmission
automated,
Winter and Laden modes ....119
Idle speed control ...............111
Stop-start system ................111
20 Ignition switch with
steering wheel lock ............110
21 Steering column controls .....70
22 Steering wheel adjustment ..69
23 Bonnet release lever ..........137
24 Auxiliary heater ...................102
25 Storage compartment ..........61
Fuse box ............................ 154

12In briefExterior lighting

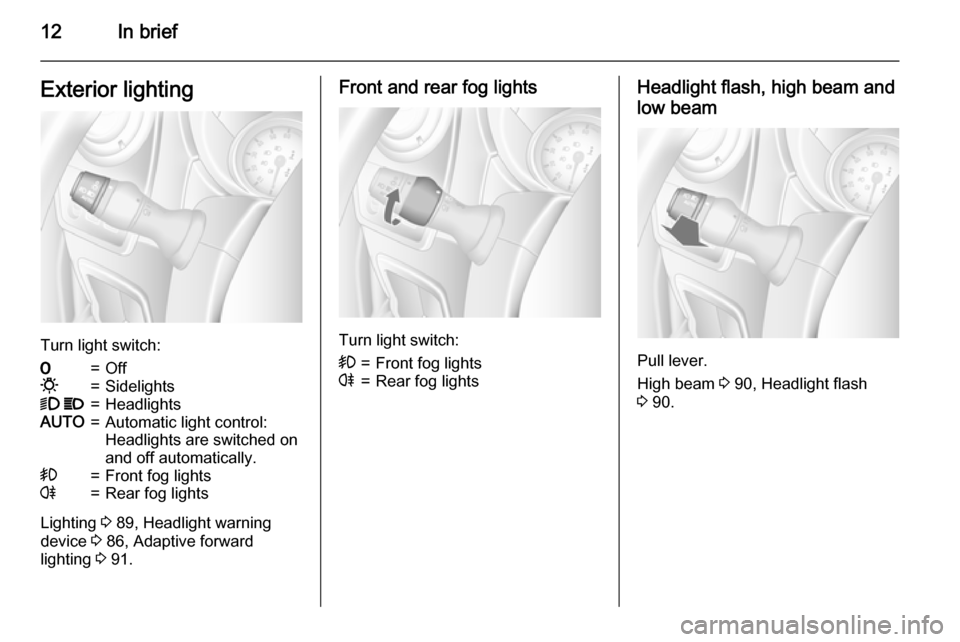

Turn light switch:
7=Off0=Sidelights9 P=HeadlightsAUTO=Automatic light control:
Headlights are switched on
and off automatically.>=Front fog lightsr=Rear fog lights
Lighting 3 89, Headlight warning
device 3 86, Adaptive forward
lighting 3 91.
Front and rear fog lights
Turn light switch:
>=Front fog lightsr=Rear fog lightsHeadlight flash, high beam and
low beam
Pull lever.
High beam 3 90, Headlight flash
3 90.

In brief13

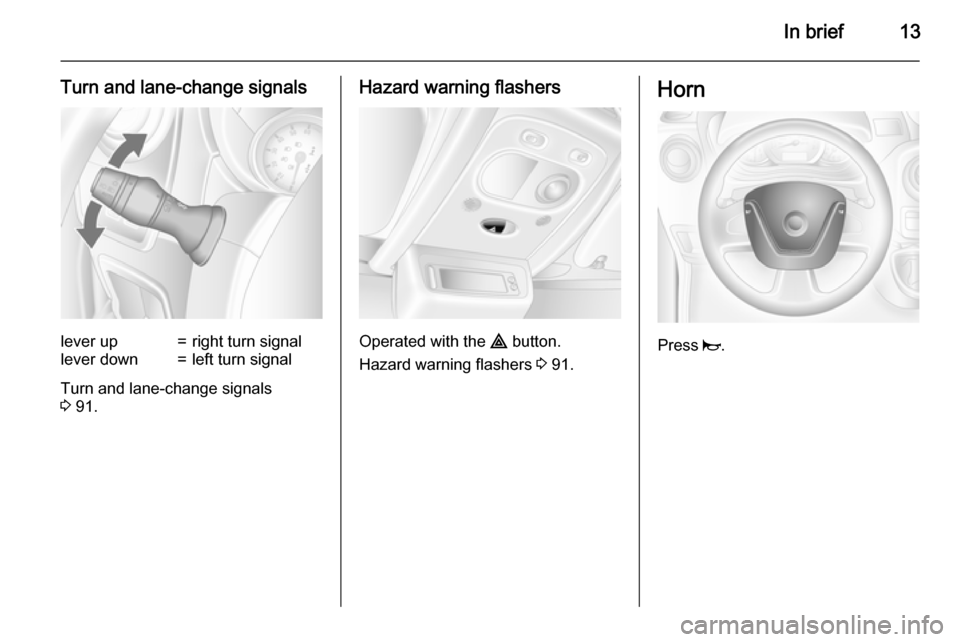

Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 91.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 91.
Horn
Press j.

14In briefWasher and wiper systems
Windscreen wiper0=offP=timed interval wiping or
automatic wiping with rain
sensor1=slow2=fast
Windscreen wiper, automatic wiping
with rain sensor 3 70, Wiper blade
replacement 3 143.
Windscreen washer
Pull lever.
short pull=wiper swipes once
and washer fluid is
sprayed onto the
windscreenlong pull=wiper swipes for a
few strokes and
washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 70, Wiper
blade replacement 3 143, Washer
fluid 3 140.
Climate control
Heated rear window, heatedexterior mirrors
Heating is operated by pressing the
Ü button.
Heated exterior mirrors 3 31,
Heated rear window 3 34.
