2015 TOYOTA PRIUS PLUG-IN Owners Manual

182
1-7. Refueling
PRIUS PHV_OM_OM47A11U_(U)
NOTICE
■Refueling
●Finish refueling within 30 minutes. If more than 30 minutes passes, the
internal valve closes. In this condition, fuel may spill out if you continue to
refuel the vehicle. About 5 minutes after the valve is closed, a message
“CLOSE FUEL LID” will appear on the multi-information display. To refuel
the vehicle again, tighten fuel tank cap and close the fuel filler door, and
then press the fuel filler door opener switch again.
●Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
■Notice about fuel
For plug-in hybrid vehicles, fuel may remain in the tank for a long time and
undergo changes in quality depending on the how the vehicle is used.
Refuel at least 5.3 gal.(20 L, 4.4 Imp.gal.) of fuel every 6 months (refuel a
total of at least 5.3 gal. [20 L, 4.4 Imp.gal.] over a 6-month period), as this
may affect components of the fuel system or the gasoline engine.

183
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
1-8. Theft deterrent system
Immobilizer system
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■Conditions affecting operation
Depending on the surrounding environment and conditions, the immobilizer
system may not operate properly. This may prevent the hybrid system from
starting. (oP. 1 2 3 )
The vehicle’s keys have built-in transponder chips that prevent the
hybrid system from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.
The indicator light flashes after
the “POWER” switch has been
turned off to indicate that the
system is operating.
The indicator light stops flash-
ing after the “POWER” switch
has been turned to ACCES-
SORY or ON mode to indicate
that the system has been can-
celed.

184
1-8. Theft deterrent system
PRIUS PHV_OM_OM47A11U_(U)
■Certifications for the immobilizer system
For vehicles sold in the U.S.A. and Hawaii
For vehicles sold in Canada
NOTICE
■To e n s u r e t h e s y s t e m o p e r a t e s c o r r e c t l y
Do not modify or remove the system.
If modified or removed, the proper operation of the system cannot be guar-
anteed.

185
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
1-9. Safety information

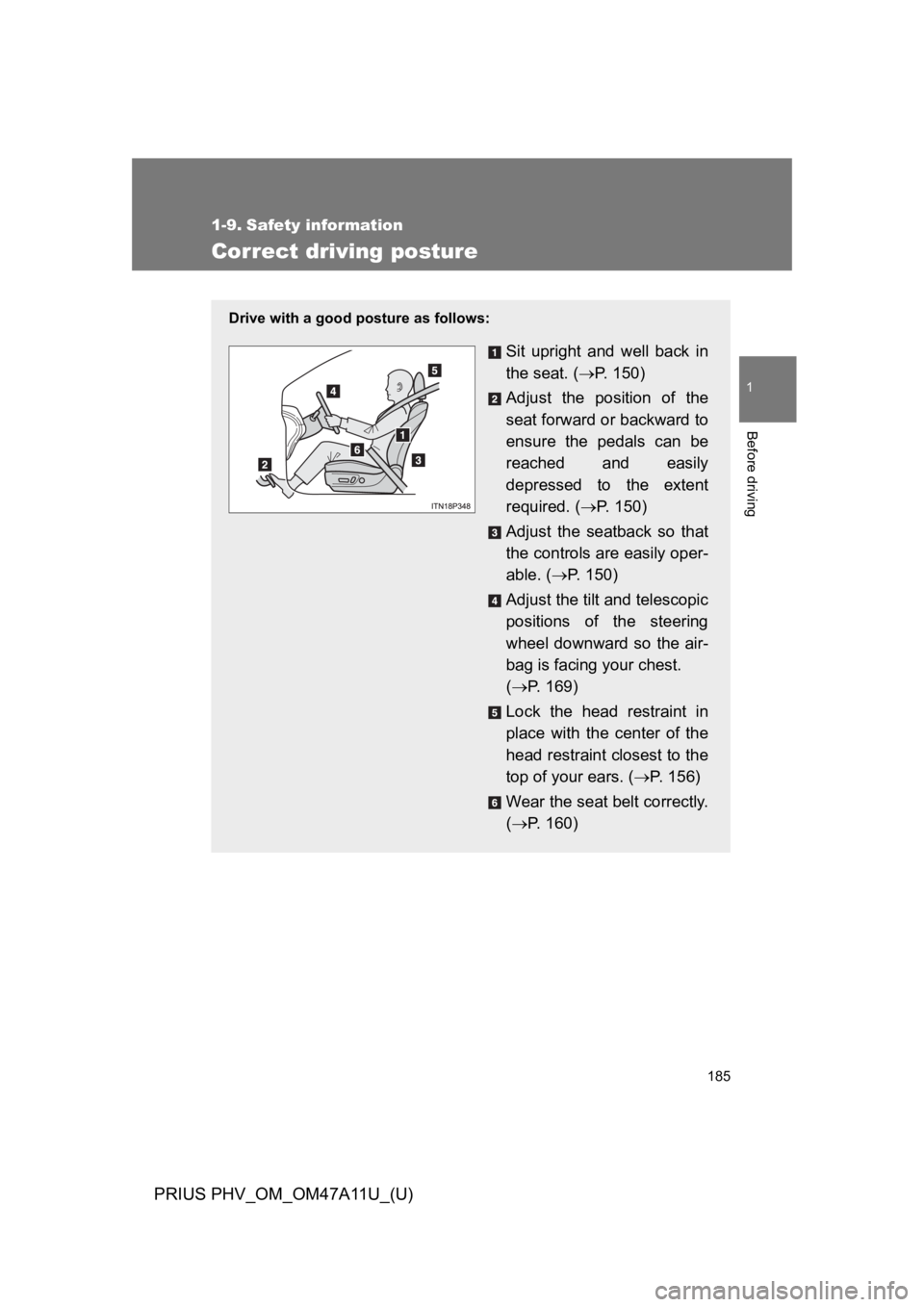

Correct driving posture
Drive with a good posture as follows:
Sit upright and well back in
the seat. (oP. 1 5 0 )
Adjust the position of the
seat forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. (oP. 1 5 0 )
Adjust the seatback so that
the controls are easily oper-
able. (oP. 1 5 0 )
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
(oP. 1 6 9 )
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (oP. 1 5 6 )
Wear the seat belt correctly.
(oP. 1 6 0 )

186
1-9. Safety information
PRIUS PHV_OM_OM47A11U_(U)
CAUTION
■While driving
●Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent, resulting in death or serious injury. The adjustment mechanism may
also be damaged.
■Adjusting the seat position
●Ta k e c a r e w h e n a d j u s t i n g t h e s e a t p o s i t i o n t o e n s u r e t h a t o t h e r p a s s e n -
gers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

187
1
1-9. Safety information
Before driving
PRIUS PHV_OM_OM47A11U_(U)
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce the
risk of death or serious injury.
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front pas-
senger from impact with interior components
SRS knee airbag
Can help provide driver protection

188
1-9. Safety information
PRIUS PHV_OM_OM47A11U_(U)
SRS side and curtain shield airbags
SRS side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer
seats

189
1-9. Safety information
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
SRS airbag system components
Front passenger airbag
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Side airbags
Curtain shield airbags
Front passenger occupant
classification system (ECU
and sensors)
Side impact sensors (rear)
SRS warning light
Driver airbag
Side impact sensors (front)
Seat belt pretensioners and
force limiters
Side impact sensors (front
door)
Driver’s seat belt buckle
switch
Driver’s seat position sensor
Driver’s knee airbag
Front passenger’s seat belt
buckle switch
Front impact sensors
Airbag sensor assembly
