4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
Hold the hood open by insert-
ing the supporting rod into
either of the slots.
Use the forward slot to open
the hood normally, or use the
rearward slot when the hood
needs to be opened wide.
STEP 3

450
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

451
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement (such as under rear suspension etc.) may
damage your vehicle or cause injury.
■Front
■Rear
ITO43P106

452
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
●When using a floor jack, follow the instructions of the manual provided with
the jack.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
●Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
●Do not start the hybrid system while the vehicle is supported by the floor
jack.
●Stop the vehicle on level, firm ground, firmly set the park ing brake and shift
the shift position to P.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

453
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
CAUTION
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any object on top of or underneath
the floor jack.
●When raising the vehicle, do not set the
floor jack under the rear suspension.
ITO43P206
Rear suspension
Front

454
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
Replacing the tire
When raising your vehicle with a jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
■Before jacking up the vehicle
●St op the veh i cle on a ha rd, flat sur face.
●Set the parking brake.
●Shift the shift position to P.
●St op the hyb rid system.
■Location of the jack and tools
To o l b o x l i d
Wheel nut wrench
Jack
Jack handle
To w i n g e y e l e t

455
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)
4
Maintenance and care
Ta k i n g o u t a n d s t o r i n g t h e j a c k a n d t o o l s
■Ta k i n g o u t t h e j a c k a n d t o o l s
Move the driver’s seat to the fully forward position. (oP. 1 5 0 )
Remove the tool box lid.
Remove 2 claws and pull the lid.
Unhook the tightening strap and
take out the jack.
Ta k e o u t t h e j a c k h a n d l e a f t e r
taking out the jack.
STEP 1
STEP 2

456
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47A11U_(U)

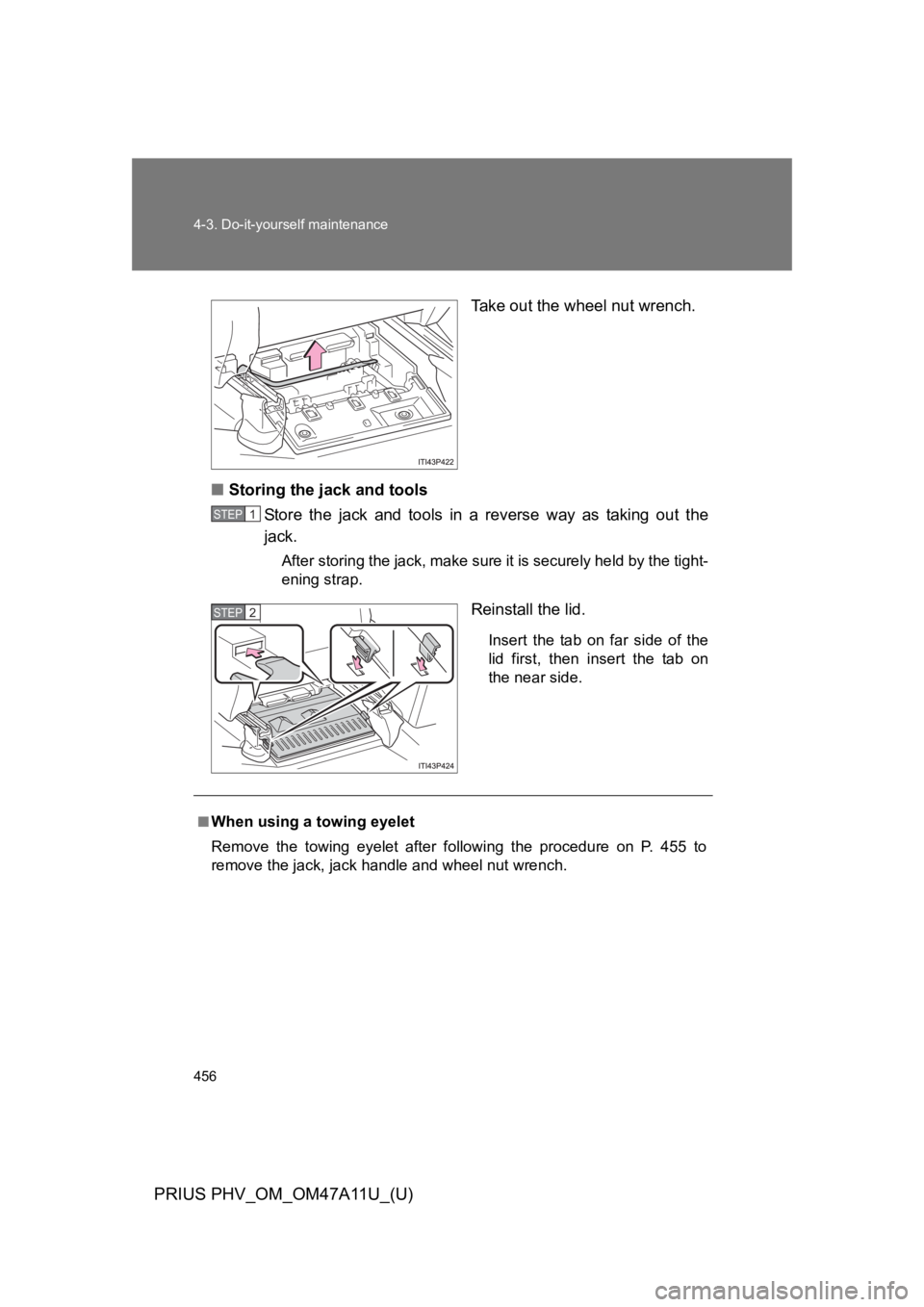

Ta k e o u t t h e w h e e l n u t w r e n c h .
■Storing the jack and tools
St ore the jack and tools in a reverse way a s taking out the
jack.
After storing the jack, make sure it is securely held by the tight-
ening strap.
Reinstall the lid.
Insert the tab on far side of the
lid first, then insert the tab on
the near side.
STEP 1
STEP 2
■When using a towing eyelet
Remove the towing eyelet after following the procedure on P. 455 to
remove the jack, jack handle and wheel nut wrench.
