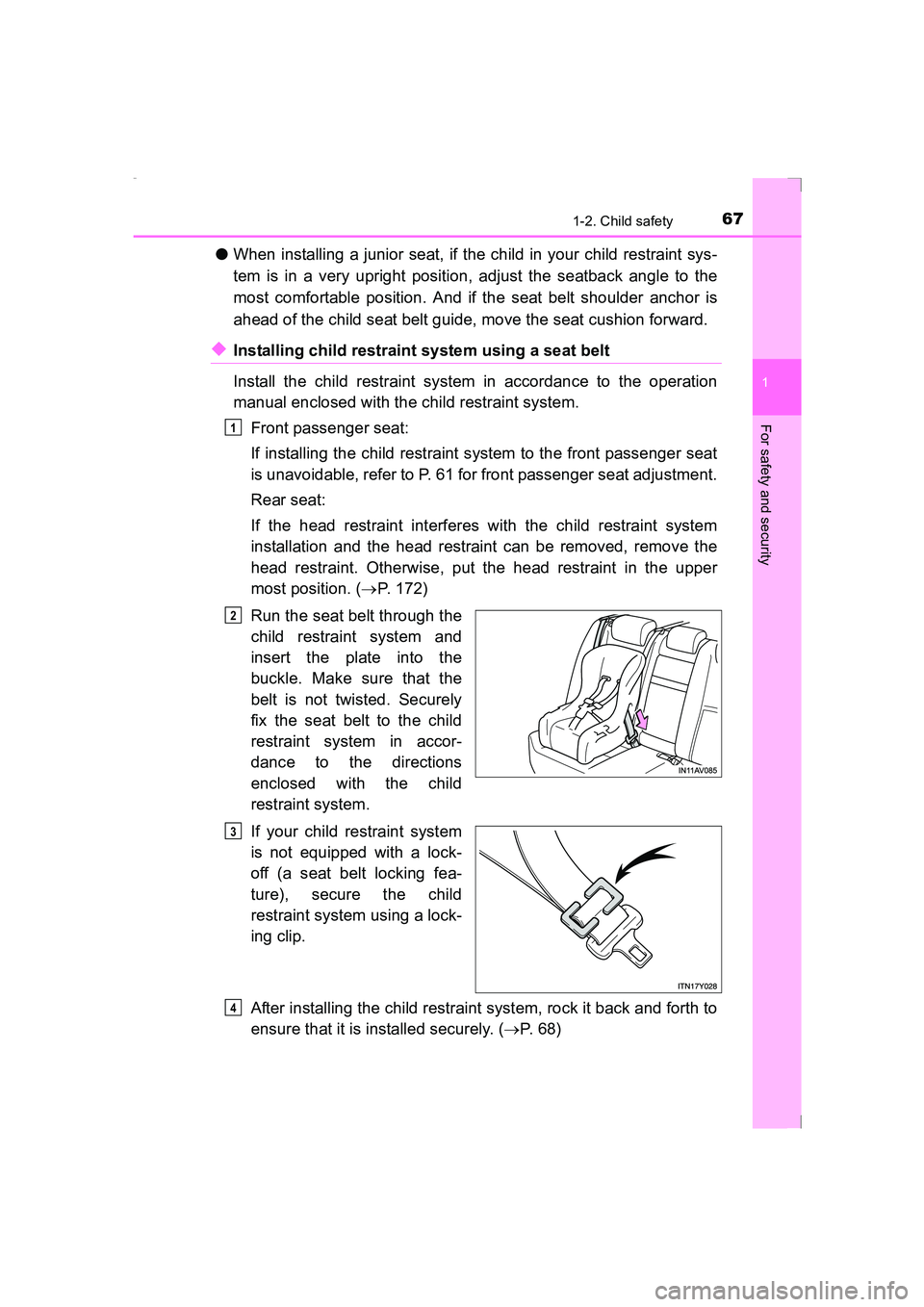

671-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
●When installing a junior seat, if the child in your child restraint sys-
tem is in a very upright position, adjust the seatback angle to the
most comfortable position. And if the seat belt shoulder anchor is
ahead of the child seat belt guide, move the seat cushion forward.
◆Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
Front passenger seat:
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 61 for front passenger seat adjustment.
Rear seat:
If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( →P. 172)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Securely
fix the seat belt to the child
restraint system in accor-
dance to the directions
enclosed with the child
restraint system.
If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( →P. 6 8 )
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 67 Thursday, January 29, 2 015 1:47 PM

681-2. Child safety
AVENSIS_OM_OM20C20E_(EE)
◆Removing a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the buckle, the child restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while holding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return it to the stow-
ing position.
■ When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item
from any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional: Locking clip for child restraint system
(Part No. 73119-22010)
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Follow all installation instructions provided by the child restraint system
manufacturer.
AVENSIS_OM_OM20C20E_(EE).book Page 68 Thursday, January 29, 2 015 1:47 PM

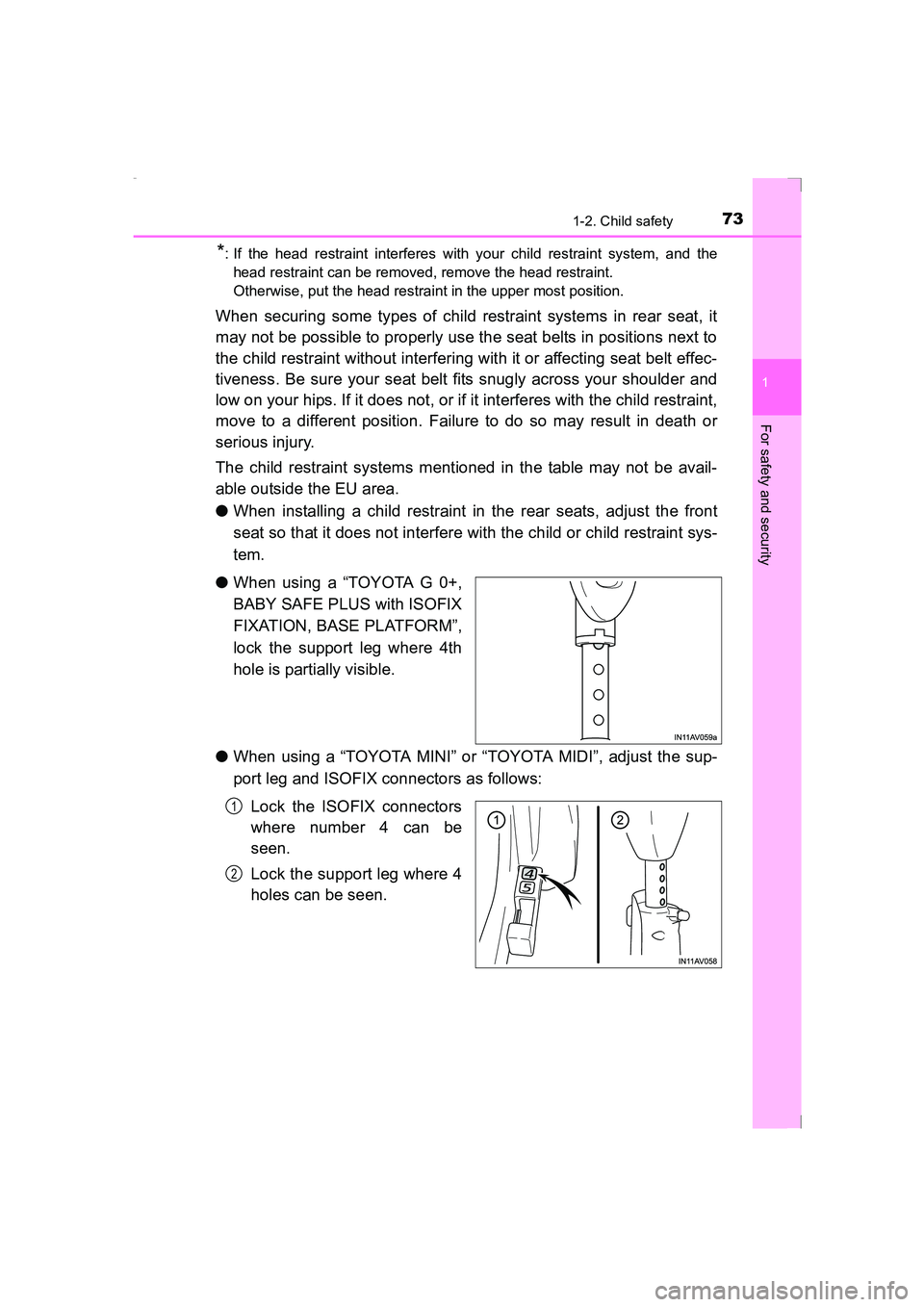

731-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
*: If the head restraint interferes with your child restraint system, and thehead restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting seat belt effec-
tiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in death or
serious injury.
The child restraint systems mentioned in the table may not be avail-
able outside the EU area.
● When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint sys-
tem.
● When using a “TOYOTA G 0+,
BABY SAFE PLUS with ISOFIX
FIXATION, BASE PLATFORM”,
lock the support leg where 4th
hole is partially visible.
● When using a “TOYOTA MINI” or “TOYOTA MIDI”, adjust the sup-
port leg and ISOFIX connectors as follows:
Lock the ISOFIX connectors
where number 4 can be
seen.
Lock the support leg where 4
holes can be seen.
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 73 Thursday, January 29, 2 015 1:47 PM

87
1
1-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
For safety and security
Double locking system∗
Vehicles employing this system
have labels on the window glass
of both front doors.Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start
system), have all passengers exit the vehicle and ensure that all the
doors are closed.
Using the entry function (vehicles with smart entry & start system):
Touch the lock sensor on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function (vehicles with smart entry & start system):
Hold the outside door handle on the driver side.
Using the wireless remote control:
Press .
∗: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system
Canceling the double locking system
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 87 Thursday, January 29, 2 015 1:47 PM

881-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.
AVENSIS_OM_OM20C20E_(EE).book Page 88 Thursday, January 29, 2 015 1:47 PM

89
1
1-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
For safety and security
Alar m∗
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
being set:
●A locked door or trunk/back door is unlocked or opened in any way
other than using the entry function (vehicles with smart entry & start
system) or wireless remote control. (The doors will lock again auto-
matically.)
● The hood is opened.
● If equipped, the intrusion sensor detects something moving inside
the vehicle. (An intruder gets in the vehicle.)
Close the doors, trunk/back door
and hood, and lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to deactivate or stop the alarm.
● Unlock the doors or trunk/back door using the entry function (vehi-
cles with smart entry & start system) or wireless remote control.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
∗: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm
AVENSIS_OM_OM20C20E_(EE).book Page 89 Thursday, January 29, 2 015 1:47 PM

901-3. Theft deterrent system
AVENSIS_OM_OM20C20E_(EE)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●The door is unlocked using the key.
● A person inside the vehicle opens a door
or hood.
● The battery is recharged or replaced
when the vehicle is locked.
AVENSIS_OM_OM20C20E_(EE).book Page 90 Thursday, January 29, 2 015 1:47 PM

911-3. Theft deterrent system
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
■When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is disconnected before canceling the alarm, the system may be
triggered when the battery is reconnected.
■ Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent
intruders.
● Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
