24Pictorial index
AVENSIS_OM_OM20C20E_(EE)
■Switches (Right-hand drive vehicles)
Manual headlight leveling dial*1 . . . . . . . . . . . . . . . . . . . . . P. 235
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 179
Stop & Start cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 286
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Driving position memory buttons
*1 . . . . . . . . . . . . . . . . . . P. 170
PCS (Pre-Crash Safety system) switch
*1 . . . . . . . . . . . . . . P. 255
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C20E_(EE).book Page 24 Thursday, January 29, 2 015 1:47 PM

26Pictorial index
AVENSIS_OM_OM20C20E_(EE)

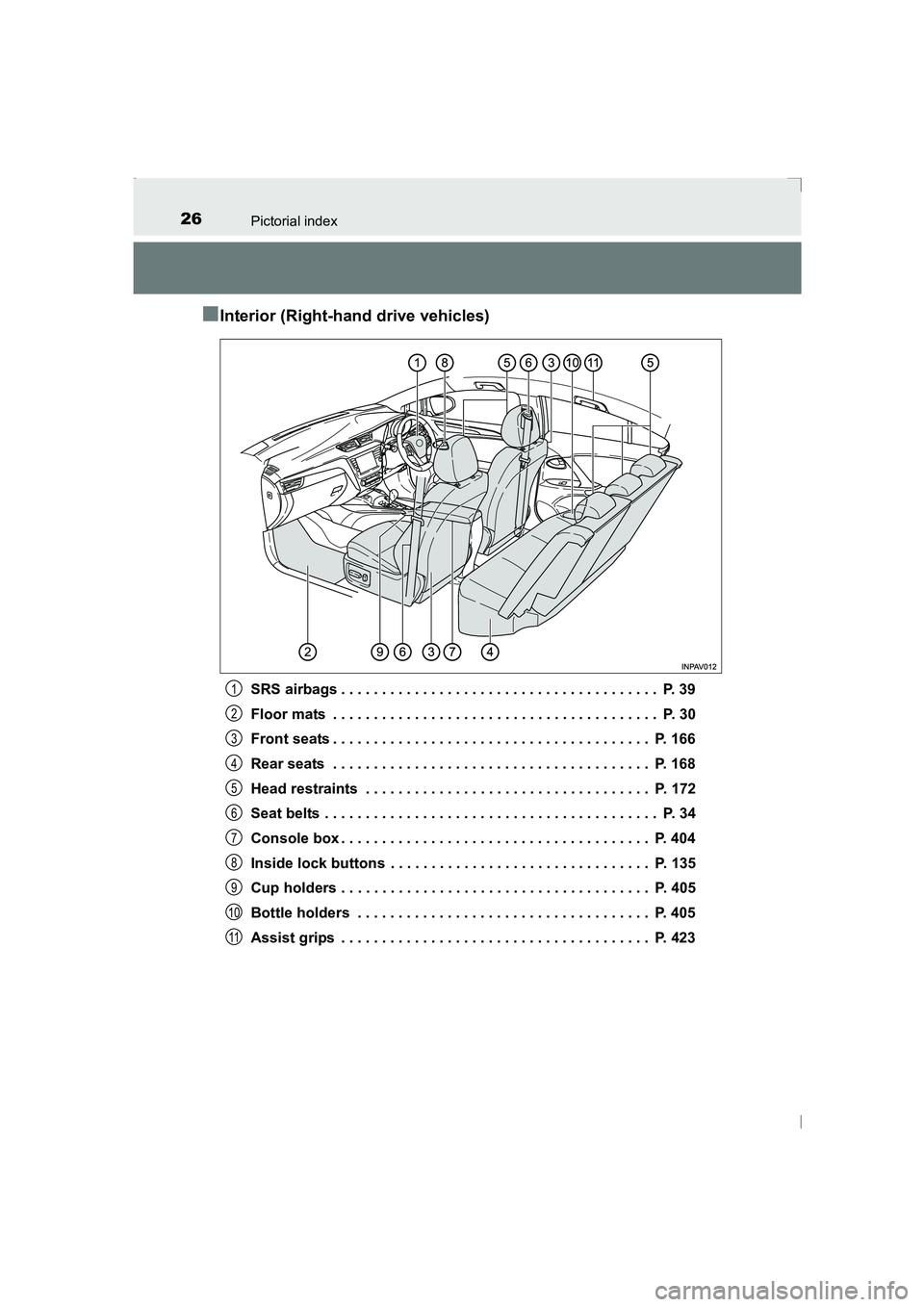

■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 39
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 404
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4231
2
3
4
5
6
7
8
9
10
11
AVENSIS_OM_OM20C20E_(EE).book Page 26 Thursday, January 29, 2015 1:47 PM

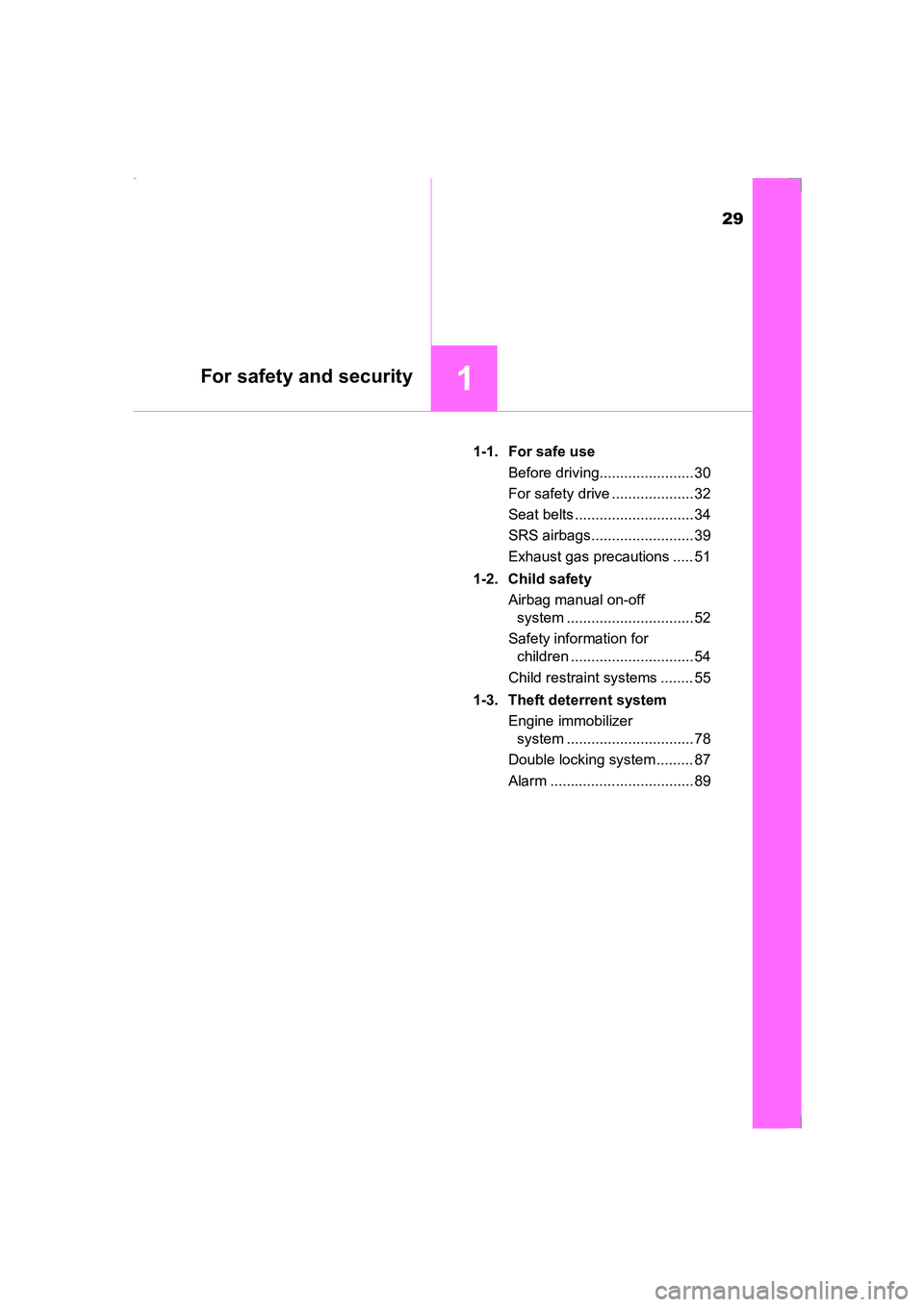

29
1For safety and security
AVENSIS_OM_OM20C20E_(EE)1-1. For safe use
Before driving....................... 30
For safety drive .................... 32
Seat belts ............................. 34
SRS airbags.........................39
Exhaust gas precautions ..... 51
1-2. Child safety Airbag manual on-off system ............................... 52
Safety information for children .............................. 54
Child restraint systems ........ 55
1-3. Theft deterrent system Engine immobilizer system ............................... 78
Double locking system ......... 87
Alarm ................................... 89
AVENSIS_OM_OM20C20E_(EE).book Page 29 Thursday, January 29, 2 015 1:47 PM

321-1. For safe use
AVENSIS_OM_OM20C20E_(EE)
For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (→P. 166)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( →P. 166)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( →P. 172)
Wear the seat belt correctly. ( →P. 3 4 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( →P. 3 4 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( → P. 5 5 )
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( →P. 176, 179)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 32 Thursday, January 29, 2 015 1:47 PM

331-1. For safe use
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
AVENSIS_OM_OM20C20E_(EE).book Page 33 Thursday, January 29, 2 015 1:47 PM

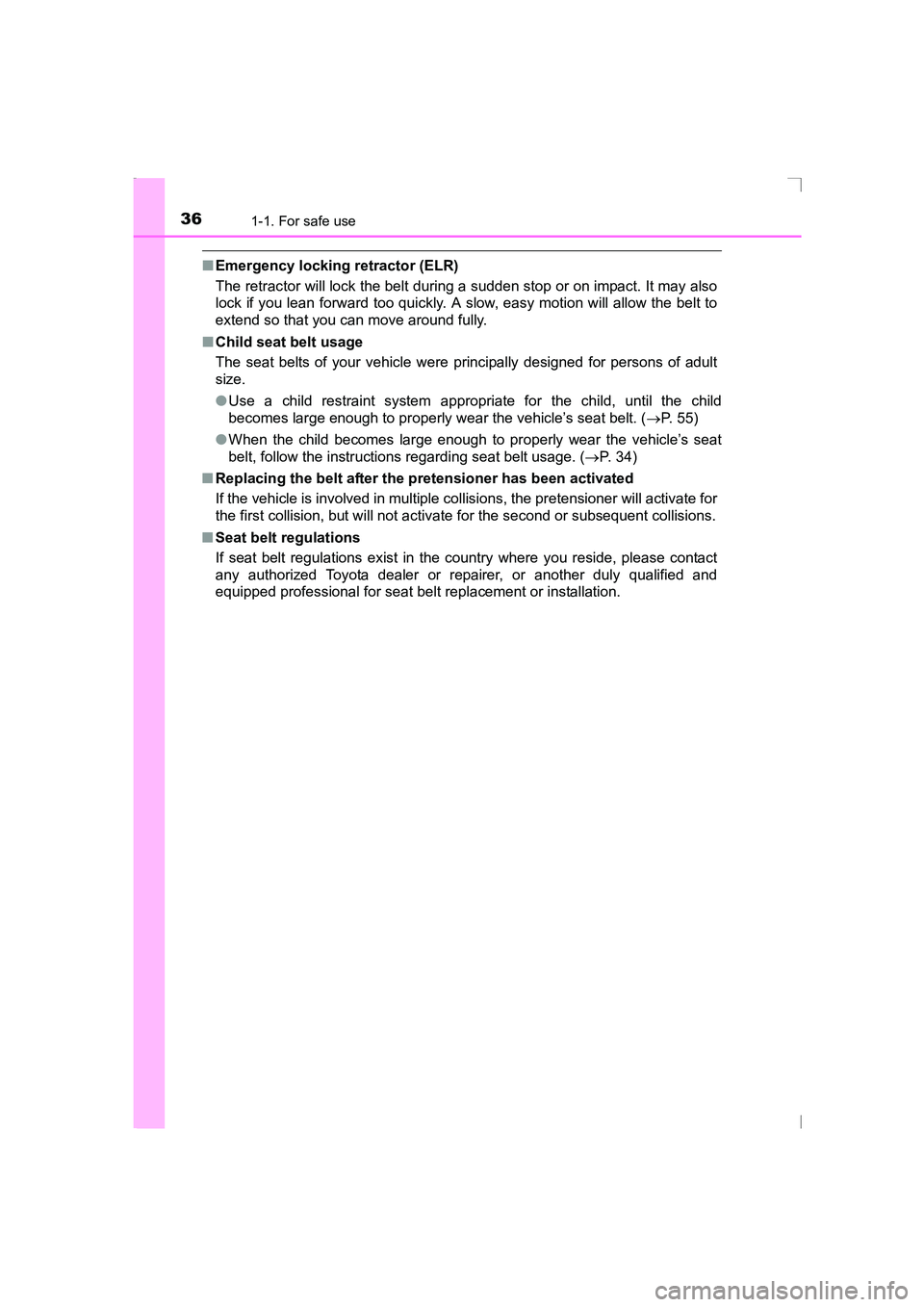

361-1. For safe use
AVENSIS_OM_OM20C20E_(EE)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( →P. 55)
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( →P. 34)
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
■ Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional for seat belt replacement or installation.
AVENSIS_OM_OM20C20E_(EE).book Page 36 Thursday, January 29, 2 015 1:47 PM

381-1. For safe use
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional.
■ Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. ( →P. 35)
■ Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodicall y. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. Inappropriate handling of the pretensioner may prevent it from
operating properly resulting in death or serious injury.
● Always make sure the shoulder belt passes through the guide when using
the seat belt. Failure to properly position the belt may reduce the amount
of protection in an accident and could lead to serious injuries in a collision
or sudden stop.
● Always make sure that the seat belt is not twisted, does not get caught in
the guide or the seatback and is arranged in the proper position.
AVENSIS_OM_OM20C20E_(EE).book Page 38 Thursday, January 29, 2 015 1:47 PM

541-2. Child safety
AVENSIS_OM_OM20C20E_(EE)
Safety infor mation for children
●It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, trunk (sedan),
back door (wagon), seats etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.
AVENSIS_OM_OM20C20E_(EE).book Page 54 Thursday, January 29, 2 015 1:47 PM
